Push Button Switch Green White Light Radar Power Fog Light Fixed Horn Garage Momentary Type For Toyota Camry Corolla RAV4 Prado

Custom Service--

https://www.aliexpress.com/item/1005011893009272.html?pdp_npi=4%40dis%21USD%21US+%2426.43%21US+%2421.14%21%21%21178.01%21142.41%21%400bab10bc17802761597263344e1db2%2112000056938720886%21sh%21US%216002109811%21X&spm=a2g0o.store_pc_allItems_or_groupList.new_all_items_2011733527094.1005011893009272&gatewayAdapt=4itemAdapt

★About This Product

With green & white Led, All symbols are Laser etched directly onto the switch face, Not easily worn out

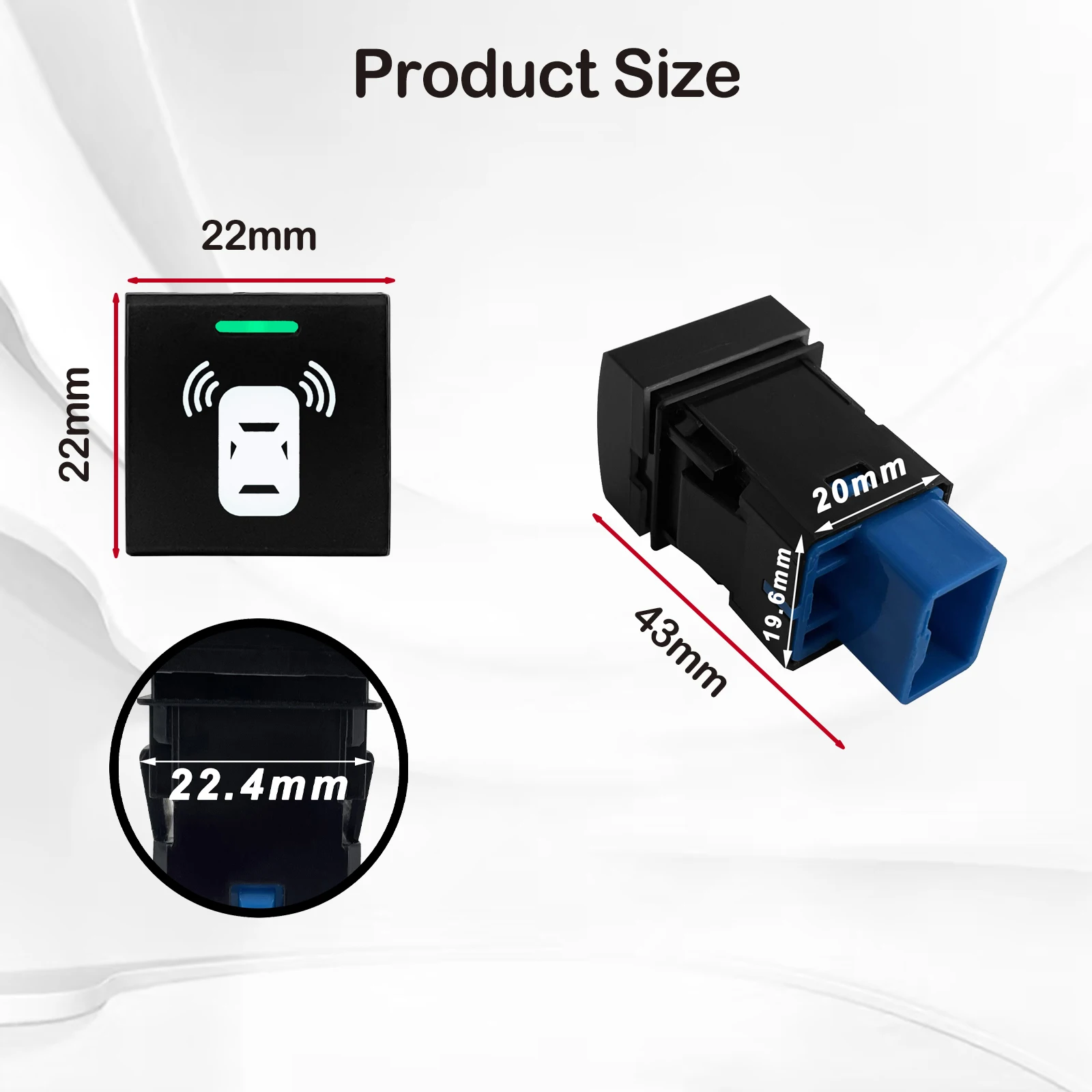

The button face size is 22mm x 22mm ( 0.87" x 0.87")

The material type used for it is ABS, which is known for its strength and durability

They are single pole single throw ON OFF type. Momentary type will go to OFF position when you put away your fingers

Led Lights Status: Switch OFF: Top Green indicator lights; Switch ON: Top and Down lights ON

It is rated 3amp at 12VDC

Package Includes: Switch x 1; Cable x 1

★ About Pattens

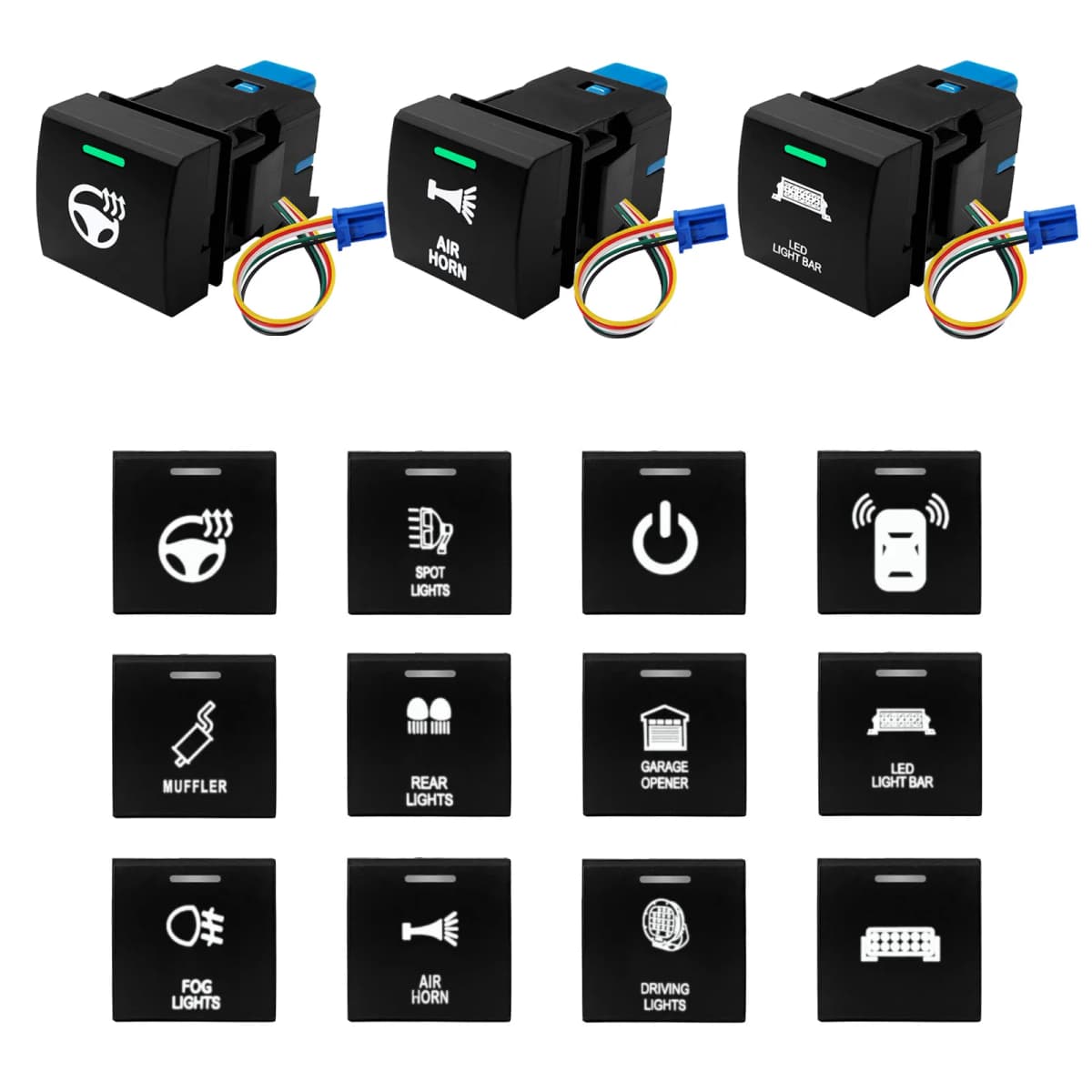

We have air comp, camera, front fog, led light bar,led worklight, left light, music, parking sensor, power, radar, radio, rear fog, rear light, rear locker, right light, rock lights, roof lights, spot lights, trunk(momentary), view, wheel heating, wi-fi, winch, windshield heating, air horn(momentary), driving lights, fog lights, garage opener(momentary), muffler, blank switch, blank switch(momentary)

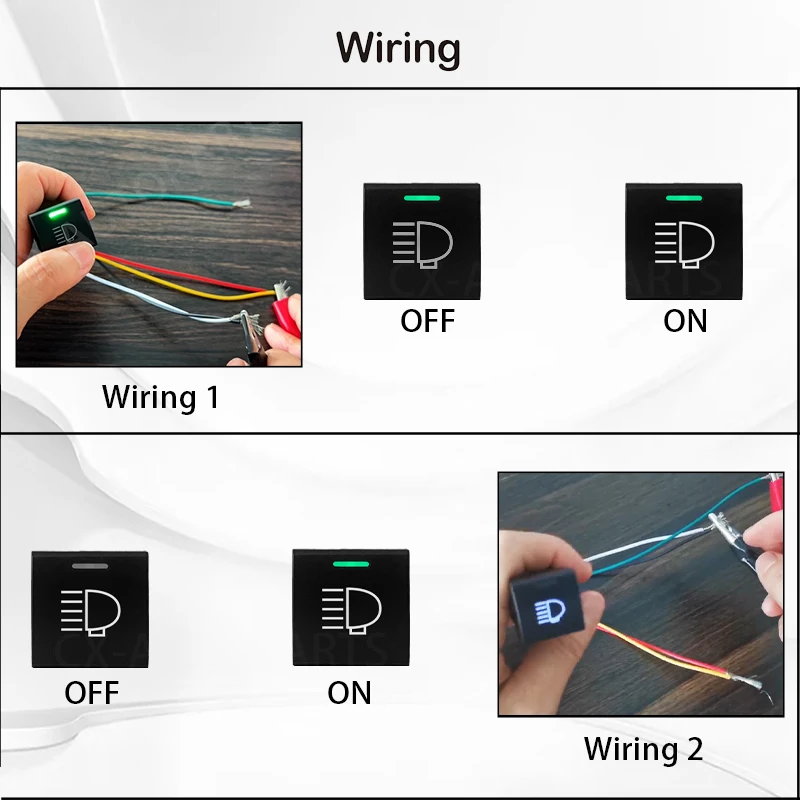

★ About Wiring

Wiring 1: Connect red and yellow to positive, black and white to negative, and green to equipment. (When powered on, the green light on the top is always on, and the green and white lights are on when the switch is working)

Wiring 2: Connect the green wire to positive, connect the black and white wires to negative, and twist the red and yellow wires together. (When powered on, the bottom white light is always on, and when the switch is working, the green and white lights are on)

★About Fitment: It fits the following models, for other models please check the button face size 22mm x 22mm ( 0.87" x 0.87")

For Toyota Camry 70 Series 09/2017- Onwards

For Toyota Hiace 02/2019 - Onwards

ForToyota Corolla 06/2018 - Onward

For TOYOTA PRADO 150s 08/2017 - Onwards

For Toyota RAV4 & RAV4 Hybrid 01/2019 - Onwards

For Toyota LandCruiser 300s 2022 - Onwards
