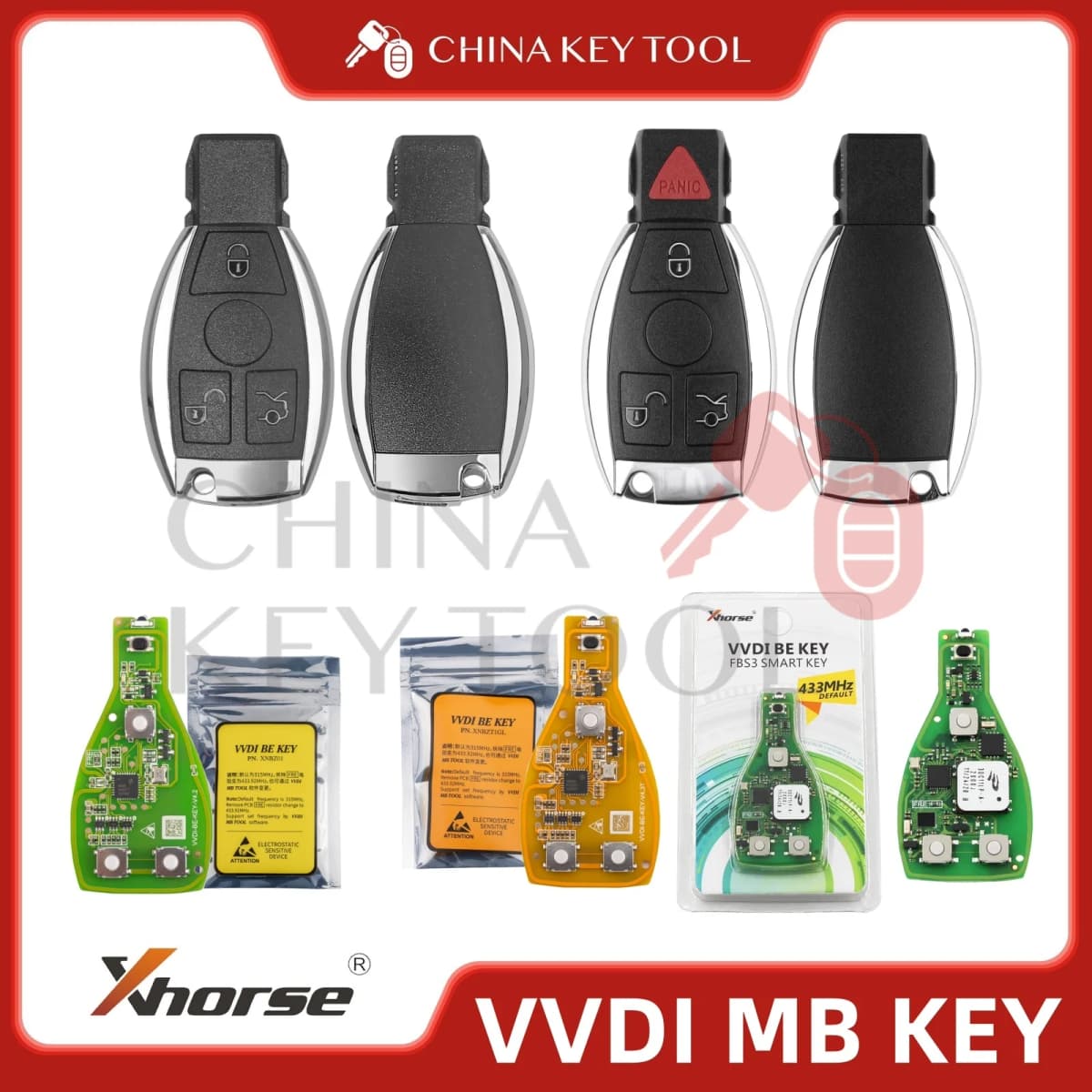

Xhorse VVDI BE Key Pro XNBZ01EN/XNBZT1GL/FBS3 KEYLESS with High Quality Remote Shell

Xhorse

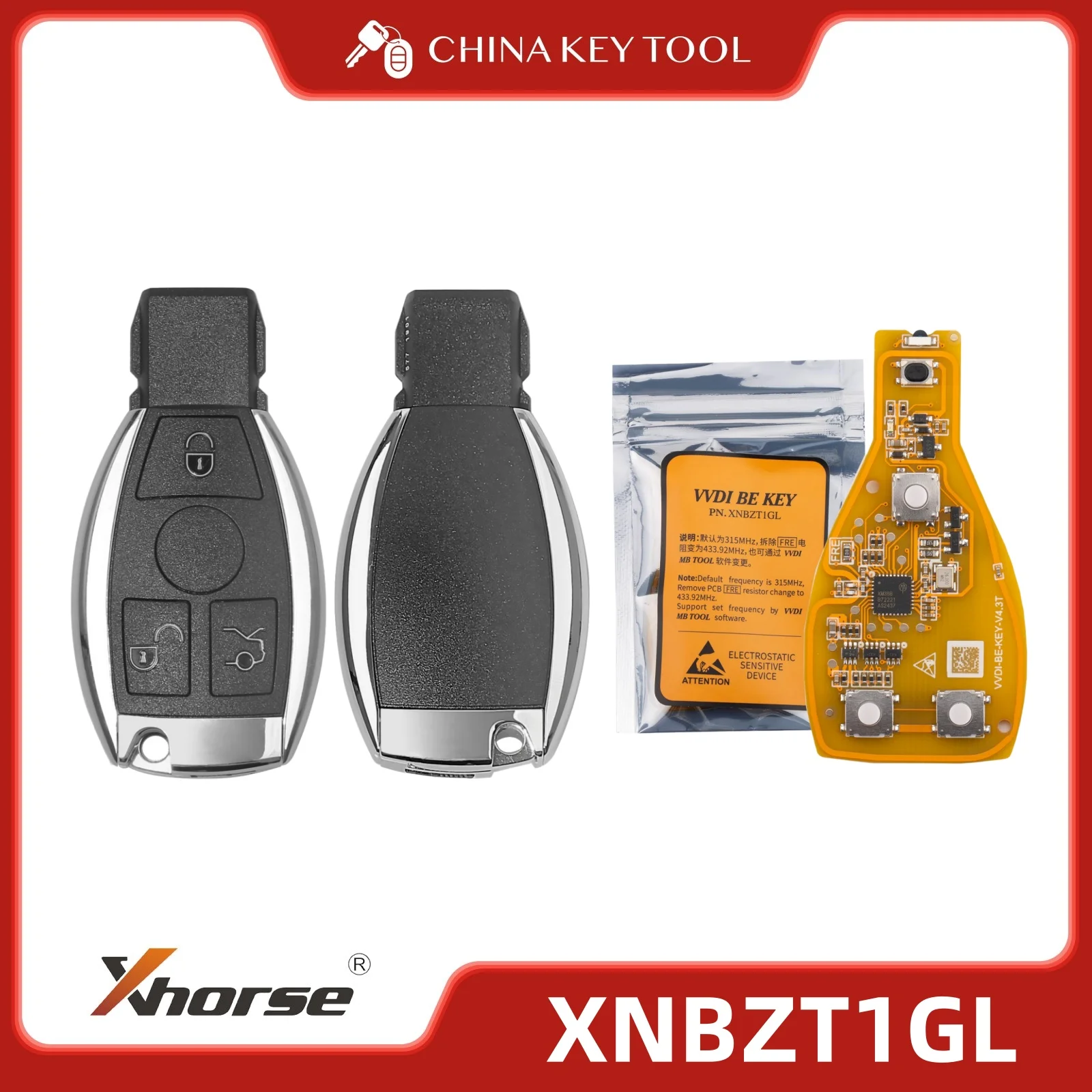

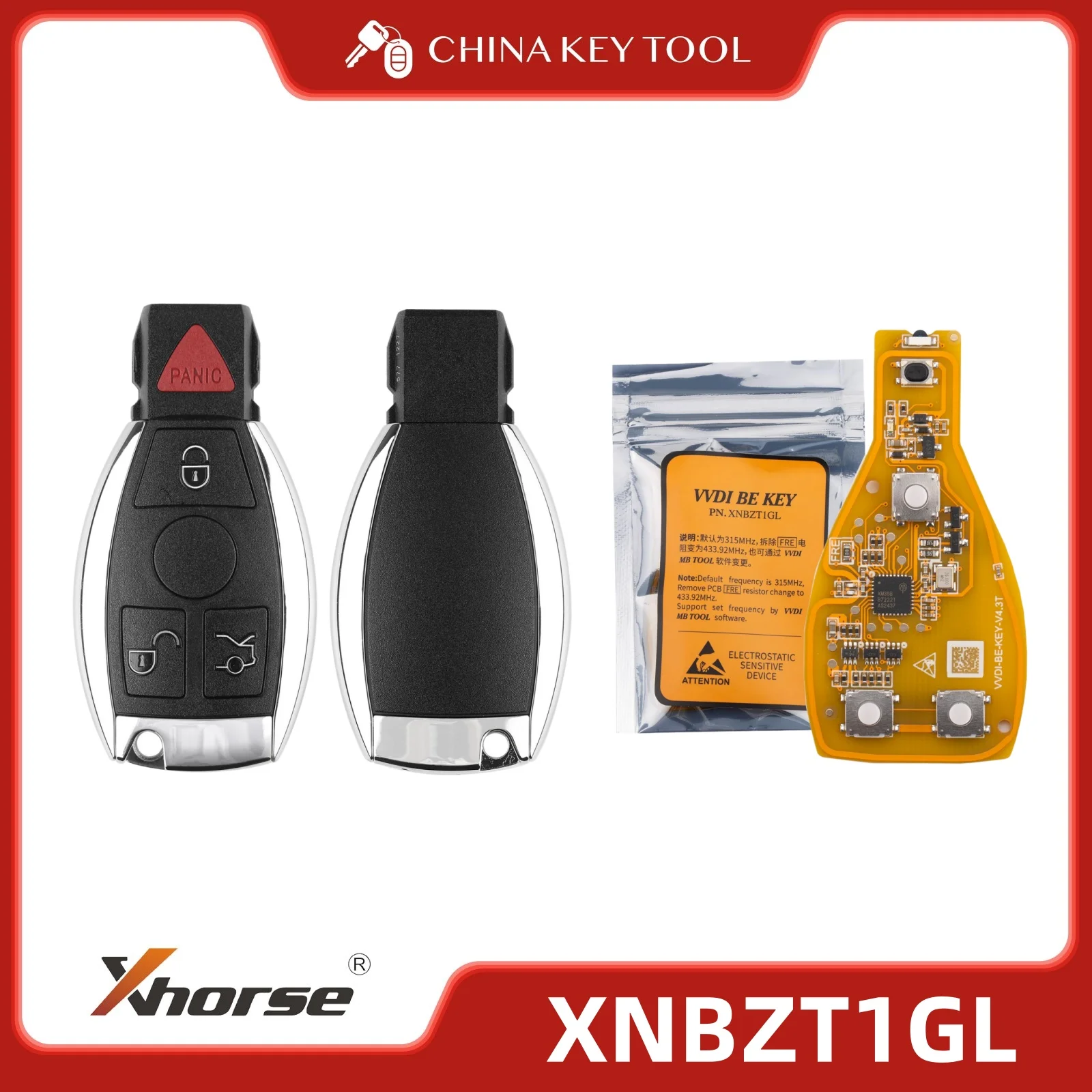

BE Key Pro Improved Version Yellow Board 315Mhz/433Mhz + Key Shell 3/4 Button for Mercedes Benz
With Key Shell
VVDI MB BE Key Yellow Board vs Green Board
The yellow board does not contain 200 bonus points, but cheaper than the green board.  Work the same, only colour difference.
Xhorse BE smart key:
Version 4.2T, super stable
Frequency changeable 315Mhz/433MHz
Reusable - you can reset it
Programmed by all kinds of MB key programmer, such as Autel IM608, CGDI and VVDI MB, Key Tool Plus, Digimaster-III ,CKM100, AK500, MBE MB-KEY OBD2, NEC-57 MB-PRO and so on
Xhorse brand, superior quality.
Applicable chip models:705 Moto(1997-2000) NEC(2001-2005) NEC(2006-2010) BGA(after 2011)

Xhorse VVDI BE Key Pro 3/4 Button Single Battery For MB With Key Shell
1 VVDI BE Key Pro = 200 Points = 1 Token for VVDI MB
Xhorse VVDI BE Key Pro Features:
More compatibility New design High Stability High reliability Digital Signature
VVDI BE key Pro improvements:
1. Fix the bug that W164/W639 EIS data doesn't synchronize the key. 2. Fix the bug/faultthat the BE key stop work after repeatedly turn ON the ignition without remove key out from EIS/EZS for example with work on diagnostic...switch IGN OFF---ON for erase faults...then car not start 3. Fix the bug/faultof trunk remote open on cars where power lifts on trunk door mainly... 4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key. 5. Modify the rolling algorithm, fix some errors of BE key. 6. Add pre-roll algorithm: the HASH value can roll ahead. 7. Adopt car-grade quartz crystal, improve infrared communication stability. 8. Boost the infrared signal when you press the button.   9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor
Tip:
VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.
The way to reset the frequency with the PCB SMD resistor:
Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ. How to assemble the case with VVDI BE key Pro improved version board? This post shows the general guide on how to assemble VVDI BE Key Pro imrpoved version with the Smart Key Shell 3 Button for Mercedes Benz. 1. Put the VVDI BE key Pro improved version PCB into the case. 2. Cover the bottom case. 3. Insert the battery and cover the case. 4. Push the metal strips on both sides into the right position.
If the rear metal component is first assembled, then the metal strips on both sides won't be able to pushed into the right position.
5. Here rearmetal button. 6.Put into the small key and start button. If you want to disassemble the case, please do it from the last step to the first step.
Note:
 If the rear metal component is firstly assembled, then the metal strips on both sides won't be able to put into the right position.

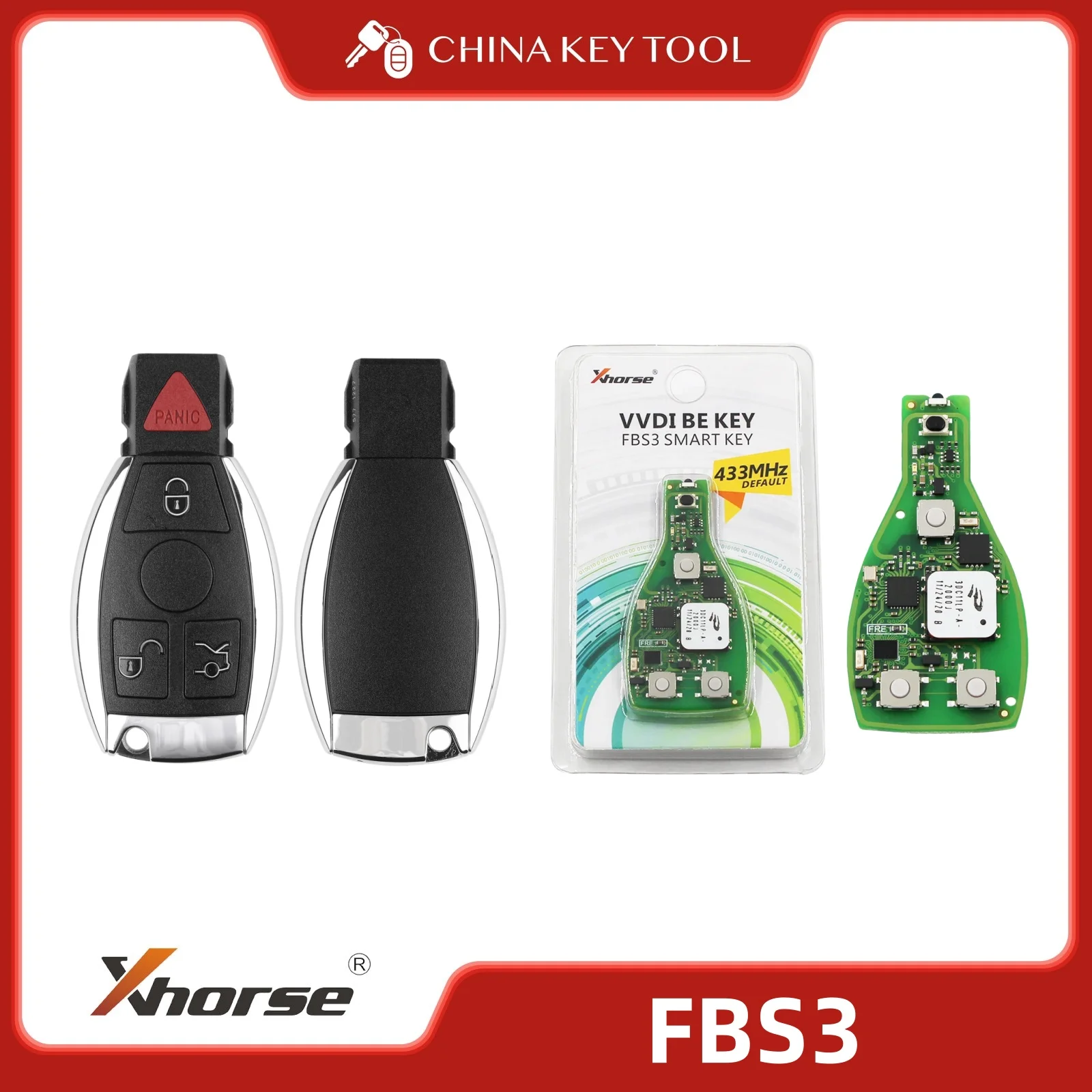

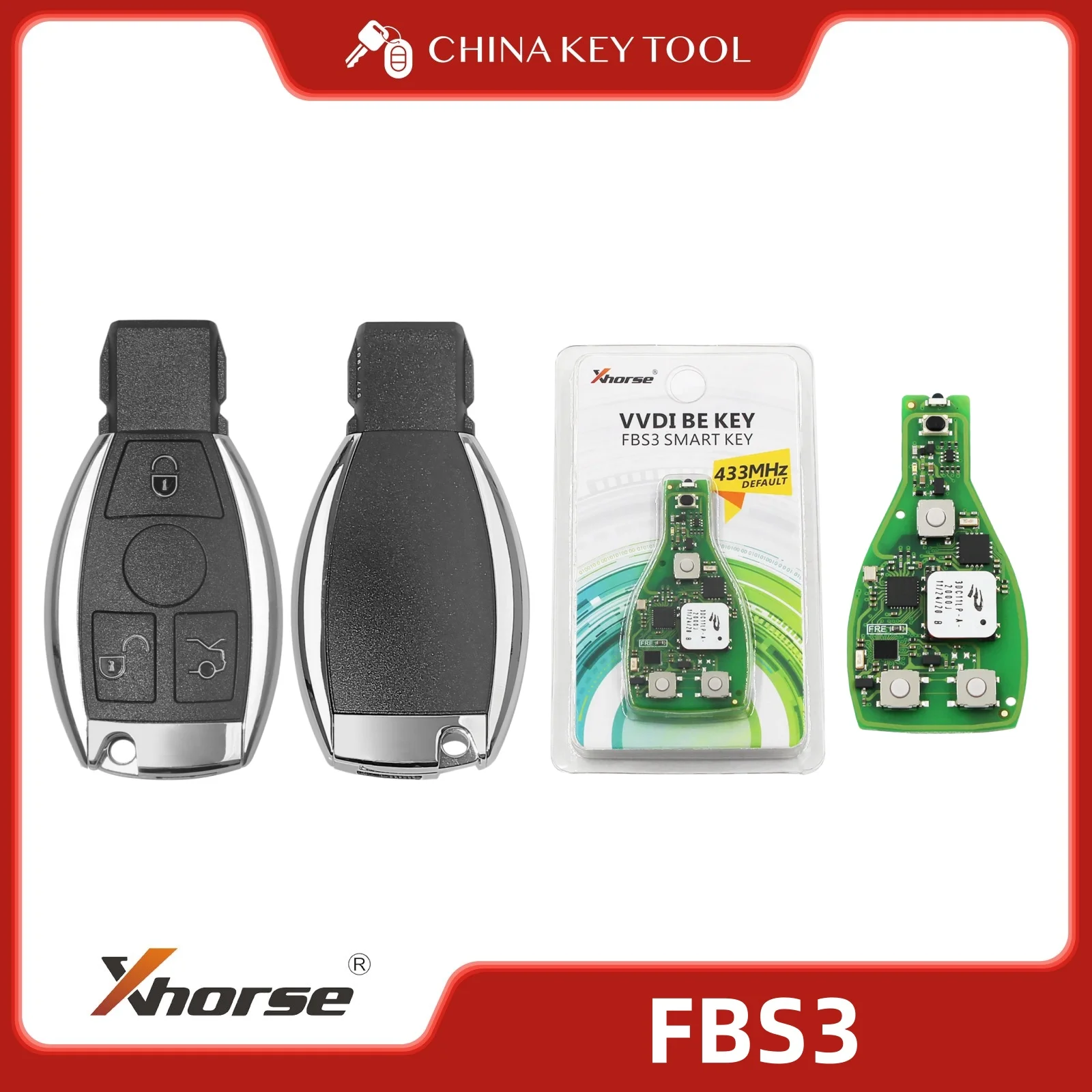

Xhorse VVDI Universal Benz FBS3 Smart Key 433/315 Mhz with Key Shell 3 Button Complete Key
1.Support 315/433mhz, you can change frequency free via VVDI MB Tool software. Or remove resistor. 2.Free with 200 bonus points, equal to 1 BGA token.
Note: 1. Only support original key with one battery type!!!
VVDI Smart Key FBS3 advantages:
1. Passive keyless entry keyless go 2. Battery-free IR write data 3. Firmware upgrade 4. 433MHz/315MHz free switch
Supported models:
C-class W204, W207 E-class W212 R-class W251 S-class W221, W216 CL-W216 CLC-W204 CLE-W207 CLK-W207 GL-X164, X166 GLC-X204 GLE-W164, W166 GLK-X204 ML-W164, W166
