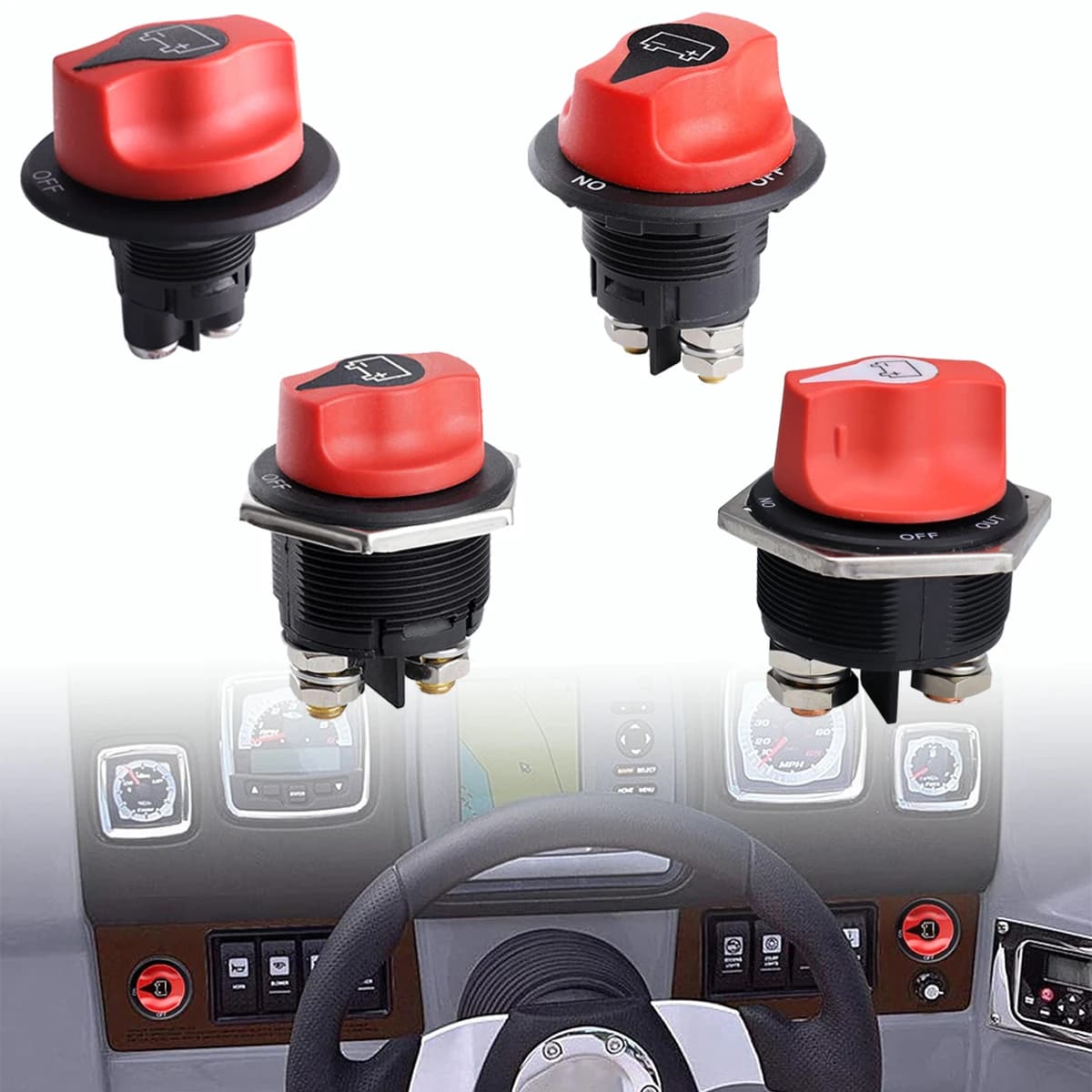

DC 32V 50A 100A 200A 300A Battery Isolator Battery Disconnect Switch Master Power Cut Off Switch For RV Motorcycle Truck Boat

Car 50A 100A 200A 300A Race Rally Switch For RV Motorcycle Truck Boat 24V Disconnector Isolator Cut Off Battery Switch Kit

Product Name: Battery Isolator

Color: Black+Red

Material: ABS plastic + copper plated silver inner core

Working voltage : DC 32V

Rated current :50A/100A/200A/300A

Suitable for car, motorcycle, truck, boat, camper, and etc.

Small size, sturdy and durable.

Product Description:

1. The switch can be operated normally by battery or as an auxiliary battery switch.

2. Small size, beautiful appearance, strong and durable.

3. Easy to install, there are a variety of installation methods to choose from.

4. Trucks, tractors and professional racing cars. Today, switches are used in many conventional motorhomes. At present, there are many such modified racing combination switches used in coastal cities in China, and the installation is simple.

5. The product has a wide range of uses, and can be used as the on/off of various electrical equipment installed inside and outside the car (such as: strobe lights, chassis, fog lights, ceiling lights, instantaneous power failure, etc.).

Warranty:

1 Years Warranty Guarantee. Strictly testing before shipping. Feel free contact us for any question, we have professional service and excellent quality team.

Mounting hole diameter : 22mm

Diameter of terminal post : 4mm

Continuous rating : 50AMPS 50VDC MAX

Rated starting current : 300A for 5 seconds

Intermittent rated current : 75A

Contact resistance : 50M MAX

Mounting hole diameter : 29mm

Diameter of terminal post : 6mm

Continuous rating : 100AMPS 32VDC MAX

Rated starting current : 500A for 5 seconds

Intermittent rated current : 150A

Contact resistance : 50M MAX

Mounting hole diameter : 38mm

Diameter of terminal post : 8mm

Continuous rating : 200AMPS 32VDC MAX

Rated starting current : 1000A for 5 seconds

Intermittent rated current : 300A

Contact resistance : 50M MAX

Mounting hole diameter : 52mm

Diameter of terminal post : 10mm

Continuous rating : 300AMPS 32VDC MAX

Rated starting current : 2000A for 5 seconds

Intermittent rated current : 450A

Contact resistance : 50M MAX
