Xhorse VVDI Mini Key Tool Super Chip 4D 4C 46/ID48 Chip Car Remote Key Programmer Free 96bit 48-Clone Function No TOKEN XKB501EN

Xhorse VVDI Mini Key Tool Super Chip 4D 4C 46/ID48 Chip Car Remote Key Programmer Free 96bit 48-Clone Function No TOKEN XKB501EN

Warm tips:this item is currently available in grey and red, the two colours are shipped randomly (please do not raise a dispute over the colour, it can not be accepted).

Grey and red are shipped randomly (specified colours are not supported)

Purchase Notes:

Question 1: How can I tell if I can use this device?

Answer: Since this device has complex functions that cannot be fully introduced through the advertisement page, please download the Xhorse APP and register your Xhorse APP account before purchasing, and then contact the Xhorse APP human customer service for enquiry, or contact the Aliexpress YIQIXIN Store customer service for enquiry to make sure that this device has the functions you need before making the Payment.

Question 2: How to register an Xhorse APP account?

Answer: Download the Xhorse APP through the Apple Store or Google Play Store. After downloading the APP, please register your Xhorse APP account and then log in. Note: You can't log in your account without registering your account. When registering for an account, you need to add your mobile phone number plus your country's mobile phone number's national area code to register, for example: China's mobile phone number's national area code is +86, then the format is +86******, fill in the correct mobile phone number, then use the mobile phone number to receive the SMS verification code, and fill in the correct verification code to register for an account.

When your Xhorse APP switches to a screen exactly like the one in the picture, click on the human customer service avatar on this screen to contact customer service.

Question 3: How do I connect this device to Xhorse APP?

Answer: Please register for an Xhorse APP account and log in successfully, then the first time you use the Xhorse grey device, you need to bind the device with your Xhorse APP account, and then connect the device according to the product manual after the binding is successful. Note: If your grey device is brand new and you haven't bound it to Xhorse APP, you can't start connecting it, bind it first, then connect the device. If you don't know how to bind a new Xhorse grey device to Xhorse APP, please contact Xhorse APP human support for advice. Or if you have any problems during the connection process, please consult Xhorse APP Human Customer Service. Or contact Aliexpress YIQIXIN Store Customer Service for advice.

Our store promise:

* 100% Original Product from Xhorse

Xhorse VVDI MINI Key Tool Remote Key Programmer

Xhorse VVDI Mini Key Tool is a Professional Remote Key Programmer with 12 Kinds of Special Functions machine. It is a Global Version Xhorse VVDI Mini Key Tool With the 96bit 48-Clone Function For Free Support Frequency 315Mhz, 433Mhz and Mulit-Languages.it will allow you to generate and copy the remote & chip by working together with iphone ,ipad & Android devices,very easy to use,perfectly replaces Xhrose VVDI Key Tool Remote Maker Key Programmer. (Download the Xhorse APP from the Google Play or Apple app stores)

NOTICE:This vvdi mini key tool is Global Version including US/EU/South Asian version Function

Good NEWS:

Now update your device to newest version, you can change all language freely as follow:

Mini Key Tool features:

1. Functions Better to Test Frequency of Keys, and Read Chips Faster According to Engineer's Test and Customer's Feedback

2. With 96bit 48-Clone function(need use 10pcs VVDI remote key can be activation), you can use points to change for tokens too.

3. Supported Functions:Key Cloning ID46/ ID4D/ ID48/ ID4C/ ID72/ ID70, Generate Various Car Remotes, Copy Fixed Code Remotes, Check Remote Frequency

4. Based on Mobile Phone App via Bluetooth, Support Both IOS and Android: can generate and copy the remote & chip by working together with the mobile phone.You can view the software on your mobile phone screen, making it easier to operate

5. Gives Amazing Strength to Frequency Test, Supporting Frequency Test within the range of 300-450MHz. Plus, it offers a stronger testability which could test frequency within 30cm

6. Xhorse APP Muli-Language: English, German, Spanish, Persian, French, Hebrew, Hindi, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese (free to switch now)

Order it Now, You Will:

1. Send Free Copy 48 Transponder (96 bit)  Authorization !!

2. Send Free For Toyota H Chip Activation Authorization

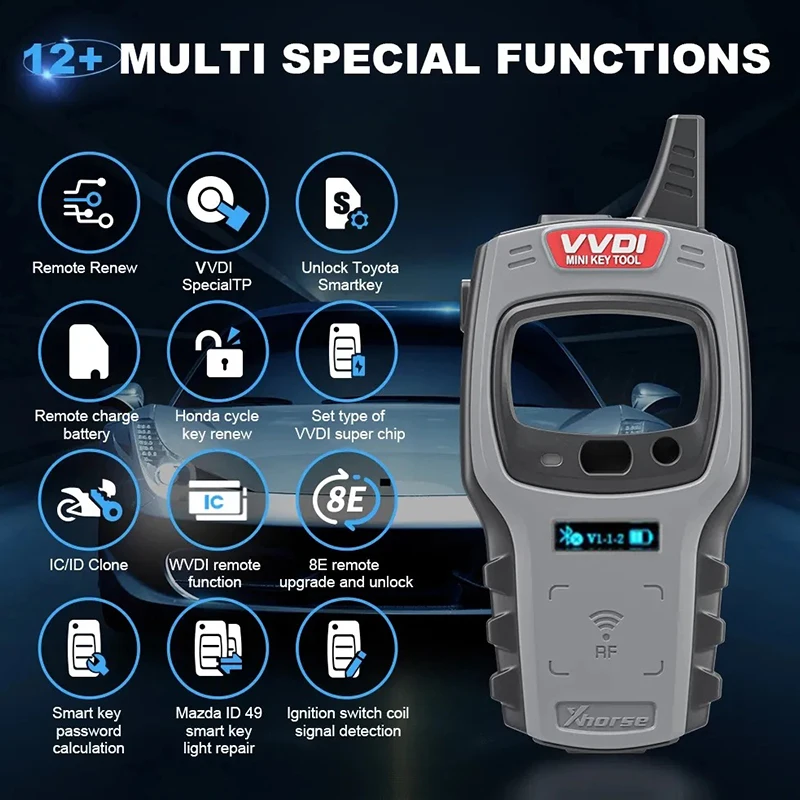

12+ Kinds of Special Functions:

* Remote Renew
​
​* VVDI Special TP
​
​* Unlock Toyota Smart key
​
​* Remote charge battery(such as support old type for BMW EWS series modes with rechargeable key.)
​
​* For Honda motorcycle key renew.
​
​* Set type of VVDI super chip
​
​* IC/ID Clone
​
​* WVDI remote function
​
​* 8E remote upgrade, unlock and frequency conversion.
​
​* Smart key password calculation

(1). great wall haval h2 46 smart key

(2).great wall haval h6 46 msart key(only for new models, 6-digit passwork)

(3).BAIC motor 46 smart key)
​
​* Mazda ID 49 smart key light repair
​
​* lgnition switch coil signal detection

Xhorse MINI Key Tool Function:

1. Transponder Editing &Cloning

​Detect most immobilizer transponder edit and clone common transponder in the market.

Note: the mini key tool can copy 48 96 bit(need use 10pcs VVDI remote key can be activation)

2. Transponder Generation

​Support TP transponder & parts of special transponder more than 700 vehicle models, reduce the stock of transponders efficiently.

3. Remote Cloning

Support the HCS/Fixed code cloning, support non-HCS rolling code cloning, supportPT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.

4. Garage Remote Generating

Supporting more than 100 types.

5. Remote Generate

Support 128 brands, over 2000 vehicle models. Generate more abundant and thorough key pictures, transponder types, key blanks and remote matching data.

6. Frequency Test

Support the power test within the range of 300-450MHz.

7. H transponder for Toyota

Activate H transponder generation function for Toyota.

8. Special Functions:
​
​1) Unlock smart keys for Toyota
​2)ID63 to ID83
​3)Special 4D to 4C
​4)Detect remote

9. Set type of vvdi super chip

Vehicle Coverage of 100+ Car Brands

Xhorse VVDI Mini Key Tool can support 100+ car brands, more than 10000+ car models
​
​(If you want to know the tool can support which chip types about your car brand pls contact with us anytime and tell me your car brand i will check for you and send you the chip types list.
​

What can you do with VVDI Mini Keytool with all functions activated?

VVDI Mini Keytool FULL Authorization: Done!

​AI – Car remote type               Already activated
​AI – Key blade type                 Already activated
​AI – PIN code                           Already activated
​Remote – Vehicle remote        Already activated
​Remote – Garage remote        Already activated
​Remote -Proximity remote       Already activated

​Generate transponder – 7935/ 46/ 4D/ 48/ 8C     Already activated

​Generate transponder -For Toyota H (8A)              Already activated

​Transponder clone – ID48 (96 bits)                          Already activated

​Transponder clone – ID46                                        Already activated

​Transponder clone – ID4D                                       Already activated

​Transponder clone – ID4E                                       Already activated

​Transponder clone – ID70/ 83                                 Already activated

​Transponder clone – ID11/ 12/ 13/ 4C/ 8C            Already activated

​Transponder clone – For Toyota/ Daihatsu G        Already activated

​Transponder clone – For Toyota H (8A)                 Already activated
​
Transponder clone – ID33 /42                             Already activated

​Transponder edit – 11/12/13/4C                           Already activated
​
Transponder edit – 46/ 47/ 48/ 4D/4E                   Already activated

​Remote clone – Fix code                                       Already activated

​Remote clone – Rolling code                                 Already activated

​Remote clone – make new                                     Already activated

​Detect remote frequence                                        Already activated

​Set type of VVDI super transponder                       Already activated

​VVDI Special TP                                                     Already activated
​
Special 4D to 4C                                                     Already activated
​
Unlock For Toyota smartkey                                   Already activated

​ID63 to ID83                                                           Already activated
​
For Hyundai/ KIA PIN code                                     Already activated

​Copy For BYD smart key                                       Already activated

​Detect ignition coil signal                                       Already activated

​Online technical support                                       Already activated

​Technical center                                                     Already activated

​Video center                                                           Already activated

​History                                                                   Already activated
​
Mini Key Tool Shows:

VVDI Mini Key Tool Parameters:
OLED Size: 0.91"
​Extra Power: 5V/1A
​Usage Time: ≧10 hours
​Product Size: 140*64.5*23.5
​Weight: 86g
​Change Current: 650mA
​Battery Capacity 800mAh

VVDI Mini Key Tool Firmware Update:

Database Update: (via a PC or mobile phone)
​---------------------------------
​Update on a PC

​Update on a mobile (iOS or Android)

VVDI Mini Key Tool FAQs:

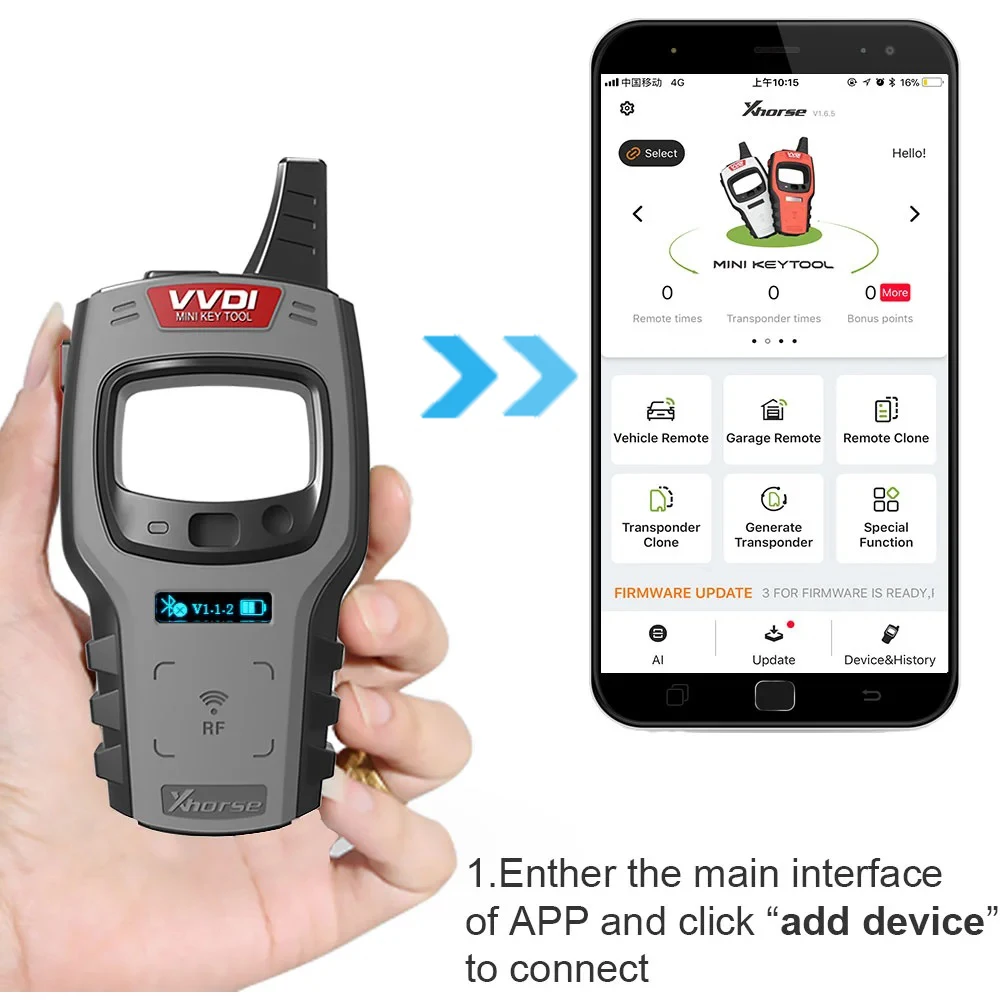

Q:How to Combine Xhorse MINI KEY TOOL/DOLPHIN/KEY TOOL to Your Account ?
​1.Login Xhorse APP
​2.Connect your Xhorse device via Bluetooth
​3.Enter "Device & History" to combine your Xhorse device

VVDI Mini Key Tool User Manual:

VVDI Mini Key Tool Software Update:

Mini Key Tool New Version 1.1.9 Information:
​
​1.Add Access Card Clone(APP-->Special Function-->IC/ID clone)
​2.Add for BMW HUF5767 Renew
​3.Bug Fixed
​
​V1.1.3 MINI Key Tool Update 2019/09/06
​1.Add some types chip generation
​2.Modify ID46 clone
​3.Modify Peugeot & Citroen remote generation
​
​V1.1.2 MINI Key Tool Update (2019/07/06)
​1 Add support Europe Toyota folding 8A chip detect and clone
​2 Fix ID46 clone bugs
​3 Fix ID46 special chip generate bugs
​
​MINI KEY TOOL Remote Database Update to V201 (2019-06-19)
​The following options needs vvdi smart remotes:
​+ for vw golf vii (2012-2015) remote/keyless go mqb48 434mhz
​+ for vw polo (2014-2017) remote mqb48 434mhz
​+ for vw tiguan (2013+) remote/keyless go mqb48 434mhz
​+ for vw passat b8 keyless go mqb48 434mhz
​+ for skoda otiavia (2013+) remote/ketless go mqb48 434mhz
​+ for skoda febia (2014+) remote/keyless go mqb48 434mhz
​+ for seat leon (2012+) remote/keyless go mqb48 434mhz
​+ for seat ibiza (2016+) remote/keyless go mqb48 434mhz
​
​MINI KEY TOOL V1.1.1 New Update (2019-06-03)
​1. Support copy super chip
​2. Add French language
​3. UI Improvement
​4. BugFix
​
​MINI KEY TOOL V1.0.9 New Update (2019-05-14)
​1 Add generate for Buick excelle 4D70 special chip American for Ford ID49 special chip(need VVDI super chip)
​2 Fix chip 46 clone(type CDP, such as for Mitsubish, for suzuki and part of for honda)
​
​MINI KEY TOOL Remote database version 228 Update (2019-1-25)
​add for Hyundai Grand I10 smart key
​add for Hyundai Elite I20 smart key
​add for CRUZE smart key
​add for Ford ecosport ID83 smart key
​add for Nissan Micra smart key
