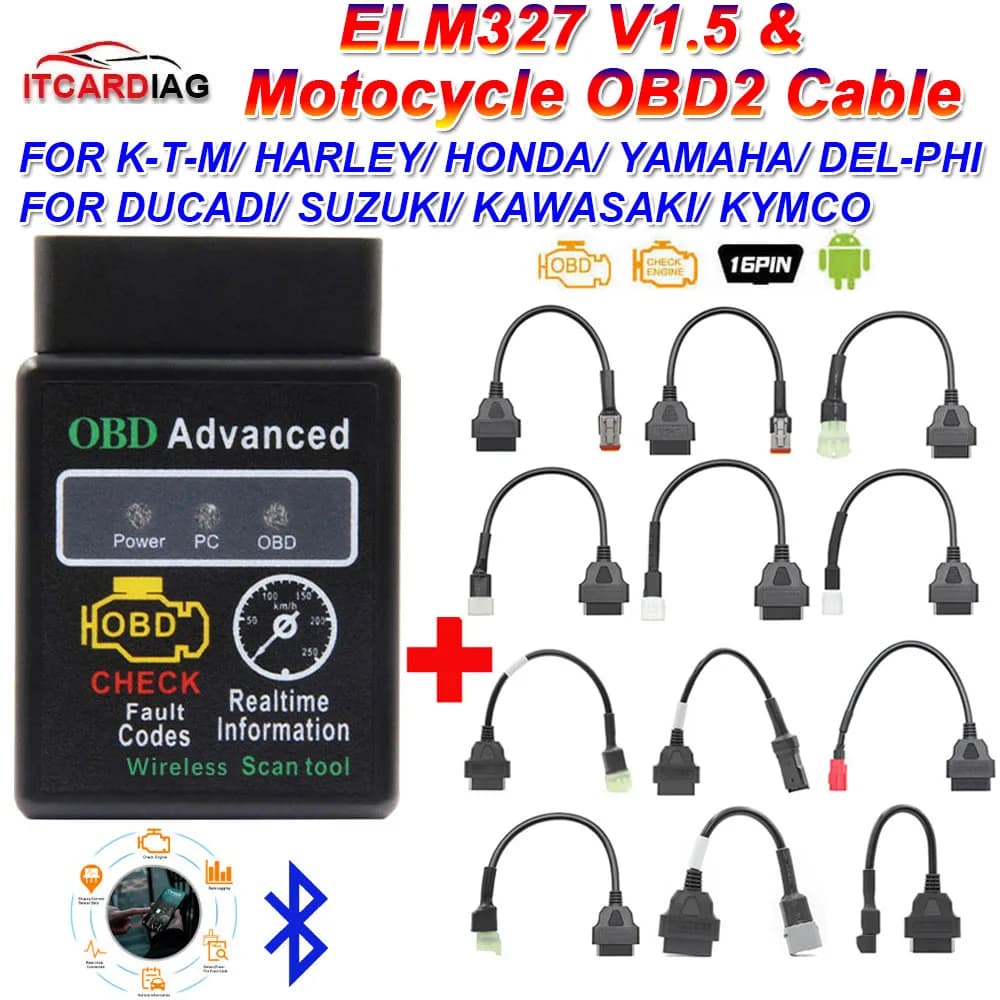

ELM327 V1.5 & Motorcycle OBD2 Cables For YAMAHA For HONDA For Ducati For Kawasaki For SUZUKI EFI Motobike Fault Diagnosis Tool

Note:

This product only supports electric fuel injection system motorcycles (EFI)

Product Description

Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth. Supports All OBD2 Protocol works on Android Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

Tips：

Scanner with Motorcycle OBD2 Cable can support :
For K-T-M 6pin

For Honda 4pin/6pin

For YAMAHA 3pin/4pin

For Delphi 6pin

For Kawasaki 6pin

For SUZUKI 6pin

For Ducati 4pin

For KYMCO 3pin

For Harley 4pin/6pin

Universal K with CAN is a pin cable，It is not only suitable for motorcycles, but also for cars/truck K+CAN lines

Top 4 Reasons To Get Mini OBD2 Bluetooth Scanner:

1. Software Version: (depending on software)
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Bluetooth 2.0 for Android)

Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Bluetooth Scanner Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ("Check Engine" light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others

Mini OBD2 Bluetooth Scanner Specifications:

Communication: Bluetooth 2.0
Support System: Android and Windows
Working Voltage: 9v ~ 16v
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40 ℃ ~ 85 ℃
Working Humidity: less than 60%
Size: 45mm * 25mm * 65mm

Compatible systems:

Software support platform: Windows XP, Windows 7/8, Android, Symbian .

Compatible software:

Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian : OBDScope

How To Use:

Package List:

1pc x Mini OBD2 Bluetooth 2.0 Scanner
1pc x Box
