New 1220755 Compatible with AL-KO AKS 2000 2004 3004 3504 AKS3004 AKS3504 691418 Friction Pad Set Kits 287763 Caravan Stabiliser

Friction pad set for

Kit comprises of 2 x friction pads & 2 x plastic caps

Note: For AKS 2000 2004/3004 these pads replace the side pads only.

1220755 THESE DO NOT FIT 2500 OR 2700 MODEL!

THESE MAY NOT COME CARDED

Friction pad set for the AKS3004/3504 691418

No: 691418

for the following anti-sling clutches:

AKS 3004, 3504 (TSI 811426 and 811431)

Stabiliser Friction Pads 2000 / 2004 / 3004. Part No.1220755. Includes new shims  & dust caps . Comes with fitting instructions. Alko part number; 1220755. Note -  they do NOT fit 2500 or 2700 model . NOTE  - If your replacing worn parts on the 3004 model the you may also need the front and back friction pads -  Al-ko part number: 691418 -  also available. 100'S of other NEW parts available for caravans, motorhomes and boats available from stock.

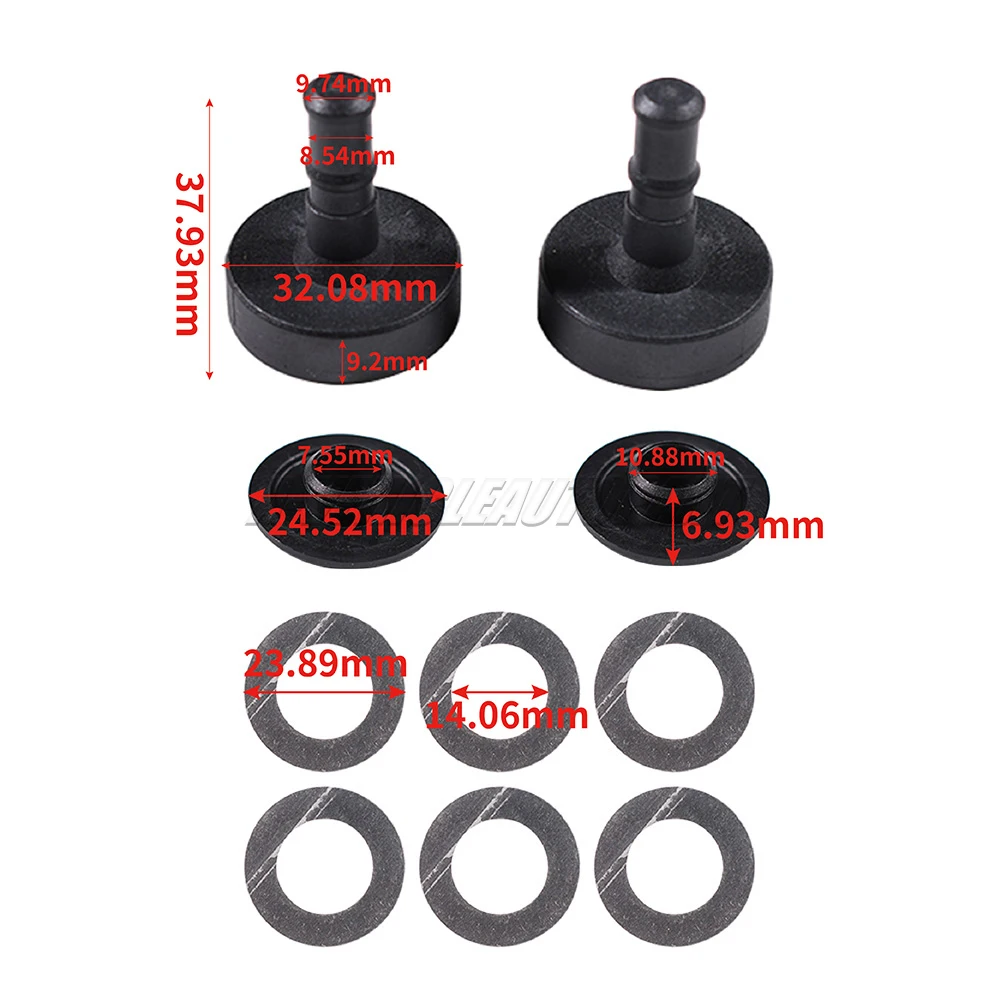

Pressure Bolts AKS 2000/2004/3004 Pressure Bolts and Washers Friction Pads L + R Suitable for: AKS 2000 - ETI 811041 AKS 2004 - ETI 811280 AKS 3004 - ETI 8111114 342+. 811426 replacement pads set by AL-KO suitable for ALKO anti-swing couplings AKS 2000 (with plug-in friction pads) as well as AKS 2004 and AKS 3004. Features: special plastic friction coating diameter: 32 mm, thickness: 9 mm, shaft diameter: 8.5 mm/9.8 mm, length: 31 mm total length of pad + shaft. : 40 mm. Box contents: 2 x side friction pads (pressure bolts), 2 x 3 metal spacers, 2 x black PVC sealing plugs, 1 x assembly instructions

compatible with

Replacing Stabiliser Friction Pads

The side friction pads in the AKS 3004 Stabilisers should be monitored for wear, and replaced or cleaned as necessary.

Prise away the protective cap. The caps may be either red or black in colour but the same method applies.

Prising protective caps from stabiliser

Insert the end of a screwdriver into the hole created by the removal of the cap, and tap gently with a hammer.

Tapping out the friction pads on stabiliser

The friction pad will drop out of the bottom of the stabiliser.

Repeat the process for the opposite side

To replace the cleaned or new friction pads, simply insert the friction pad into head of the stabiliser and click into place.

Note: It is not necessary to adjust the friction pads

Removing the friction pad

This guide is suitable for both the original style, red, AKS 3004 Stabilisers and the newer style, black, AKS 3004 Stabilisers as picture. Similar instructions apply for the AKS 1300 Stabilisers:

1 Instead of removing the protective caps, you must loosen the retaining pin for removal

2 Upon replacement ensure the ball race and washers are also reinserted

3 Secure replacement with a new retaining pin
