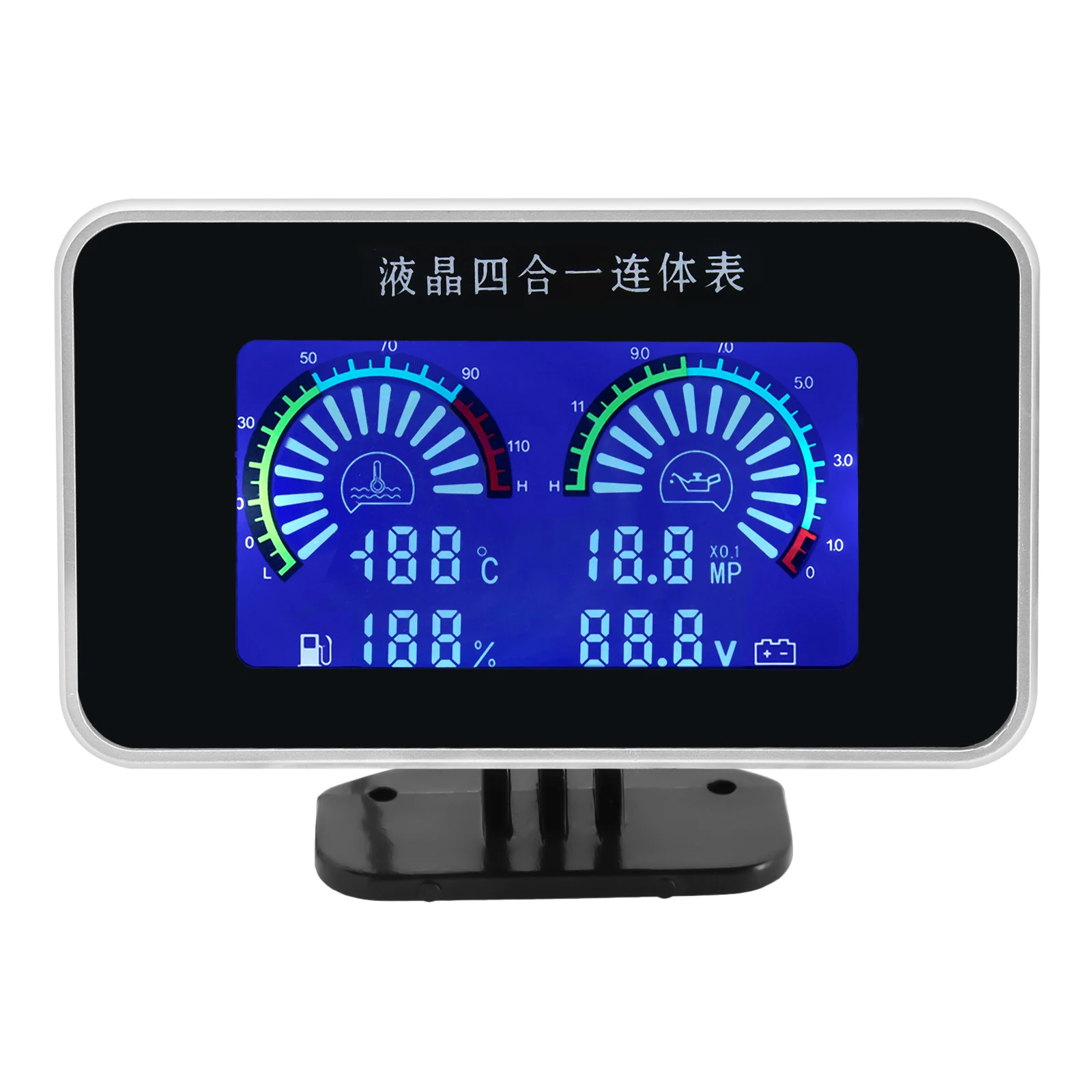

2 In 1 / 3 In 1 / 4 In 1 LCD Digital Oil Pressure Gauge Voltmeter Fuel Level Meter 1/8 NPT Oil Press Sensor + Water Temp Sensor

Note：This link contains a variety of different styles of instruments. Please carefully check the SKU you selected before placing an order

BG0004 4 In 1 Gauge:

Name: Car LCD 4 in 1Gauge(Water Temperature/Oil Pressure/Fuel/voltage Gauges)
Material:Plastic Shell
Product size: 57mm * 97mm * 14mm
Power cable length : approx.50cm
Red --- power +
(Red black) --- power -
Digit: 3 Digit
Power Supply: DC 9V - 36V
Pressure measuring range ：0.00-1.00Mpa
Accuracy:+/-1%
Measuring Oil Pressure: (0～10)*0.1Mpa
Ambient temperature: -10℃-50℃
Measurement speed: 3-5 seconds
Water temperature meter: measuring range：-10℃-110℃

When the alarm that is displayed flashing alarm

Emperature sensor screw : M10

Oil Pressure sensor：1/8 NPT

Package Included（as picture）

1x Gauge
1x Emperature sensor
1x Oil Pressure sensor
1 Set cable

Note

-Please make sure you can Installation,if you need help you can contact your local car repair workshop,Thank you!
- If the surface of our product is broken or affects the use, please don't leave us any negative comments, please contact us, we will try our best to help you solve the problem.

Installation rendering

Product renderings

BG0005 4 In 1 Gauge

-Name: Car LCD 4 in 1Gauge(Water --Temperature/Oil Pressure/Fuel/voltage Gauges)
-Material:Plastic Shell
-Product size: 9.5x6.3x3.2cm
-Power Supply: DC 9V - 36V
-Working temperature: -40 - 50℃
-Working humidity:45%-75%RH
-Temperature sensor screw : M10
-Oil Pressure sensor:1/8 NPT

Test parameters:

-Voltage Test:9-36V, Accurany:±0.1%,Alarm:<10V/ 16-20V / >31V
-Water Temperature Test: -10-120℃,Accurany:±0.1%,Alarm:>95℃
-Fuel Test:0-1.0MP,Accurany:±0.1%,Alarm:0.1MP
-Oil Pressure Test :5-1000Ω,Accruany:±1%,Alarm:>10%

Application:

Suitable for Car,Motorcycle or by your need!
Suit Measurement object: compressed air, oil

Package Included:

1x Gauge
1x Temperature sensor (10MM)
1x Oil Pressure sensor (1/8 NPT)
1 Set Cable

BG0042 3 IN 1 Gauge

Description:

-Name: Car LCD 4 in 1Gauge(Water --Temperature/Oil Pressure/Fuel/voltage Gauges)
-Material:Plastic Shell
-Product size: 9.5x6.3x3.2cm
-Power Supply: DC 9V - 36V
-Working temperature: -40 - 50℃
-Working humidity:45%-75%RH
-Temperature sensor screw : M10
-Oil Pressure sensor:1/8 NPT

Test parameters:

-Voltage Test:9-36V, Accurany:±0.1%,Alarm:<10V/ 16-20V / >31V
-Water Temperature Test: -10-120℃,Accurany:±0.1%,Alarm:>95℃
-Fuel Test:0-1.0MP,Accurany:±0.1%,Alarm:0.1MP
-Oil Pressure Test :5-1000Ω,Accruany:±1%,Alarm:>10%

Application:

Suitable for Car,Motorcycle or by your need!
Suit Measurement object: compressed air, oil

Package Included:

1x Gauge
1x Temperature sensor (10MM)
1x Oil Pressure sensor (1/8 NPT)
1 Set Cable

BG0002 3 In 1 Gauge :

Specification:
- Name: Car LCD 3 in 1Gauge(Water Temperature/Oil Pressure/voltage Gauges)
- Material:Plastic Shell
- Product size: 55mm * 199mm * 14mm
- Power cable length : approx.50cm
- Red --- power +
- (Red black) --- power -
- Power Supply: DC 9V - 36V
- Pressure measuring range :0.00-1.00Mpa
- Accuracy:+/-1%
- Measuring Oil Pressure: (0～10)*0.1Mpa When the alarm voltage is - lower than 10V, 16-20V, above 31V, the alarm will flash.
- Ambient temperature: -10℃-50℃
- Measurement speed: 3-5 seconds
- Water temperature meter: measuring range:-10℃-110℃
-Water Temperature sensor screw : M10
-Oil Pressure sensor:1/8 NPT

Package Included(as picture)

1x Gauge
1x Temperature sensor
1x Oil Pressure sensor
1 Set Cable

BG0029 3 In 1 Gauge :

Specification:
- Name: Car LCD 3 in 1Gauge(Water Temperature/Oil Pressure/voltage Gauges)
- Material:Plastic Shell
- Product size: 55mm * 199mm * 14mm
- Power cable length : approx.50cm

- Red --- power +
- (Red black) --- power -
- Power Supply: DC 9V - 36V
- Pressure measuring range :0.00-1.00Mpa

- Accuracy:+/-1%
- Measuring Oil Pressure: (0～10)*0.1Mpa When the alarm voltage is - lower than 10V, 16-20V, above 31V, the alarm will flash.
- Ambient temperature: -10℃-50℃
- Measurement speed: 3-5 seconds
- Water temperature meter: measuring range:-10℃-110℃

Application:
Suitable for Car,Motorcycle or by your need!

Suit Measurement object: compressed air, oil

Package Included:
1x Gauge
1x Set Cable
1x Temperature sensor
1x Oil Pressure sensor
