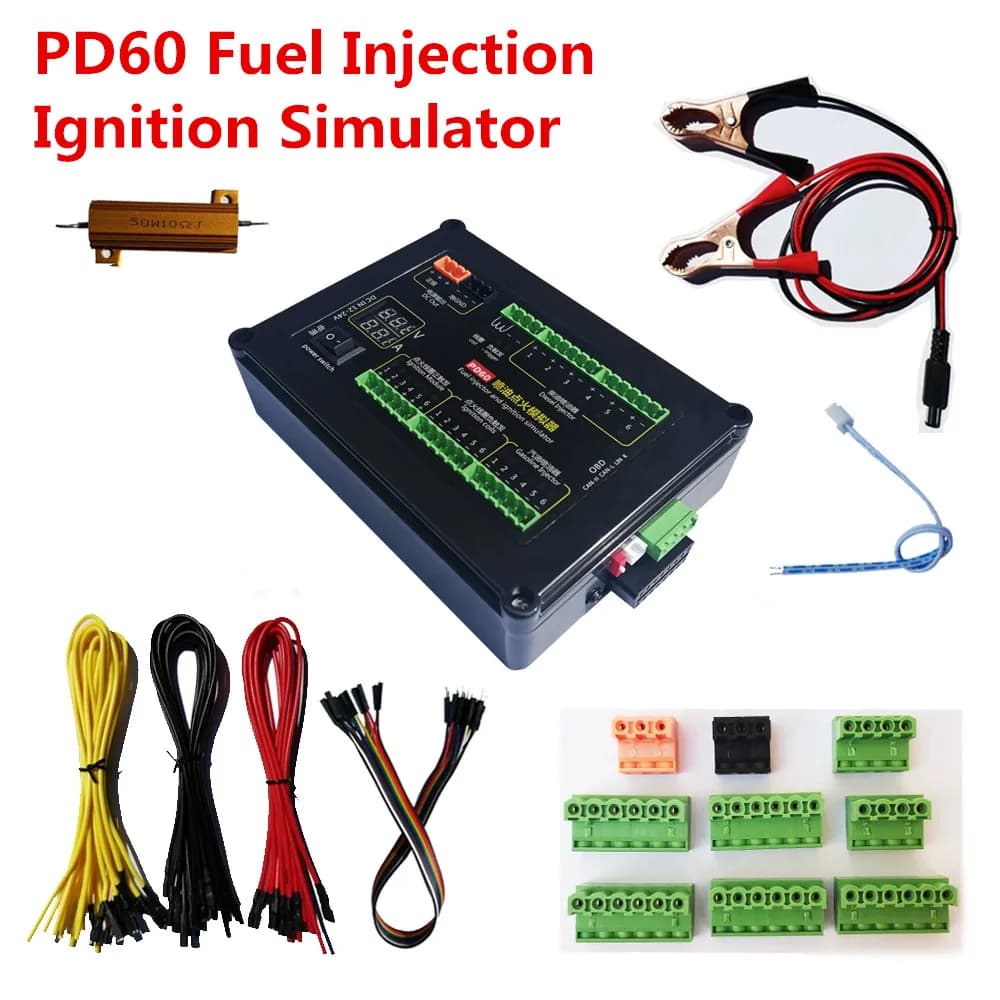

PD60 Fuel Injection Ignition Simulator ECU Maintenance Platform Testing Equipment for Gasoline Diesel Vehicle Computer Board

Product Functions:

1. Simulation of 12-24V electromagnetic diesel fuel injector.

2. 12V gasoline injector simulation.

3. Positive trigger ignition coil simulation.

4. Negative Trigger ignition coil simulation.

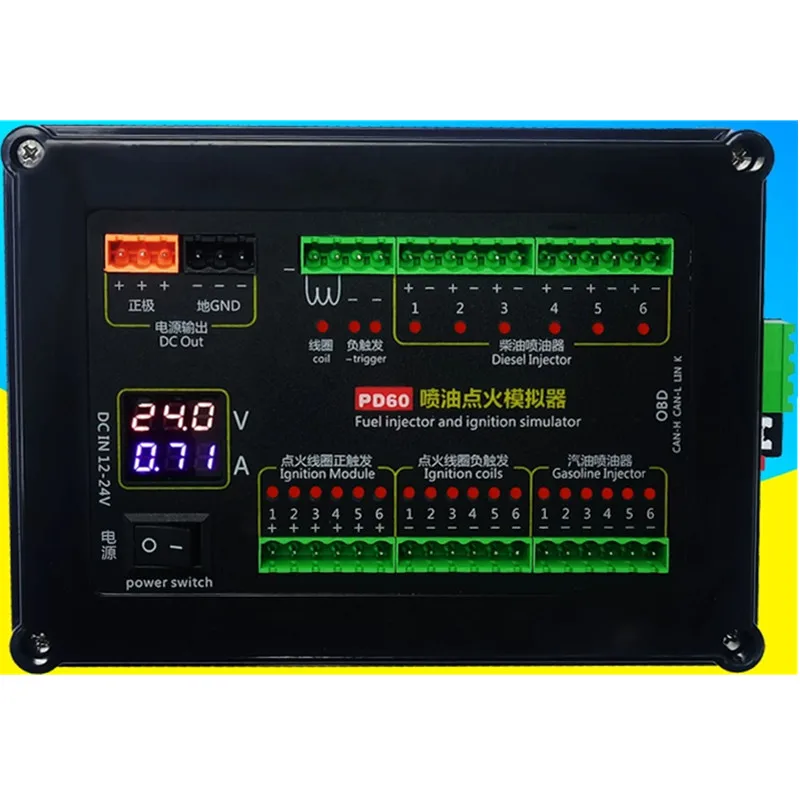

5. With voltmeter and ammeter

6. Real-time display computer module.

7. Operating voltage and current

8. With overcurrent protection circuit.

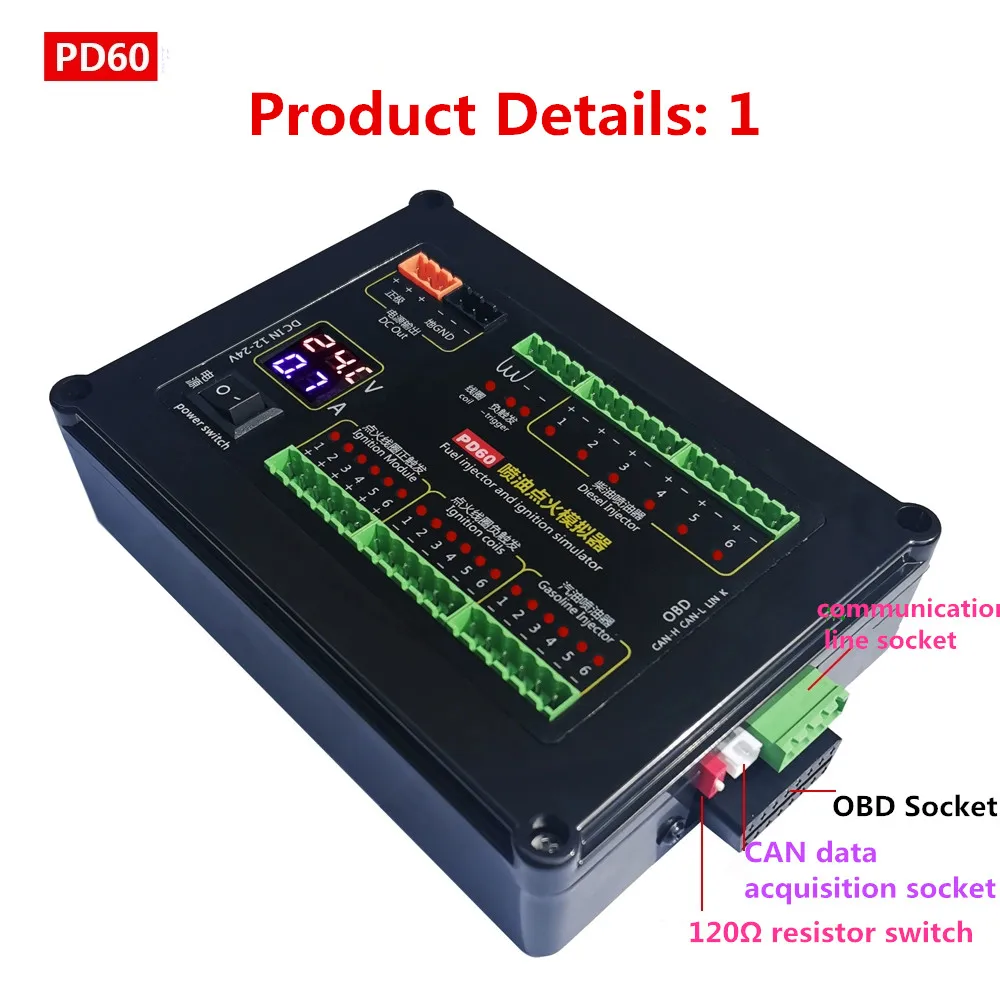

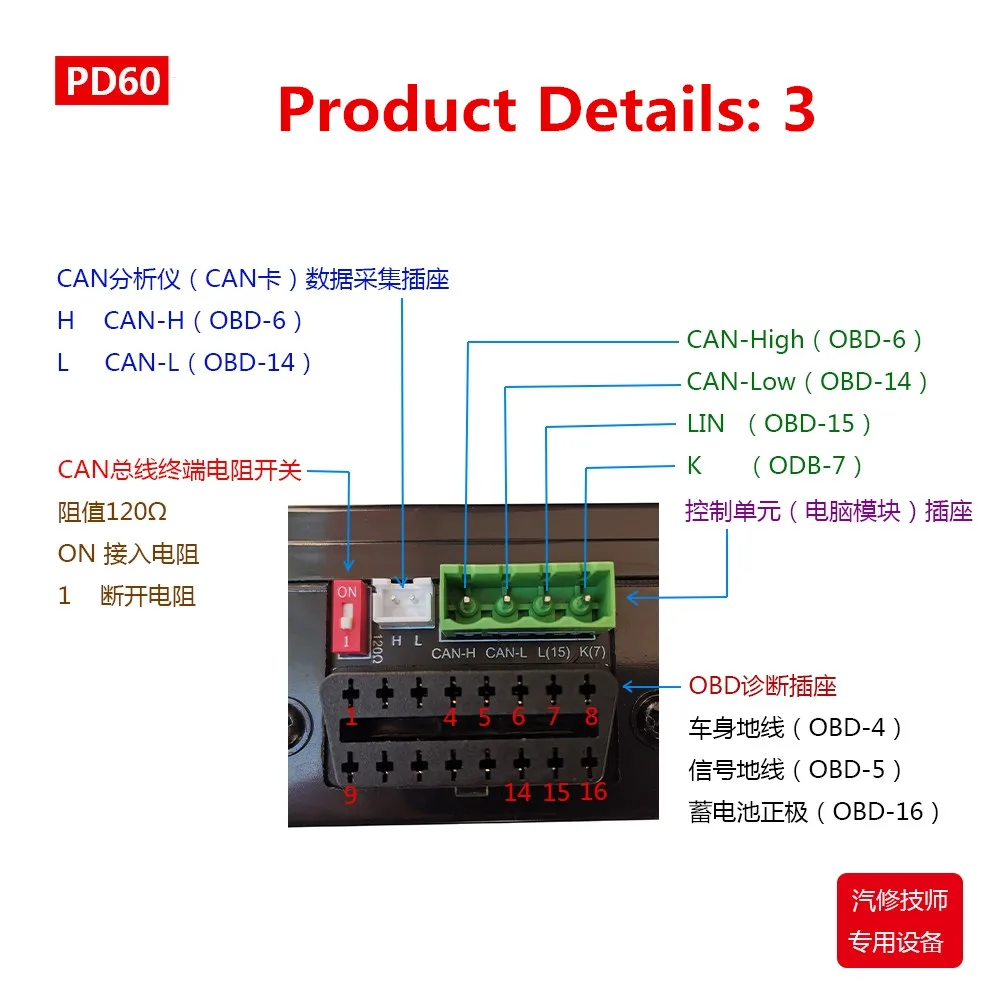

9. Diagnostic socket with OBD.

10. With CAN data acquisition socket.

11. Terminal resistance with 120Ω

12. With high power resistance (used to simulate fuel metering valve)

Note: This product does not have a signal generator and can not simulate sensor signals.

Usage tips:

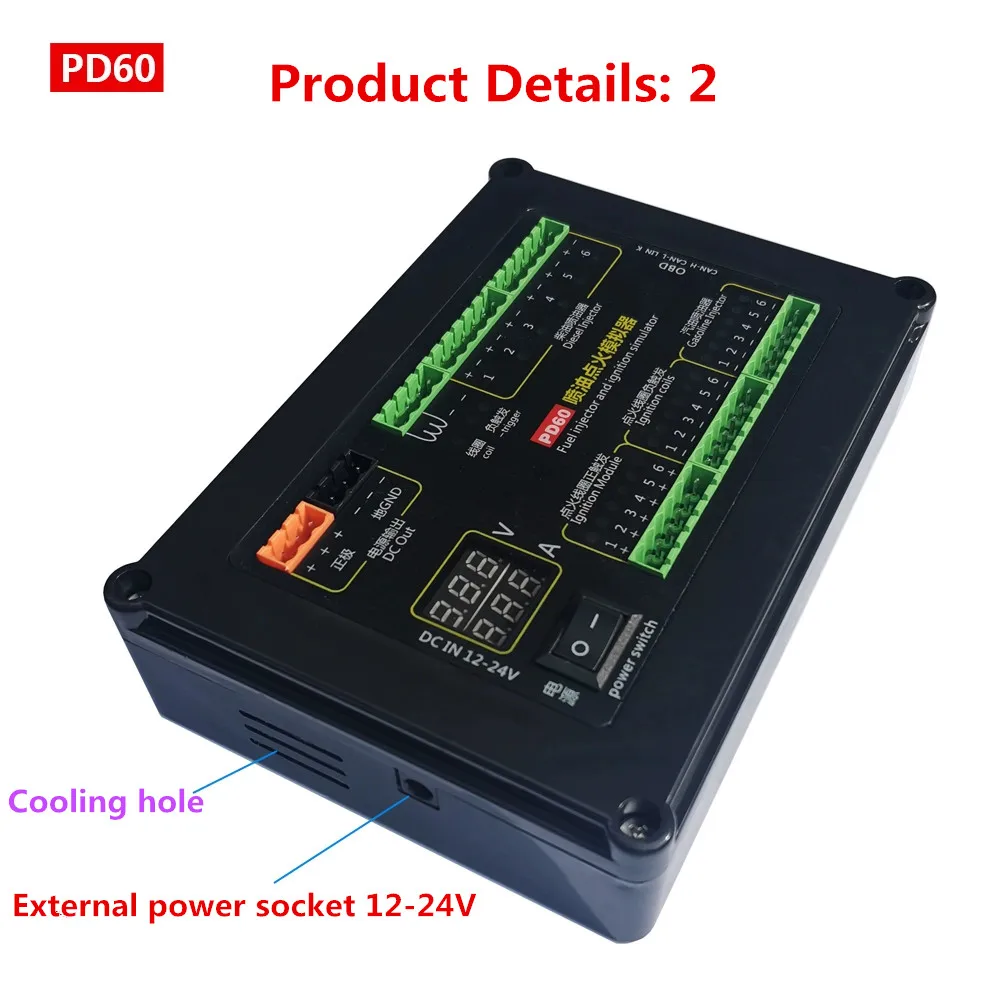

1. The instrument needs an external 12-24V power supply to work normally.

2.The coil resistance of diesel injector is very small,generally ranging from 0.3 to 0.52

3. PD60 can simulate 12V-24V electromagnetic diesel fuel injector,but can not simulate piezoelectric crystal fuel injector.

4. The instrument is equipped with overcurrent protection inside.If the power output is short-circuited or the current is too larger, the instrument will be powered off automatically.

6. PD60 is special equipment for auto repair technicians.For non-professional personnel,please use it under the guidance of auto repair technicians.
