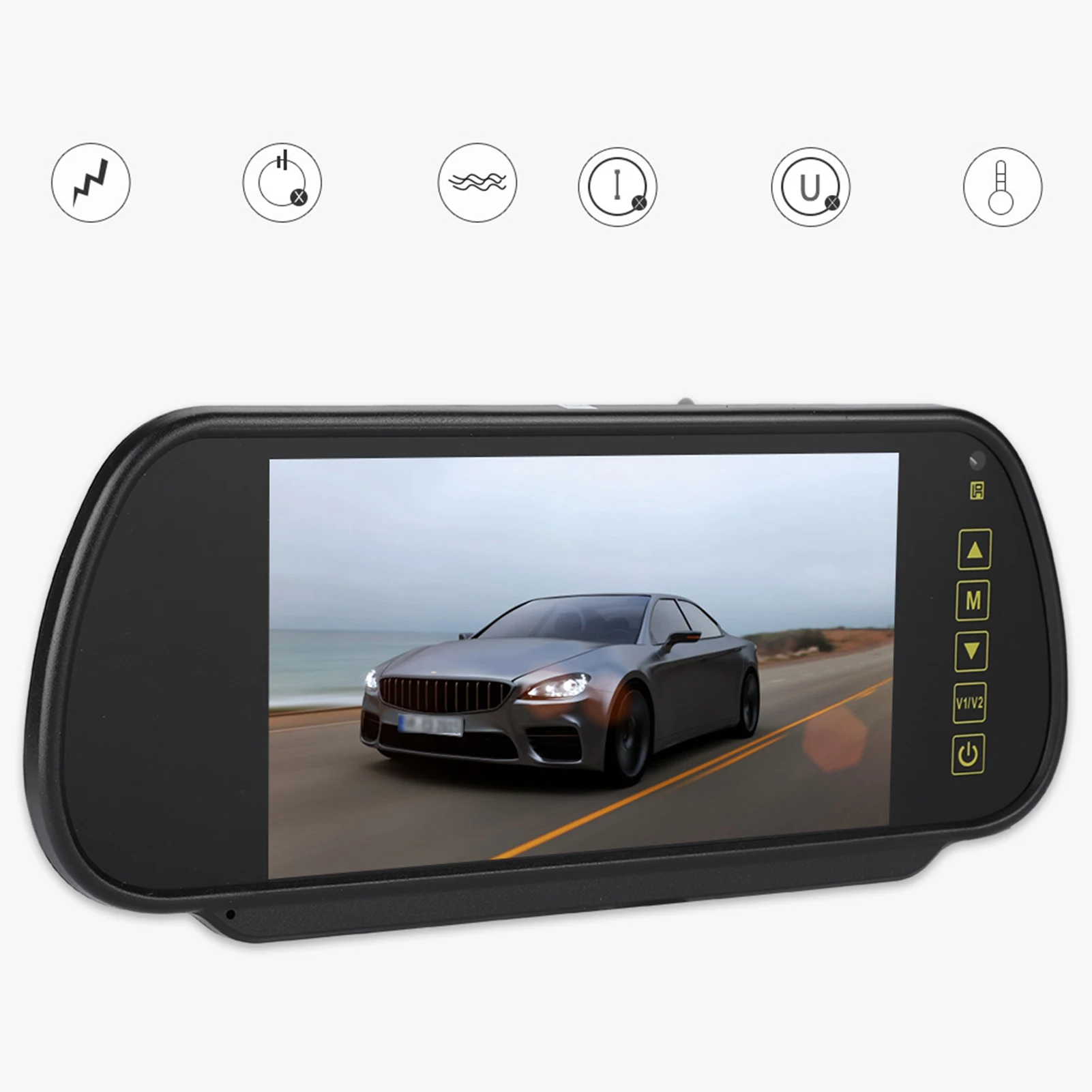

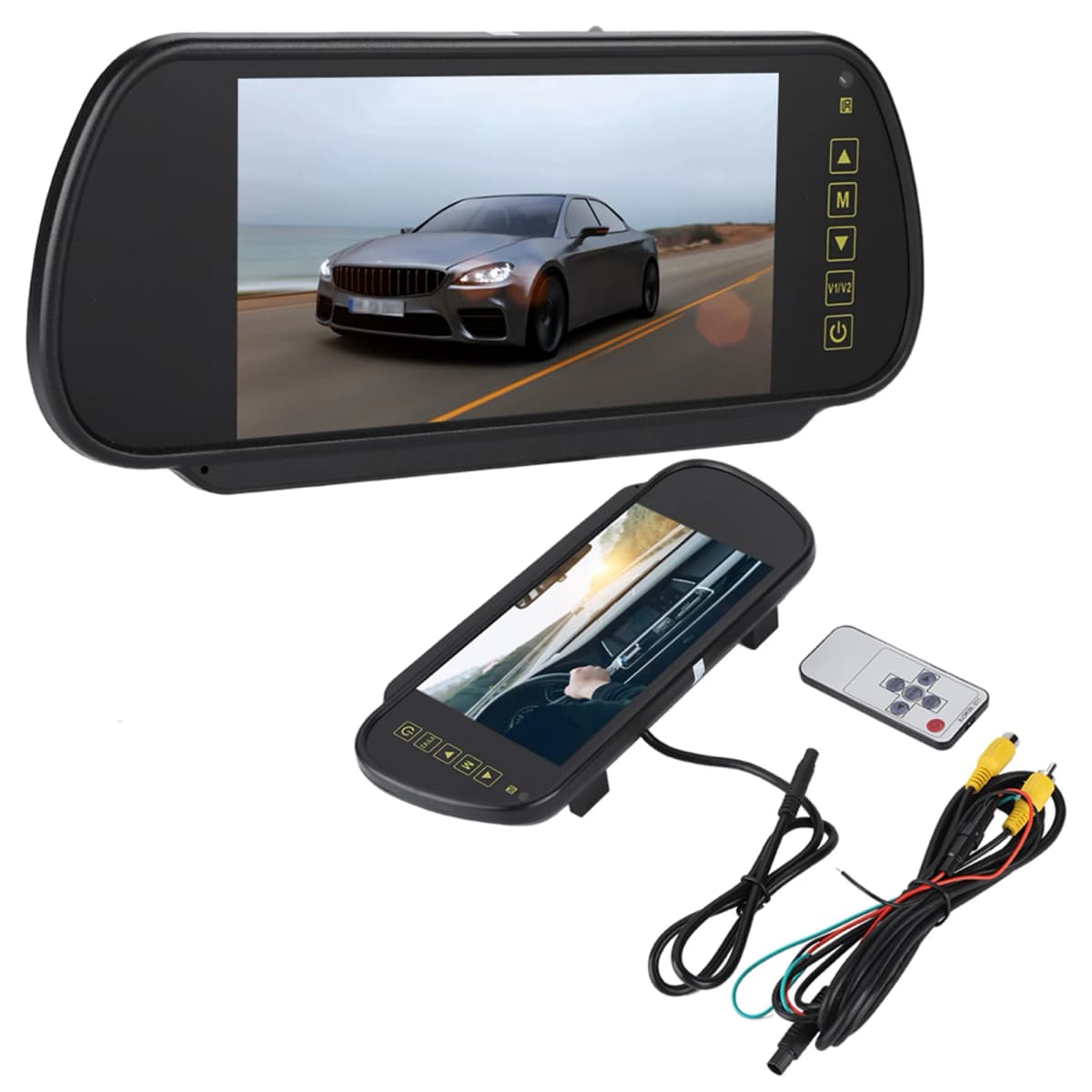

Rear View Mirror Monitor 7inches LCD Display Backup Camera Monitor for Rear View Camera

Features:

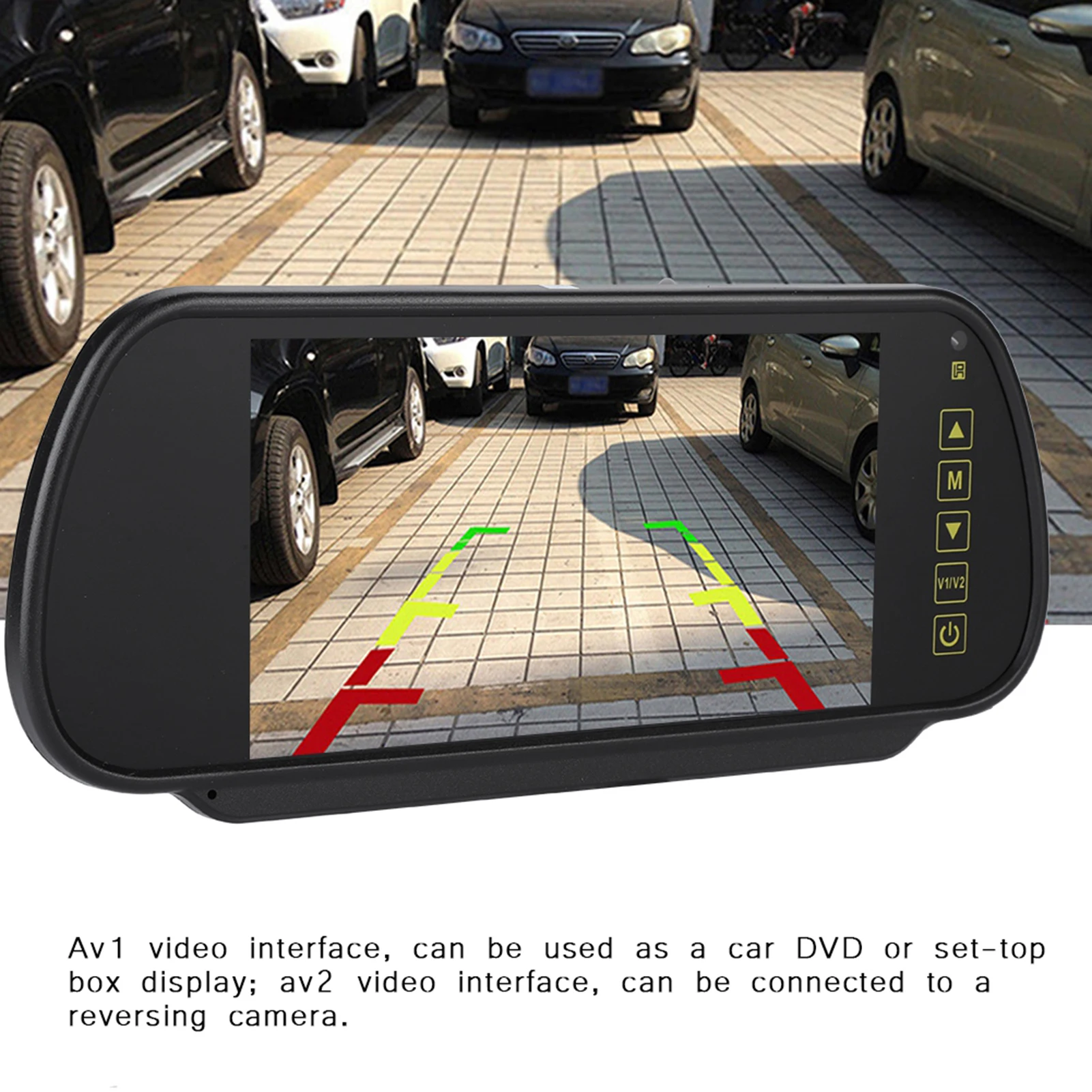

· Av1 video interface, can be used as a car DVD or set-top box display; av2 video interface, can be connected to a reversing camera.

· 7-inch display with external DVD or car TV.

· Wide range of applications, suitable for all types of vehicles, reversing the car automatically.

· Wide voltage setting, DC12V--DC24V car can be used directly, no power inverter, easy to install.

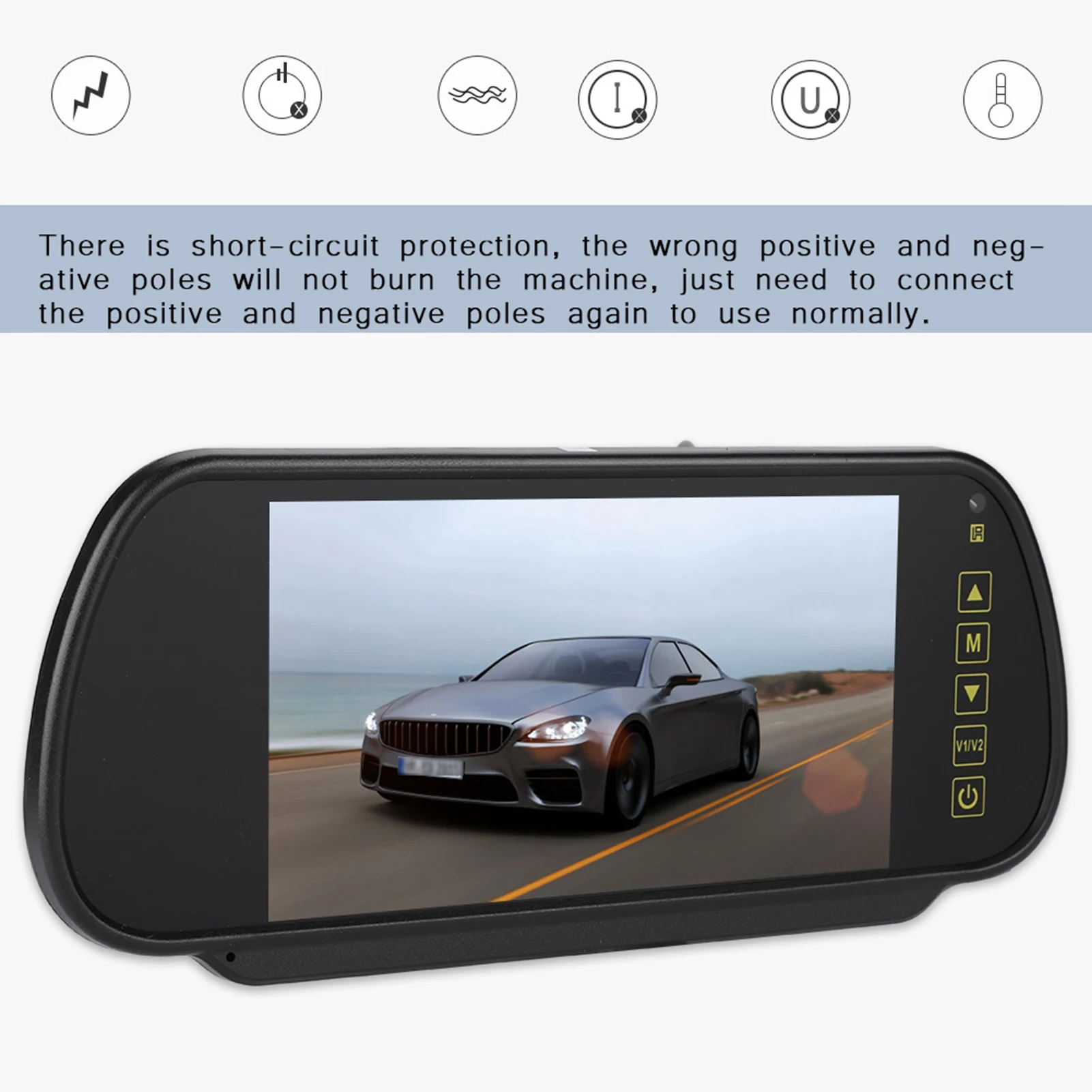

· There is short-circuit protection, the wrong positive and negative poles will not burn the machine, just need to connect the positive and negative poles again to use normally.

· The display is more delicate and the picture contrasts.

· Get rid of the restriction of reversing priority line, video 2 supports reversing priority function, as long as video 2 is connected to the camera, the screen will automatically jump when reversing.

Specification:

Item Type: Car Rear View Monitor

Screen Size: 7inch

LCD Screen Category: LED digital screen

Working temperature: -15℃-50℃

Storage temperature: -20℃-70℃

Display Ratio: 16:9 widescreen

Working Voltage: DC12V~24V (wide voltage design, most cars can be used directly)

Power: ＜5W

Video input: AV2 supports reverse priority (do not need to take the reverse priority line, automatically recognize)

Resolution: 800(W) x RGB x 480(H)   1024*600

System: compatible with PAL/NTSC

Size: Approx. 24.8*10.6*3.8cm / 9.8*4.2*1.5inch

Weight: Approx. 600.9g

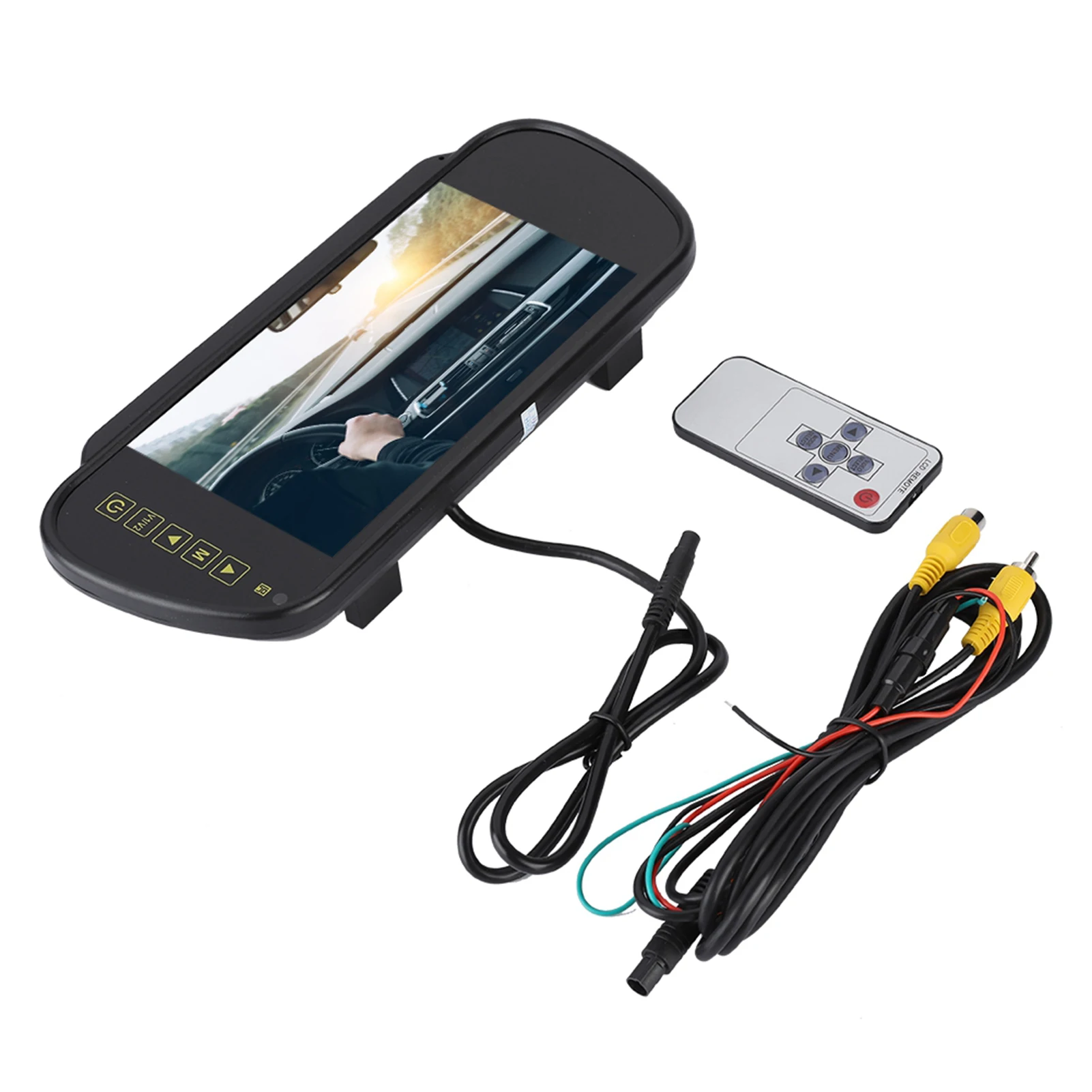

Package list:

1 x Rear View Monitor

1 x Cable

1 x Remote Control

Installation: There is a strong buckle on the back of the display, which can directly lock the original rear view mirror. The original rear view mirror does not need to be disassembled and does not need to be changed.

Note:

1. The main component of this product is an LED digital screen with a glass surface. Please avoid squeezing and pressing it forcefully.

2. Install the device firmly and securely to prevent falling off during vehicle driving or braking, which may cause personal injury and equipment damage.

3. Compatible with both PAL and NTSC video systems.

4. Only supports CVBS signal, incompatible with AHD signal. Using AHD signal will lead to abnormal connection and incompatibility issues.
