High Speed For J-Link JLink V9 USB JTAG ARM Emulator Debugger For J-Link V11 Jlink V11 Emulator STM32F103C8T6 STM MCU

High Speed For J-Link JLink V9 USB JTAG ARM Emulator Debugger For J-Link V11 Jlink V11 Emulator STM32F103C8T6 STM MCU

----//Always support the latest version of official software //----

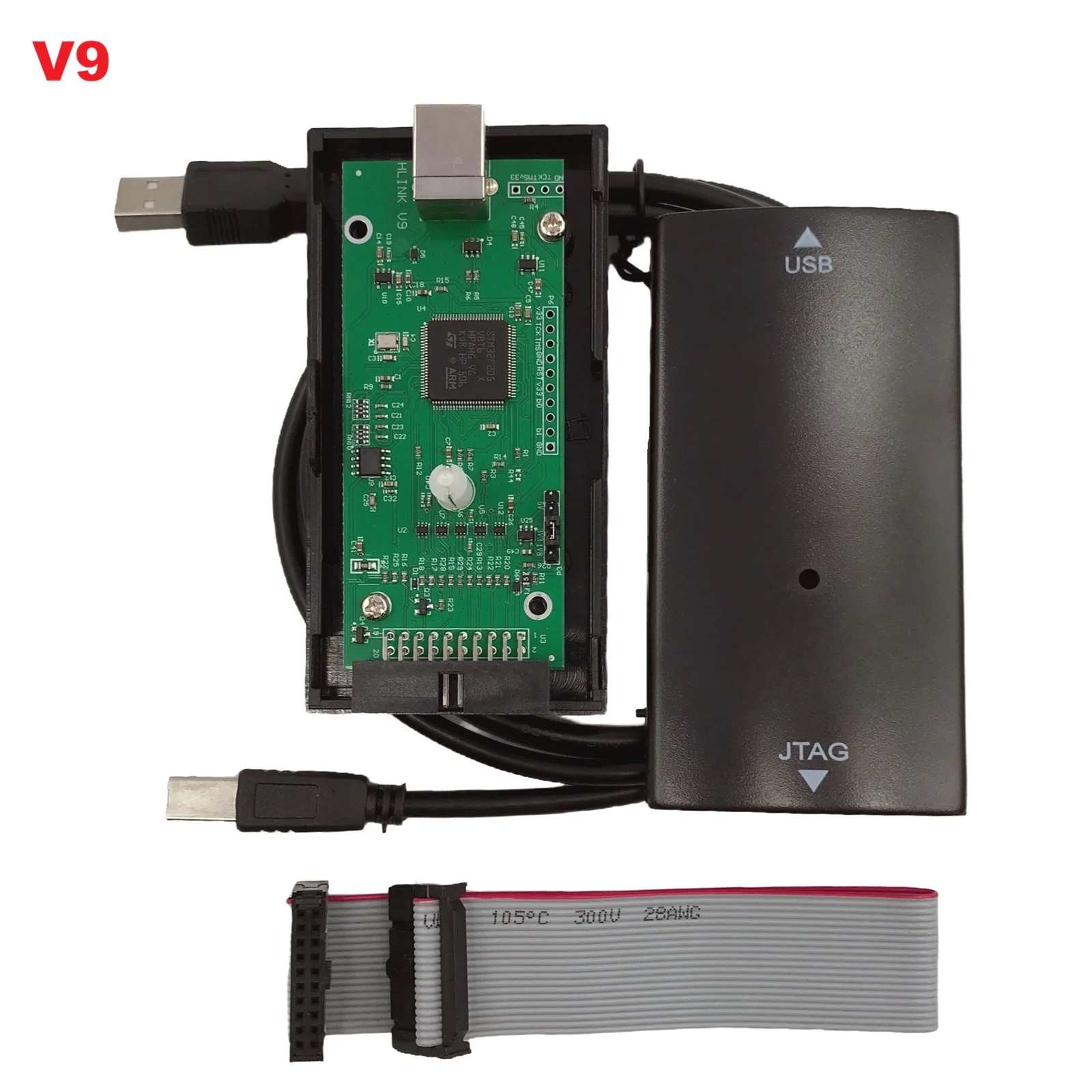

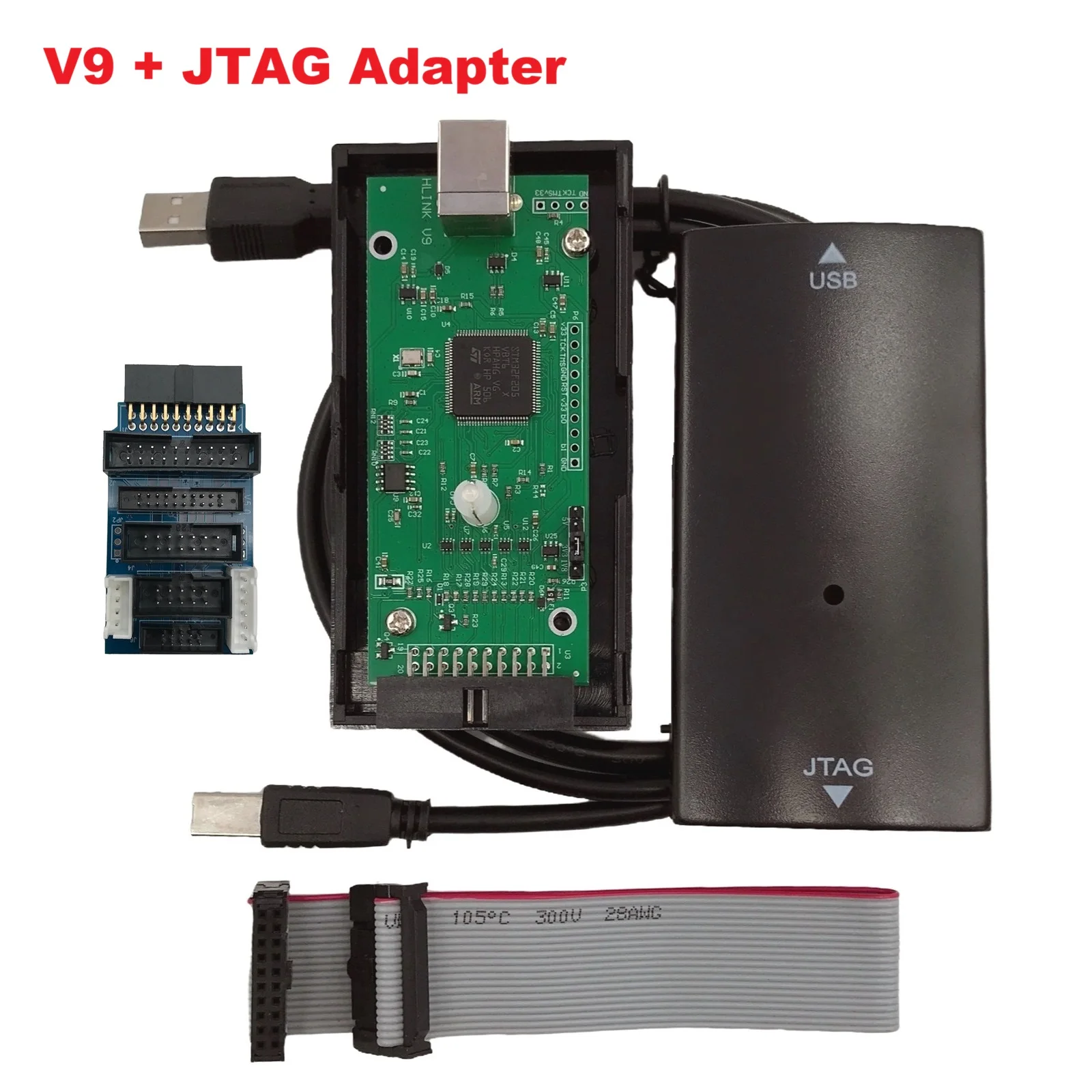

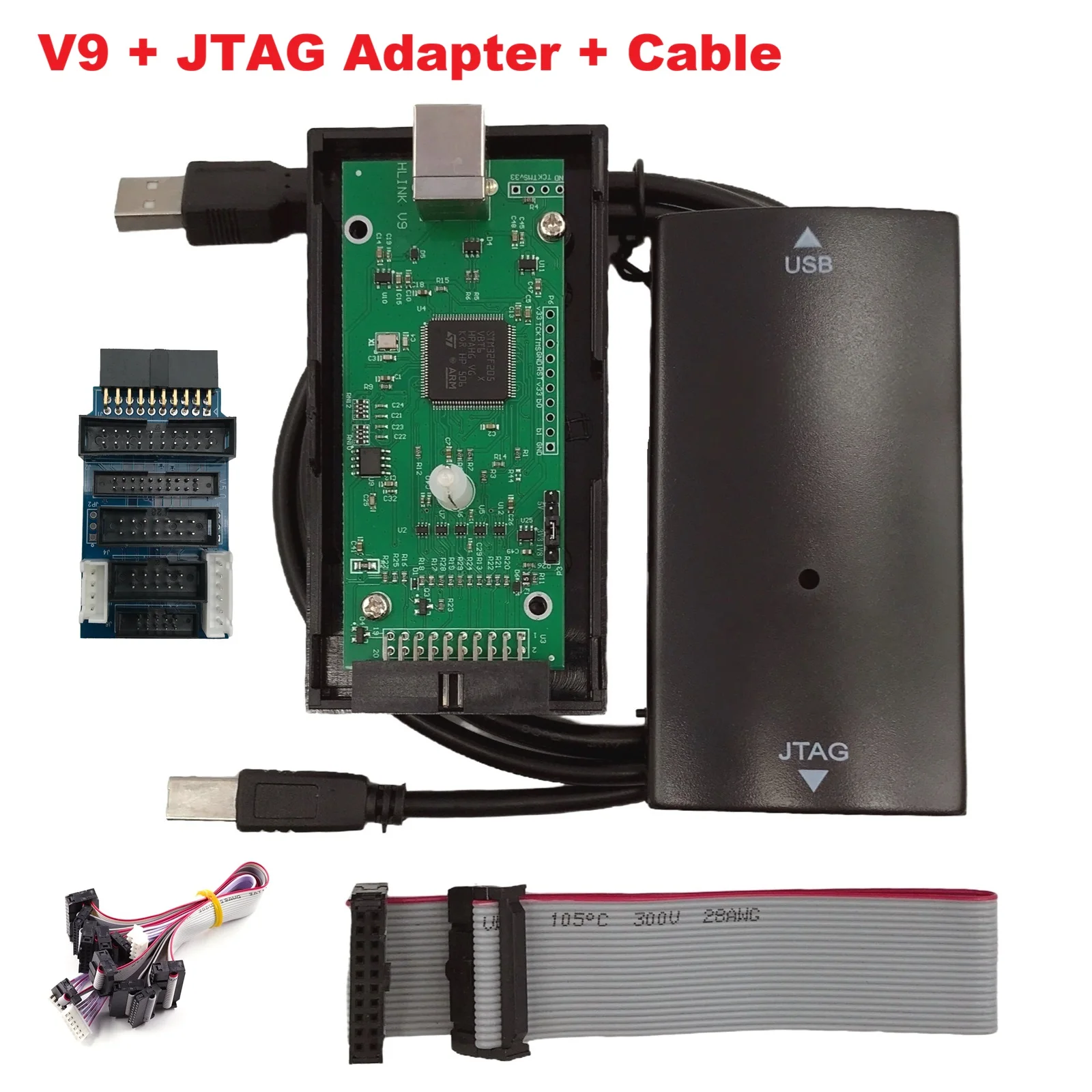

J-Link V9 Features:

IAR EWARM integrated development environment seamlessly connected JTAG Emulator

Support all ARM7 / ARM9 core chips, as well as cortex M3, including Thumb mode

Support for ADS, IAR, KEIL, WINARM, REALVIEW almost all of the development environment

Download speeds of up to ARM7: 600kB / s, ARM9: 550kB / s, through the DCC up to 800 kB / s

The maximum JTAG speed 12 MHz

Target board voltage range 1.2V-3.3V, 5V compatible

Auto speed recognition

Monitoring all JTAG signals and target board voltage Fully plug and play

Use the USB power supply (but not the target board power supply)

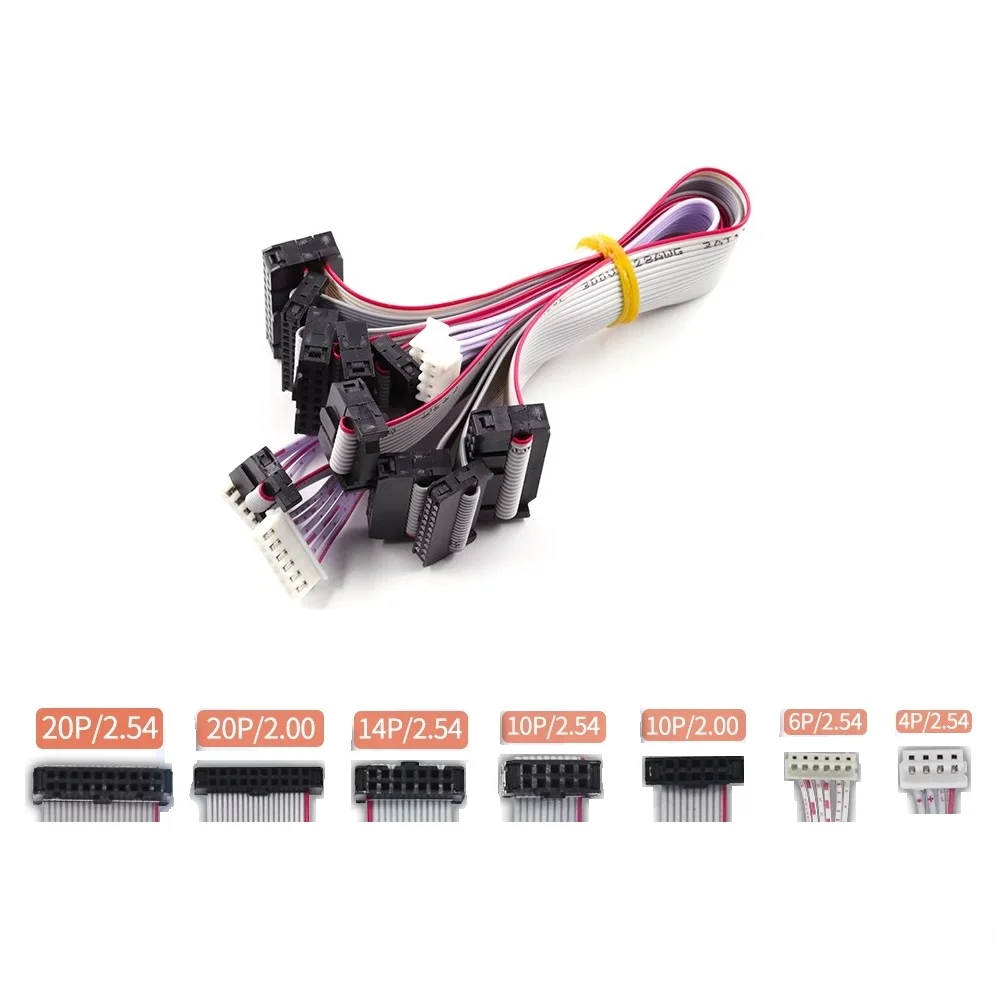

With a USB cable and 20-core flat cable

Support multi-device JTAG serial connection

Standard 20-core JTAG emulation connector

Optional 14-core JTAG emulation connector

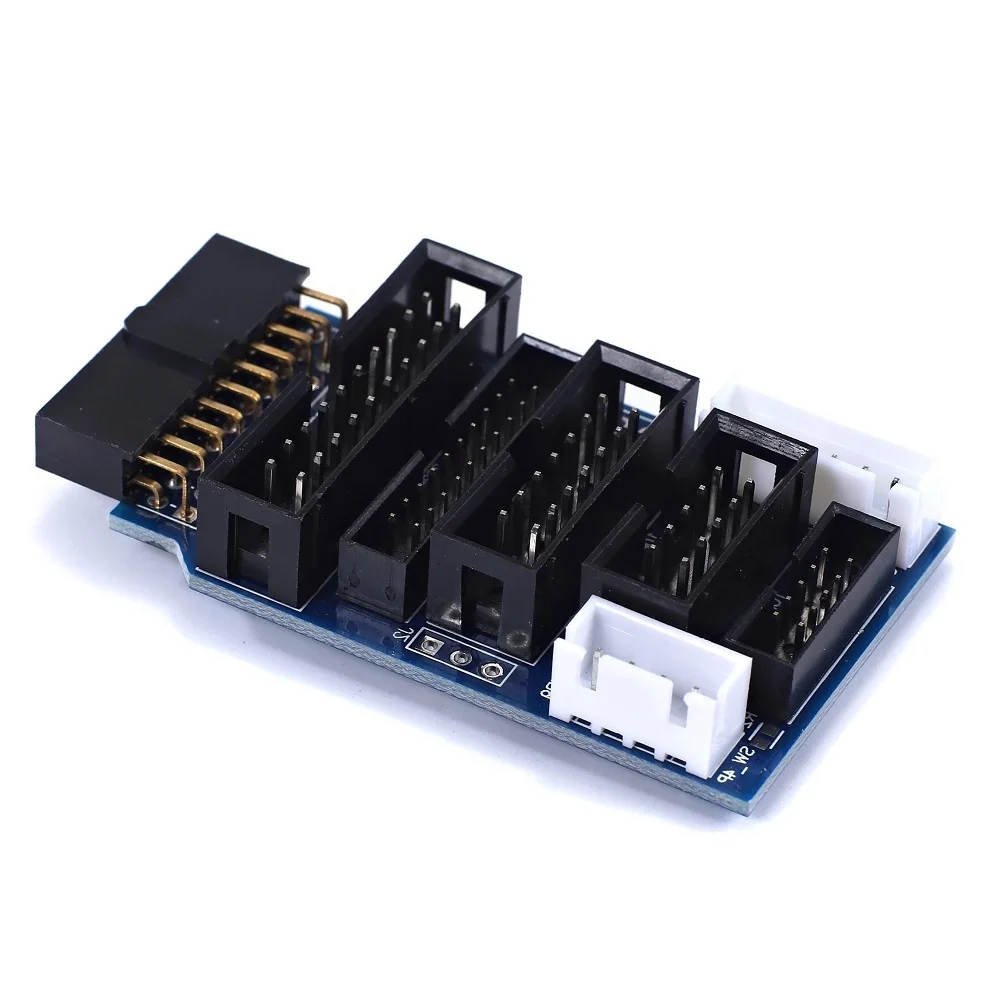

Optional adapter for 5V targets board

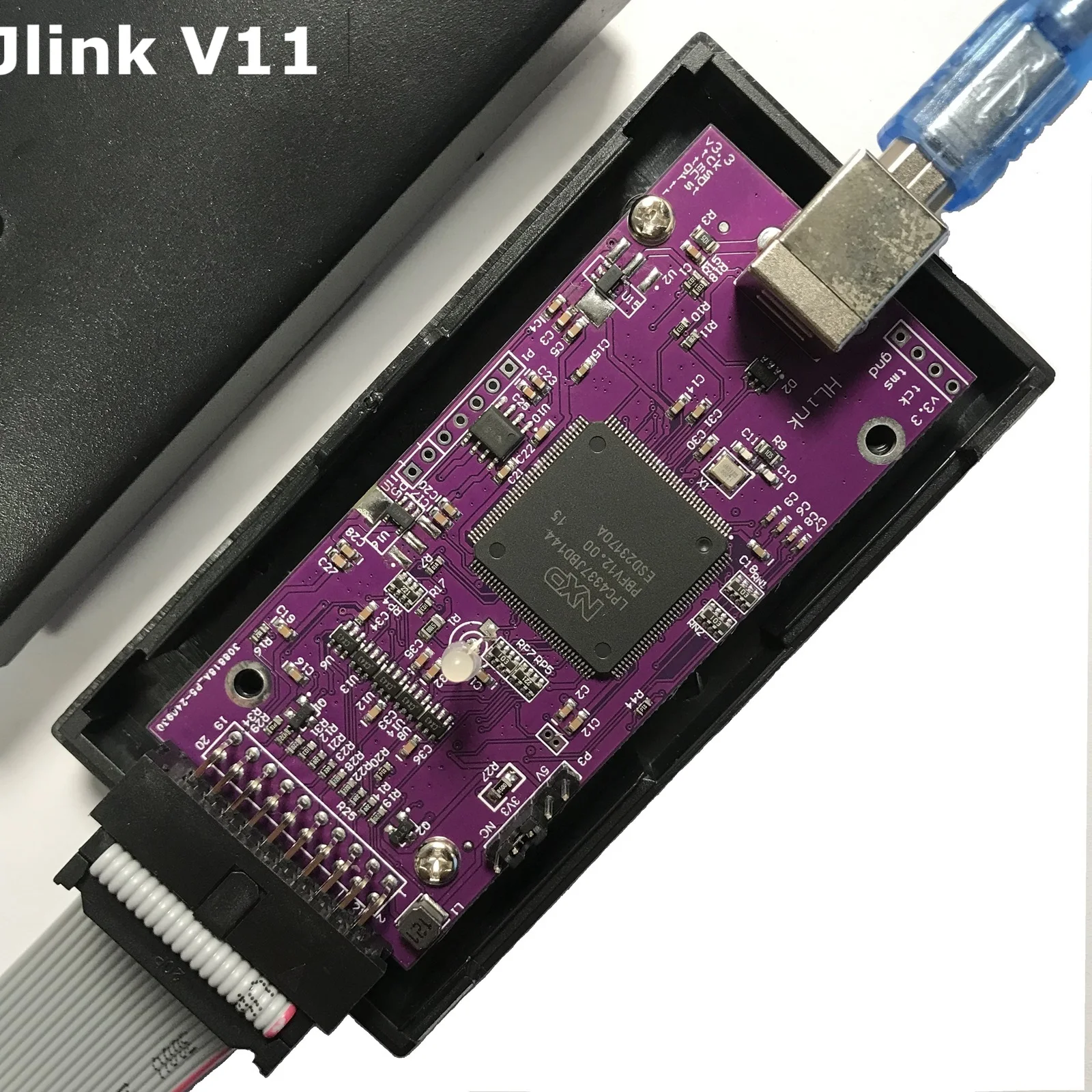

Features of JLINK V11:

Jlink v11 supports all ARM chips, PIC chips, RISC-v chips, and some 51 chips.

The speed is faster than Jlink v8 and Jlink v9.

We can offer different version of Jlink:

If you want to take Jlink v12: You can click

JLINK V12

If you want to take Jlink v13: You can click:

Jlink v13

The Newest Feedback for Jlink V11:
