New Automated Gate Safe Infrared Detector Sensor/ Swing /Sliding/Garage Gate / Door Safety Infrared Photocells

AC/DC 12V 24V Waterproof Active Photoelectric Single Infrared Beam Sensor Barrier Detector for Gate Door Window Burglar Alarm

Used for

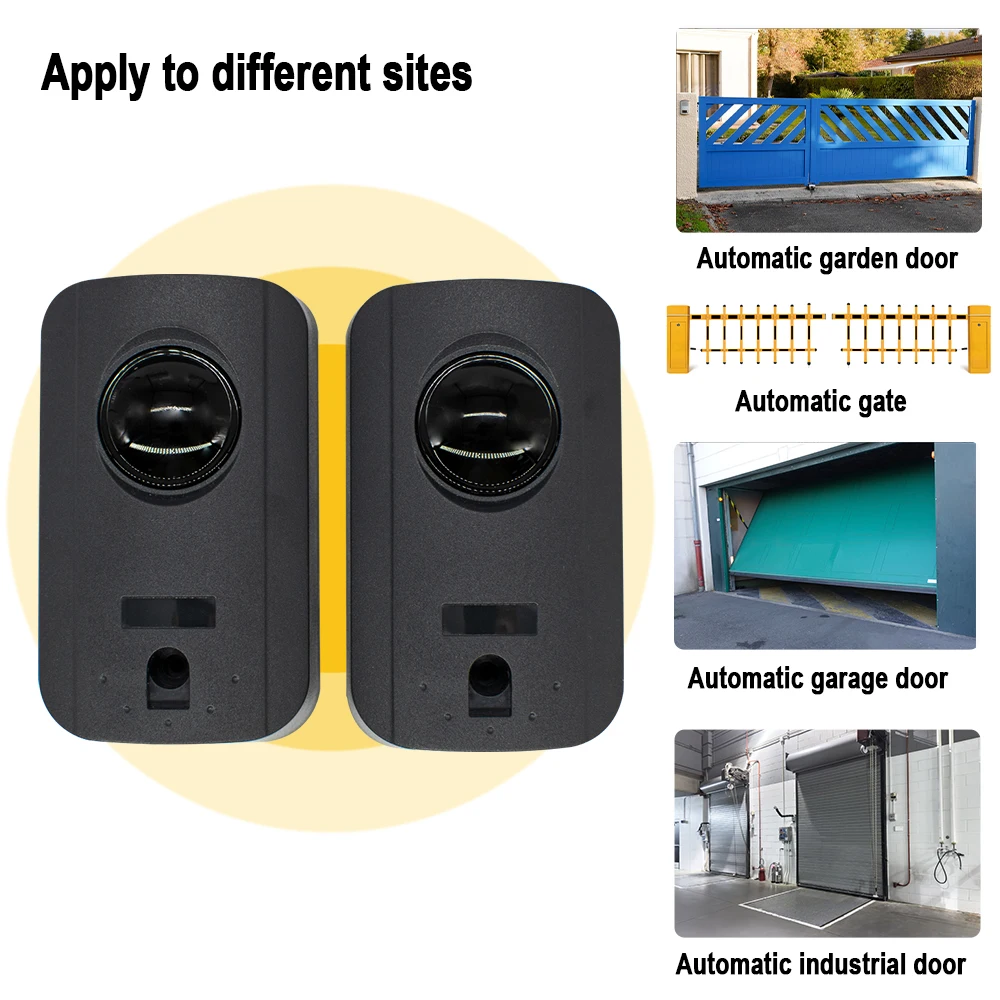

automatic slide door, automatic Gate Door, coil door , garage door， windows ，barrier etc.

Feature

1. Single Beam Infrared Sensor
2. Anti-glare up to 50, 000 LUX, to avoid the impact of glare or car lights
3. Sealed design to anti-rain (fog), dust (worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit)
4. With high levels of anti-RFI / EMI capability
5. High-power transmitter, sensitivity surplus degree up to 90%
6. High-power infrared receiver tube, low-power process technology
7. Adjustable of beam interdiction period, to make it more flexible and adaptable
8. Professional anti-jamming optical housing

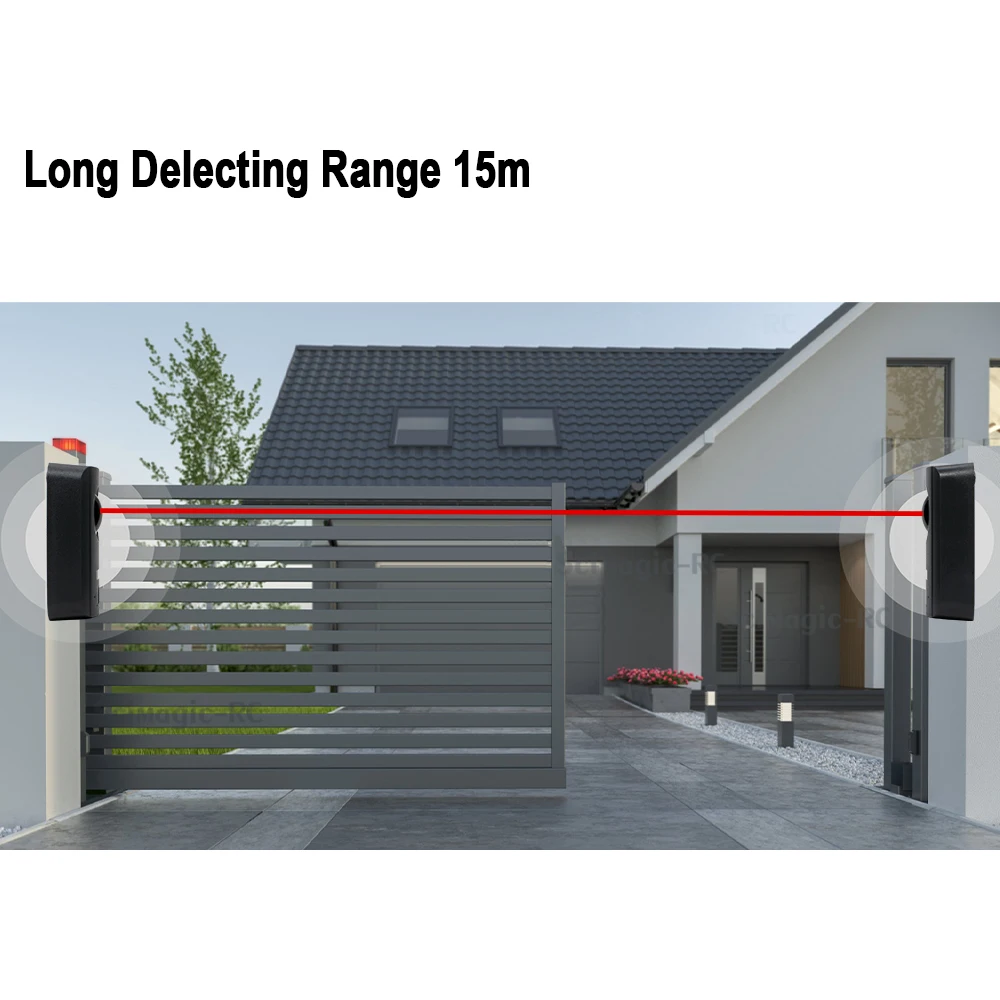

1. It can work in distance between 2meter to 15meter, you can remove the lens cover when test in short distance to reduce the infrared focus.
2. when interrupt, the relay output switch signal without voltage.

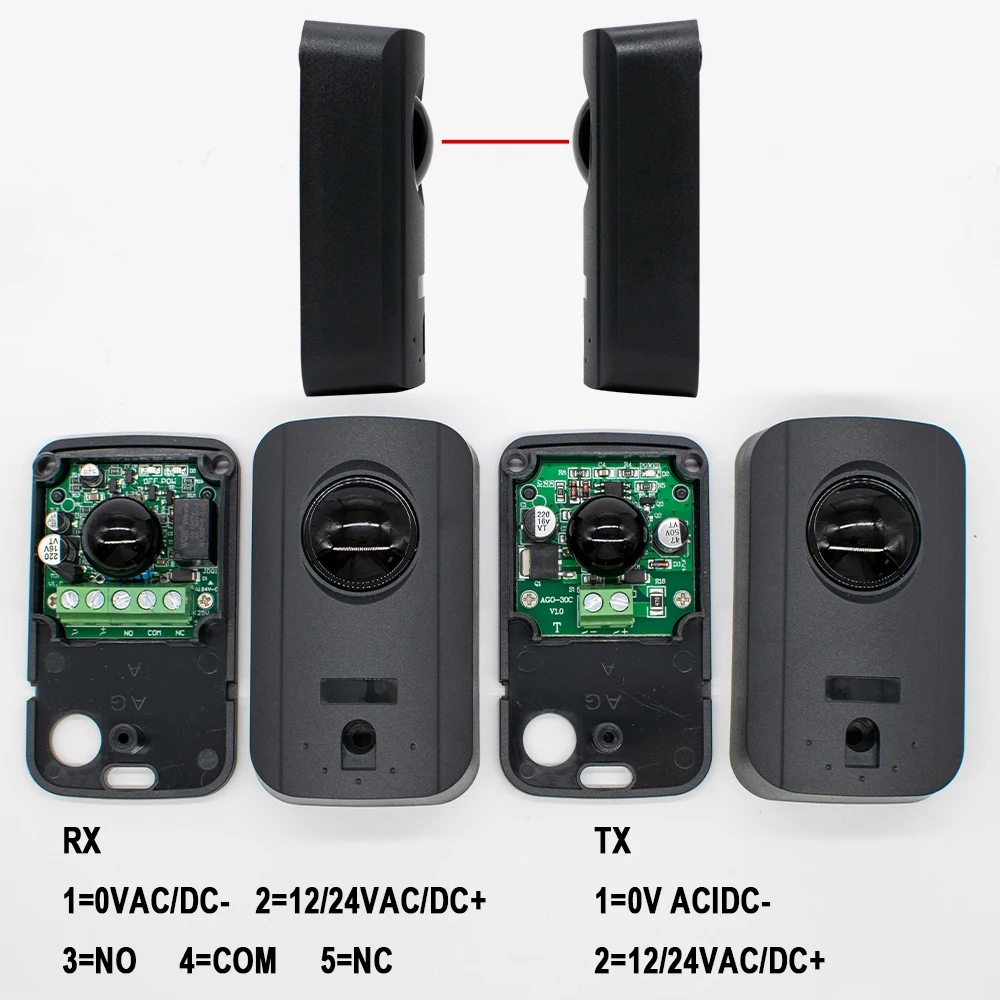

3. It has N/O and N/C switch.

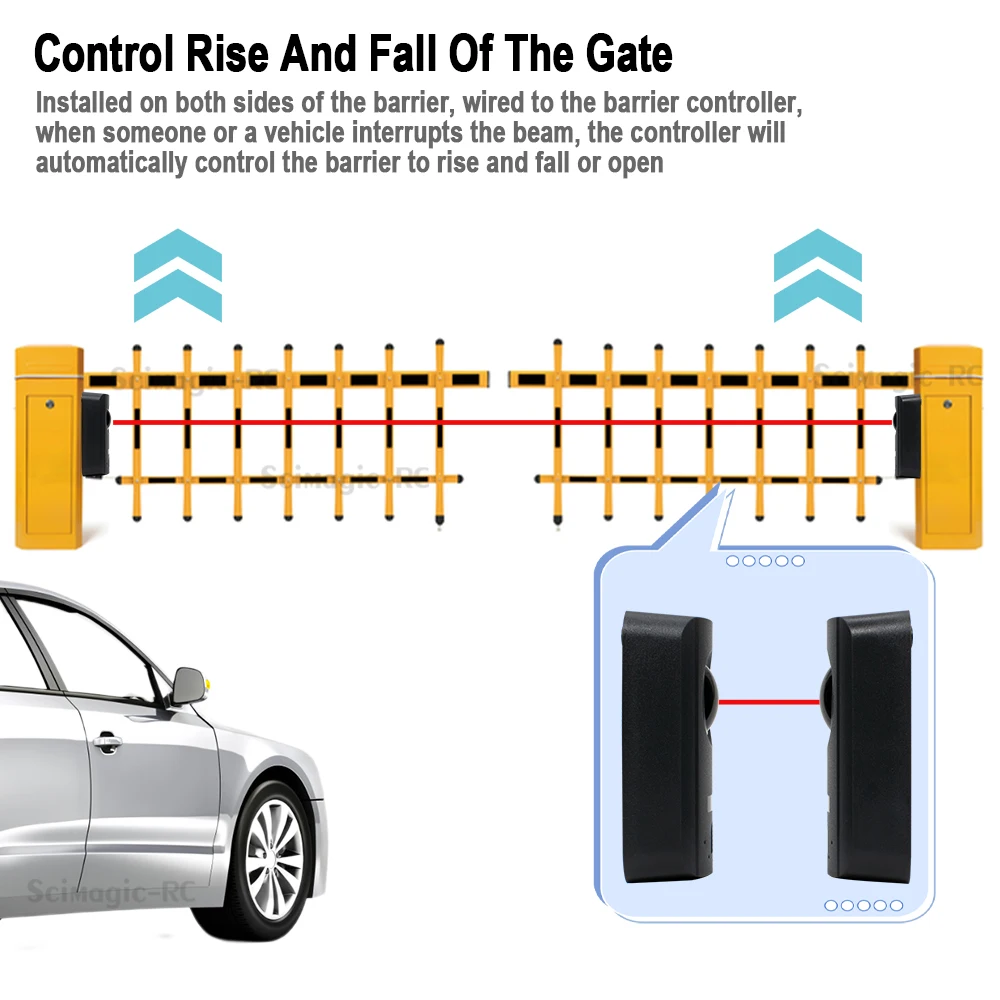

4. It can work with access control system, parking barrier and alarm system etc.
5. It works with 12V/24V power supply.

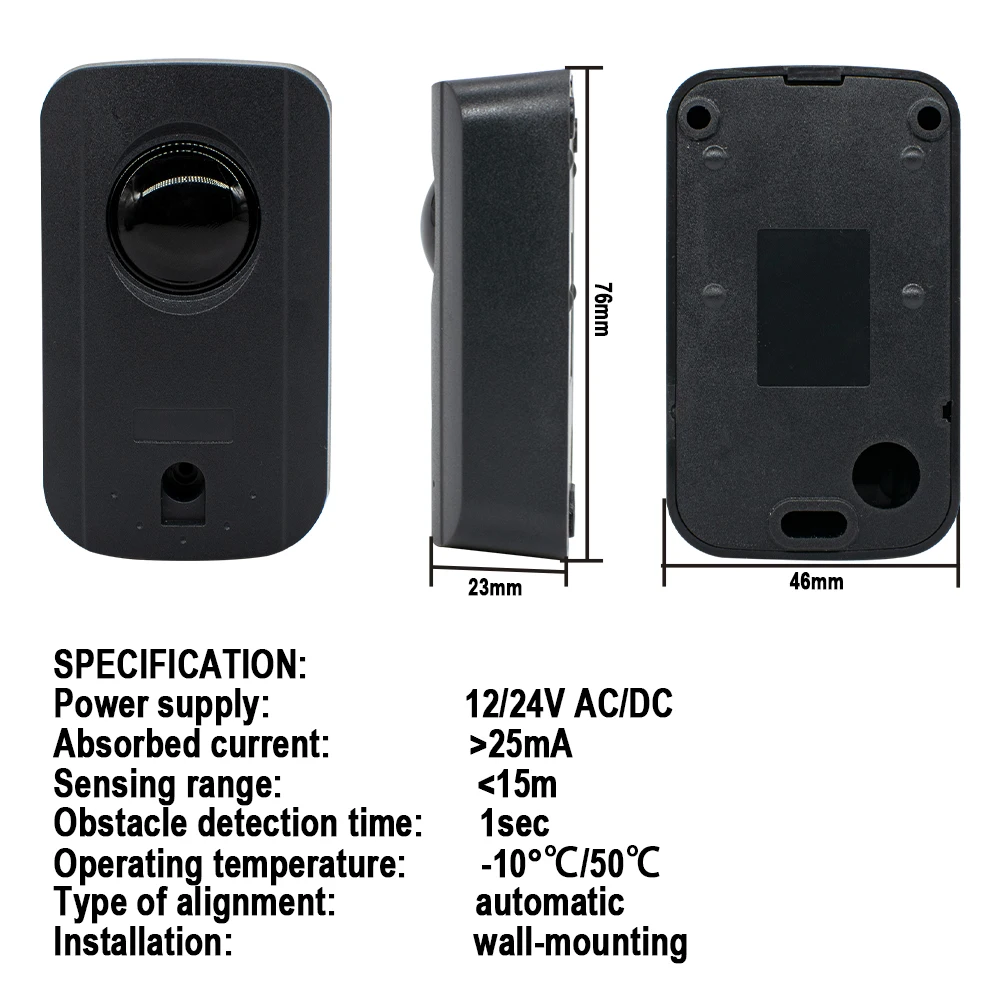

Technical Specification
