Garage Door Opener Motor Kit with Fingerprint Access Controller Bluetooth Tuya App NFC Lock Power Supply Control for Swing Gates

Garage Door Opener Motor Kit Fingerprint Access Controller Bluetooth Power Supply Control Units Tuya App Swing Gate Kit NFC Lock

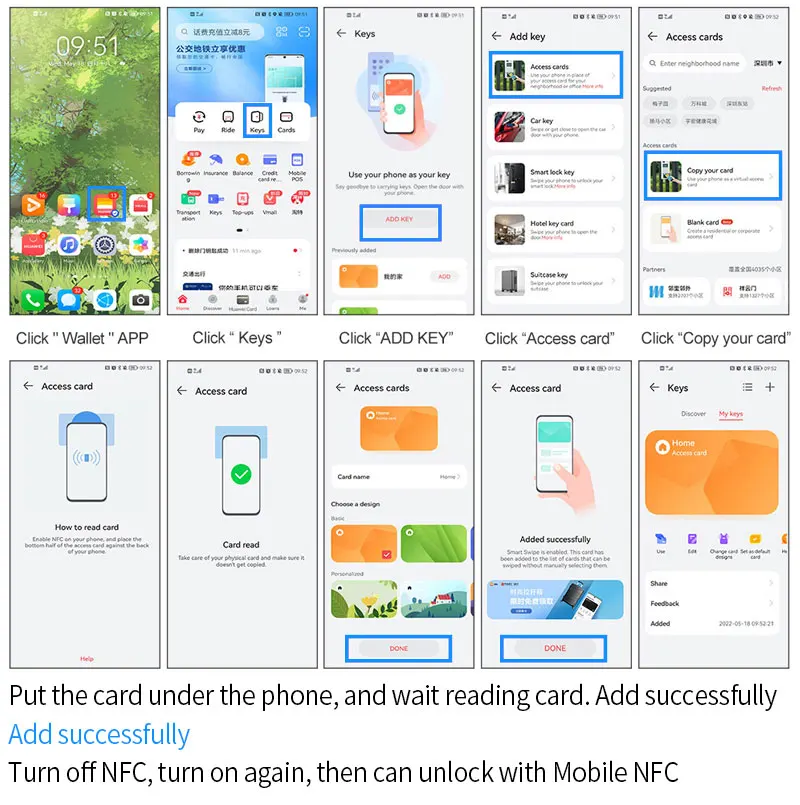

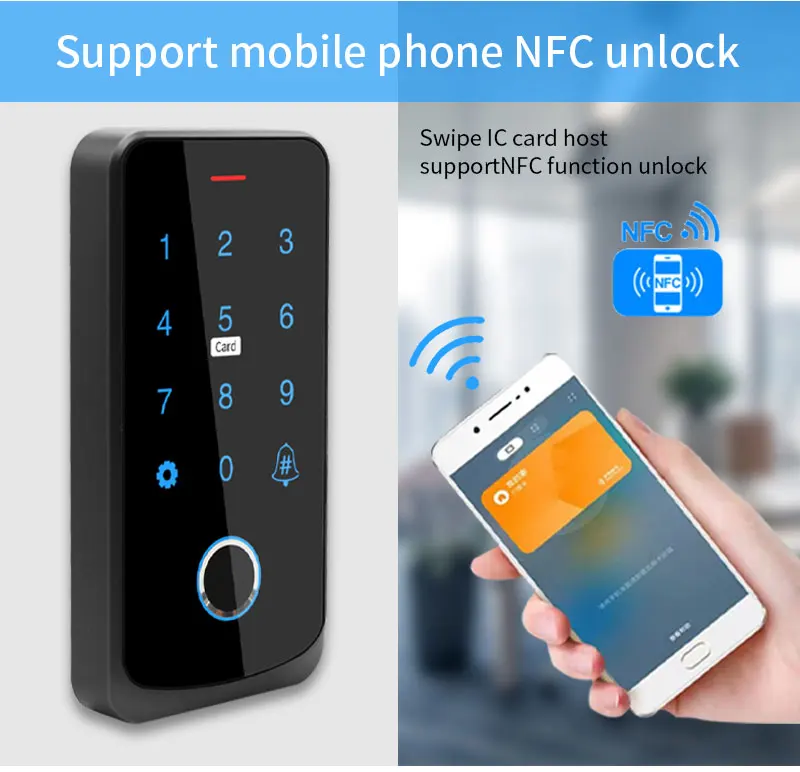

Note: For NFC function, not all phone models are supported for NFC. In actual testing, it supports most Android systems, while only a few iPhone models support it

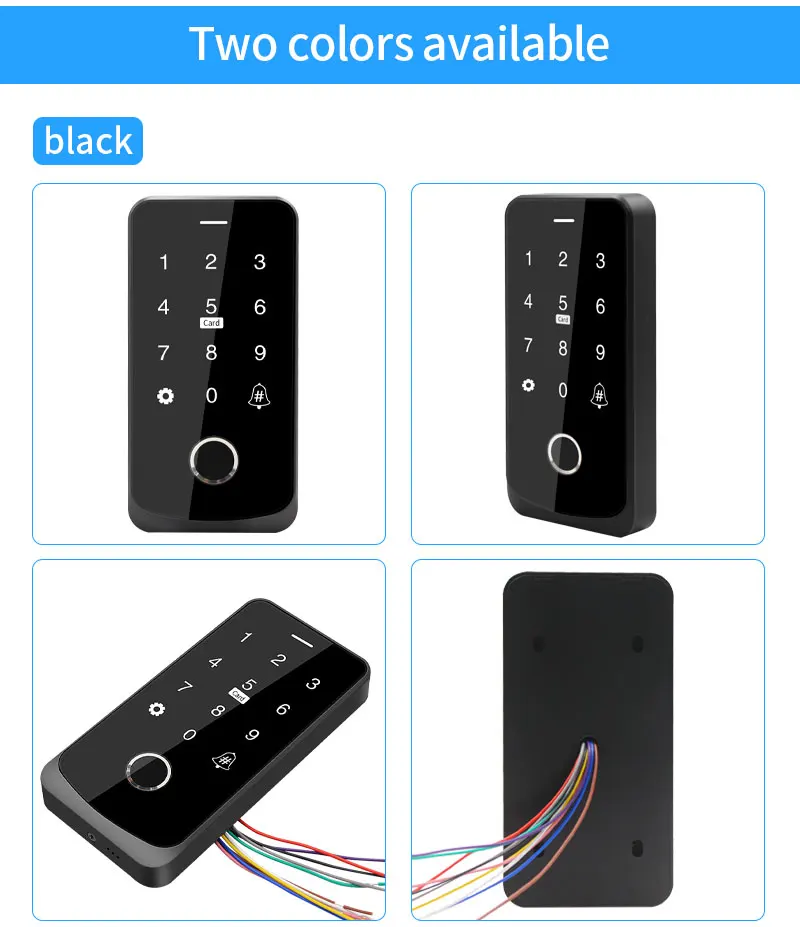

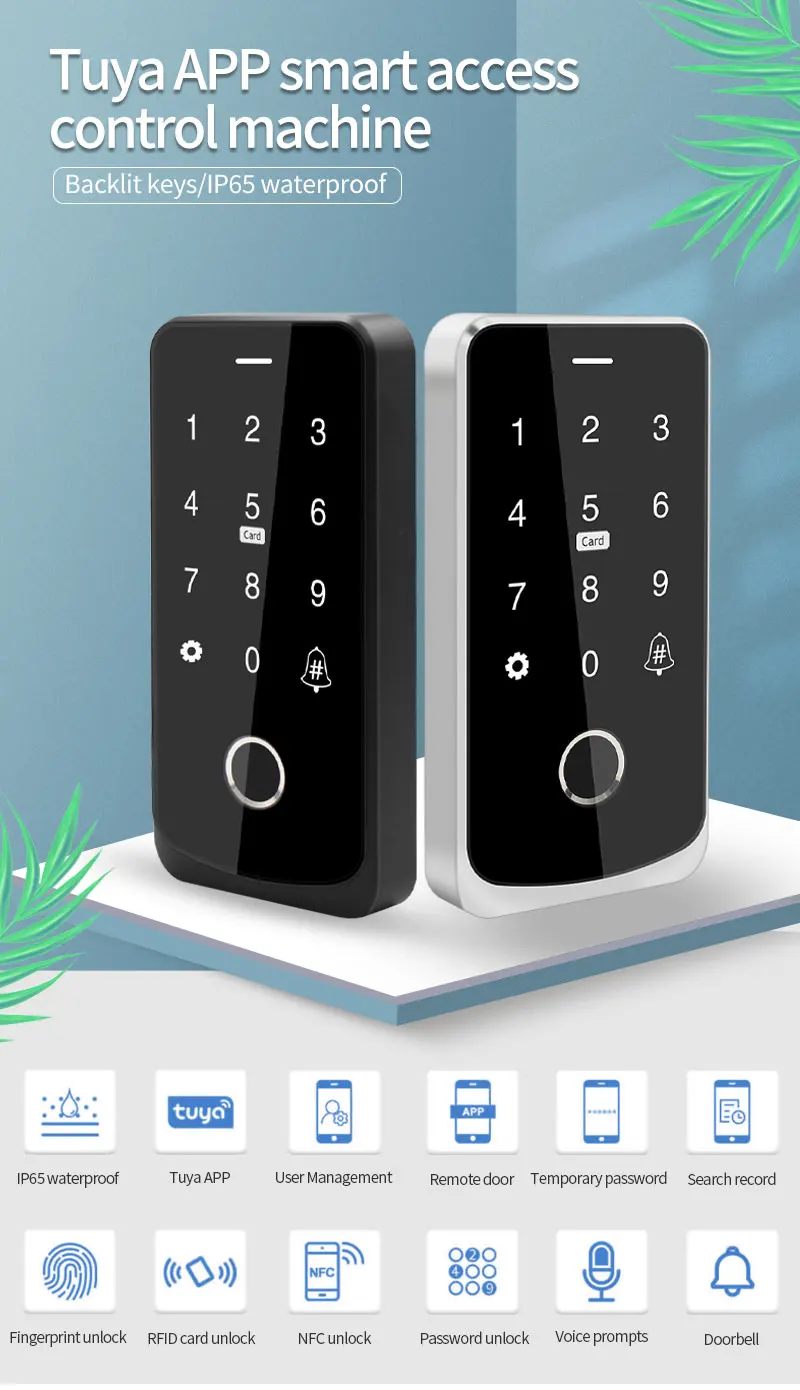

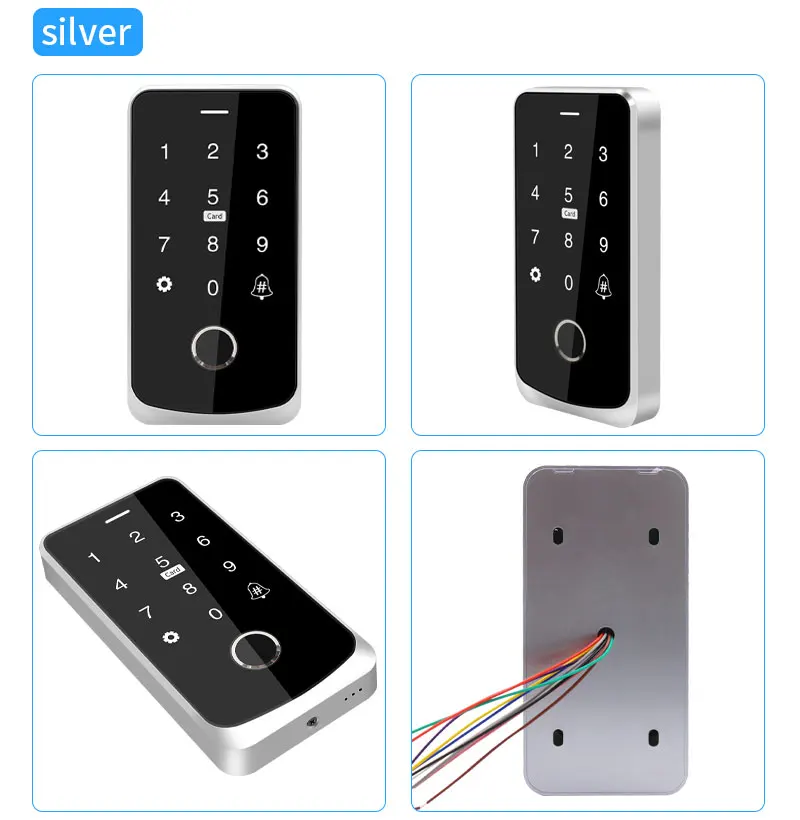

IP65 Waterproof Bluetooth Tuya APP RFID Access Controller

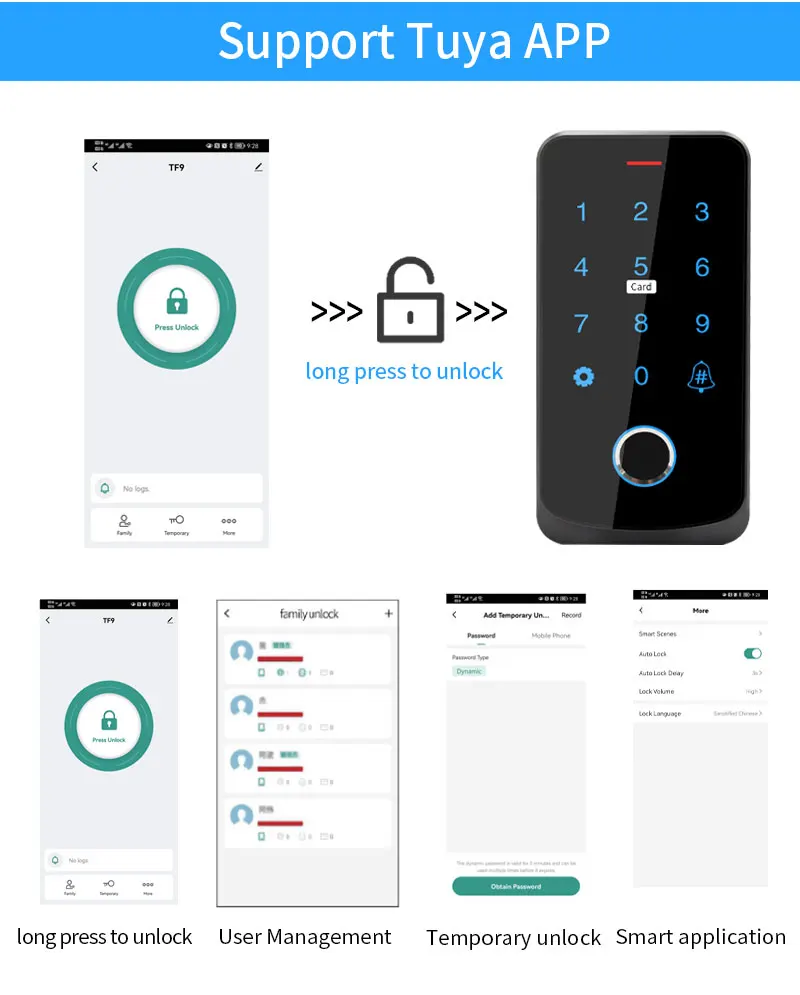

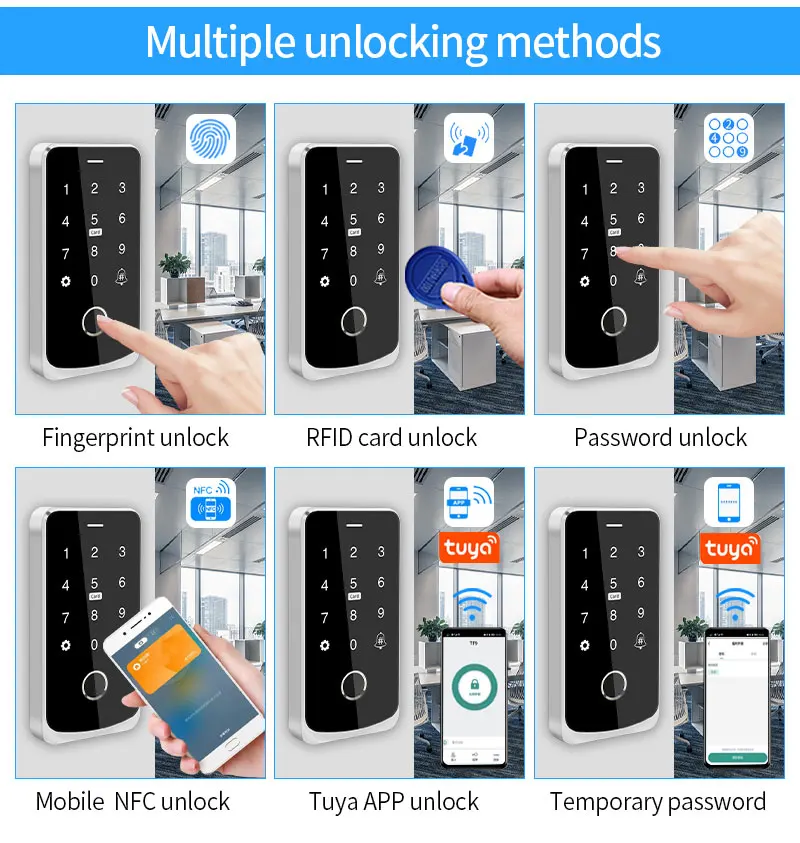

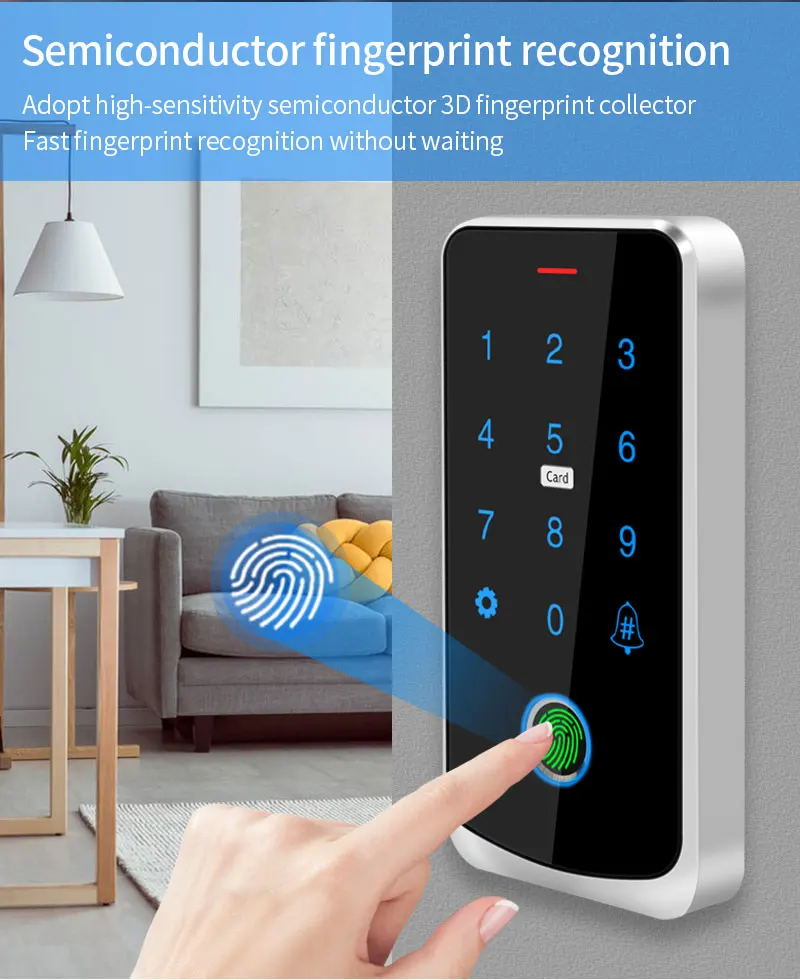

Tuya APP / NFC / Fingerprint / RFID IC Card / Password/Temporary Password 6 unlock methods

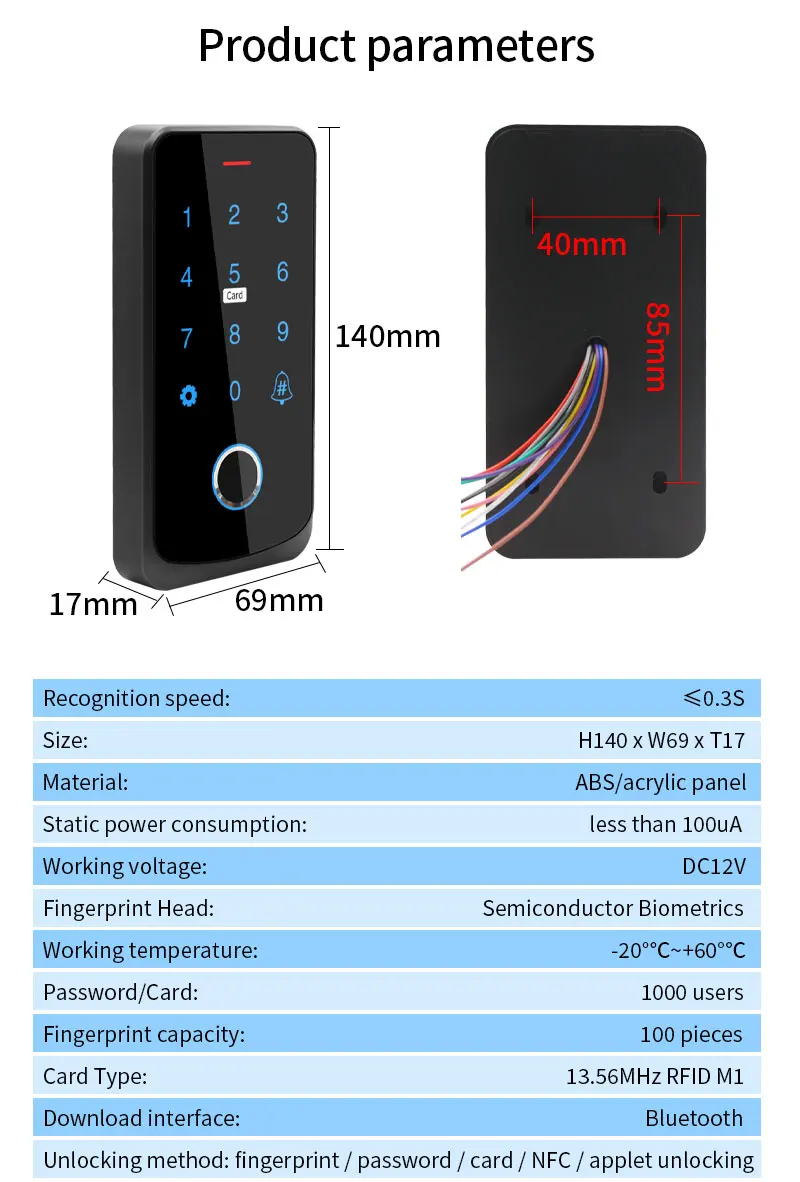

Product Specifications:

User capacity: 1000 user

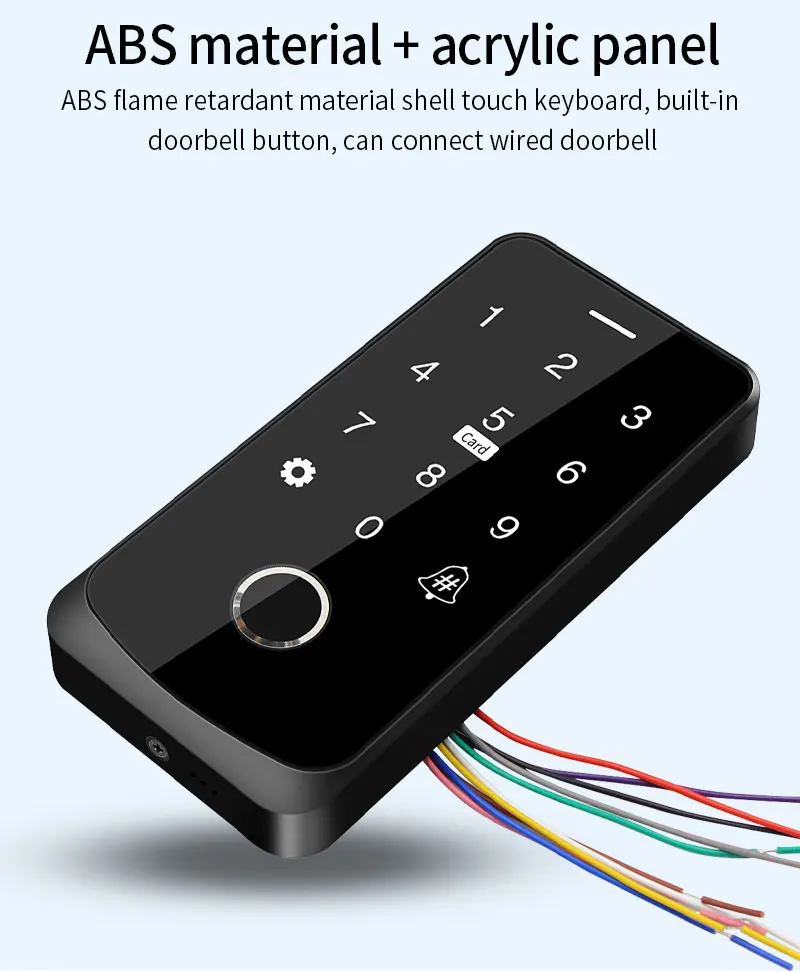

Material: ABS / Acrylic panel high quality material

Panel: touch screen panel

Working frequency: 13 56MHz

Card reading type: RFID MF IC card

Card reading distance: 0-5CM

Record capacity: Mobile phone APP remotely view the latest 10000 lock opening information.

Administrator: A maximum of three administrators can be configured.

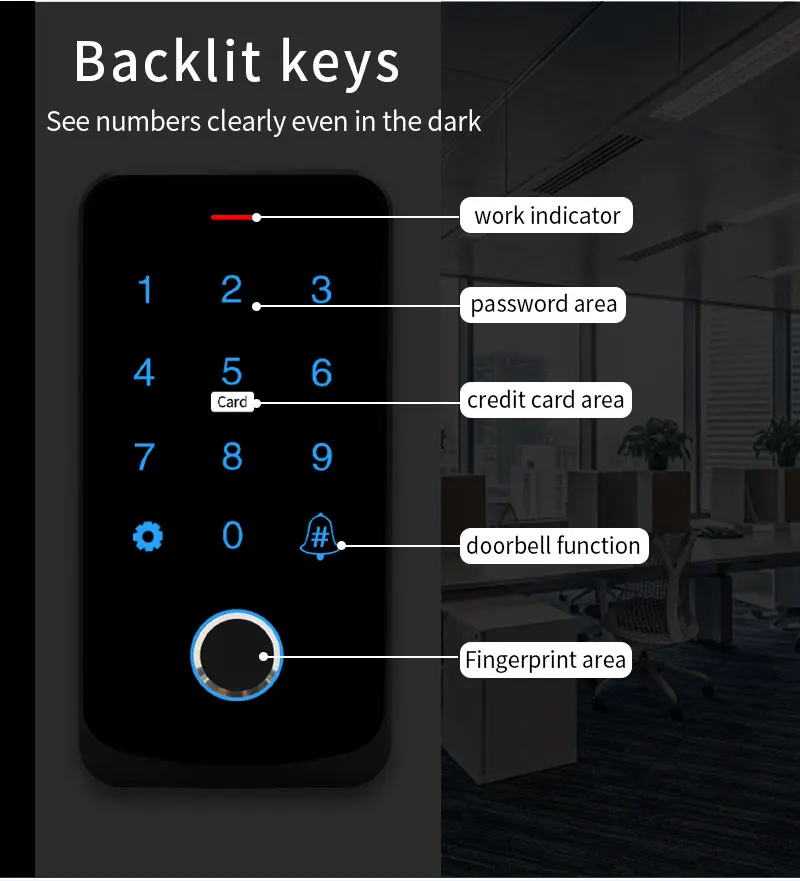

Backlight: has backlight

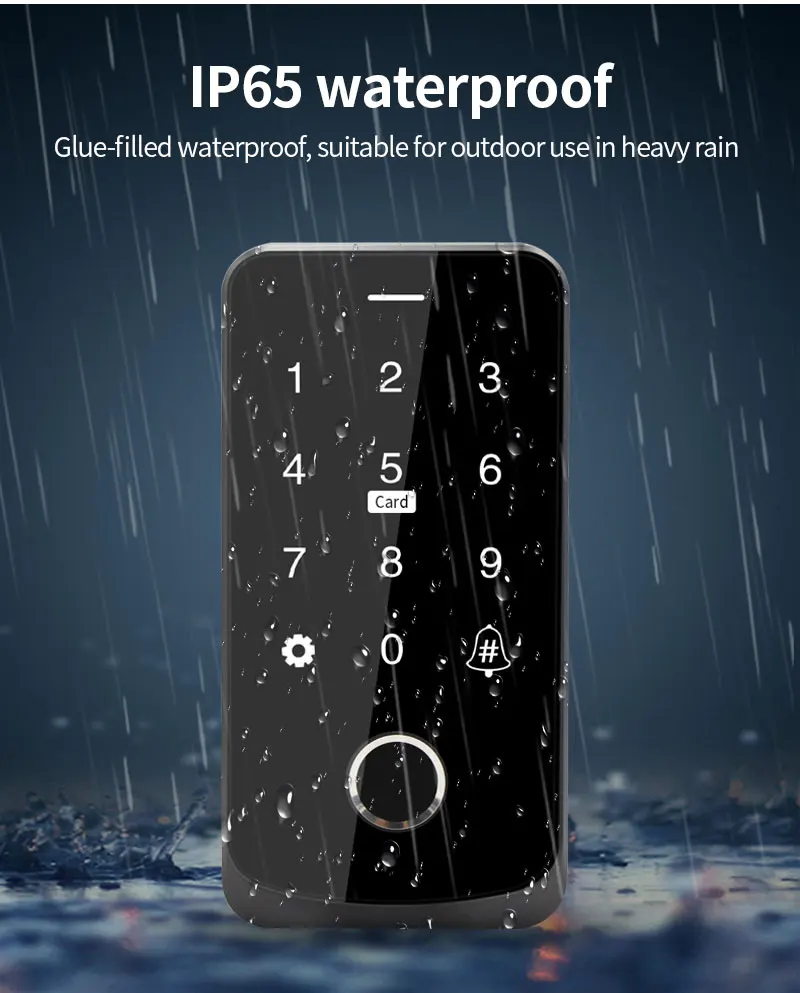

Waterproof function: IP65 waterproof, can be installed outdoor

Volume setting: 0~4 adjustable volume

Working voltage: DC 12V

Working current:≤30mA

Door opening time: 01 seconds to 30 minutus adjustable

Working temperature: -20。C ~ +60。C

Working Humidity: 20% ~ 90%

Product size: 140*70*16mm

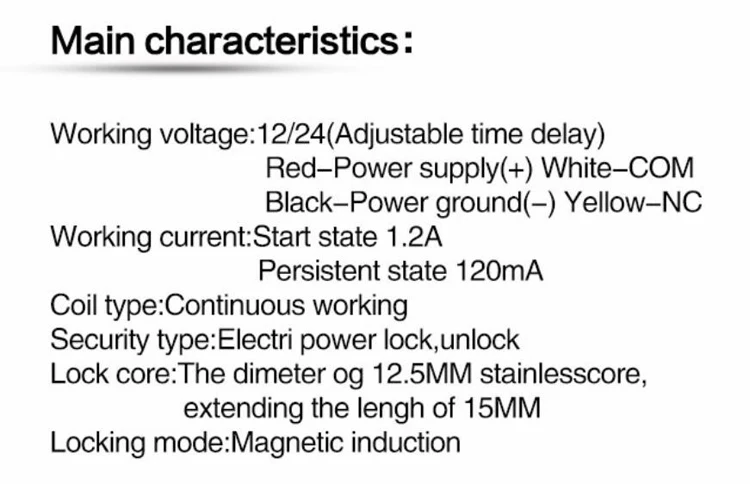

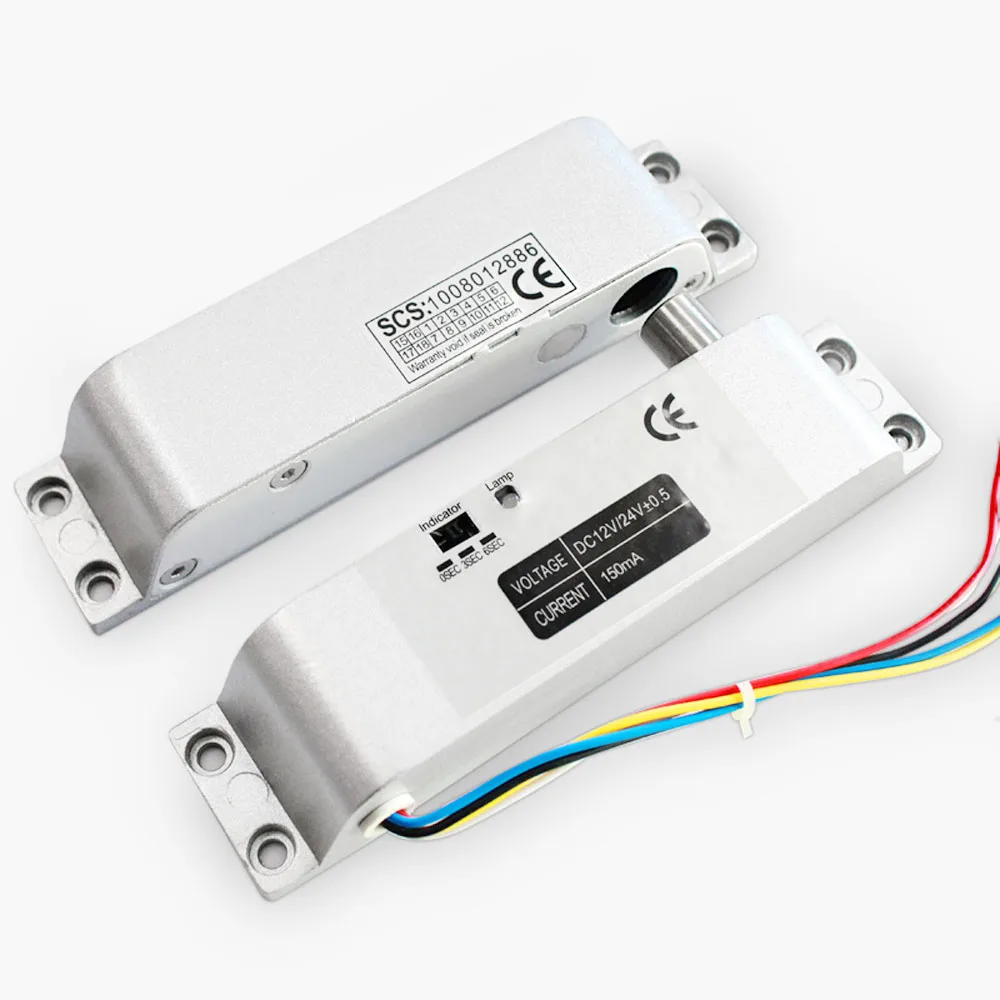

Electric Drop Bolt Lock ：

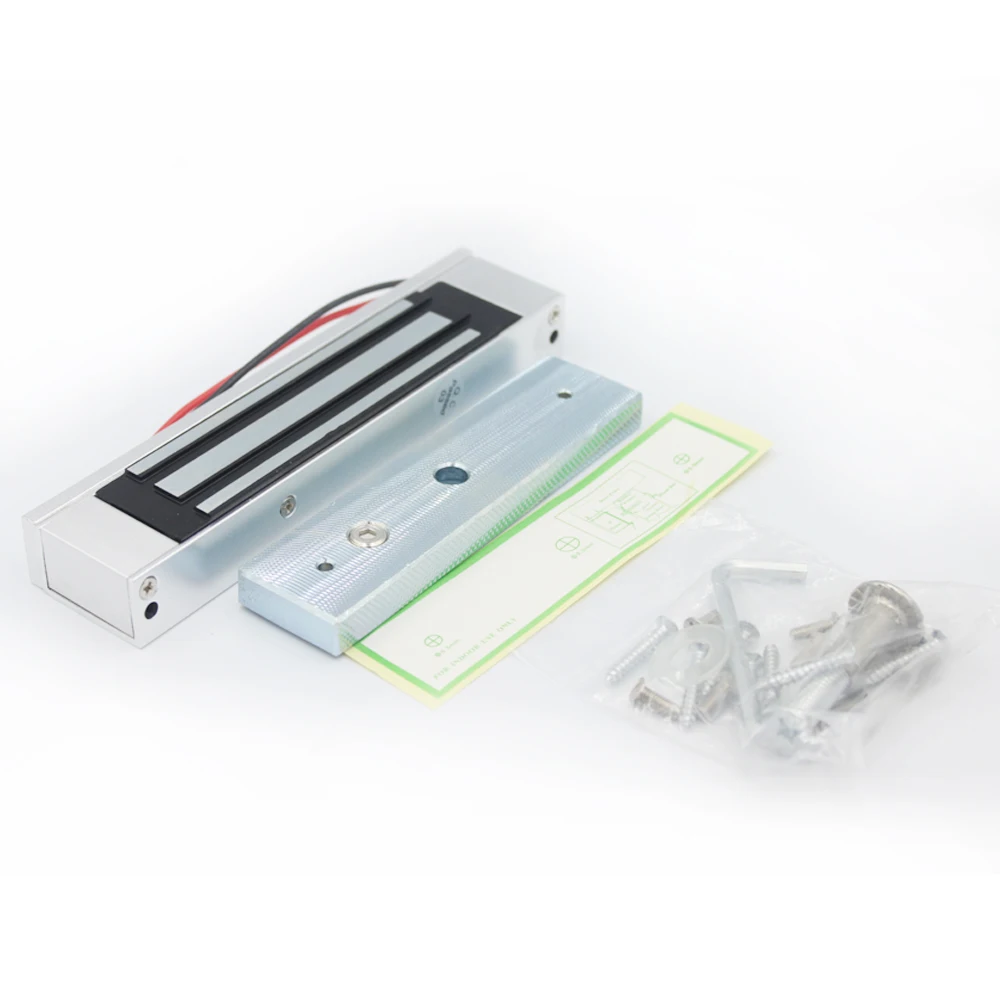

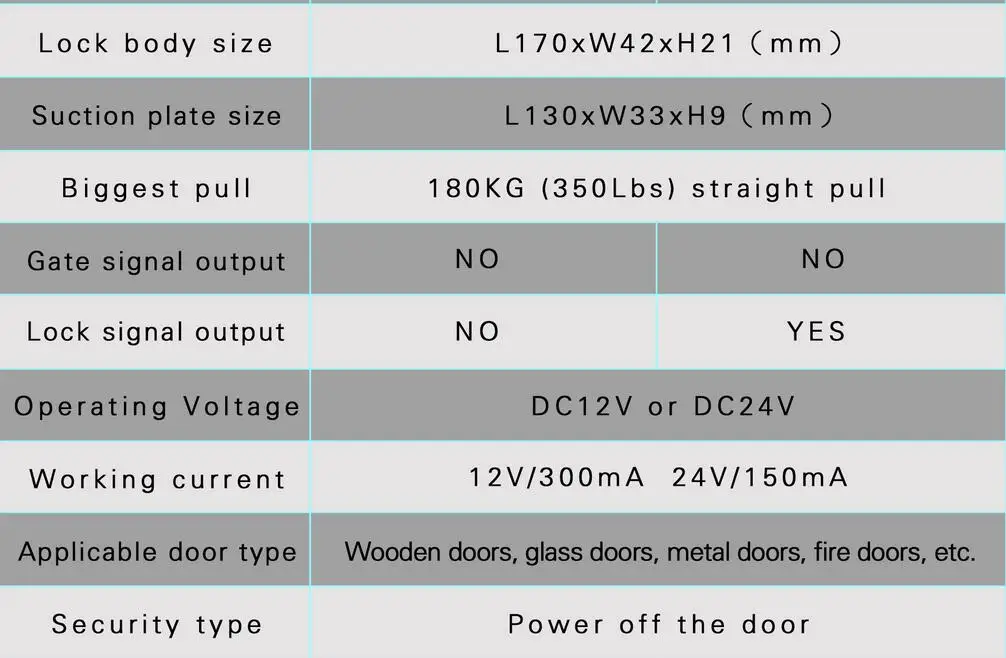

180Kg Magnetic Lock：

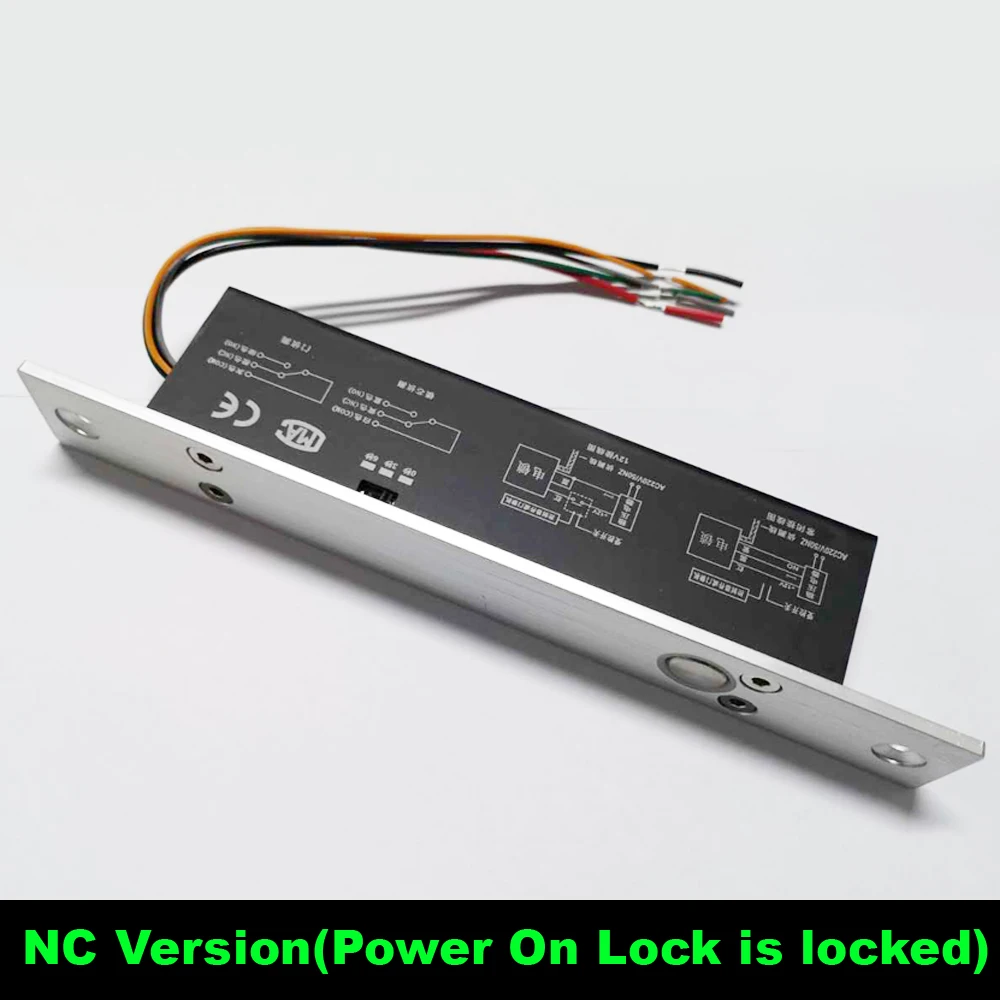

NC Bolt Lock B6L-NC ：

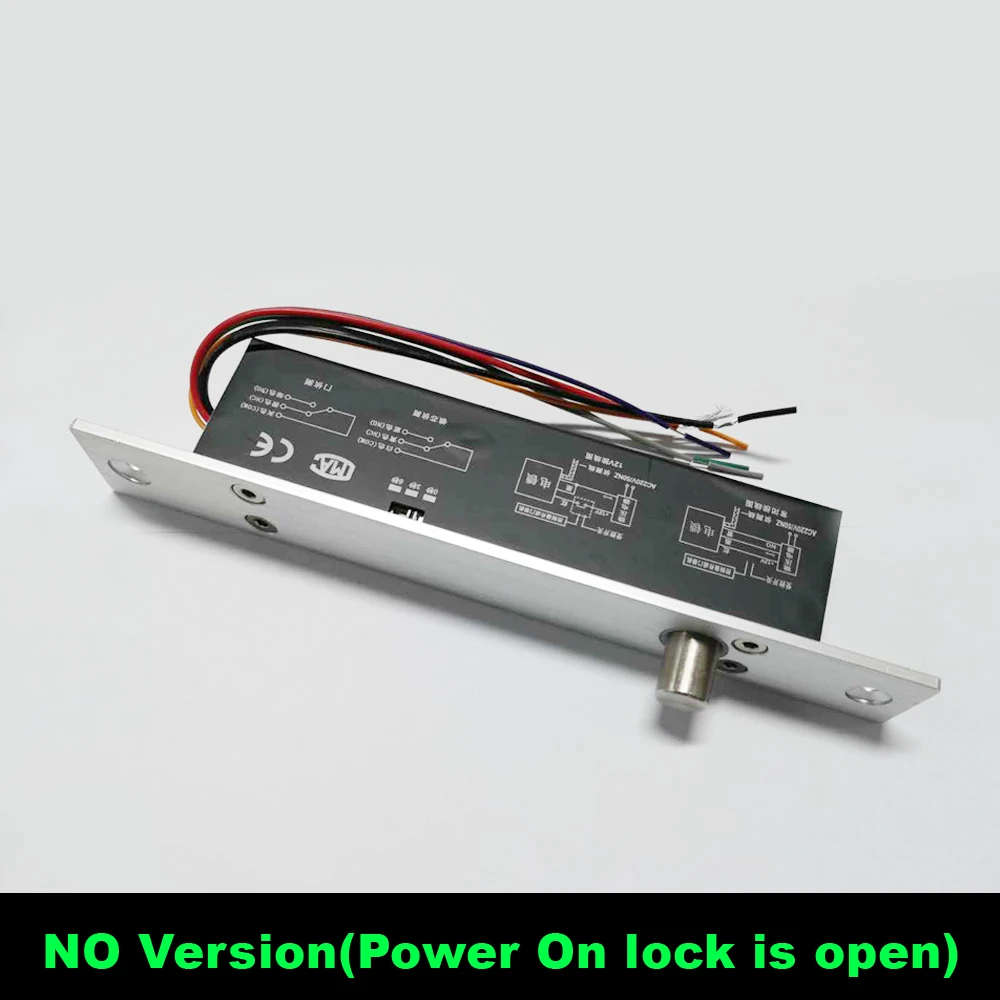

NO Bolt Lock B6L-NO ：

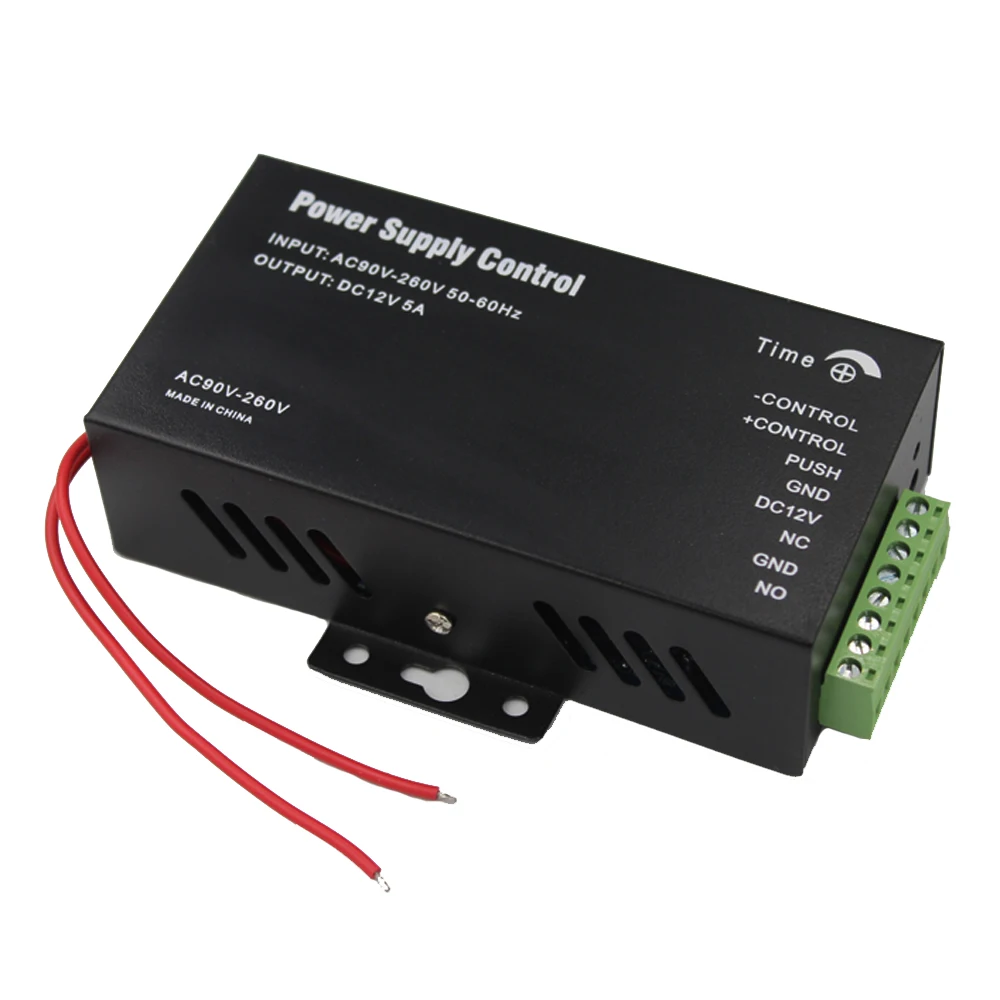

Power Supply:

This is AC110-240V, DC12V 5A power supply switch for access control system. Can connect to all kinds of access controoler, electric lock, exit button, remote control, etc. Help to reduct the overload of the access controller. NC/NO output mode cam be selected for different types of electric lock.

Model Name: 5APW

Material: Steel

Input Voltage: AC110-260V

Input Frequency: 50-60Hz

Output Voltage: DC12V/5A

Output Power: 36W

Dimension: 130*68*38mm

Time Delay: 0-15 seconds

Door Exit Button:

Material: Hard Plastic

Maximum Power Rating:36V DC 3A—5A output

Support both NC Mode (Fail Safe Mode) &

NO Mode (Fail Secure Mode)

Dimension:86X86MM ( L / W  )

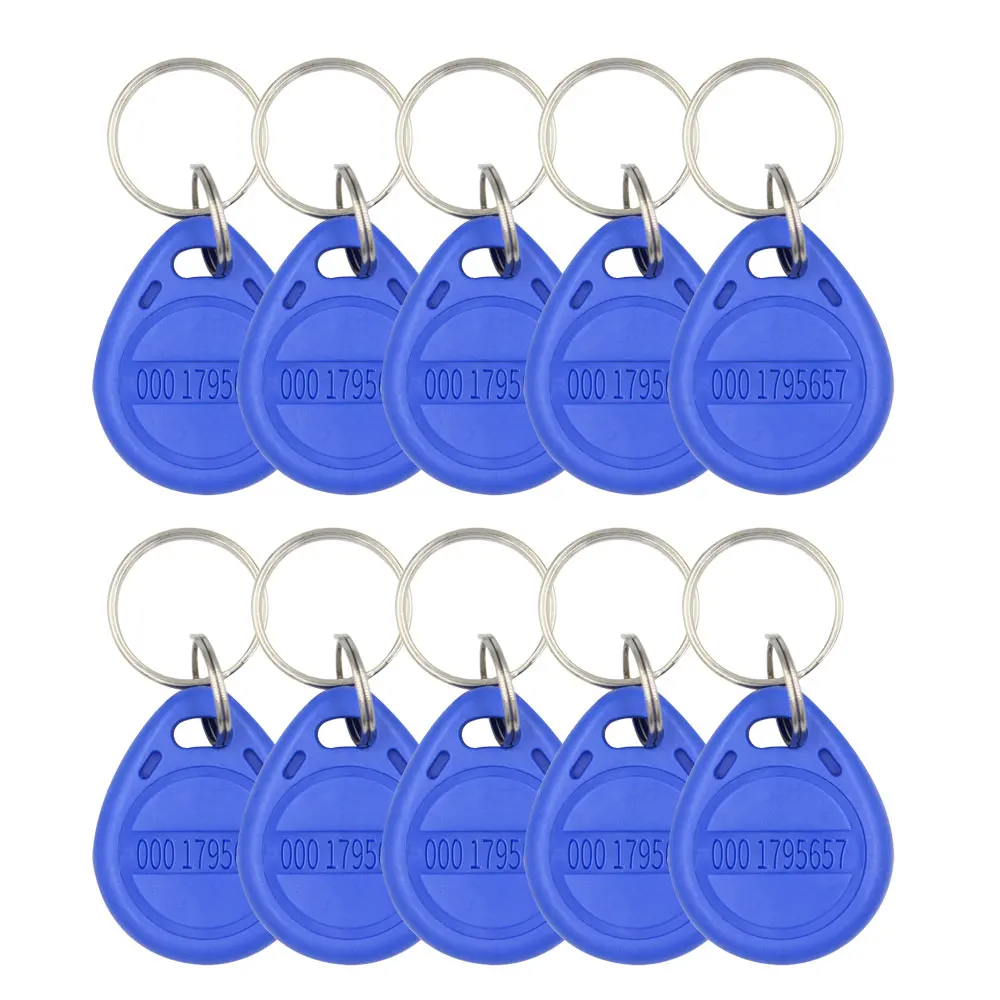

RFID Keyfobs:

13.56MHz frequency RFID keyfobs

Operating frequency: 13.56MHz

Detection range: 0-5cm

Each card pre programmed and has a metal keyring.

Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us.

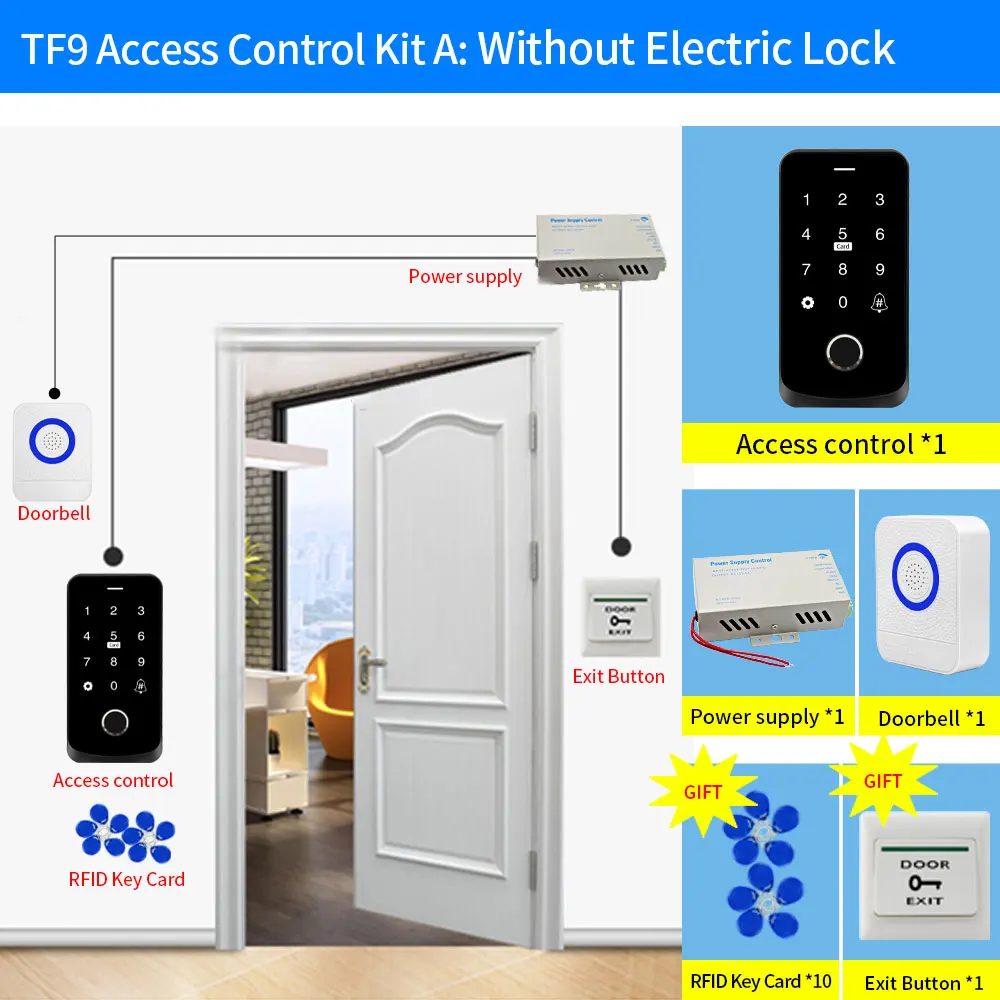

Access Control Kit A:Package including:

+1 pcs RFID 13.56Mhz Access Control Keypad

+ 1 pcs 5A Output Power Supply

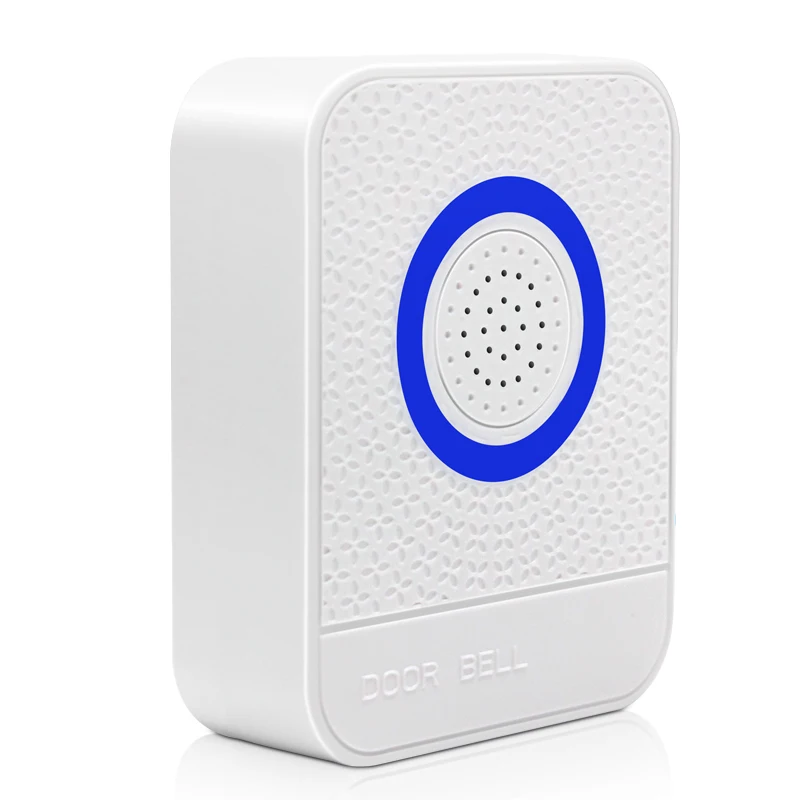

+ 1 pcs Doorbell

+ 1 pcs Exit Switch Button

+ 10 pcs 13.56MHz Keyfobs.

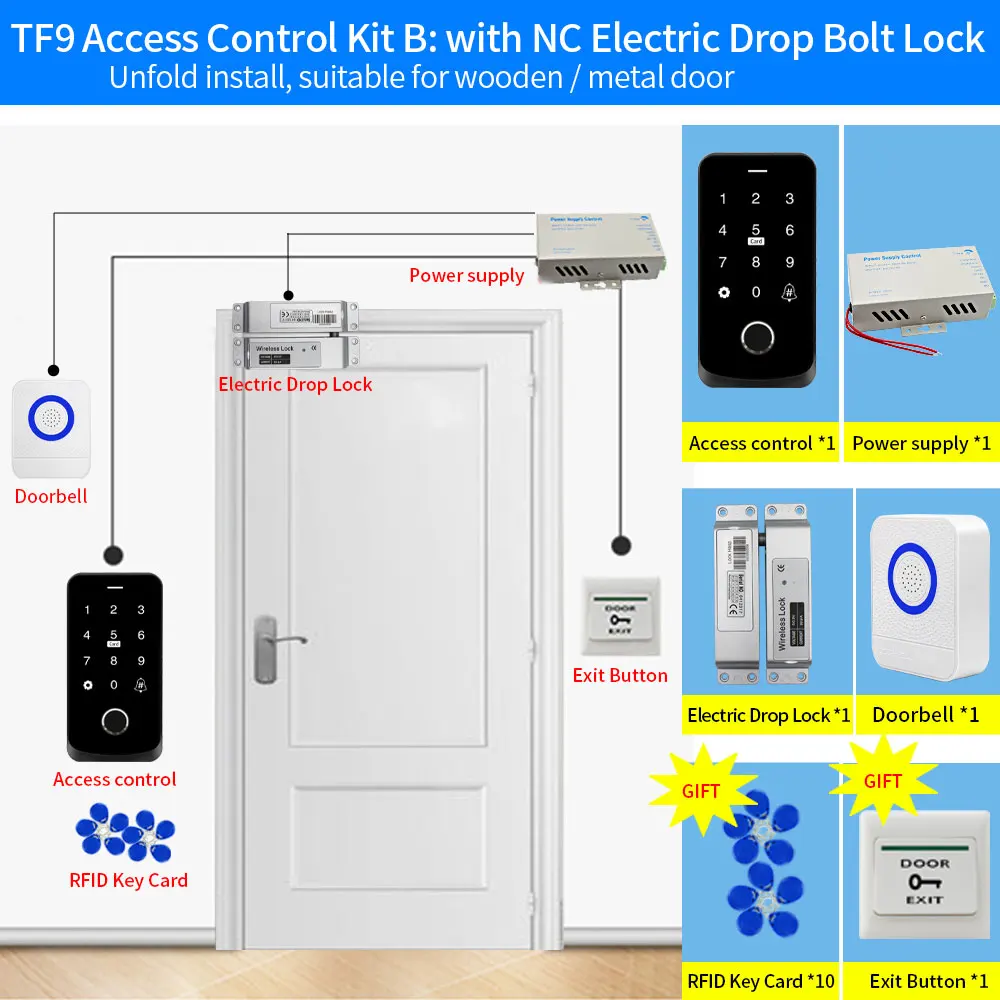

Access Control Kit B:Package including:

+1 pcs RFID 13.56Mhz Access Control Keypad

+1 pcs Electric Drop Lock

+ 1 pcs 5A Output Power Supply

+ 1 pcs Doorbell

+ 1 pcs Exit Switch Button

+ 10 pcs 13.56MHz Keyfobs.

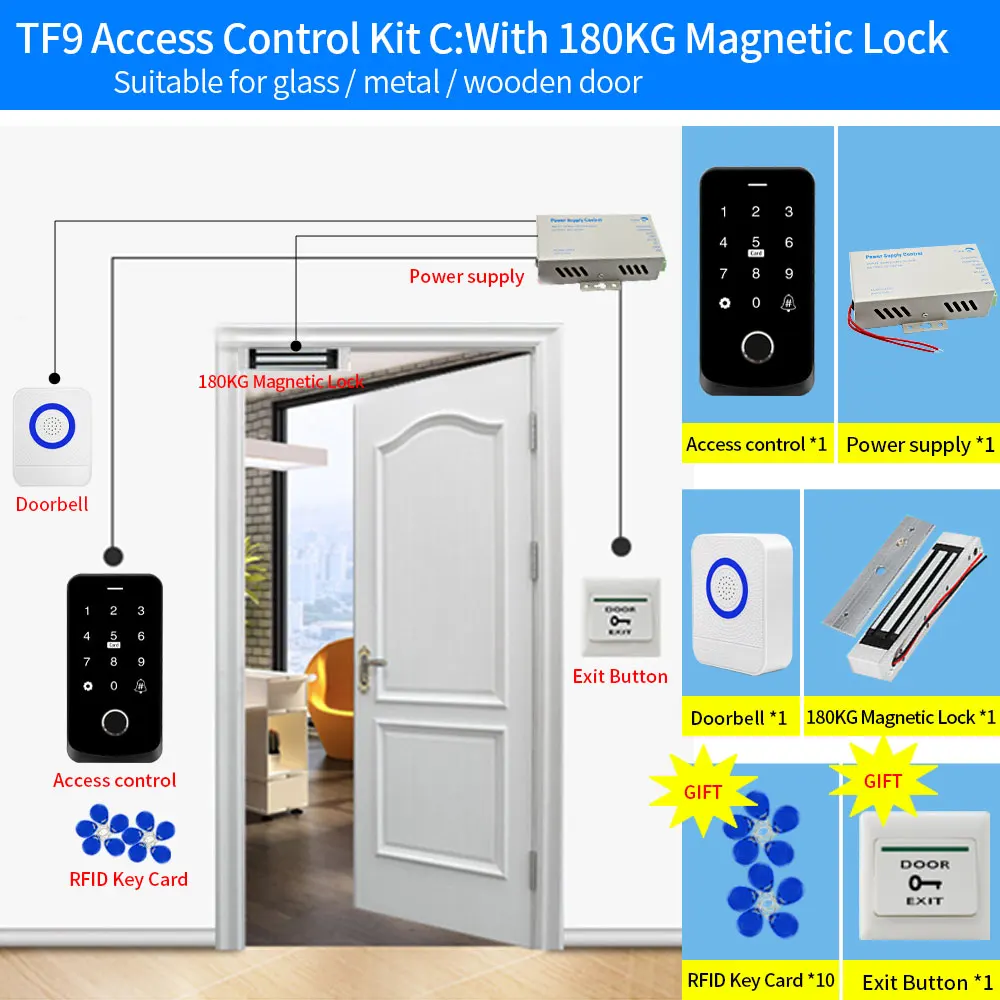

Access Control Kit C：Package including:

+ 1 pcs Access Control keypad

+ 1 pcs Power supply

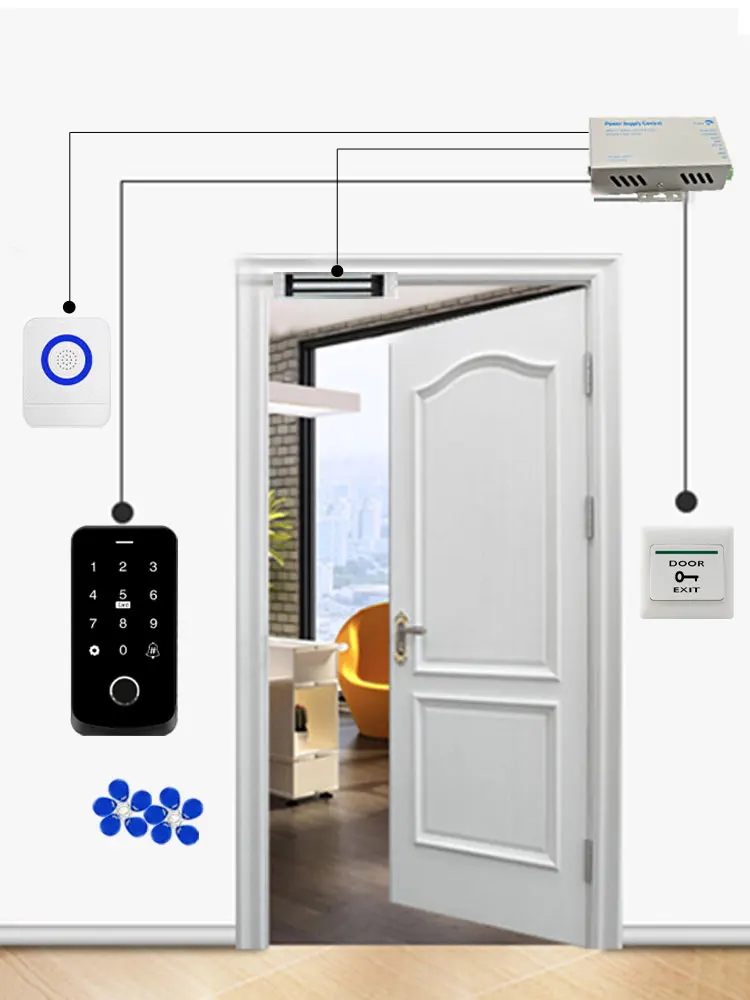

+ 1 pcs 180KG Electric Magnetic Lock

+ 1 pcs Doorbell

+ 1 pcs Exit button

+ 10pcs Keyfobs

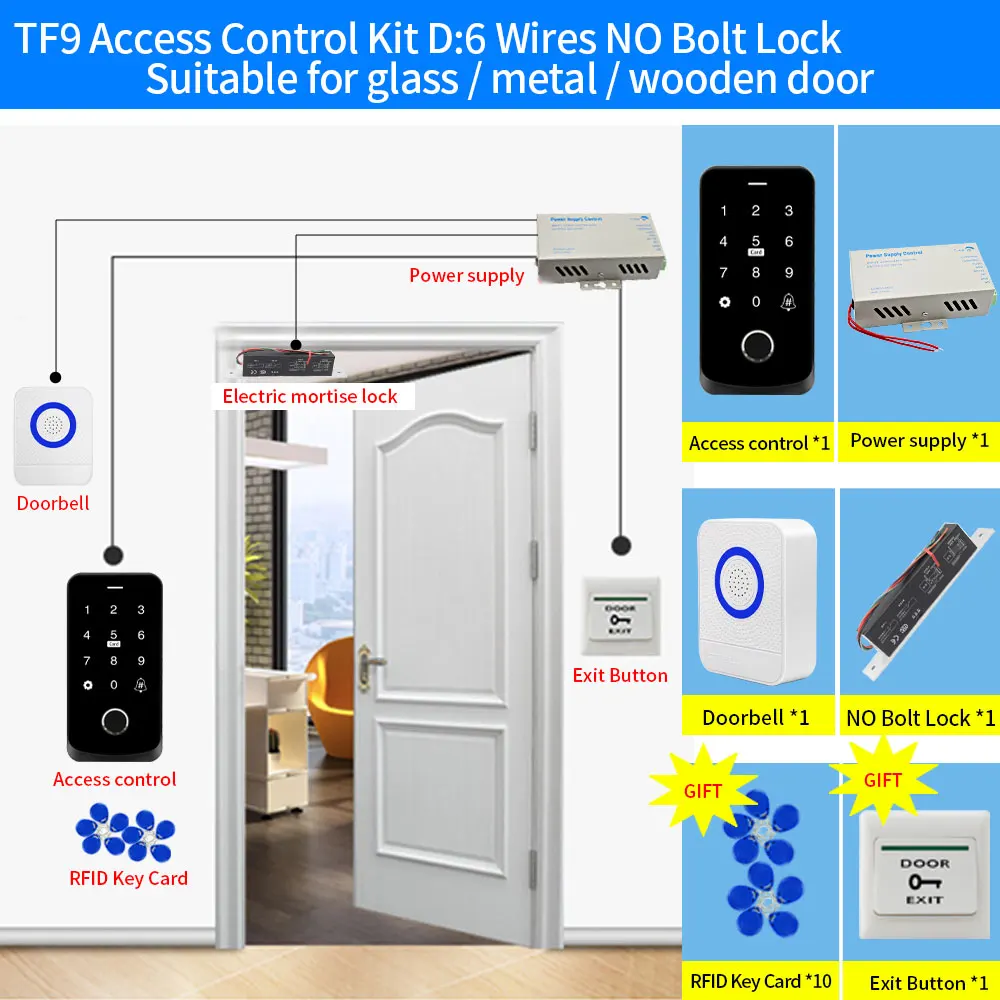

Access Control Kit D：Package including:

+ 1 pcs Access Control keypad

+ 1 pcs Power supply

+ 1 pcs Electric NO Bolt Lock B6L-NO

+ 1 pcs Exit button

+ 1 pcs Doorbell

+ 10pcs Keyfobs

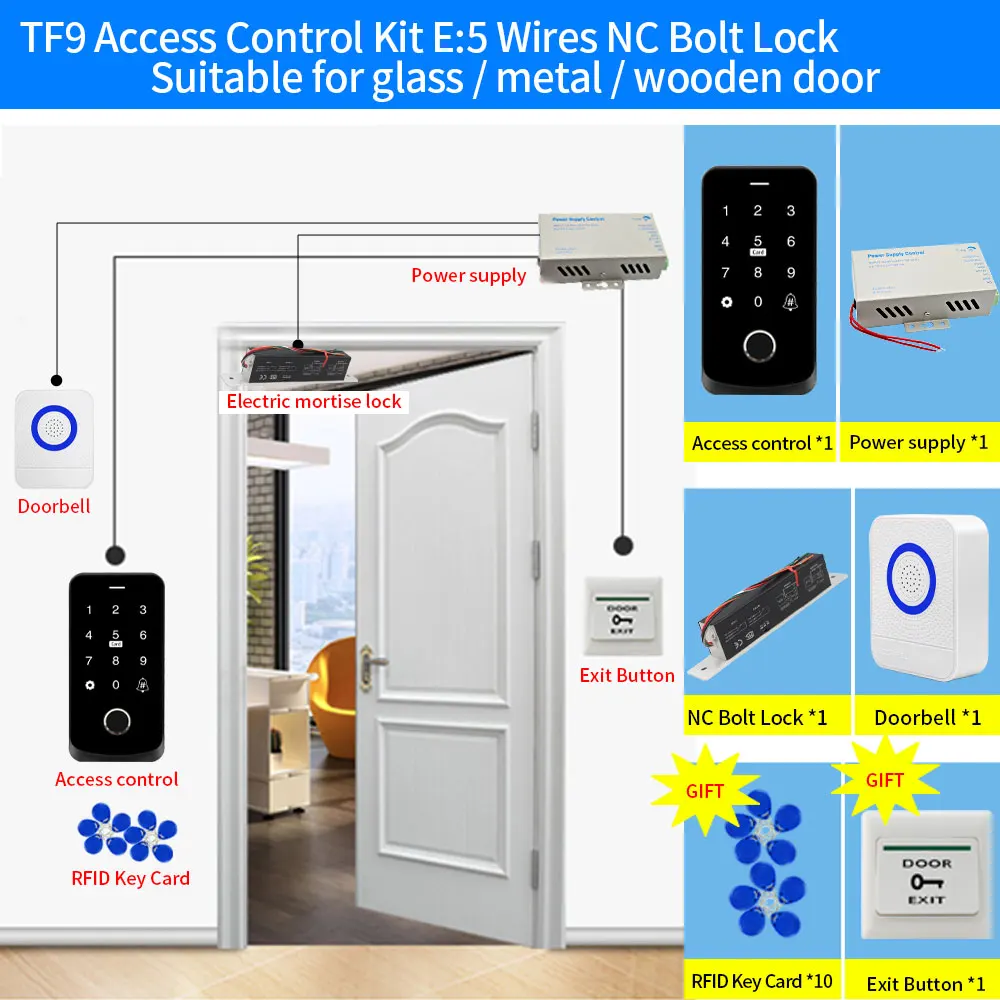

Access Control Kit E：Package including:

+1 pcs Access Control keypad

+ 1 pcs Power supply

+ 1 pcs Electric NC Bolt Lock B6L-NC

+ 1 pcs Exit button

+ 1 pcs Doorbell

+ 10pcs Keyfobs
