WIFI USB F22 Biometric Fingerprint Login Recognition Access Control Machine Digital Electric System For Door Lock Exit Switch

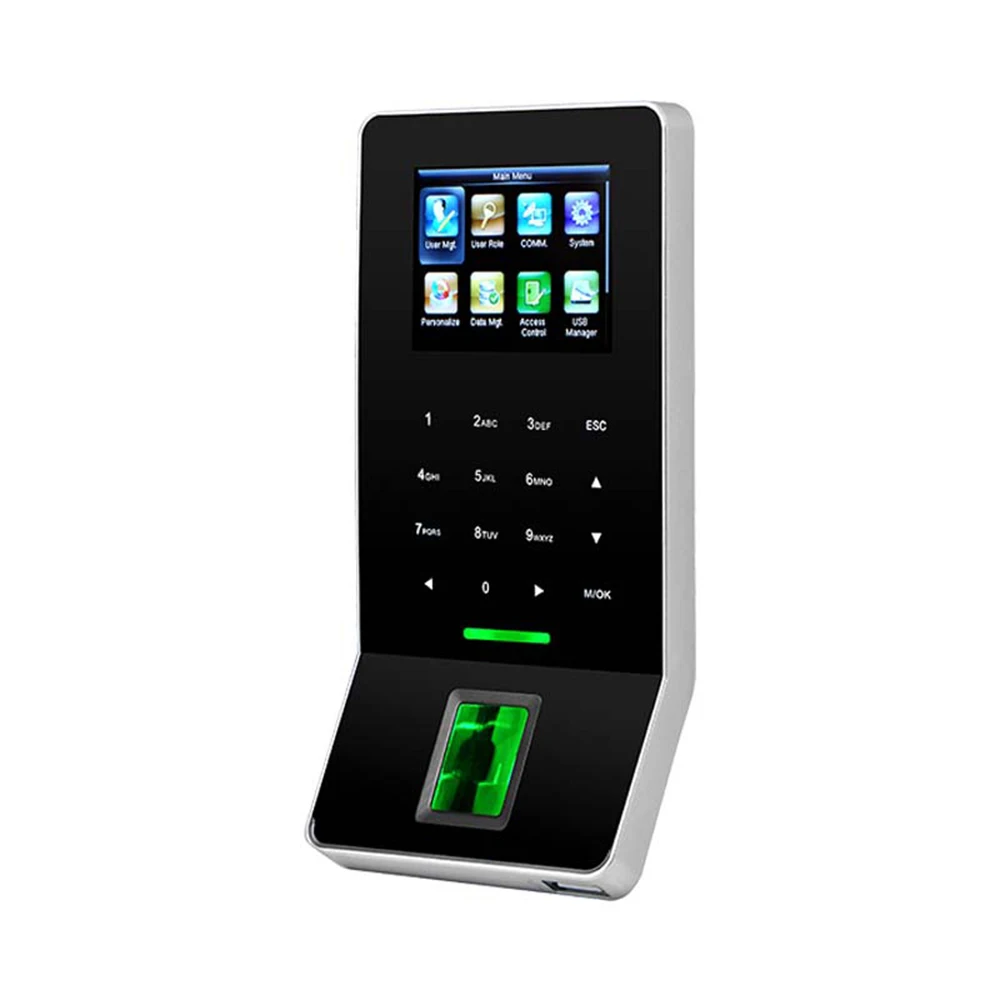

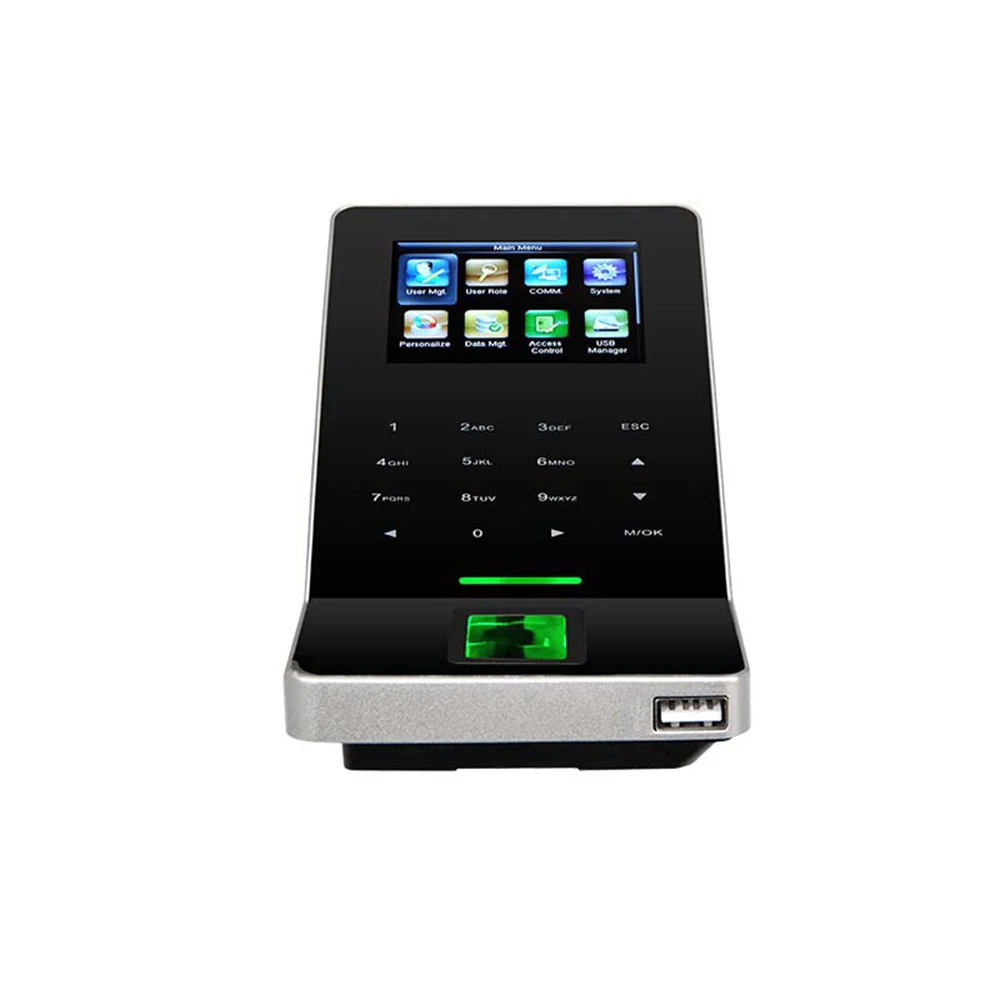

F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality infrared detection fingerprint sensor.F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.

Function:

• 2.4-inch TFT color screen and Touch keys

• Ultra thin and elegant design

• Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, doorsensor, exit button, alarm

• Standard Wi-Fi

• Network interface by TCP/IP or RS485

• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

• Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices

Specifications:

Model:F22 (standard)

F22-ID (using 125KHZ frequency EM card)

F22-IC (use Miface card with 13.56MHz frequency)

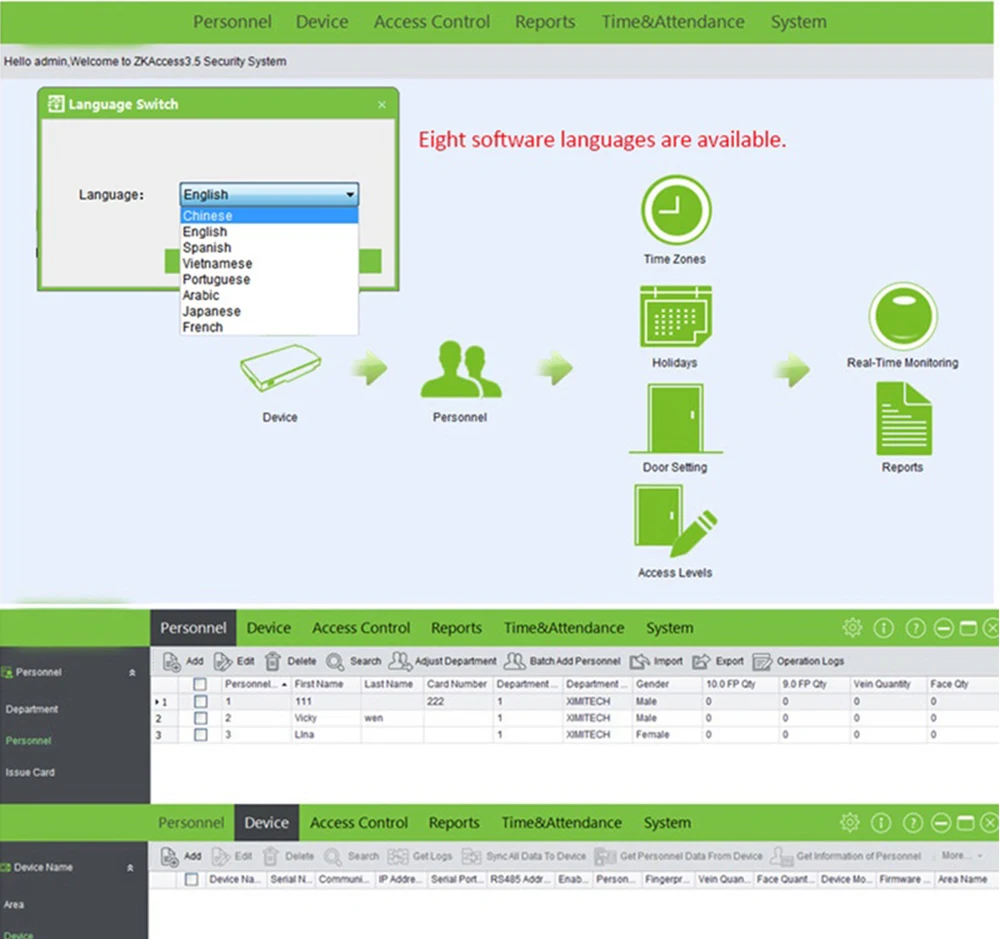

Software:ZKAccess3.5

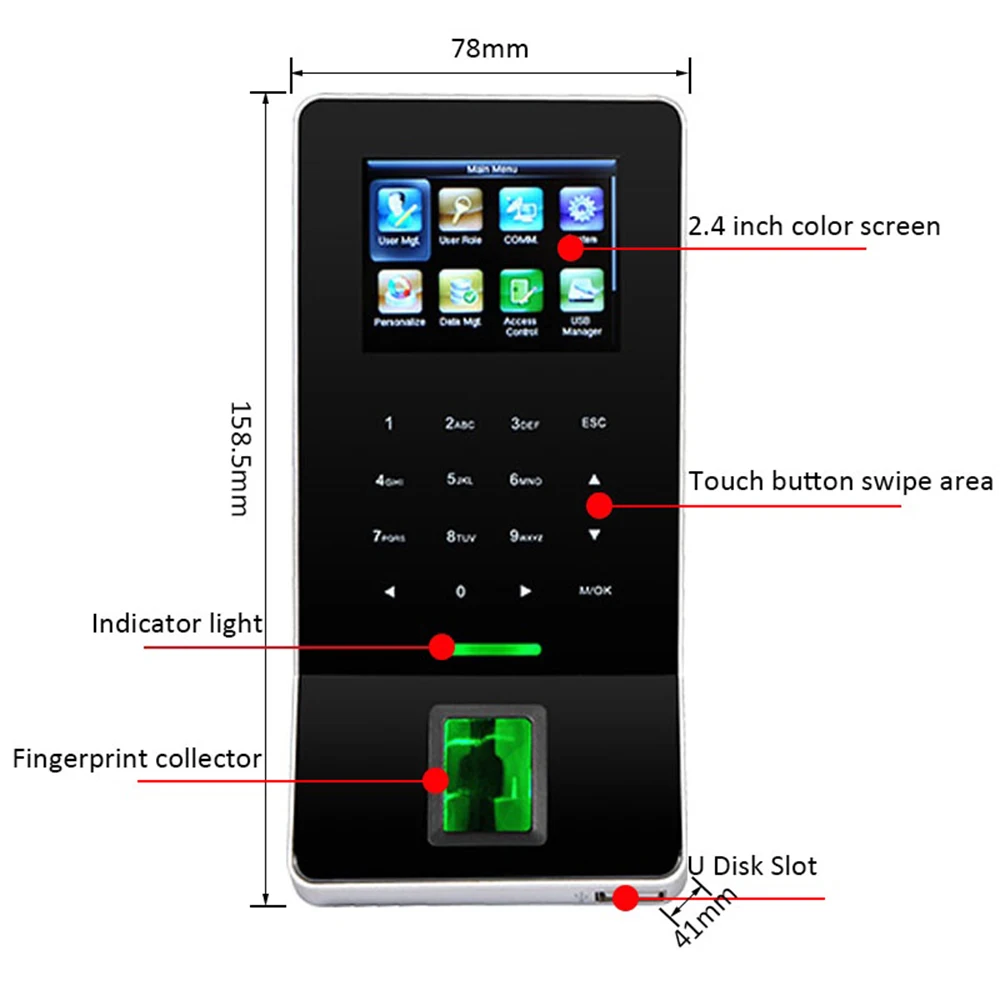

Display:2.4-inch TFT LCD Color Screen

Fingerprint sensor:Optical Sensor

Algorithm Version:Finger V10.0

Fingerprint Capacity:3,000

Card Capacity:5,000

Log Capacity:50,000

RF Card:MF(standard)/EM(optional)

Authentication Method:FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN&RF

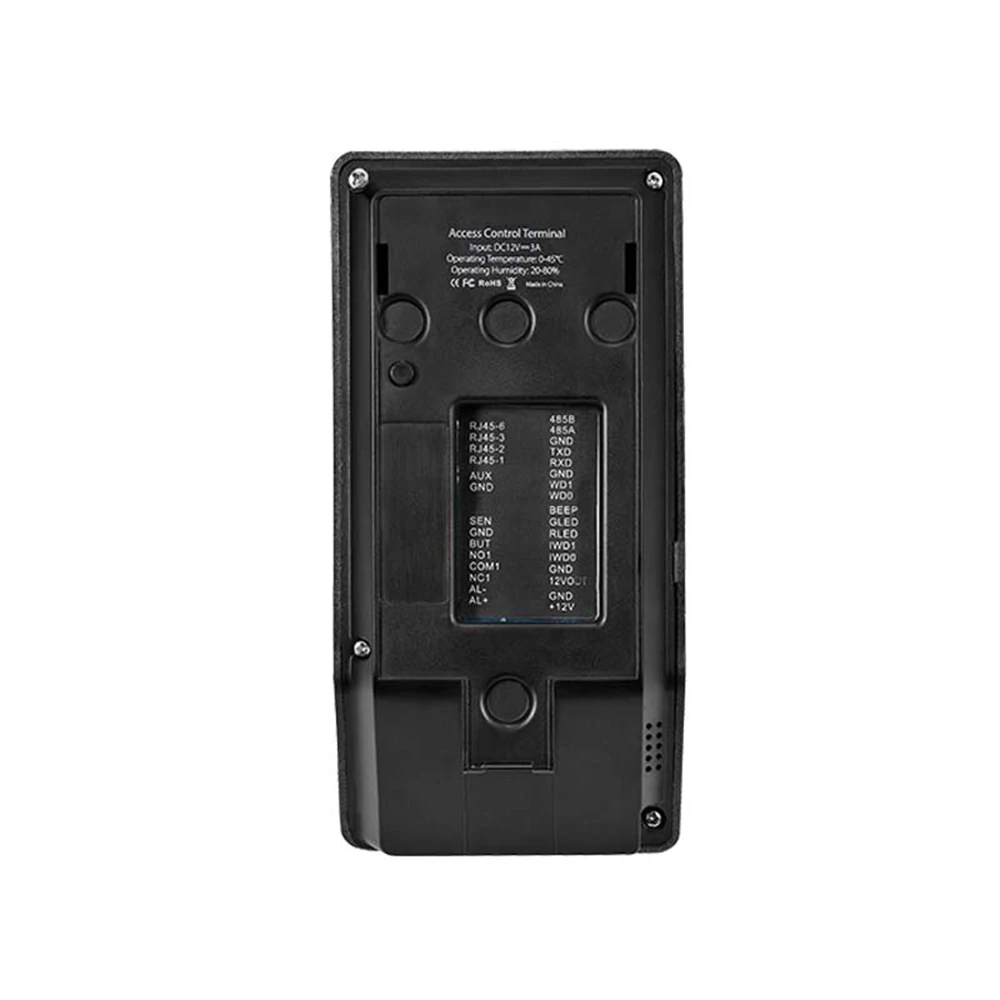

Access Control Interface:Electric lock, Door sensor, Alarm, Exit button

Communication:WIFI,TCP/IP, RS232/485,USB-host

Wiegand Signal:Wiegand input&output

Functions:DST,Automatic status switch,Record query,T9 input,14 digit user ID,Anti-passback,Scheduled-Bell,ADMS(Optional)

Power Supply:12VDC 3A

Operating Temperature:0~ 45℃
