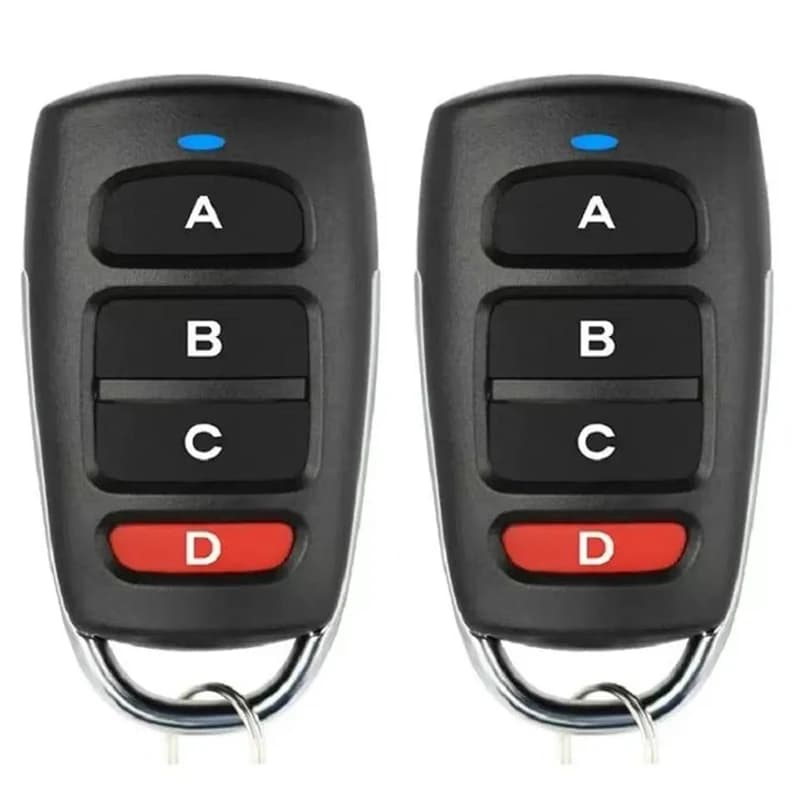

Wireless RF 433mhz Remote Control Copy Code Garage Door Gate Duplicator 433 Mhz Key Remote Opener

Wireless RF 433mhz Remote Control Copy Code Garage Door Gate Duplicator 433 Mhz Key Remote Opener

Please note below before you buy!

The remote control is not compatiable for clone allremote control!

Learning code and Fix code work, but rolling codemaybe not work!

Please note that!

Copyable chip is as below:

2260(all manufacturers),2262(all manufacturers),PT2264(all manufacturers),5326(all manufacturers)

527(all manufacturers),1527(all manufacturers),2240(all manufacturers)

HT6026,HT6012,HT6014.HT600,HT680.HT6010.HT6207, HT640,HT6P12E,HT6P20D,12L-4SC

PT2292,12L4SC,SC5262,PLC168,NF9420116UM3750AM,SMC918,SMC908, 1416,5211

Except listed Brand, Rolling code would Not work!

HCS101.HCS200,HCS201,HCS300, HCS301 not workplease not buy if your remote control chip is HCS,thanks!

The gadget is a wireless remote control key fob, whichcomes with ultra-strong Duplicating & Cloningfunction,Ultra-small error of copying data code andcopy oscillation resistance.lt support remotely andwirelessly control your roller shutter door, garage dooand other telecommand equipments within 50m(freespace).Bringing you brand new experience of remotecontrol, bring you much convenience in your daily lifeYou can not miss it.

Features:

*Duplicate Your Existing Remote Controllers Such asVehicle Central Locking Systems, Garage Doors AccessControlSystem,Electronic Gates, ElectricalAppliances control, Car Sunroofs Control, HeatingSystems Control, Light Switch, etc.

*Encoding Type Supported: Support for CAME TOFSeries Remote Control and the most of other remotecontrols.

Specification:

Model: KT16

Material: Metal and PVC

Product Type: Copy/Copy Remote Control TransmitterKeychain

RF frequency:433MHz

Coding method:face-to-face copying (one-to-one copying)

Support channel: four channels

Encoding type:1527, 2262 (learning code, fix code)

Buttons: 4 buttons (A, B, C, D)

Modulation system: ASK

Working current:<25mA

Transmit power: +13dbm

Frequency deviation:+0.2MHZ

Transmission distance:50m(barrier-free space)

Colour: Black

Main item size: 5.4*2.9*0.9cm/2.1*1.14*0.350Z

Main product weight:28g/1.00z

Package size: 5.5*3.0*1.0cm /2.16*1.18*0.390z

Packing weight: 30g/1.050z

Notes:

1.This item is suitable for home use. The scroll codecan also be copied

2. We do not provide retail packaging, but we wilpack it well before shipping.

Copy setting method:

1. Clear the code

Press and hold the A and B keys at the same time, theindicator light flashes once, release the B key, pressthe B key three times while holding down the A key, ifthe indicator light flashes quickly, it means the codeclearing is successful.

2. Copy method

Press and hold the A button of the copied remotecontrol, and press the button with the same function ofthe original remote control with the other hand. Thetwo remote controls should be placed as close aspossible (ideally, the two remote controls are placedside by side on the table, with zero distance),if theindicator light of the copy remote control is on, itmeans that the copyis successful, and the operationmethods of other keys are the same as apove. Note:Interfering with the operation should be avoided, and ifthe copying is unsuccessful, the code should becleared and then copied again.

Some remotes that use this frequency are listedbelow

4 channel RF wireless remote control duplicator forcars,garage doors, gates,alarm systems and more

The battery used in the product is a button battery(CR2032).Please replace the battery if the remotecontrol distance is insufficient.

Clone up to 4 remote signals from 4different remotes.

This is a fixed frequency remote cloner(433mhz)forduplicating common fixed and rolling code remotes.

Reproducible chip model

2260(all manufacturers),2262(all manufacturers),PT2264(all manufacturers),5326(all manufacturers)

527 (all manufacturers),1527(all manufacturers),2240al manufacturers)

HT6026,HT6012,HT6014,HT600,HT680,HT6010,HT6207. HT640,HT6P12E,HT6P20D,12L-4SC

PT2292,12L4SC,SC5262,PLC168,NF9420116UM3750AM.SMC918.SMC908.1416.5211

Below Chip would not work!

HCS101, HCS200, HCS201, HCS300,HCS301

Tested to copy brands:

BENNCA/ALLMATIC,PUJOL2,KEY, FAACRC, BENINCA/ALLMATIC,APRIMATIC,Key Automation 900TXB-42RDITEC GOLAPRIMATIC-TM4,(NICE)SMILO:(ATA)PTX4:(0&O)，PUJOL/PUJOL2,FAAC-RC

Doorhan, Came TOP

NOTE: With this remote duplicator, you can clone al433.92MHz fixed code key fobs.Some remotes thatuse this frequency are listed above. lf your copy failsunder correct operation, you may want to check if youdevice has the above chip.

Package List:

1Pcs* 433MHz RF 4-Channel Remote Control(Battery is Included)
