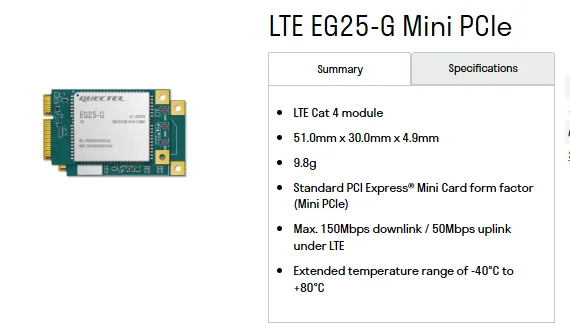

EG25-G Mini PCIe

The EG25-G Mini PCIe is an LTE category 4 module in a standard PCI Express® Mini Card form factor measuring 51.0mm x 30.0mm x 4.9mm, which meets the 3GPP Release 11 standard.

Delivering maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, the EG25-G Mini PCIe supports a range of applications that require fast and reliable transmission of large amounts of data, and backward compatibility with existing EDGE and GSM/GPRS networks ensures connection even in remote areas without 3G or 4G coverage. In addition multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability.

The EG25-G Mini PCIe supports Qualcomm  IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multi-constellation GNSS receiver greatly simplifies product design and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10/11, Linux, Android and eCall) allow the module to serve a wide range of IoT applications such as industrial routers, industrial PDAs, rugged tablet PCs, and digital signage.

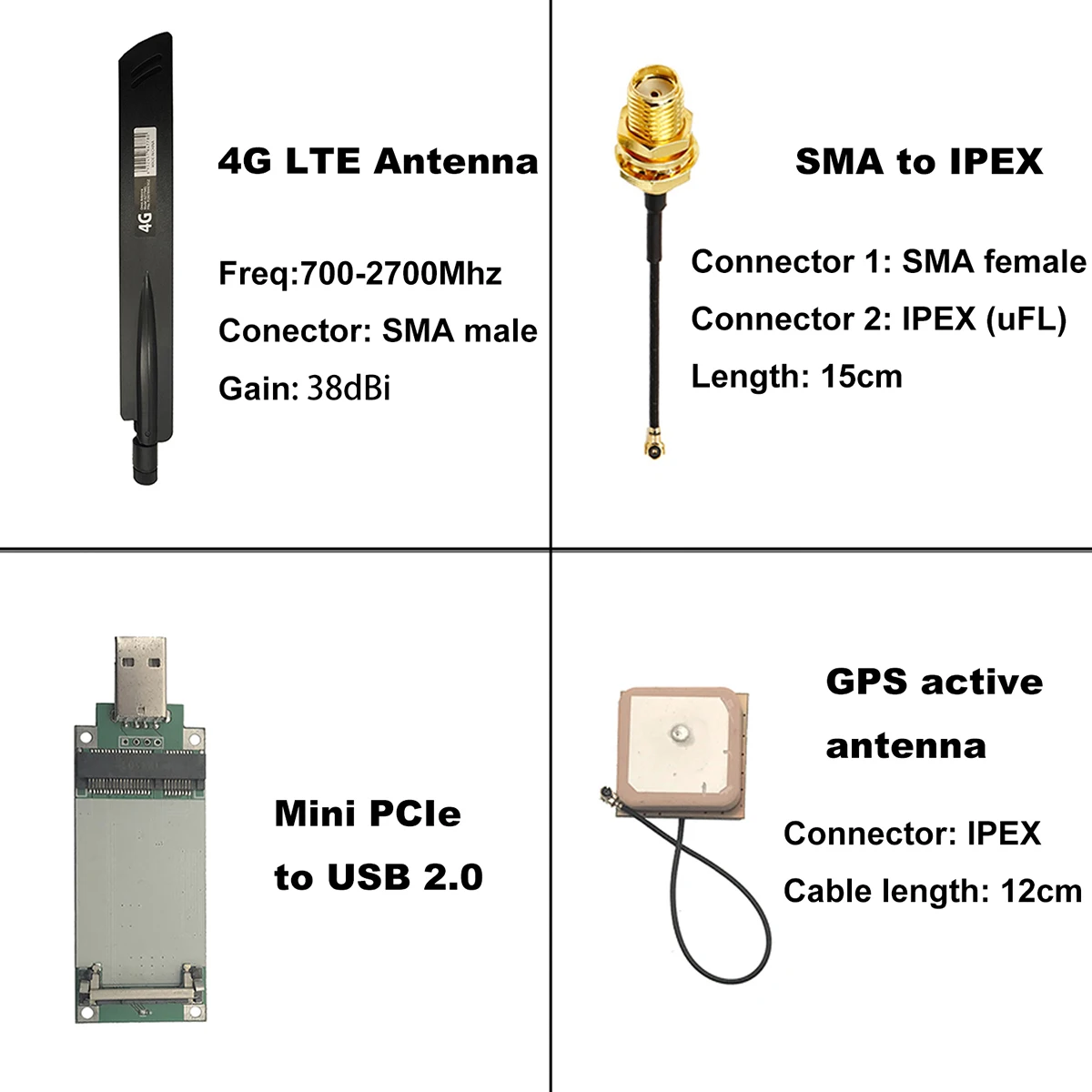

Option1 :1PCS EC25-E/EC25-EU/EC25-A/EC25-AF/EC25-AFXD/EC25-AUX/EC25-EC/EG25-G/EC25-AFX/EC25-EUX PCIE Module

Option2 :1PCS EC25-E/EC25-EU/EC25-A/EC25-AF/EC25-AFXD/EC25-AUX/EC25-EC/EG25-G/EC25-AFX/EC25-EUXPCIE Module with 1PCS Mini Pcie to USB 2.0 Adpater

Option3 :1PCS EC25-E/EC25-EU/EC25-A/EC25-AF/EC25-AFXD/EC25-AUX/EC25-EC/EG25-G/EC25-AFX/EC25-EUX PCIE Module with 1PCS 4G LTE Antenna and 1PCS SMA to U.FL pigtail

Option4 :1PCS EC25-E/EC25-EU/EC25-A/EC25-AF/EC25-AFXD/EC25-AUX/EC25-EC/EG25-G/EC25-AFX/EC25-EUX PCIE Module with 1PCS Mini Pcie to USB 2.0 Adpater and 1PCS 4G LTE Antenna and 1PCS SMA to U.FL pigtail

Option5 :1PCS EC25-E/EC25-EU/EC25-A/EC25-AF/EC25-AFXD/EC25-AUX/EC25-EC/EG25-G/EC25-AFX/EC25-EUX PCIE Module with 1PCS Mini Pcie to USB 2.0 Adpater and 1PCS 4G LTE Antenna and 1PCS SMA to U.FL pigtail and 1PCS GPS antenna

Option6 :1PCS EC25-E/EC25-EU/EC25-A/EC25-AF/EC25-AFXD/EC25-AUX/EC25-EC/EG25-G/EC25-AFX/EC25-EUX PCIE Module with 2PCS 4G LTE Antenna and 2PCS SMA to U.FL pigtail
