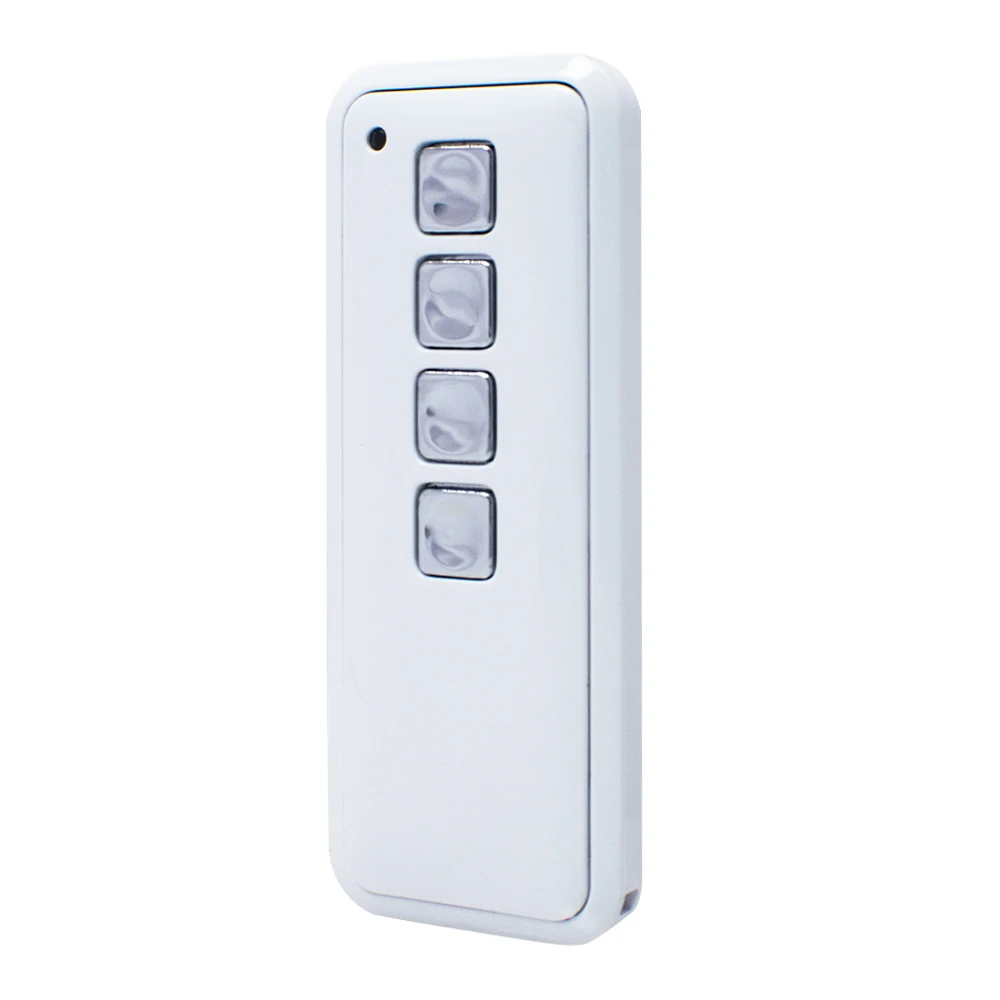

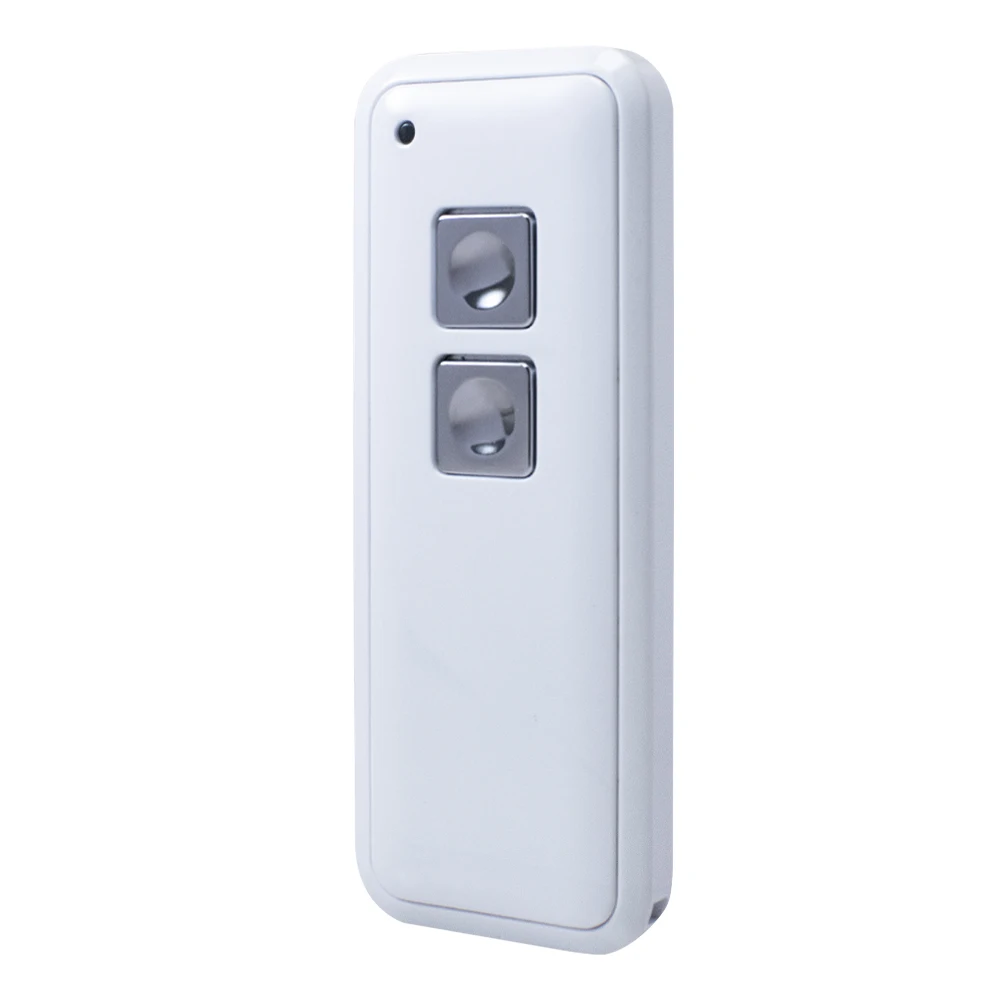

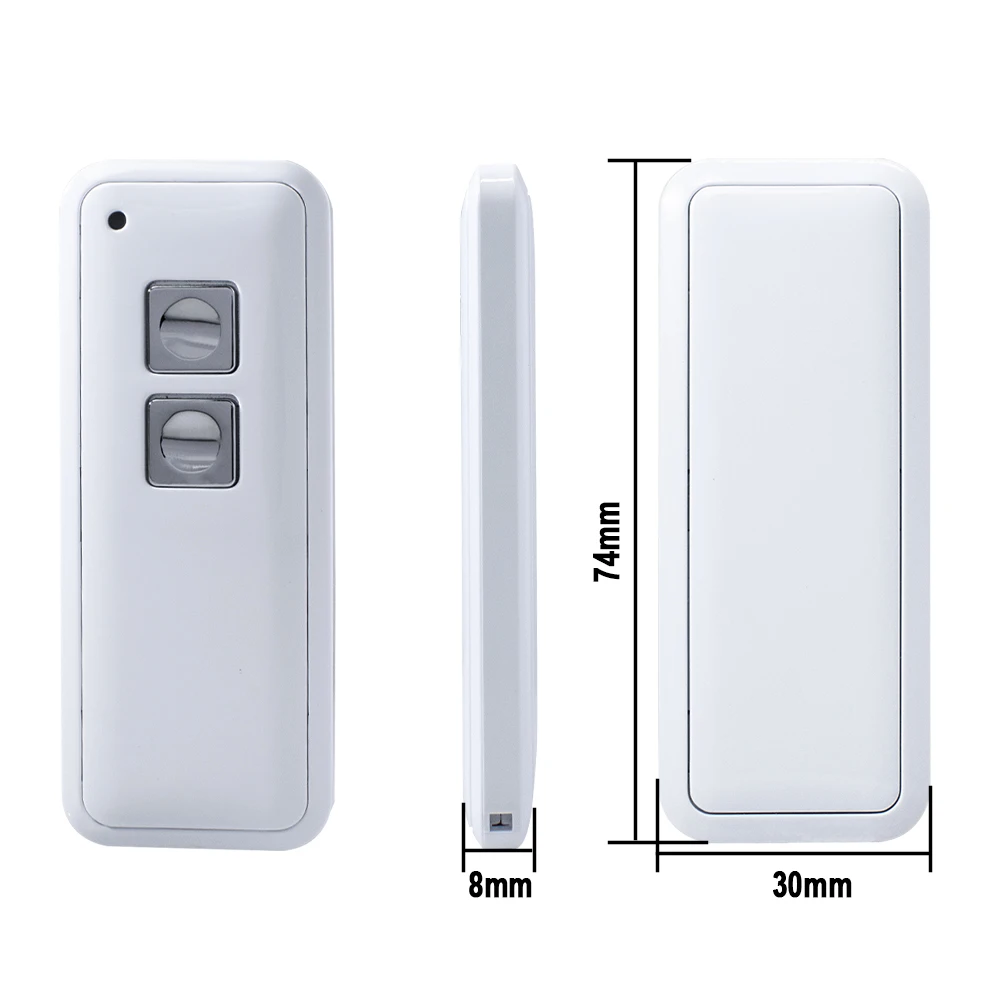

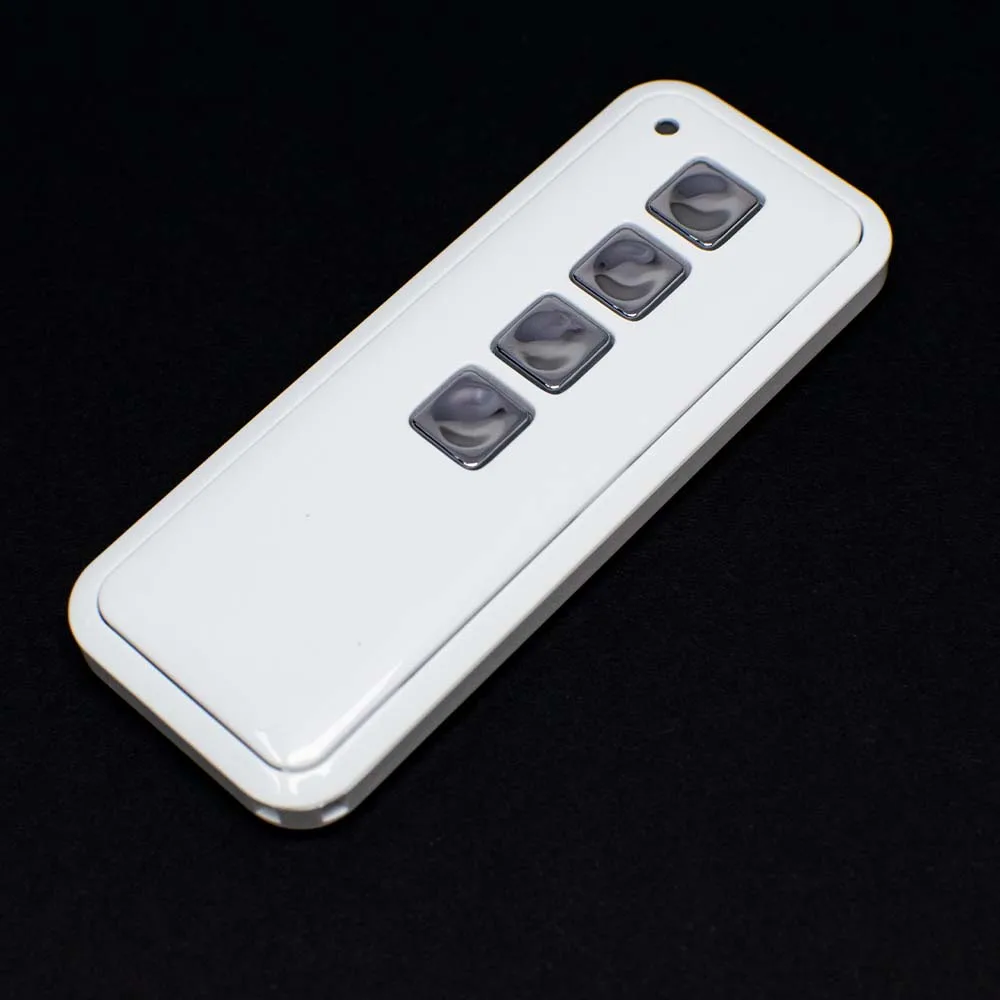

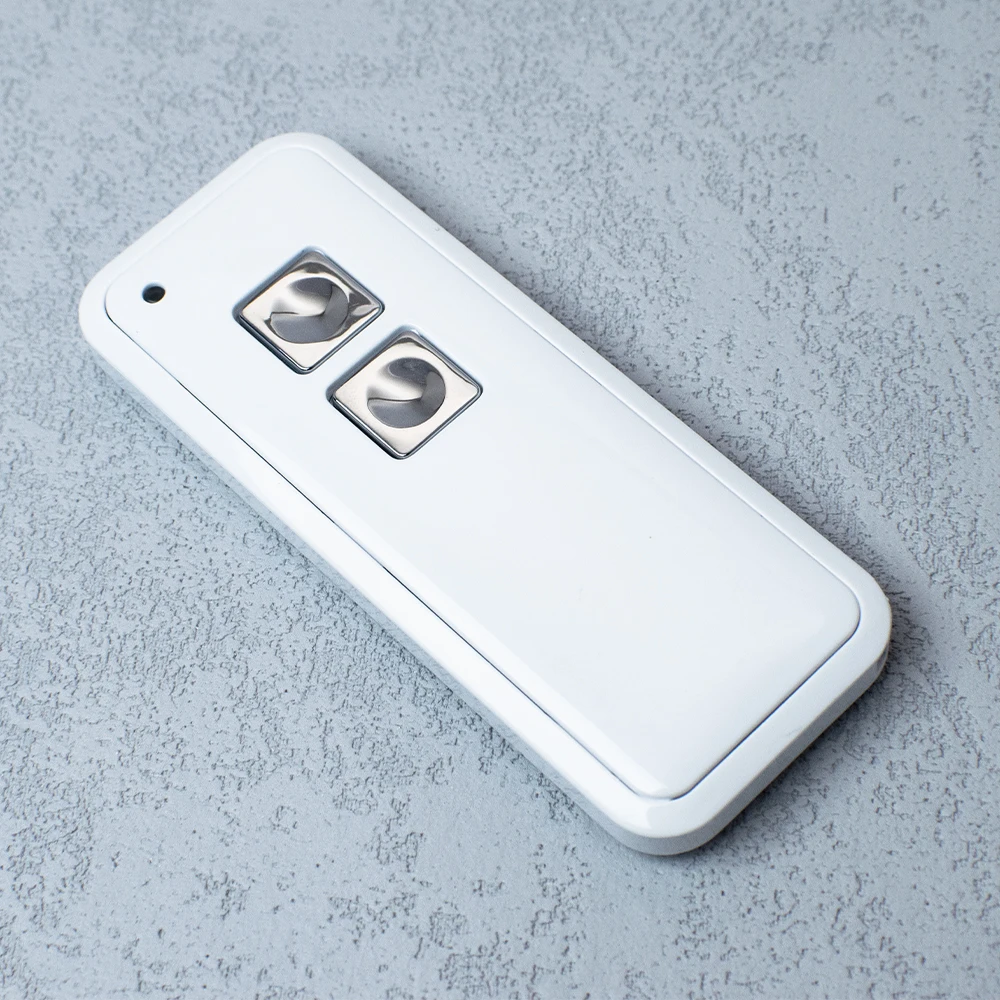

AES 128BIT NOVOFERM NOVOTRON Remote Control Opener for Mini-Novotron 522 524 523 433.92MHz Garage Door Controller 1-20PCS

Compatible with:

AES 128 BIT Mini-Novotron 522
AES 128 BIT Mini-Novotron 524
AES 128 BIT Mini-Novotron 522 Design
AES 128 BIT Mini-Novotron 524 Design
AES 128 BIT Mini-Novotron 523 Protect

NOVOFERM MCHS43-2
NOVOFERM MTR43-2
NOVOFERM MNHS433-02
NOVOFERM MNHS433-04
NOVOFERM NOVOTRON 502 MAX43-2
NOVOFERM NOVOTRON 504 MAX43-4
NOVOFERM NOVOTRON 512 MIX 43-2
NOVOFERM MINI-NOVOTRON 522
NOVOFERM MINI-NOVOTRON 524
NOVOFERM MINI-NOVOTRON 522 Design
NOVOFERM MINI-NOVOTRON 524 Design


Access to receiver required. Please make sure you got access to your receiver/opener before purchase.

Specifications

Item condition - New
Third party remote control. Not made by NOVOFERM
Frequency - 433.92MHz.
Operating voltage - CR2032 (Free battery included)
Transmit distance - 25-50m in open space. Open space means no any interference. No walls, no doors, no trees or any other obstructions. Interference like garage door or brick wall can reduce remote control range significantly.

Default is the old code, press and hold button 1/2 at the same time to switch to 128 BIT new code

Programming instruction

1. Open the casing of your receiver. It is located next to your motor.
2. On the receiver circuit board, press the programming button and let it go (ENR, MEMO, PROG, REC according to the model) The LED light on the receiver illuminates or blinks.
3. Press a button on your new remote control for 1 second.
4. Let the button go. The LED light on the receiver turns off immediately or in the following 10 seconds according to the model.
Your new remote control is programmed.

What is Included

1 x Remote control
1 x Battery
1 x Keychain
1 x English instruction manual
