POE Cable Passive Power Over Ethernet Adapter Cable Splitter RJ45 Injector Power Supply Module 12-48v Splitter Kit For IP Camera

Item Description

njector Plug: 5.5mm x 2.1mm

Splitter Jack: 5.5mm x 2.1mm

Overall Length: 16.5 cm (6.5 inches).

Network Type: 10BASE-T, 100BASE-T

Data Pins: 1&2 and 3&6

Power Pins: 4&5 and 7&8

Input Voltage Max: Up to 50VDC

Output Voltage Max: Up to 50VDC

Operating Temperature: -40°C ~ 60°C

Color: Black

Quick Detail:

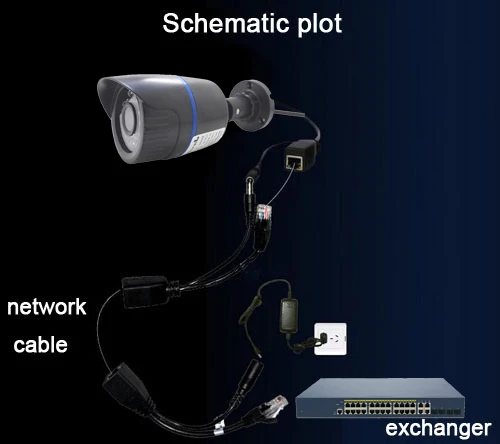

The complete passive power over Ethernet kit contains two pieces: injector and splitter. It is suitable for using with products that basically do not support power over ethernet. Passive power over Ethernet set is applicable for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices. Passive power over Ethernet set is compatible with most devices available on the market such as for D-Link, Linksys, Airlive, Senao,Wline, Micronet, Edimax etc.

Features:

The devices can be supplied standardly up to 50V. (The power adapter is not included. It is possible to use the power adapter of the powered device as access point, IP camera etc.) Passive PoE's range is normally form 30-40 meters/100-130ft (the real distance depends on the power supply, type of cable and powered device).

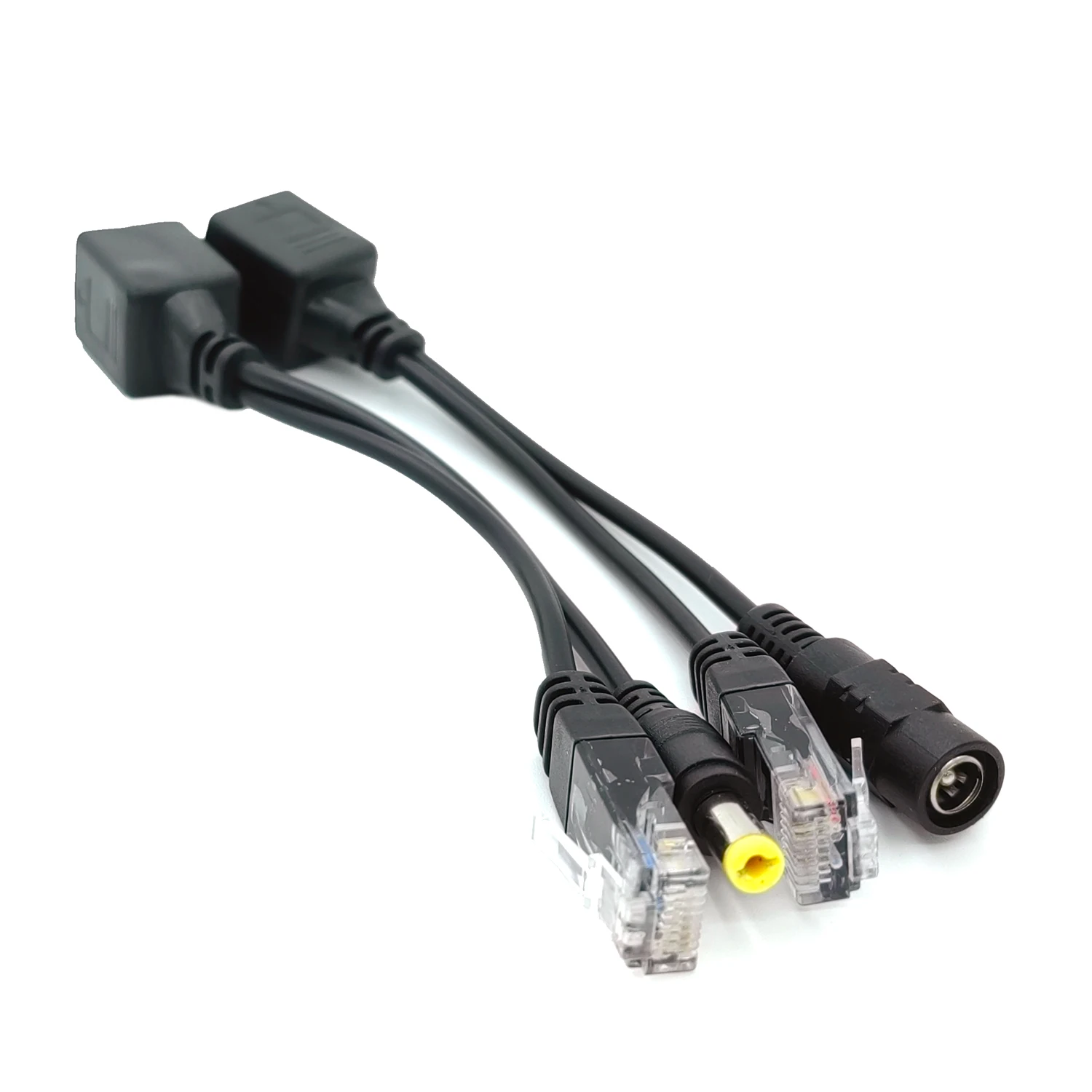

POE RJ45 Network Connector Female to RJ45 Male Plug/DC 5.5mm Female + Male Adapter Cable

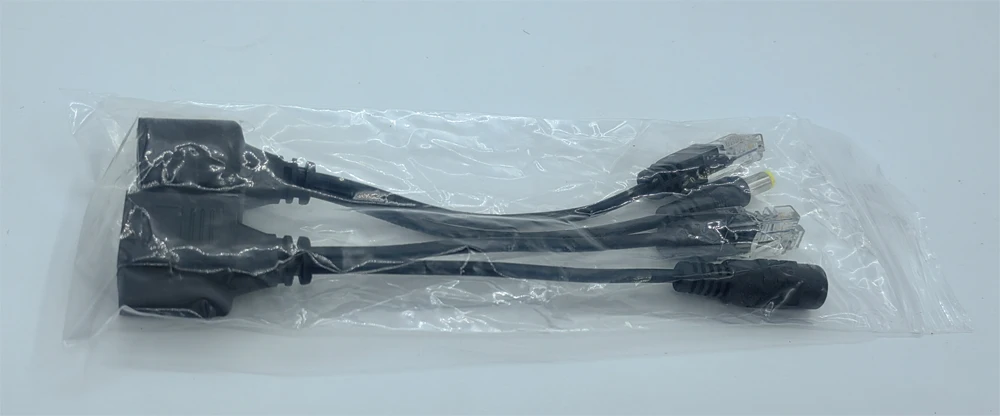

Package included

2 x POE adapter kit
