KR601E KR601M KR602E KR602M Wiegand 26 34 Keypad RFID 125Khz 13.56mhz Access Control Slave Card Reader

Packing List

1 PC KR601 or KR602
Please kindly note:
KR601E and KR602E are rfid 125khz, KR601M KR602M are normal MF 13.56mhz, if you need special 13.56mhz, please kindly check first.

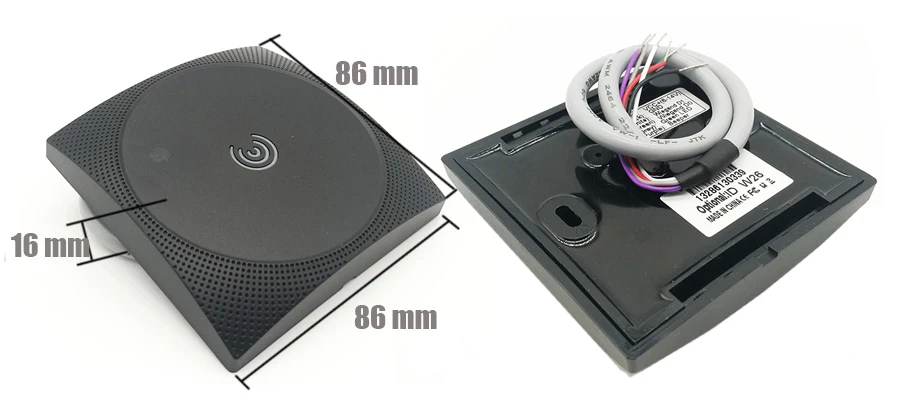

KR601 Size (mm)

86x86x16 mm (Approximate size)

KR602 Size (mm)

86x86x20 mm (Approximate size)

Specifications

Specifications may be changed without notice If factory improve it

Read Range：KR601 KR602: Up to 5-10CM
Size：
KR601: 86x86x16 mm
KR602: 86x86x20 mm
Reading Time：≤200ms
Input Port：External LED Control，External Buzzer Control
Output Port：
KR601E: 26bit Wiegand
KR602E: 26 bit(Default)/34Bit Wiegand
KR601M: 34bit(Default)/26 bit Wiegand
KR602M: 34 bit(Default)/26Bit Wiegand
Power/Current：DC12V / Max.70mA
LED：Red and Green LEDs
Operating Temperature：-10°C to +70°C
Material：ABS+PC with texture
Operating Humidity：10% to 90% relative humidity ，non-condensing
Beeper：Yes
Operating Humidity：IP65

Shipping Service

We can offer more shipping service, you can contact with us if you are not satisfied with the shipping sevice we posted.

Post Shipping have a low shipping cost, but they may be slow delivery.
Express Shipping has a quick delivery service, but have high shipping Cost.

Enjoy Your Shopping

When you receive your parcel, you can check them. If there is any problem with them or need any after sale service, please kindly leave a message first, also you can leave a instant message way. we can contact you once we read it.
