Mini Electric Lock with Push Rod DC 12V/24V Small Size Solenoid Electromagnetic Control for Cabinet Drawer Lock

DC12V/24V mini electric metal small bolt lock magnetic for drawer locker storage cabinet cupboard window door

Name: Smart Push Rod Cabinet Electric Lock

Material: Steel shell/carbon steel precision casting parts

Fail-secure type:Power to open

Parameters: DC12V/2A, DC24V/1A

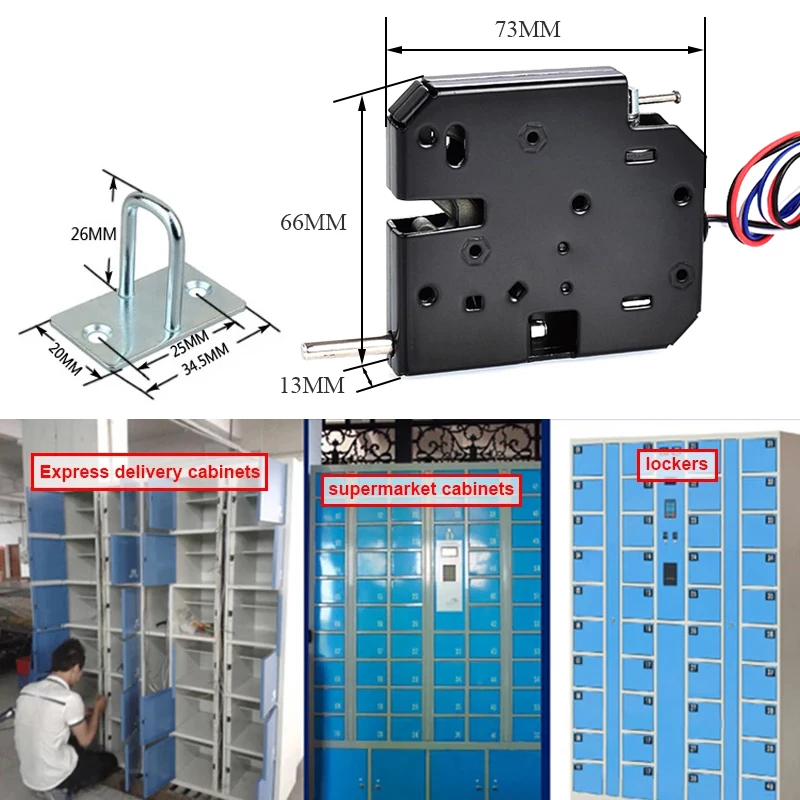

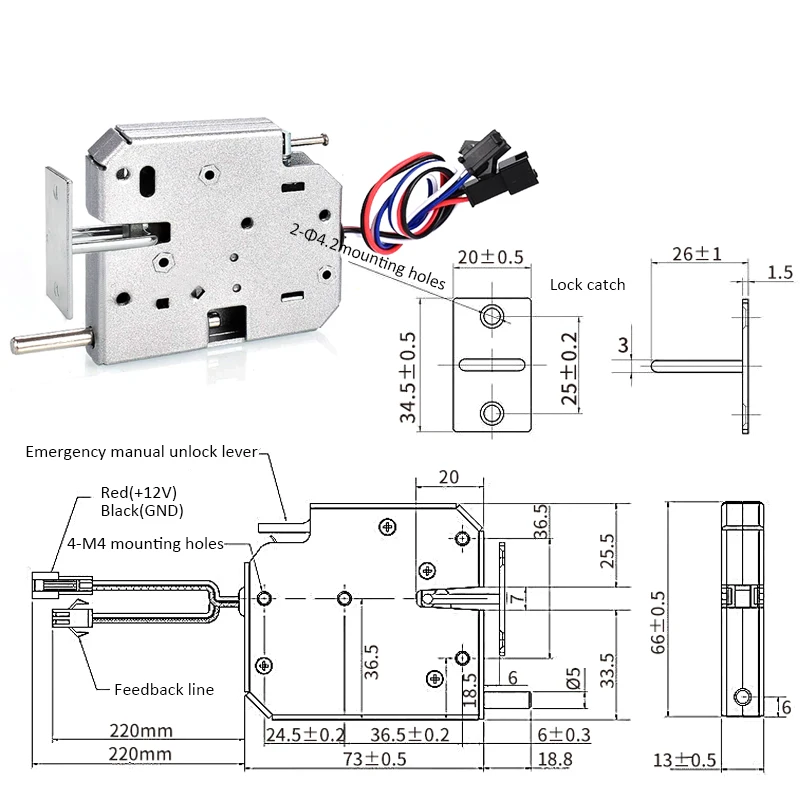

Size: 73*66*13mm

Service life: more than 500,000 times

Scope of use: express cabinets, supermarket cabinets, lockers, vending machines and other cabinets.

Note: It is recommended to allow continuous energization for 0-5 seconds, more than 3 minutes, it will burn out the electromagnet.
