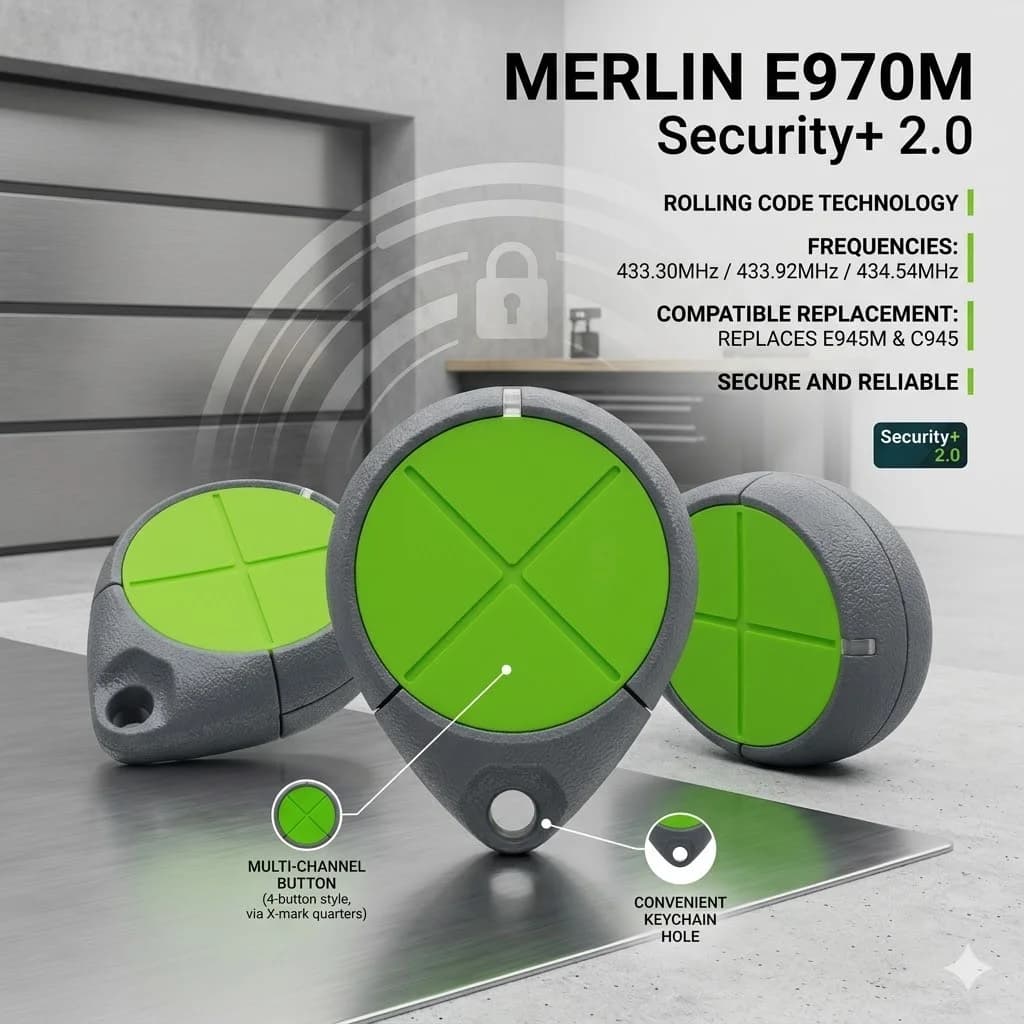

Merlin E970M Garage Door Remote Control Security+ 2.0 Rolling Code Replaces E945M & C945 Gate Opener

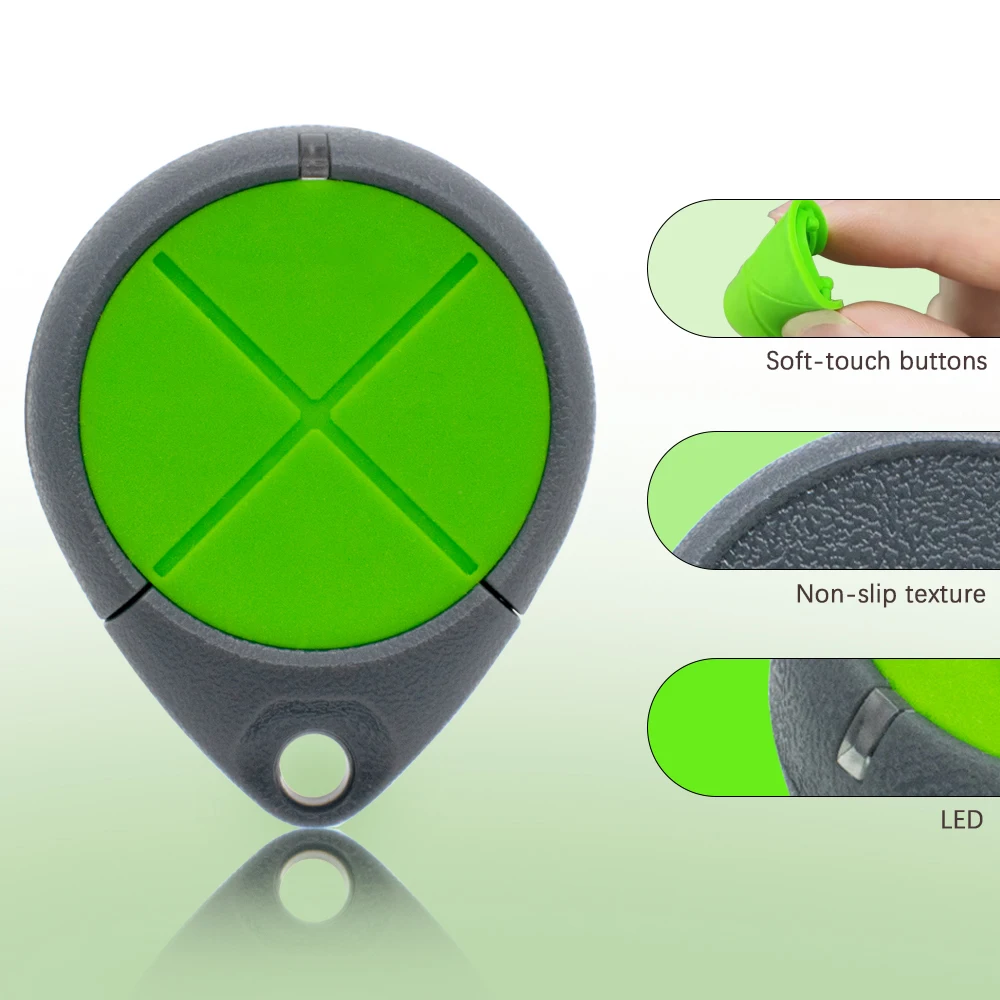

Merlin E970M Garage Door Remote Control

This Merlin E970M Premium Remote will suit the below garage door and gate motors. The E970M is able to program into the newer Security+ 2.0 openers, as well as the older Security+ openers.

Specifications:

Transmitter: AM Transmission
Transmitter Frequency: Merlin+ and Merlin+ 2.0
Rolling code
New code every use - over 100 billion code to choose from
Power supply: CR2032 battery
Batteries and Instructions Included
Frequency: 433.30 433.92 434.54MHz

Compatible Merlin Roller Door Openers

CR550 Roller Door Motor
CR650EVO
CR655MYQ RollerLift
CR675EVO HandyLift Deluxe 2.0
HE60R Roller Door Motor
MR550EVO WeatherDrive
MR60 Roller Door Motor
MR600 Roller Door Motor
MR600a Roller Door Motor
MR650 Roller Door Motor
MR650EVO Quiet Drive
MR655EVO Quiet Drive
MR655MYQ SilentDrive Essential
MR800 Roller Door Motor
MR800a Roller Door Motor
MR850 Roller Door Motor
MR850EVO Silent Drive
MR855EVO Silent Drive
MR855MYQ SilentDrive Elite
MR865MYQ SilentDrive Elite
MR1000 Roller Door Motor
MJ3800R Jackshaft Roller Door Motor
MRC950 Light Industrial Roller Door Motor
MRC950EVO OverDrive Light Commercial Opener
GLD-RDO ‘LR Drive’

Compatible Merlin Door Openers

CS60EVO Powerlift
CS65MYQ SectionalLift
CS100EVO Powerlift Plus
HE60 Sectional Door Motor
MJ3800MYQ Commander Elite
MS65MYQ Commander Essential
MT60 Panel Door Motor
MT60EVO PowerAce
MT60P Panel Door Motor
MT100EVO Tiltmaster
MT100MYQ Tiltmaster
MS105MYQ Commander Elite
MT120EVOPS Cyclone Pro
MS125MYQ Commander Extreme
MS125MYQX Commander Extreme
MT600 Panel Door Motor
MT800 Panel Door Motor
MT1000 Panel Door Opener
MJ3800 Jackshaft Panel Door Opener
MT3850 Panel Door Motor
MT3850EVO WhisperDrive
MT5580 Sectional Door Opener
MT5580P Panel Door Motor
ML700 Sectional Door Opener
ML750 Sectional Door Opener
ML850 Sectional Door Opener
ST50EVOB
ST50EVO

Compatible Merlin Gate Openers

MGS300 Gate Operator
MGA300 Gate Operator
MGS400 Gate Operator
MGS500 Gate Operator
MGS1000 Gate Operator
HC100ML Gate Operator
HC300ML Gate Operator
HC400ML Gate Operator
HC500ML Gate Operator
HC600ML Gate Operator
MGLDK & MGLDK-LV Swing Gate Opener
MGLSK & MGLSK-LV Swing Gate Opener
MGADK & MGADK-LV Swing Gate Opener
MGASK-S & MGASK-S-LV Swing Gate Opener
MGSK600 & MGSK600-LV Sliding Gate Opener
GLD-GO & GLD-GO-LV Sliding Gate Opener

Programming Methods

Programming Your Remote Control- Security+ 2.0

1 Locate the Learn Button on your motor
2 Pres and hold any button on the remote control or wireless wall control. The LED on the opener will begin to flash
3 Press and immediately release the Learn button
4 The opener light flashes or 2 clicks are heard when it has learnt the code
5 Test the operation of your new remote control

Programming Your Remote Control- Security+

1 Press the left and right buttons on the remote simutaniously until the LED on the remote stays solid.
2 Press & release the Learn button on your motor. You now have 30 seconds to program in your remote control.
3 Press and release (2 secs) any button on the remote control. If the motor's light flashes, your remote control has been
programmed in. Move to step 5.
4 If it does not flash, press and release the same button on your remote control again. Once the motor's light flashes, do
not press the remote button again.
5Press any one of the other three buttons.This Locks'in the code to your button that were pressing in steps 3/4.
6 Test the operation of your new remote control.

Clearing The Codes From Your Motor

1 Press and hold the Learn button for 6 seconds, or until the LED goes out
2 Test that your remote no longer operates the motor
- Please note, this will clear every remote programmed into the motor
