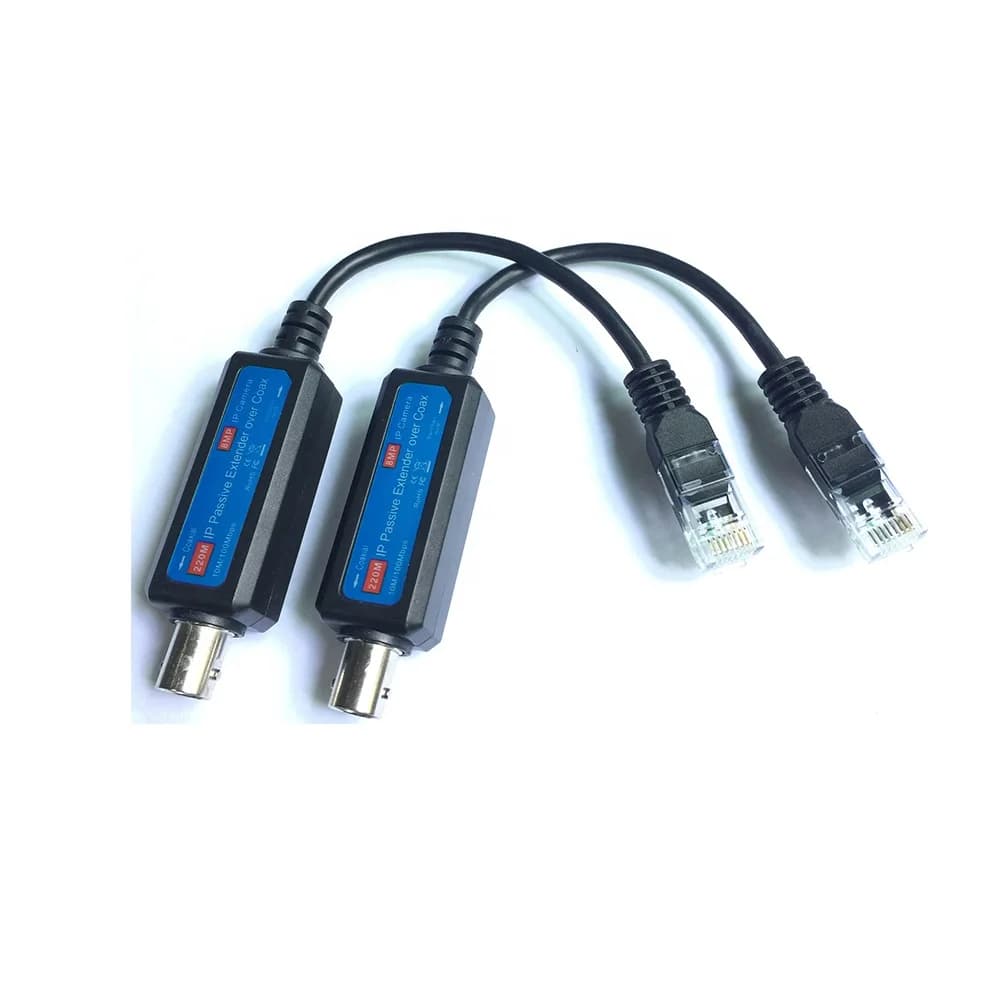

Cctv Camera IP Extender 8mp Coaxial Extender Ip Passive Ethernet Over Coax Converter

IP Passive Extender over Coax

Support 8MP IP Camera, Transmission distance max up to 220m

Features:

* 1-CH IP extender over coax cable

* Transmit Ethernet signal over coax cable

* Transmission distance max up to 220m

* Tranmission Rate:10/100Mbps,half/full duplex transimission

* Passive device, no power required

* Real-time transmission

* Compact size, easy to install * ABS engineering housing

Teconical Specifications

Product Name Single Channel Passive IP Transmitter/Receiver

Applied Devices CCTV Cameras, monitors, DVR, Switchers,IP encoders, and other CCTV equipment

Video Format PAL, NTSC, SECAM

Standard IEEE802.3 10Base-T

Bandwidth 10/100Mbps

Impedance 50Ωto dual 100Ω or 75Ω to dual 100Ω or 93Ω to dual 100Ω

Max.Distance 220m/720ft

Crosstalk >30dB

Connector Female/male BNC, RJ45 jack

Cable Coax Cable(RG59)

Power No external power required

Housing ABS engineering plastic Body Color Black

Dimension(L*W*H) 40*19.5*18.5mm(BNC connector & cable excluded)

Net Weight 55g

Opereating Temperature -20℃~70℃

Relative Humidity 0~95%(non condensing)

Storage Termperature -40℃~80℃
