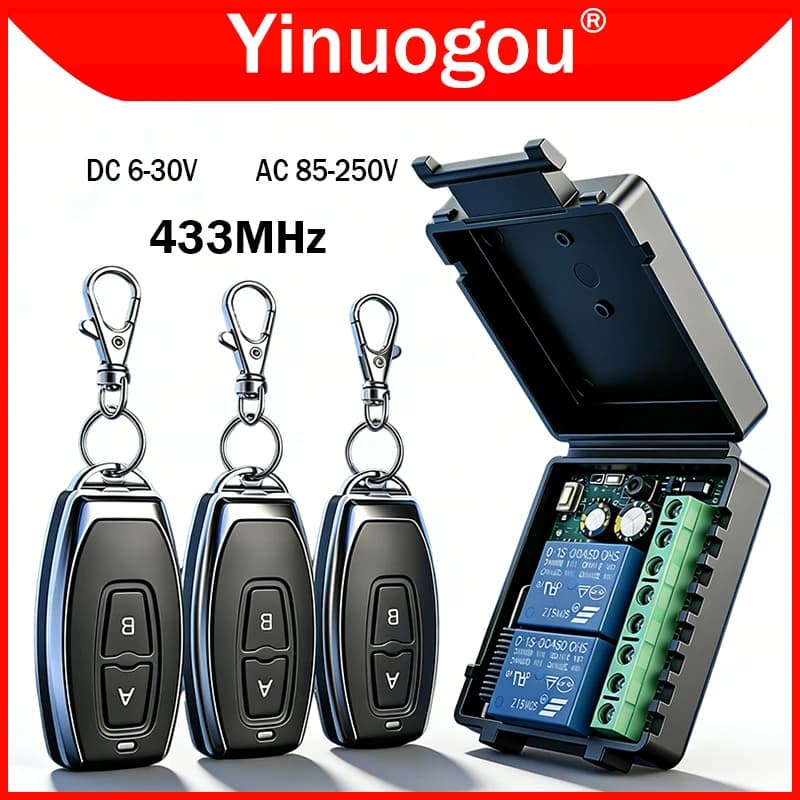

433MHz Remote Control 9V 12V 24V 220V Relay Receiver Module for Garage Door Electromagnetic Lock DIY Motor Signal Transmission

Welcome to Yinuogou Official Store

1: Great service, best quality, fastest delivery
2: If you have any questions about the item, please contact me, thank you!
3: Due to different lighting and resolution settings,Item color may vary slightly from the image.
4: Please make sure your delivery address is correct, we will ship within 12 hours after receiving the order.
5: All products are individually inspected before dispatch to ensure items are sent out in perfect condition.

Description

1. Models：YNG213
2. Channels：2
3. Codes：Learning Code
4. Frequency：433.92MHz / 433MHz
5. Operating Voltage：DC 6V-30V / AC 85V-250V
6. Output current：≤10A
7. Receive sensitivity：≥-100dB
8. Static working current：≤10mA
9. Working temperature: -40℃-+80℃

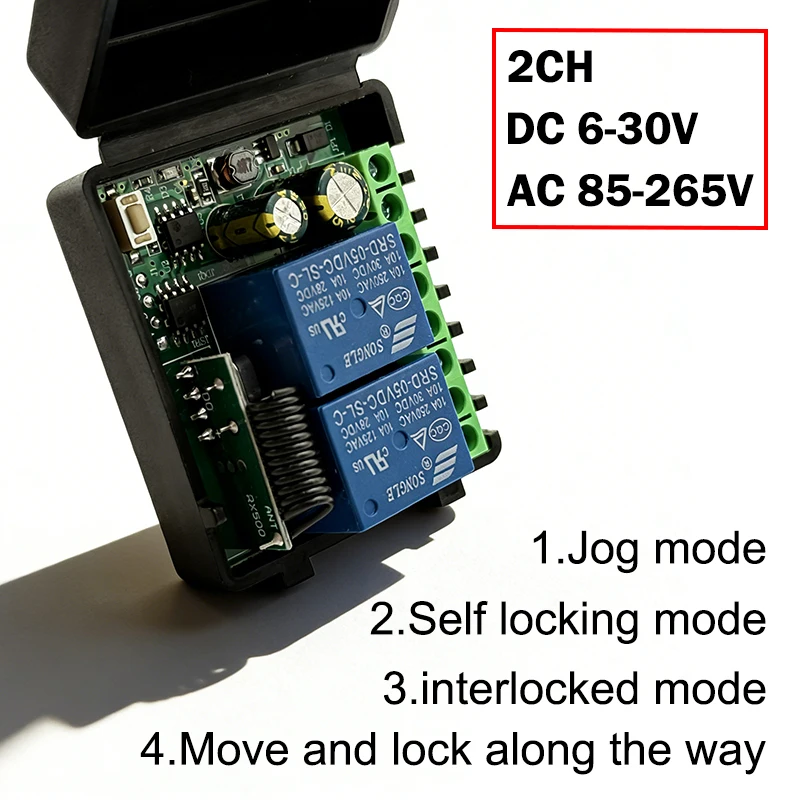

Working mode: point movement, interlock,self-locking, and delay Move and lock along the way

Applicable scenarios

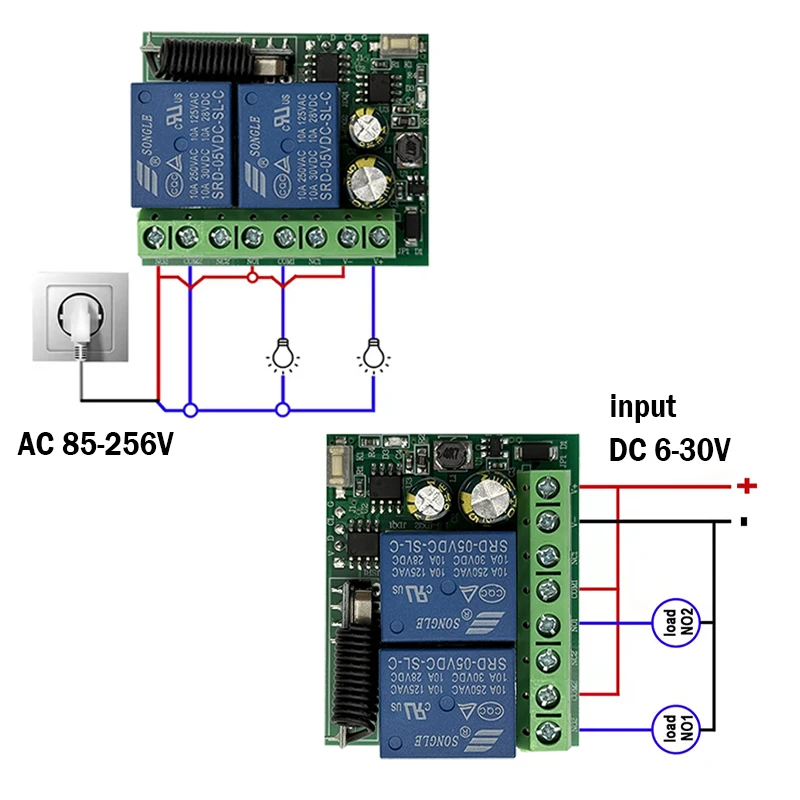

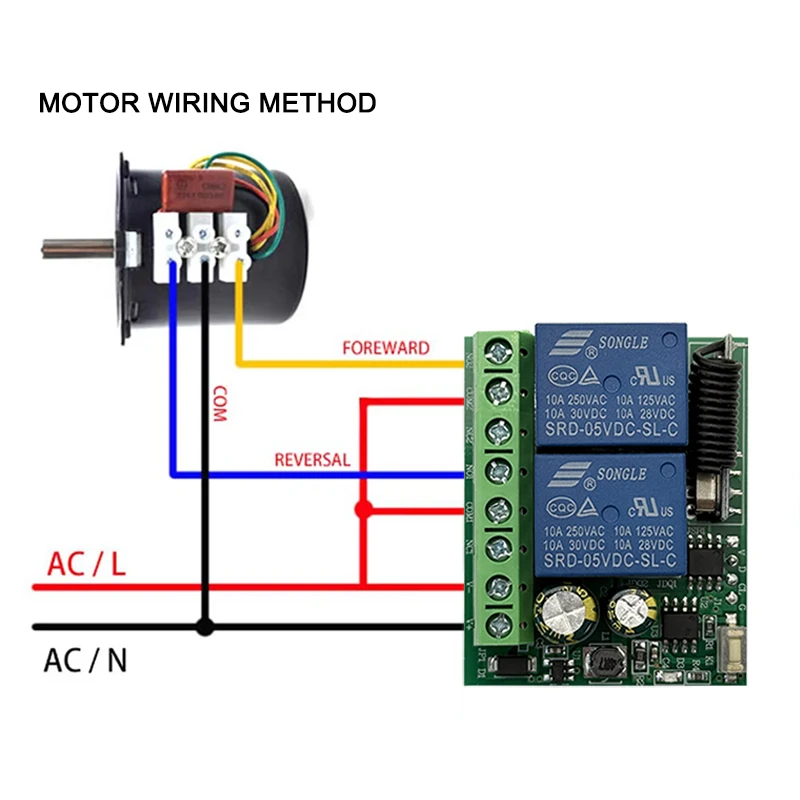

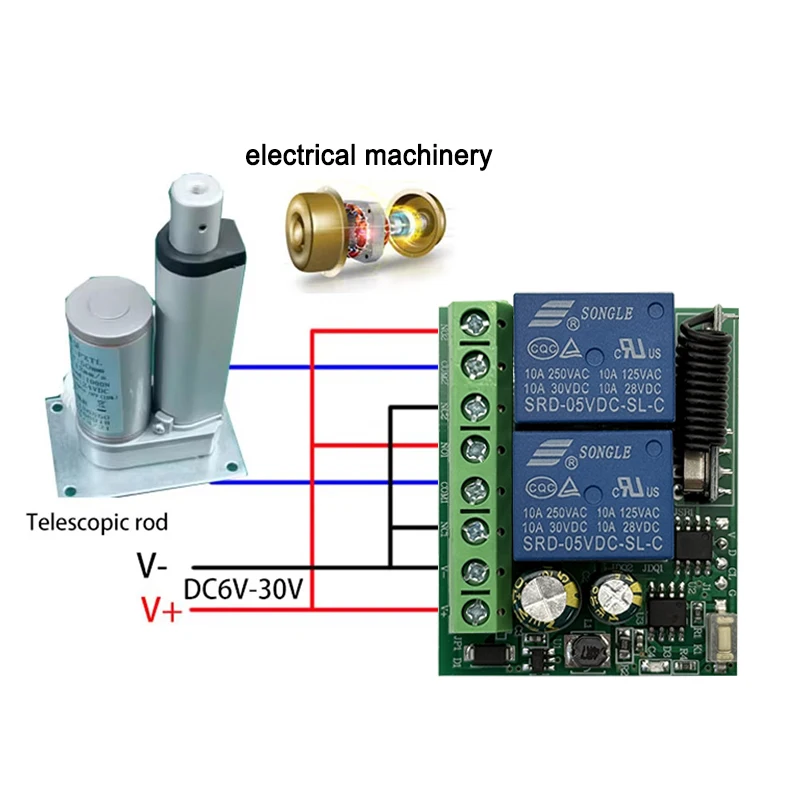

DC 6-30V / AC 85-250V 2CH Relay Receiver for Universal Garage Door Light LED Fanner Motor Signal Transmission

Clear Code

Press the control board code matching button 8 times in a row, and wait for the LED indicator light to automatically flash continuously for 4 times to return to normal. This will complete the code clearing and clear all previously learned remote control key codes.

Pattern pairing method

Jog mode

Press the code matching button on the control board once, wait for the LED indicator light to turn off, and then press the remote control A button that needs to be matched. The LED indicator
light on the control board will flash continuously for 3 times. The A button successfully matches the code, and the indicator light will turn off to enter the second button learning state. At this time, press the remote control B button,and the LED indicator light on the control board will flashcontinuously for 3 times. The B button successfully matches the code, and the indicator light will remain on continuously, completing the code matching.

Self locking mode

Press the control board code matching button twice in a row, wait for the LED indicator light to turn off, and then press the remote control A button that requires code matching. The control
board LED indicator light will flash continuously for three times. The A button successfully matches the code, and the indicator light will go out to enter the second button learning state. At this time, press the remote control B button, and the control board LED indicator light will flash continuously for three times. The B button successfully matches the code, and the indicator light will stay on for a long time. The code matching is completed.

interlocked mode

Press the control board code matching button three times in a row, wait for the LED indicator light to turn off, and then press the remote control A button that needs to be matched. The
control board LED indicator light will flash three times in a row. The A button successfully matches the code, and the indicator light will turn off to enter the second button learning state. At this time, press the remote control B button, and the control board LED indicator light will flash three times in a row. The B button successfully matches the code, and the indicator light will remain on for a long time. The code matching is completed.

Move and lock along the way

Press the control board code matching button 4 times in a row, wait for the LED indicator light to turn off, and then press the remote control A button that needs to match the code. The
control board LED indicator light will flash continuously for 3 times. The A button successfully matches the code, and the indicator light will turn off to enter the second button learning state. At this time, press the remote control B button, and the control board LED indicator light will flash continuously for 3 times. The B button successfully matches the code. The indicator light remains on and the code is completed.

Specifications

1. Model：YNG210
2. Type of programming：Programming with the receiver.
3. Frequency：433MHz=433.92MHz
4. Code：1527 Learning Code.
5. Buttons：2 Buttons
6. Battery：CR2016 （Not Include Battery）

Note: This remote control cannot clone other remote control, it can only match the 1527 learning code receiver

This product does not have any operation manual , but you need an instruction manual for your device . Your device must support EV1527 learning code and support 433MHz at the same time . This means that you need to refer to the product manual of your own device for coding after purchase ( different products have different coding methods ) . So before buying , please confirm whether your device is suitable for our remote control.
