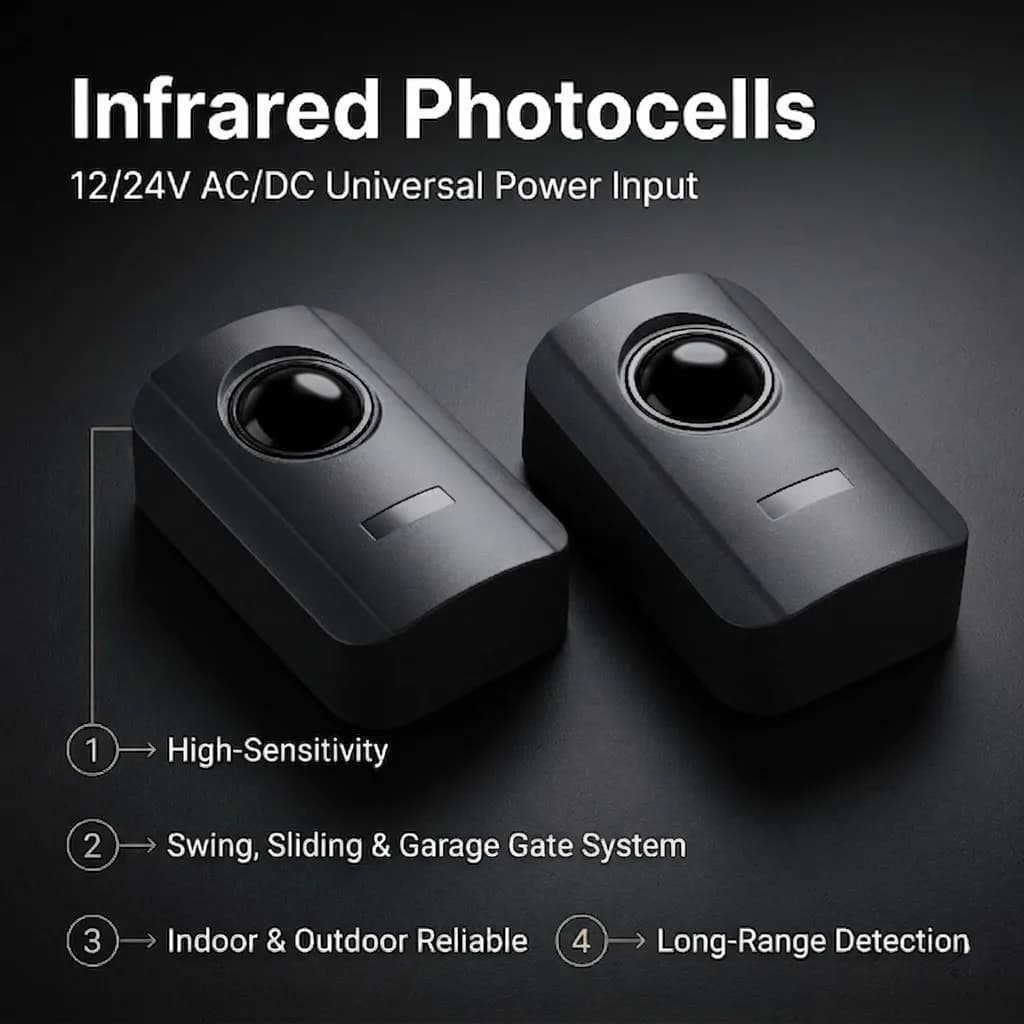

12V 24V AC DC Automatic Gate Safety Infrared Detector Garage Gate Door Safety Infrared Photocell Photoelectric Beam Sensor

Used for

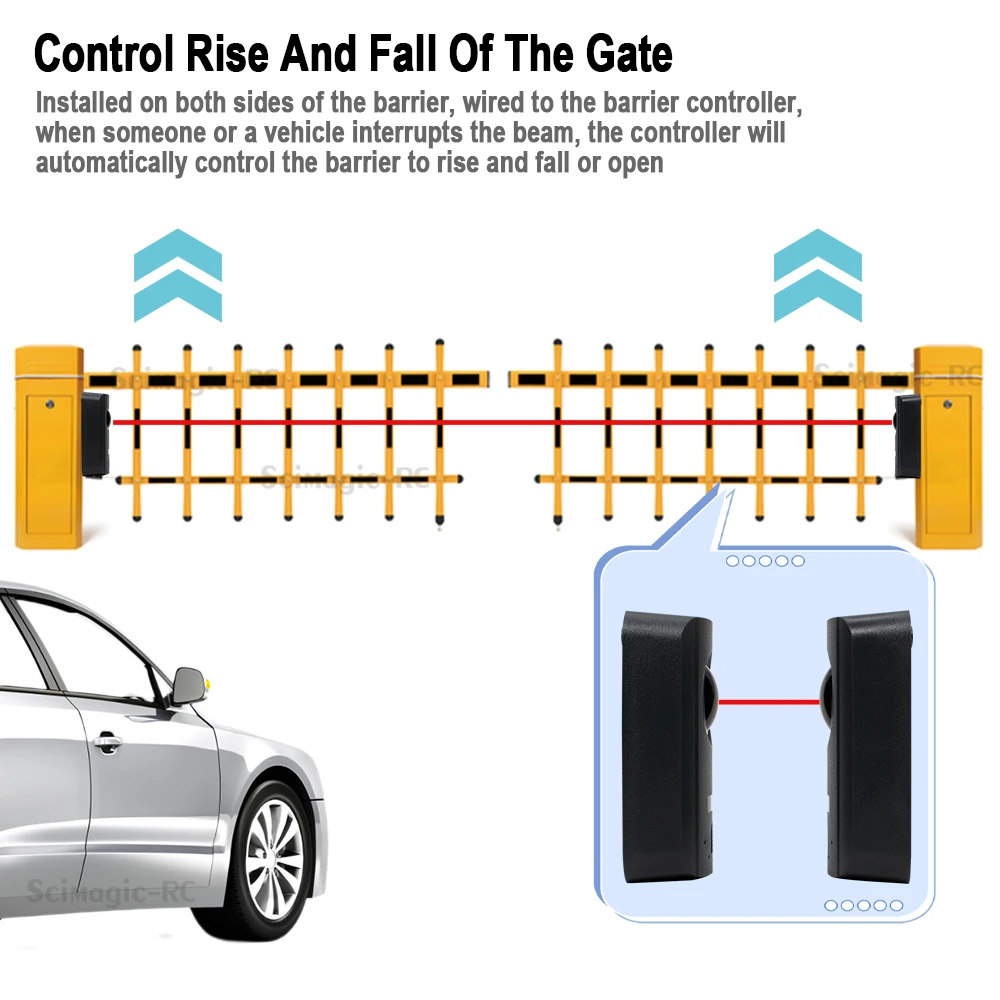

automatic slide door, automatic Gate Door, coil door , garage door， windows ，barrier etc.

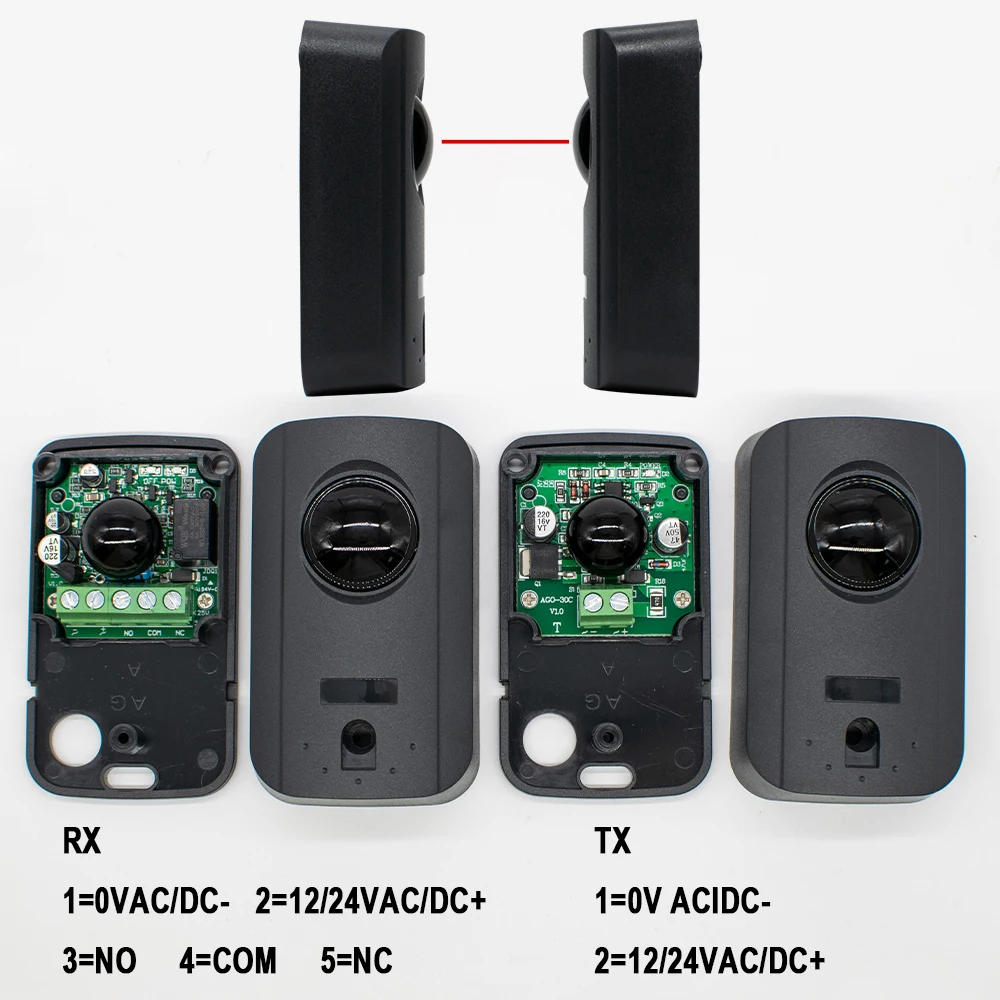

The self-aligning photocell is a safety device
comprising modulated infrared Transmitter and
Receive. Breaking the path of the beam causes
a switch in the status of the electric contact on
the Receive.Complies with the following directives:
IEC335.1 and UN18612.

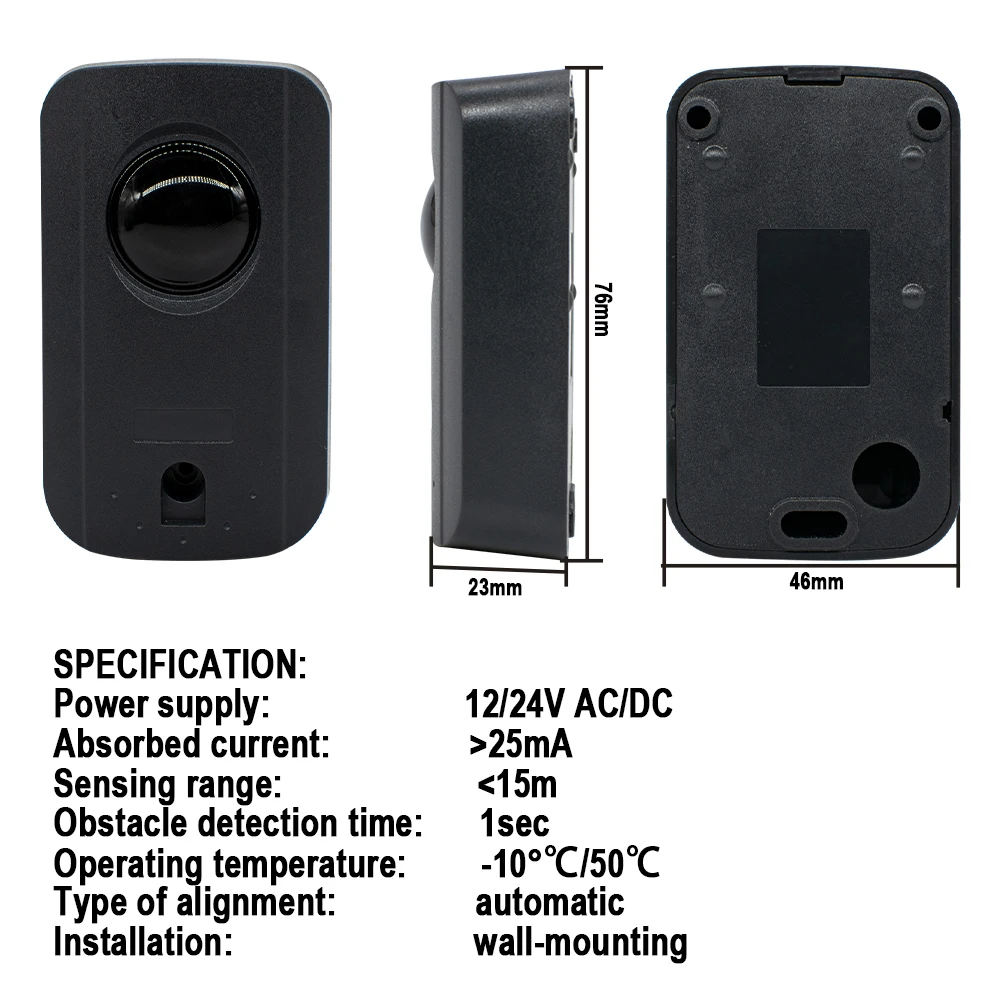

Technical Specification

Power supply:12/24V AC/DC
Absorbed current:>25mA

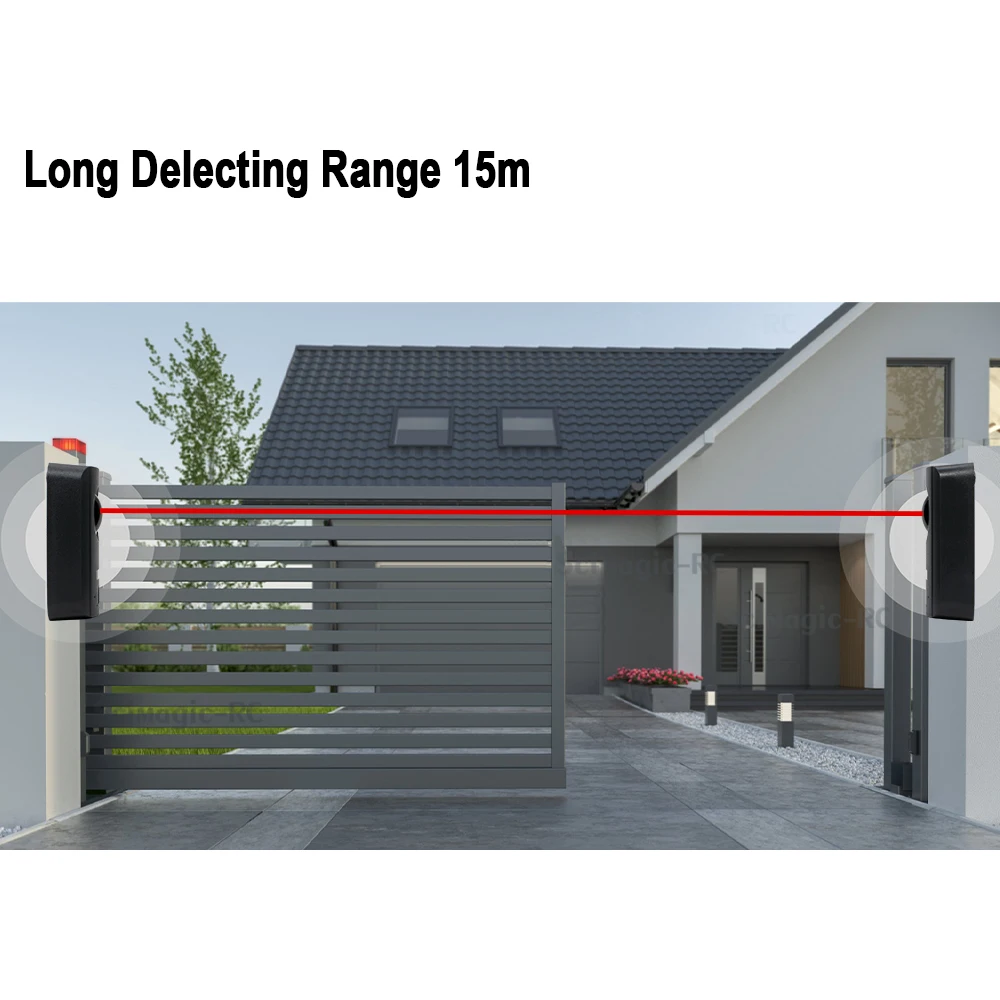

Sensing range:<15m
Obstacle detection time:1sec
Operating temperature:-10℃/50℃
Type of alignment:automatic
Installation:wall-mounting

MOUNTING:

In order to ensure optimum working efficiency,
the Receive and Transmitter should be properly
aligned.
The best installation height should be more
than 2Ocm and the distance between RX and TX
should be more than two meter. Keep the
device vertical and on a line.
Ensure correct alignment by checking the LED
on the Receiver.When device is on a line, the
LED will go out.

Important notice:

Warning! Incorrect installation or use of
product could cause serious personal injury.
Any repair should be performed by qualified
person.
