2 Port HDMI Multi-Viewer 2x1 with PIP Mode 1080P 60Hz HDMI Video Seamless Switch 2 in 1 out with Remote for Camera Laptop PC TV

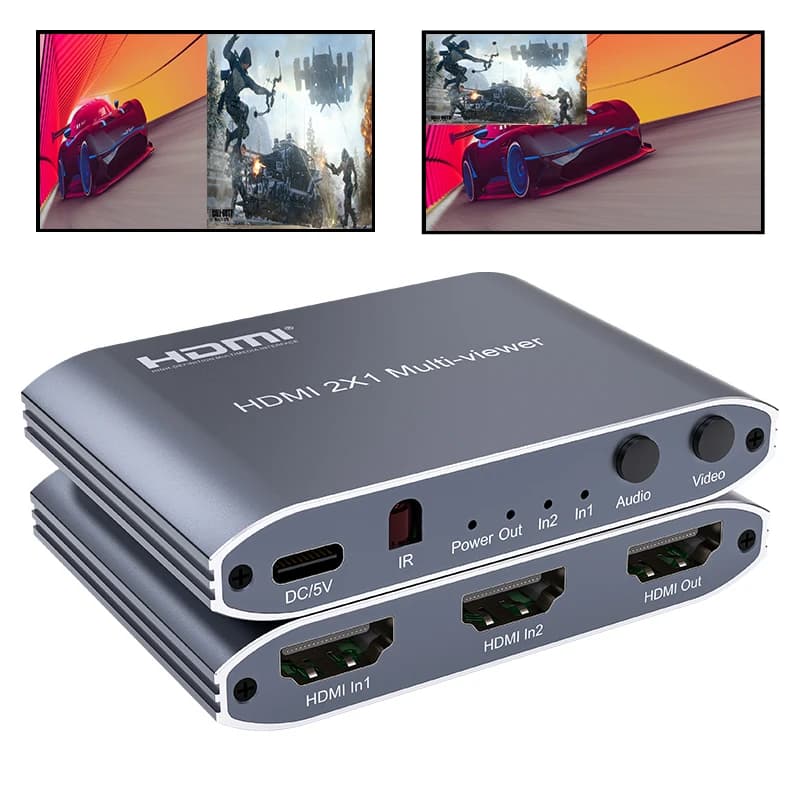

HDMI 2x1 Multi-Viewer with PIP

Introduction:

This HDMI 2×1 multi-viewer supports 2-channel HD screen segmentation and seamless switching output.
It enables two HD digital video signals to be displayed on a single monitor with multiple video segmentation modes,
and seamless switching between the two input sources.
It with flexible multiple control options including button operation and local IR remote control.
This device is easy to install, with stable performance strong practicality.
It is widely applicable for gaming, office use and security monitoring scenIntroduction:
This HDMI 2×1 multi-viewer supports 2-channel HD screen segmentation and seamless switching output.
It enables two HD digital video signals to be displayed on a single monitor with multiple video segmentation modes,
and seamless switching between the two input sources.
It with flexible multiple control options including button operation and local IR remote control.
This device is easy to install, with stable performance strong practicality.
It is widely applicable for gaming, office use and security monitoring scenarios.arios.

Features:

* Support 2 HDMI input ports, 1× HDMI output port;

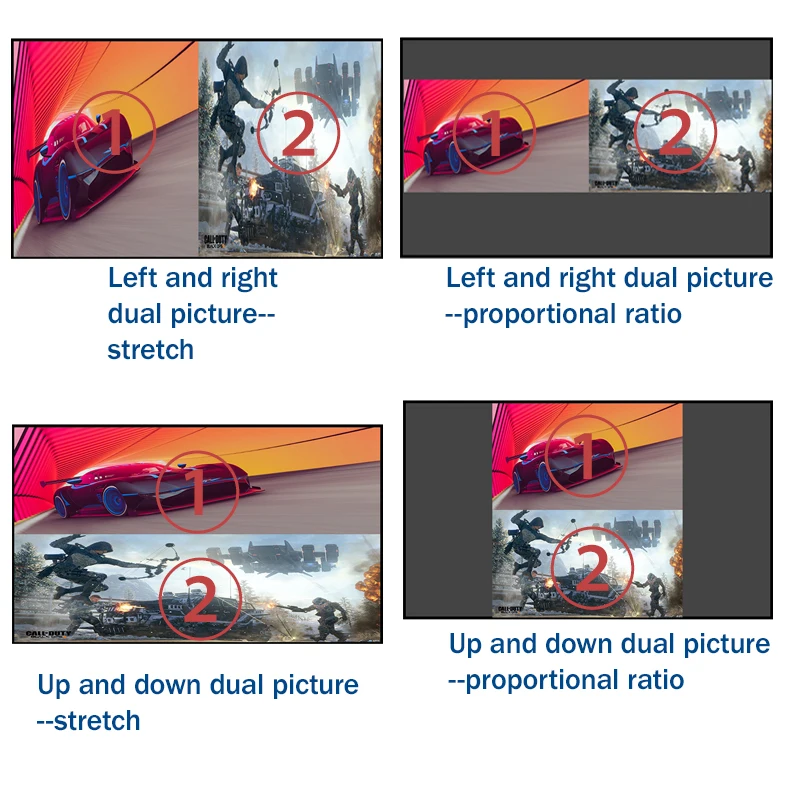

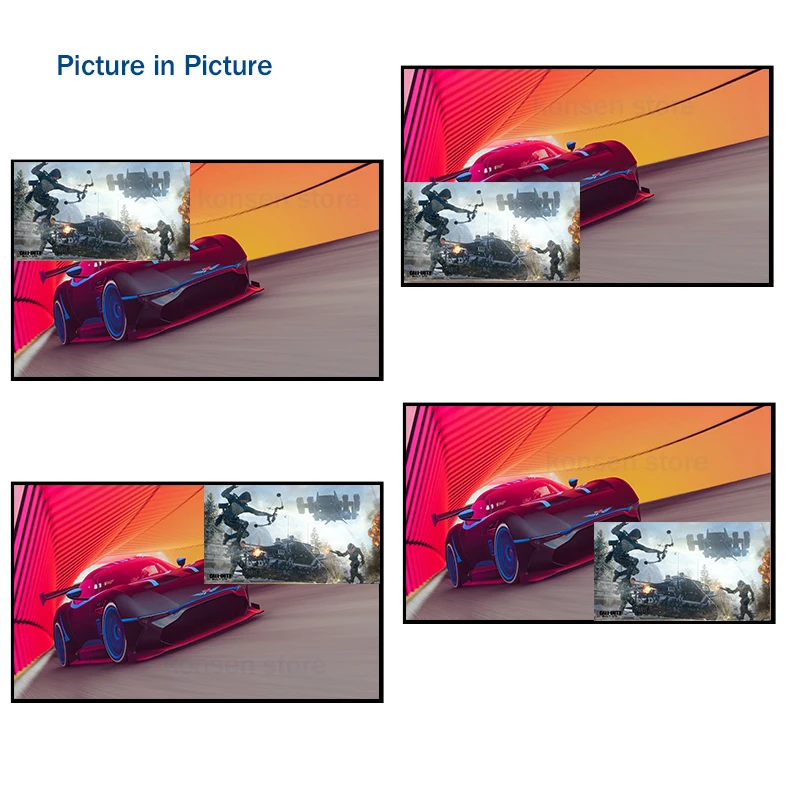

* Support 2 channels HDMI signals screen segmentation, Support 4 different PIP modes;
* Support 2 channels HDMI signals seamless switching;
* Support Maximum output resolution up to 1080P@60Hz;
* Support IR remote switching;
* Support input resolution: 1080P@60Hz.;
output resolutions: 1080P@60Hz, 720P@60Hz;
* Support audio output format: LPCM2.0;
Specifications:
HDMI resolution ......... 1080P@60Hz
Audio format .......... PCM2.0
Input cable distance ...... 1080P@60Hz ≤5M AWG24 HDMI standard cable
Output cable distance …... 1080P@@60Hz ≤5M AWG24 HDMI standard cable
Max bandwidth ............. 148.5MHz
Max baud rate ........... 1.65x3Gbps
Maximum working current ............ 0.6A/5VDC
Operating temperature range ........... (-10 ~ + 45 ℃)
Dimension ............. 83x57x15(mm)

NOTE：

This device functions as an HDMI Multi-Viewer,
Not an external graphics adapter.
It displays two independent video sources simultaneously on a single monitor (Side-by-Side or PiP).
It does Not support "Extend" mode.
You cannot expand a single computer's desktop across the screen;
The monitor will always detect only one input signal, showing two separate sources side by side.

Package include:

1 x HDMI 2x1 multi-viewer
1 x USB Power cable (5V1A)
1 x Remote control (without battery)
1 x User manual
