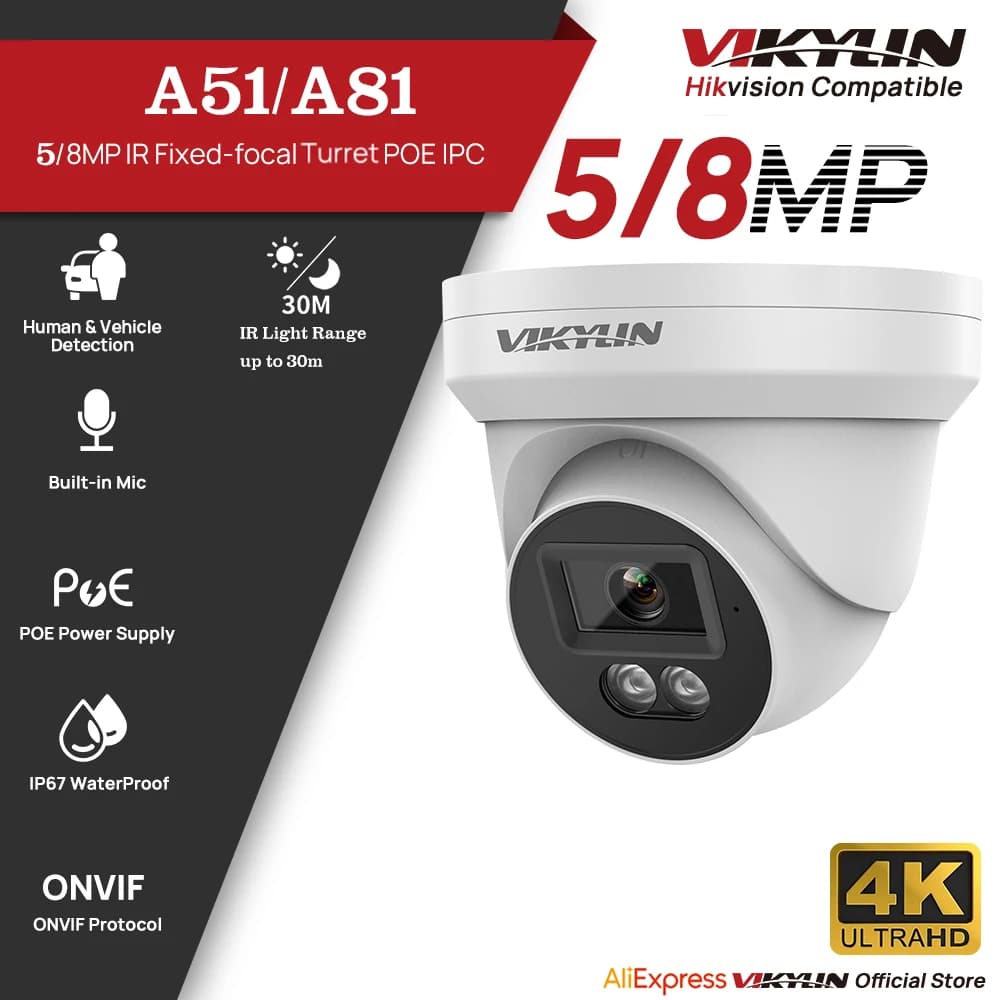

VIKYLIN 5/8MP HD IP Security Camera Poe 4K IR Light Audio Fixed Camera Human Vehicle Detection Support SD Storage ONVIF IP67

Customer Support

Please Contact Us Before Requesting a Return.
Most issues are caused by configuration settings and can be resolved quickly by our technical support team.

Setup & Guides for PG and YC series

Video link:
https://www.youtube.com/watch?v=7gzSDx-OBFY&list=PLHnanNJL7osTbCCVS9bfDegy5NqUeS2na

Warming tip:

Due to some customers leaving negative reviews on the grounds that the IP camera does not support WIFI, we must provide an explanation. We have never stated that this IP camera supports WIFI. This is a normal IP camera, which connects to the network through a router or via the POE port of an NVR. Please note.

Specifications:

IR Light Range up to 30m (98ft)
Material: Metal
Waterproof Level:IP67
Internal PoE
Built-in Mic
Built-in TF card slot（microSD card not include）
H.265 &H.265+&H.264
Weight: 0.37kg

An Incredible 8MP 4K Super HD IP Camera

With a high resolution of 8megapixels (3840 x 2160), this 8MP HD IP surveillance camera is able to capture videos in 3840p HD quality. It is a huge advancement compared to 720p HD or 1080p Full HD. you never miss a single detail of your loved ones. which enables you to see all objects very clearly.

Up to 30m night vision

With infrared LEDs and advanced IR technology make letting you see any event clearly even in the dark. With a 30m (About 100 feet )night vision distance, you can accurately identify people present in the event through videos captured by.

Smart Human & Vehicle Detection

Reduces false alarms and ensures accurate target recognition.

Built-in Microphone

Records clear audio together with video for complete surveillance.

H.265+ Smart Compression

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Easy PoE Installation

The PoE security IP camera uses a single cable to transmit both data and power. Simplified wiring means easier and clean installation. It is the best choice for DIY enthusiasts.

Support on-board storage up to 512 GB (SD card not included)

3DNR Enhanced Clarity in Low-Light Situations

Your camera uses DNR (Digital Noise Reduction) technology to filter out noise from low-light settings as well any noise caused by motion. By eliminating graininess, your camera provides a cleaner, more accurate image with better clarity, sharpness, and improved motion detection, enhancing your HD experience even in the dark! Not only does DNR reduce noise, but it reduces video file sizes as well, giving you greater disc space for storage.

WDR (Wide Dynamic Range) technology: Using short shutter exposure in the background area, and enabling.Using a long shutter exposure to generate a composite image can not only reveal the details in the dark areas of the image, but also prevent the bright areas from being overexposed. Wide dynamic range
The state-of-the-art technology can achieve clearer and more vibrant images than the backlight compensation technology.

BLC (Backlight Compensation) technology: It allows the camera to find the reference brightness for capturing the best image, and then automatically provides an appropriate amount of light compensation to help users identify objects with strong backlighting effectively. Backlight compensation is often effective for specific areas of the target image.

HLC (Highlight Compensation) technology: It detects the presence of bright spots and then applies appropriate suppression to the bright areas to obtain a clear image. This function is useful for reading license plates at night.

IP67 Weatherproof

The IP67 protection rating provides excellent protection for your equipment. Whether it's a dusty environment, an accidental splash or even a short immersion, there's no need to worry.

Motion Detection

Alerts for activity in monitored areas.also support human/verhicle detection.

Durable Metal Housing

Delivers superior strength, impact resistance, and long-lasting
outdoor reliability.

SUPPORT ONVIF

Works with most ONVIF-based NVR systems on the market.

4 Programmable Privacy Masks

Help comply with privacy regulations and shield sensitive areas.

Engineered for Blue Iris & VMS

No protocol conflicts. Just configure and record.

POE Connection, Don't need Power Supply,No POE need USE 12v Power

A real play and plug security! It features POE (Power over Ethernet), with a single cable connecting each IP camera to the NVR for both power supply and video and single transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners

Connection Method

Package list

Frequently Asked Questions:

1.Why can’t I open the default IP address 192.168.1.110 via web browser ?

A:The default IP address may not match your LAN’s IP scheme. Check your
computer’s IP address before accessing the camera. If the IP address does not match
the 192. 168. 0.x scheme, please install the IP search tool from the download website
to modify the camera’s IP address. Make sure the IP address of the camera matches
the LAN IP scheme. For example, if the your LAN is 192. 168.1.xxx（192. 168.2.xxx）...,
then set the IP camera to 192. 168.1. 123（192. 168.2.123）... and so on.
For details about how to change the IP address, please refer to 3.1

2.How to reset the password ?
A:The default Username: admin, Password: 123456. If you lost the password or want to
reset the camera’s setting, please install the search tool Ajdev to search the
camera IP and click Batch Reset button.

3.How to upgrade the IP camera ?
A:①Ask the supplier for the suitable firmware.
②You can use the web browser, Ajdevtools, or PC client to upgrade the camera.
③Go to the Configuration > System >update, click browse and select the firmware,
then click Upgrade button and wait for the operation to complete.

4.How to fetch the RTSP video stream and http snapshot ?
A:①Main Stream : rtsp://admin:123456@IP address/stream0
②Sub Stream: rtsp://admin:123456@IP address/stream1
③Main stream snapshot：
http://192.168.20.131/snapshot.cgi?stream=1&username=admin&password=123456
④Sub Stream snapshot：
http://192.168.20.23/snapshot.cgi?stream=0&username=admin&password=123456

5.Why does the NVR not show image after adding your IP camera ?
A:①Make sure you selected the right protocol and enter the correct username and
password when adding the cameras
②Make sure the NVR and IP camera are the same IP segement.(eg. NVR:192.168.1.x,
and IP camera:192.168.1.y).
③Try changing the camera encode mode to H.264 if the NVR can’t support
H.265. (Configuration -> Camera -> Video > Encode mode: H.264)
