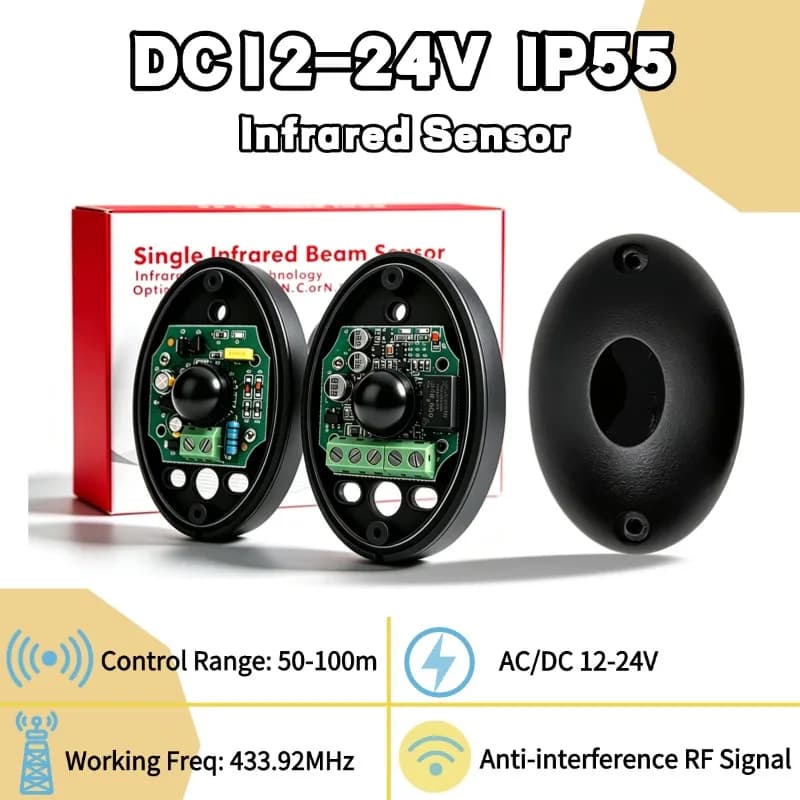

Infrared Beam Sensor Photocell Garage Door Infrared Sensor 12V-24V AC/DC for Sliding Gate Ir Barrier Automatic Door

DC12-24V Infrared Detector

Product Overview

The Active Single-Beam Infrared Beam Detector is a high-performance security device designed for perimeter protection. With a 20-meter detection range and dual voltage compatibility (12V/24V), it ensures reliable operation in extreme temperatures (-30°C to +50°C). Ideal for warehouses, factories, and residential areas, it features adjustable relay outputs (NO/NC) for flexible system integration.

Key Features

✔ Long-Range Detection: 20-meter infrared beam coverage

✔ Dual Voltage Support: 12V/24V DC power input

✔ Robust Construction: Operates in -30°C to +50°C environments

✔ Relay Output: Configurable as Normally Open (NO) or Normally Closed (NC)

✔ Easy Installation: Vertical alignment with anti-interference design

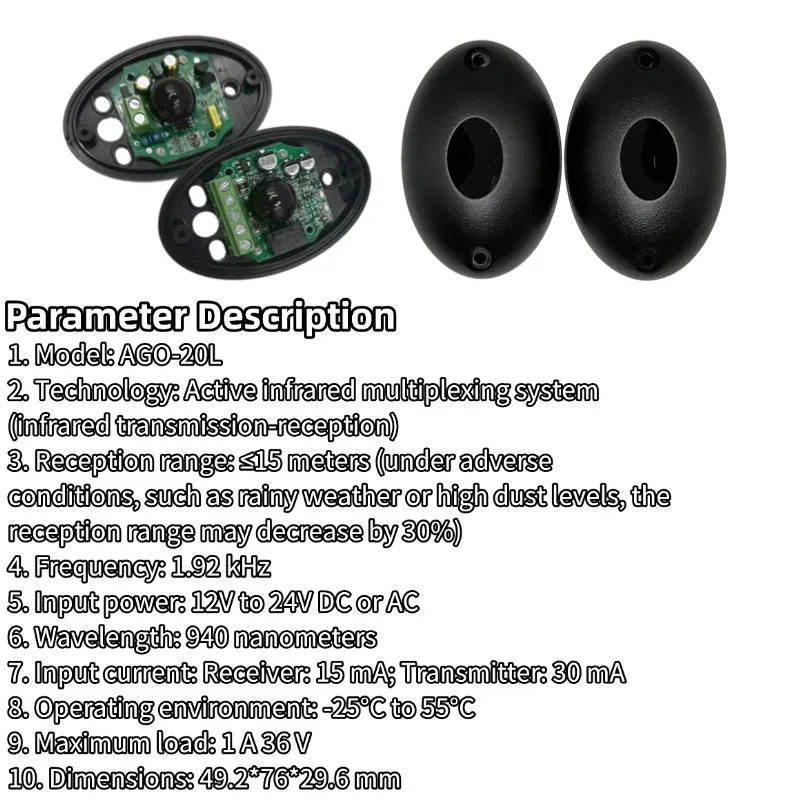

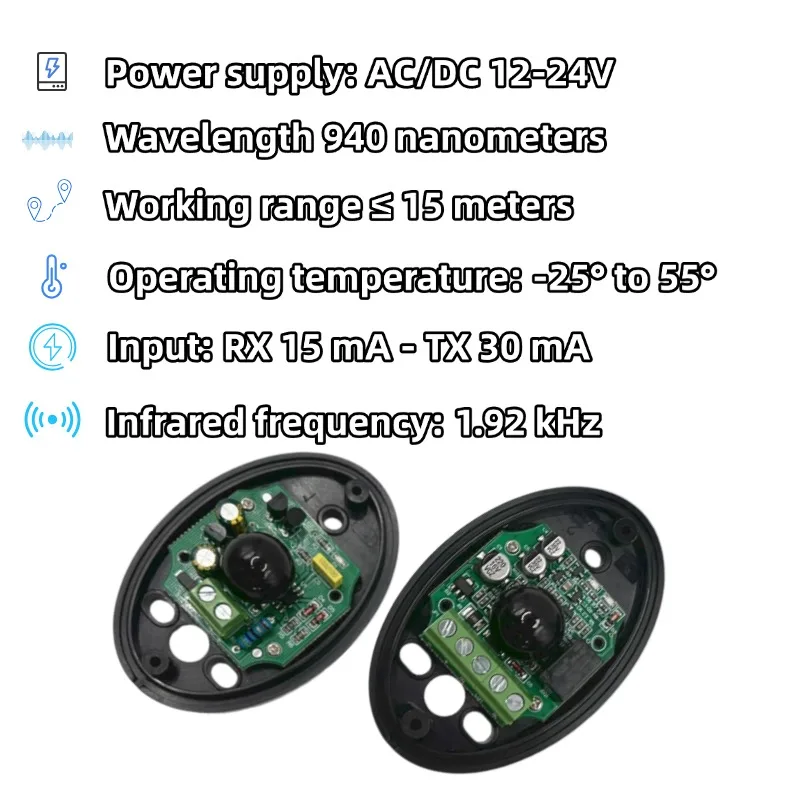

Technical Specifications

Detection Range: 20 meters

Power Supply: 12V/24V DC (±10%)

Current Consumption: >50mA

Operating Temperature: -30°C to +50°C

Output Type: Relay (NO/NC selectable)

Mounting Height: >20cm above ground

Minimal Distance: 2 meters between units

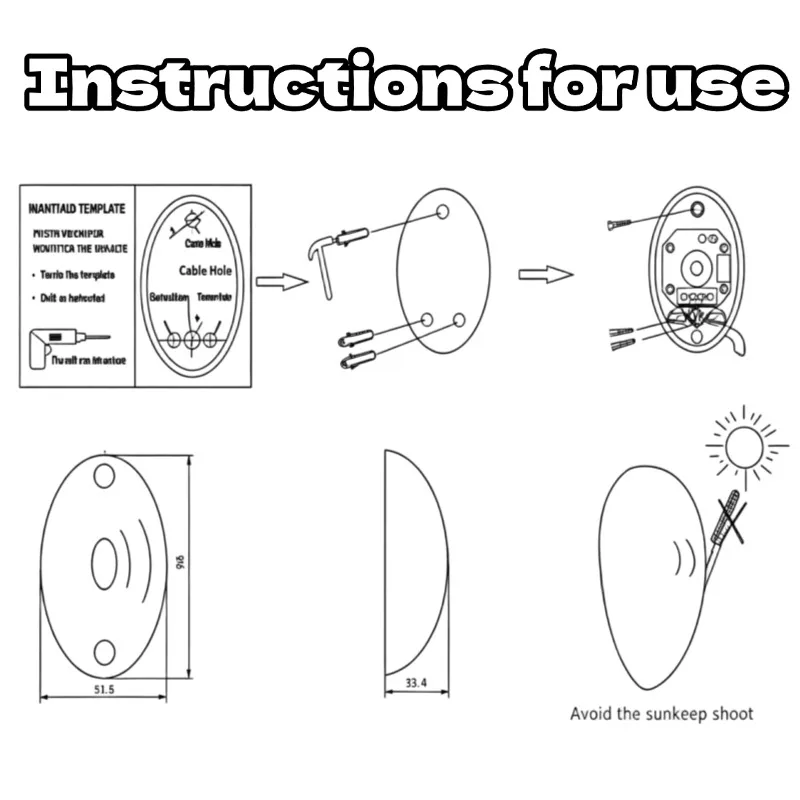

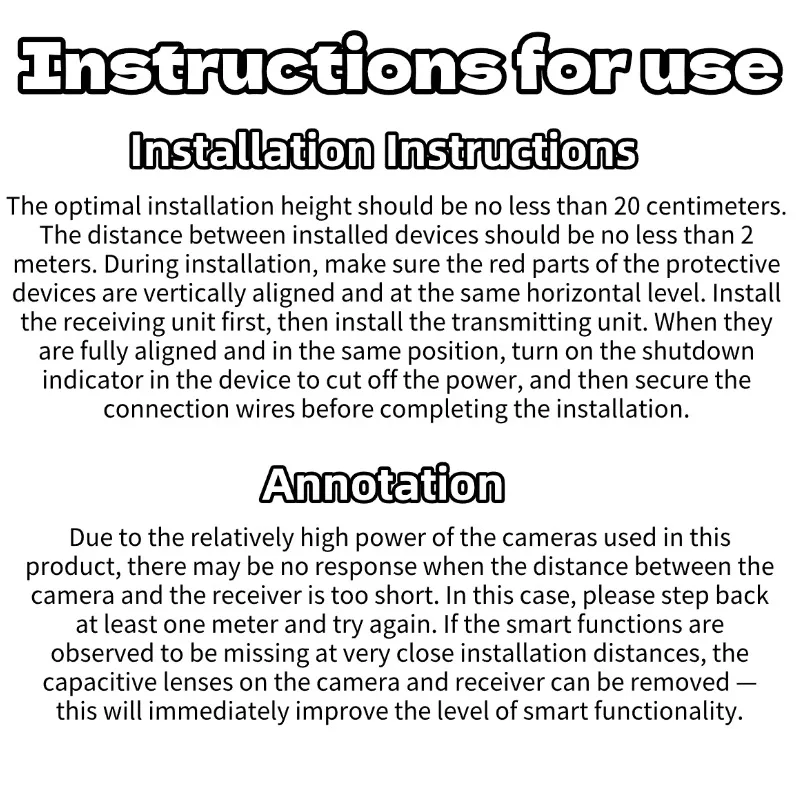

Installation Guide

Positioning: Mount receiver first, then transmitter. Ensure both are vertically aligned on the same horizontal plane.

Alignment Check: When correctly aligned, the receiver's OFF indicator will turn off.

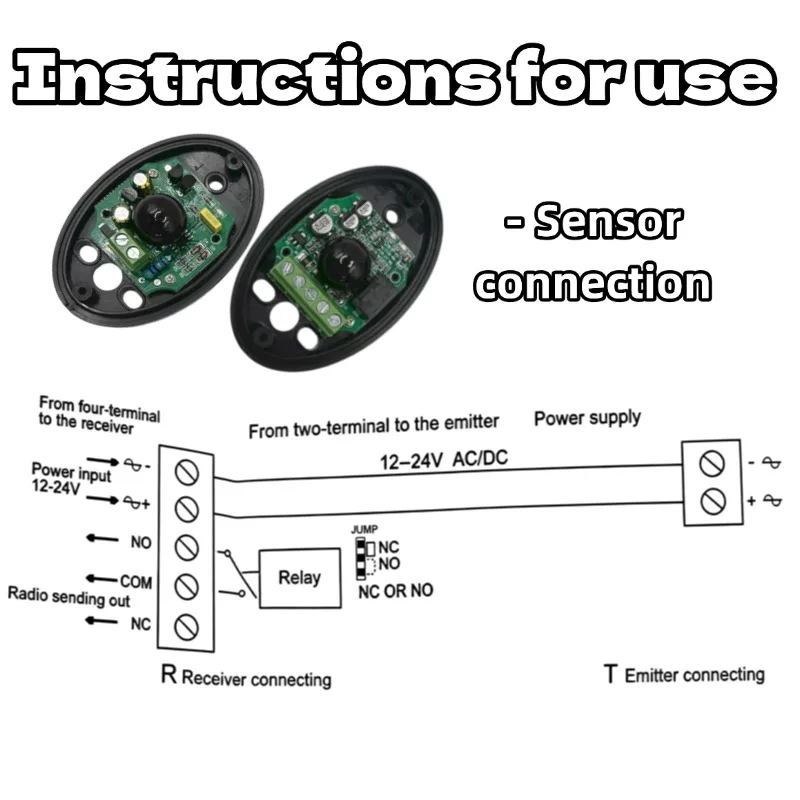

Wiring: Connect power and relay outputs after securing the units.

Protection: Use infrared shielding to prevent interference.

Applications

Perimeter security for residential/commercial properties

Intrusion detection in industrial zones

Outdoor asset protection

Integration with alarm systems

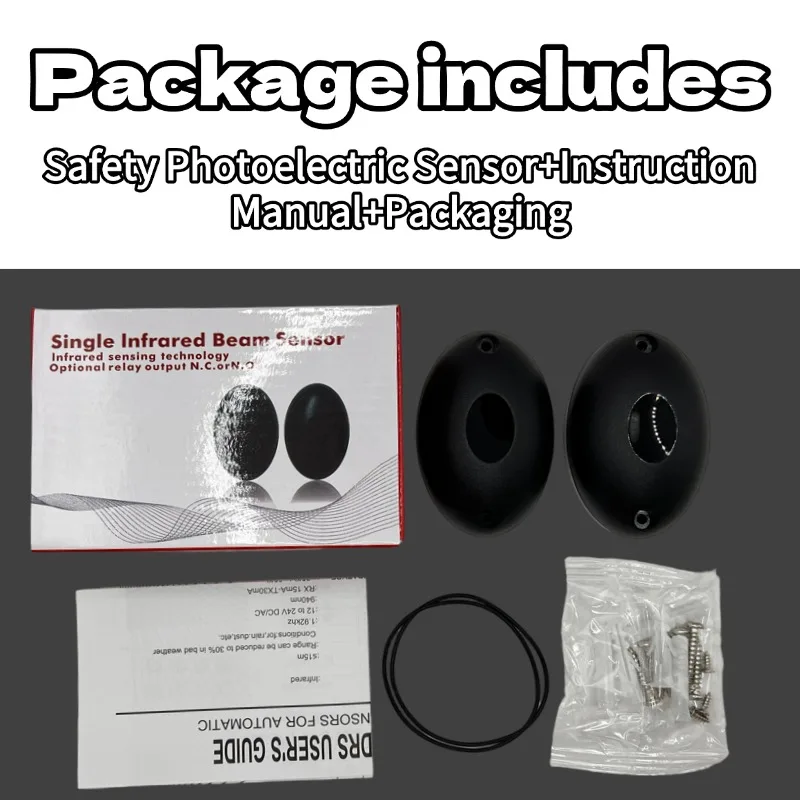

Package Includes

1x Infrared Transmitter

1x Infrared Receiver

Mounting Brackets (2 pairs)

User Manual

Screws & Installation Tools
