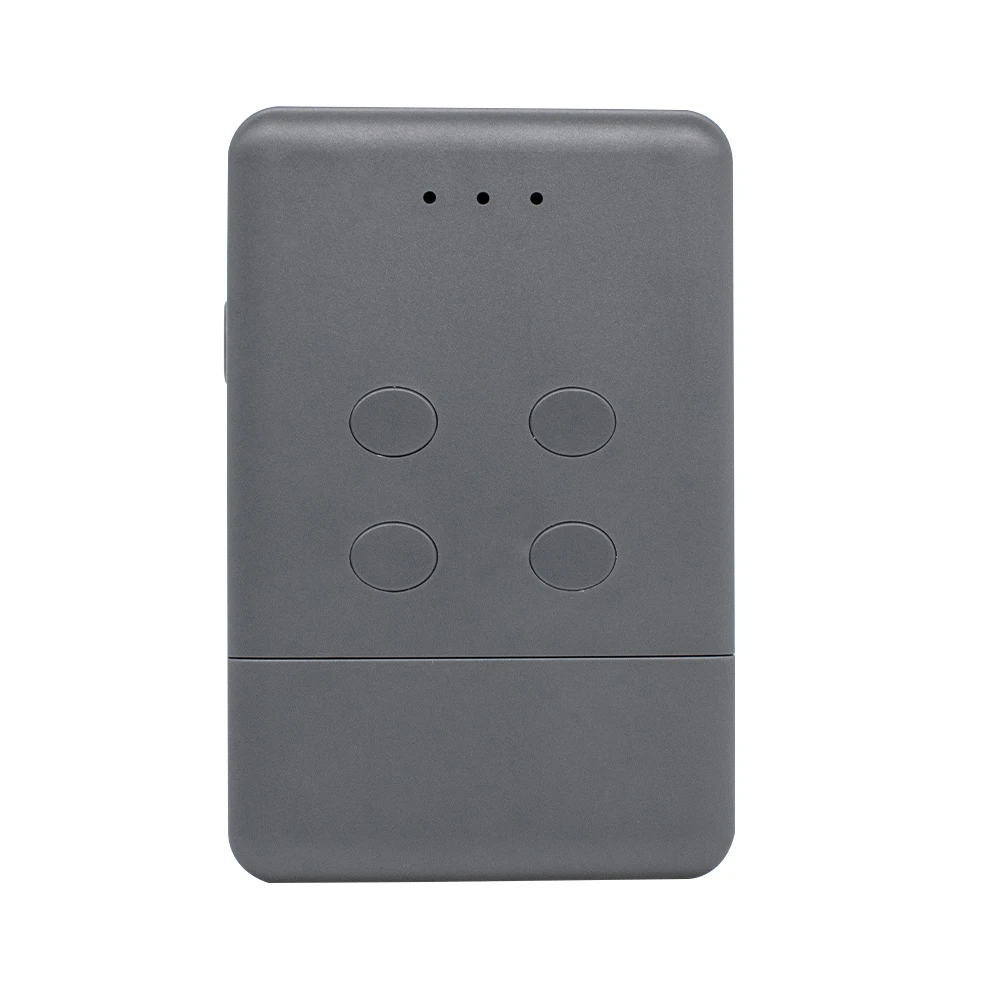

WIFI Smart Gate Opener Remote Control 868 MHz Transmitter HSM2 HSM4 HS4 HSE4 Garage Door Command Remote Barrier Works with Tuya

You have two version options

Version1: WIFI+RF
Version2: RF

Choose the purchase you need. I will not be responsible for purchase errors, please read the product description below carefully before purchasing、Thank you

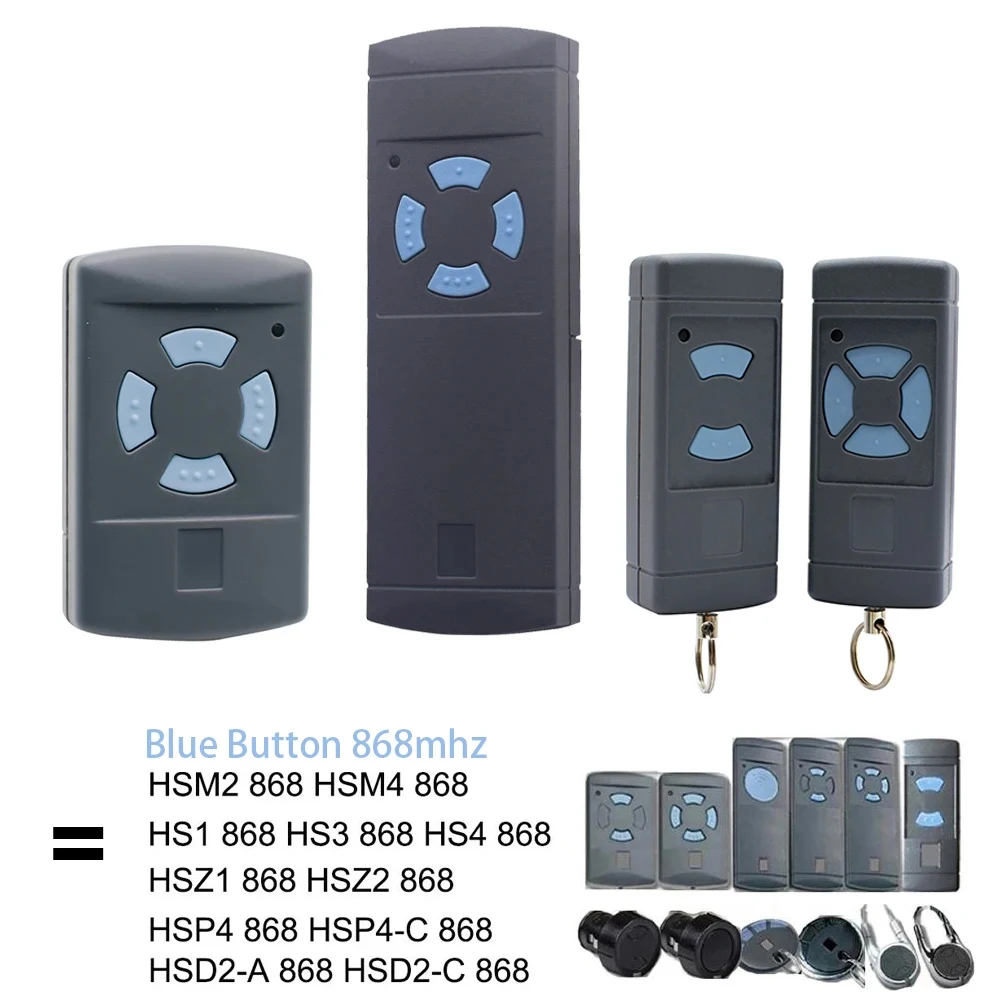

Compatible with

hsm2 868 ,hsm4 868,
hs1 868,hs2 868,hs4 868,
hse2 868,hse4 868
hsz1 868,hsz2 868,
hsp4 868,hsp4-c 868,
hsd2-A 868,hsd2-c 868

Marantec Digital D382 868
Marantec Digital D384 868
Marantec Digital D302 868
Marantec Digital D304 868
Marantec Digital D313 868
Marantec Digital D321 868
Marantec Digital D323 868
Marantec Command 131 868

Version1: WIFI+RF

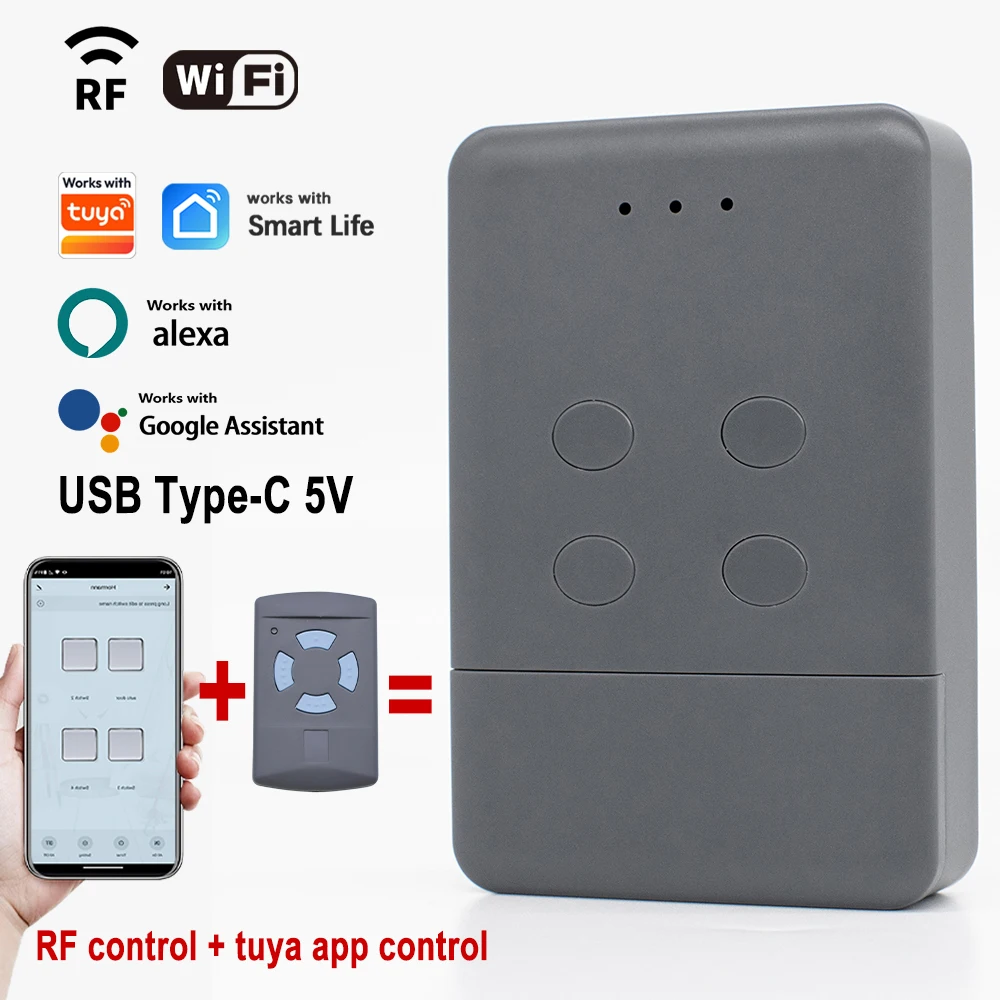

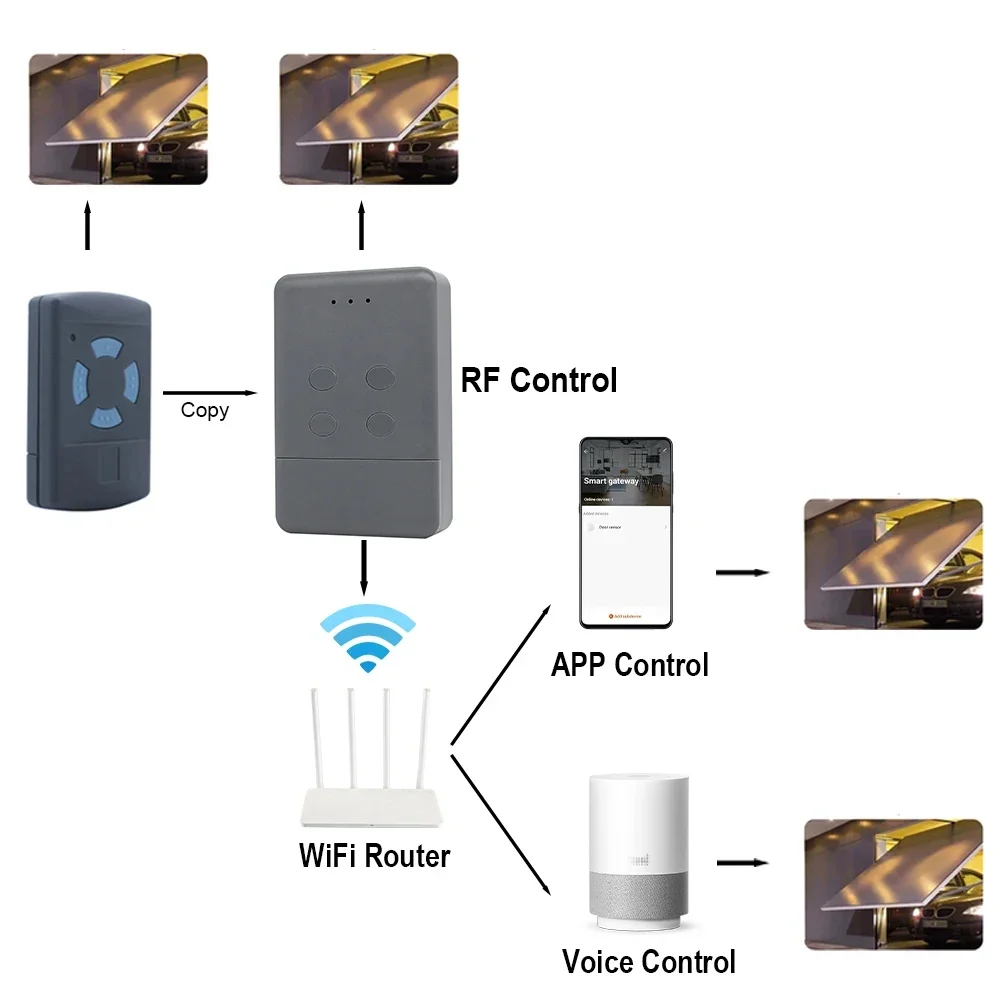

It combines Rf and TUYA mobile app control, After the device paired with the network, you can realize the remote control of your gate through the tuya mobile app. You can connect the voice audio to realize voice control of your gate. you also can share the control of the device to other people and you can remove the control of other people. This smart device eliminates the complicated receiver wiring and allows you to conveniently, quickly, and securely realize the remote control of your gate by mobile app/smart speaker/RF control

Highlight

【APP Remote Control】
After the equipment has been distributed to the network,You can check the working state of the device in Tuya APP anywhere and anytime.
【RF Control】
It can be used as an RF remote to control your garage gate door
【Voice Control】
You could voice control the device by Alexa/Google Assistant.
【Recommended installation】After powering up the device, there is no need for complicated wiring to enable your mobile phone to control your front door
【Share function】You can share garage door control with your family, or friends, and you can remove other people's garage door control.

How to Use

A : Face to face copy your original remote control

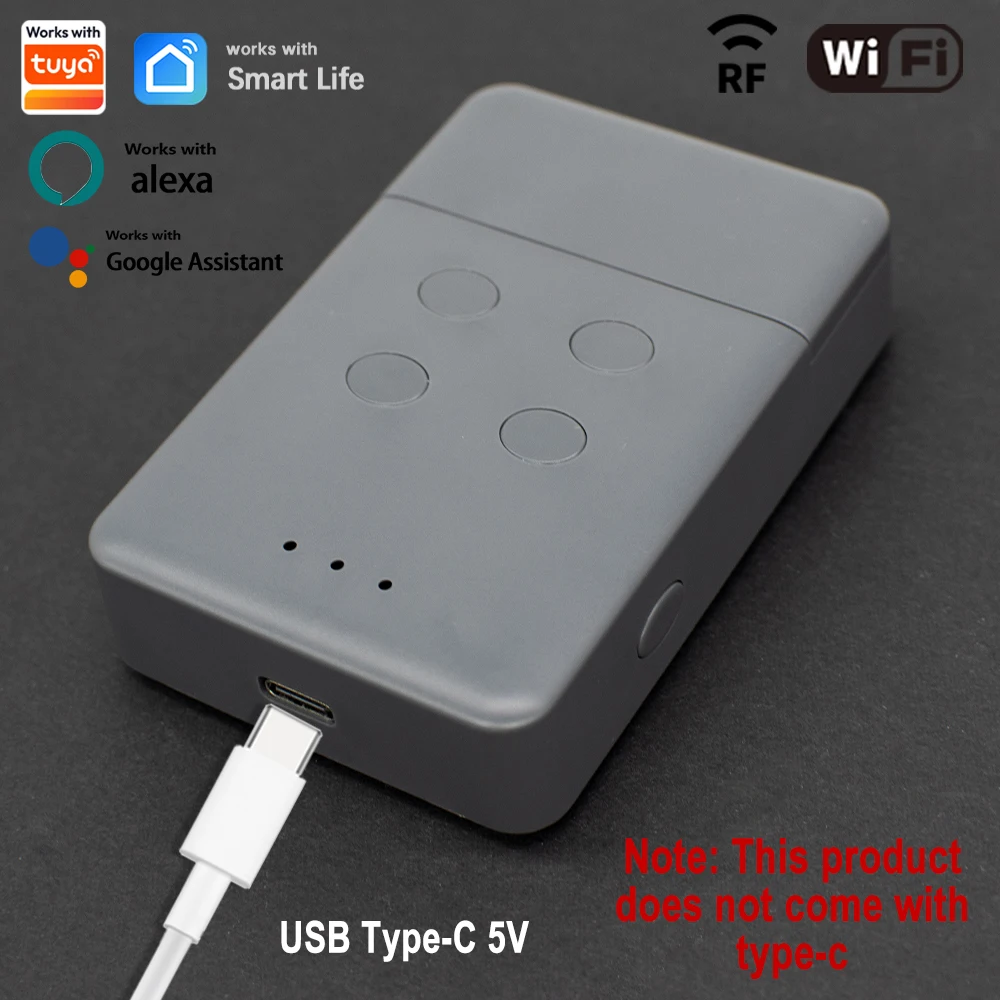

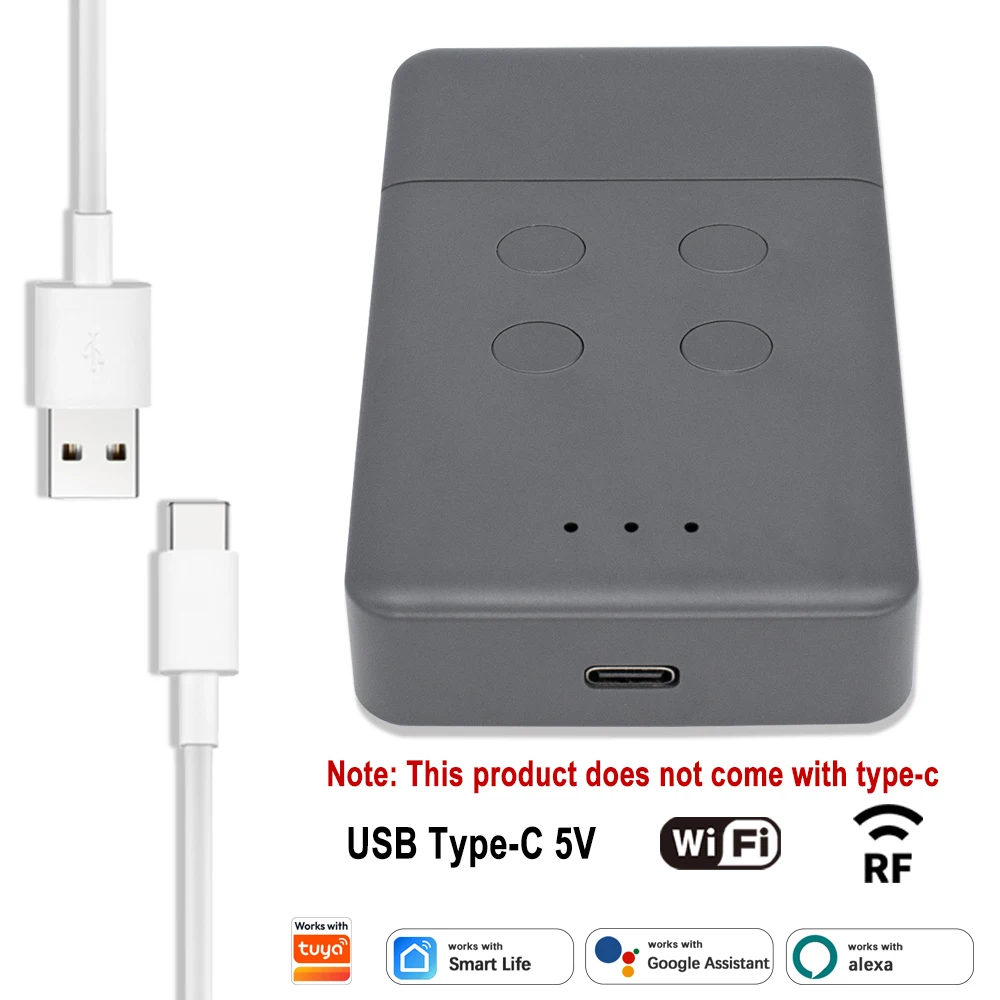

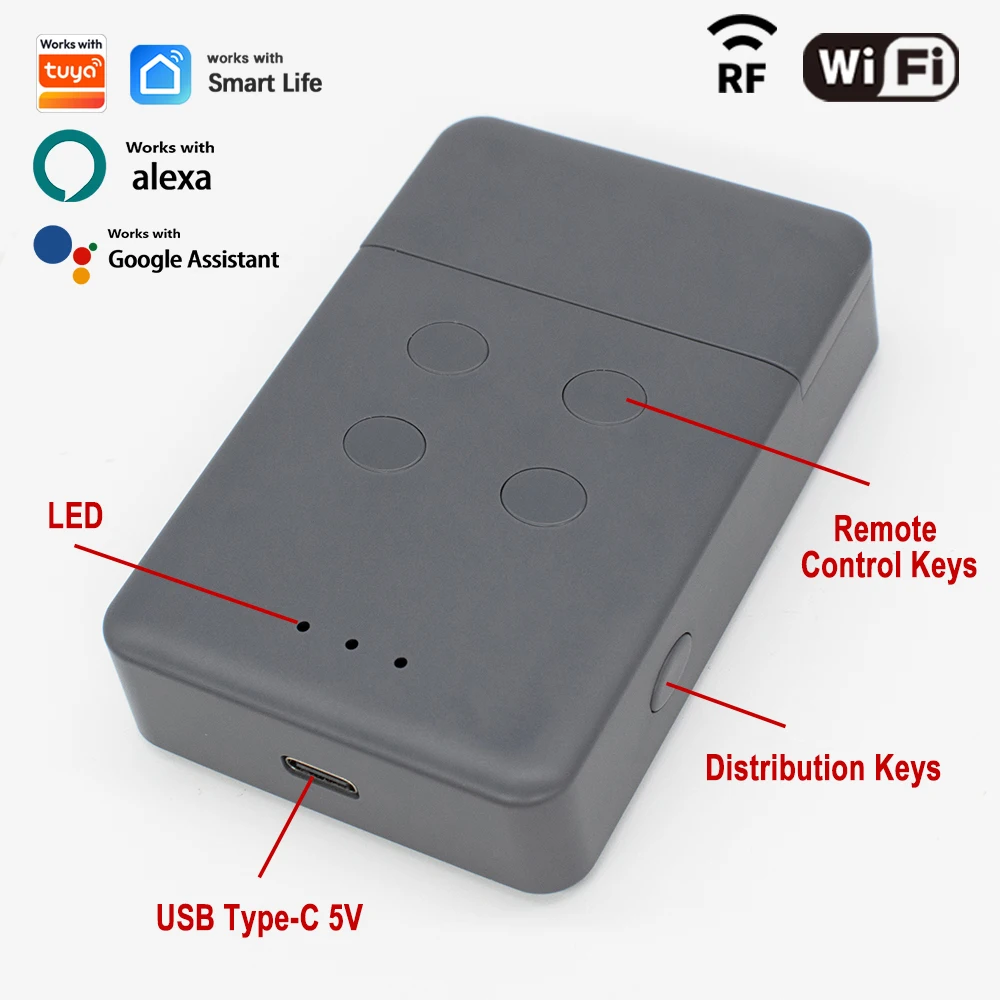

Power on (USB Android Type-c 5V)
Step 1: Clear Replicator History Code
1: Press the 3 and 4 buttons consecutively until the LED flashes 3 times
2. Release the 4 button (continue to press the 3 button), then slowly press the 4 button 3 times while the LED blinks
3. Release the 3 button to complete code erasure.
Step 2, Copying Code from Original Transmitter
1. Place the duplicator on the side of the original transmitter as close as possible.
2. Press and hold the 1/2/3/4 button on the original transmitter, then press and hold the 1 button on the duplicator until you see the duplicator's LED blink.
3. Release both buttons to complete the code duplication and duplicate the other buttons in the same manner.

B: If you don't have the original remote, you can program it directly on the receiver

1. Open the casing of your receiver. It is located next to your motor.
2. On the receiver circuit board, press the programming button and let it go (ENR, MEMO, PROG, REC according to the model) The LED light on the receiver illuminates or blinks.
3. Press a button on your new remote control for 1 second.
4. Let the button go. The LED light on the receiver turns off immediately or in the following 10 seconds according to the model.
Your new remote control is programmed.

After doing one of the above steps, you can start connecting your mobile phone

Checklist before using the device

Your smart phone or tablet has connected to a2.4g WiFi with internet.
You need to enable Bluetooth of the phone.You have the correct WiFi PWD.
You have the correct WiFi PWD.
You smart phone or tablet must have access to APP store,Google play.
Your router is MAC-open

User Guide

1.You can download the App by searching
“Tuya Smart”in mobile app stores or scanning the following QR code.
2.Register an Tuya Smart account.
3.If you have Tuya Smart account. just log in.
4.Start pairing
Reset the device first:
if the network indicator(red light) blinking fast(0.5S/time） , skip the reset step.
①Power on
②hold down the Reset button for 10 seconds.until network indicator(red light) blinking fast(0.5s/time).
③Clicking in the top right corner on tuya smart app.then click“Auto scan" ,wait a few seconds, After the devices are found,click "Next"
④Select a 2.4GHz Wi-Fi network and enter your password.
⑤Name your device.

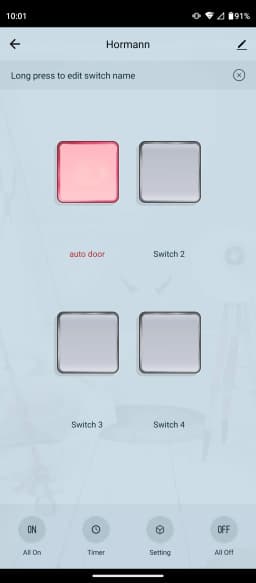

⑥Start controlling your device with your mobile phone.

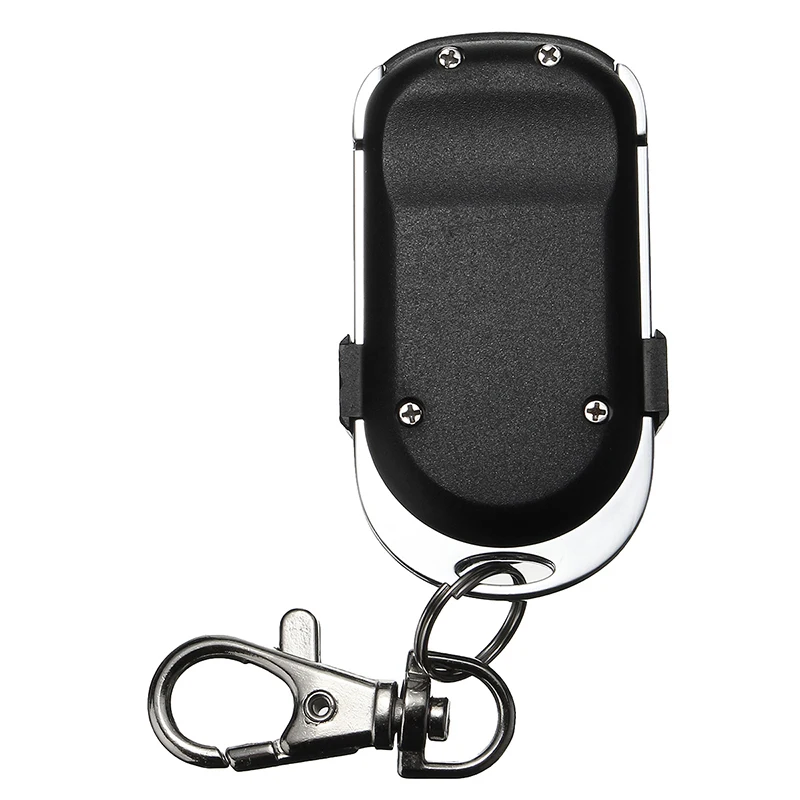

Version2: RF

Specification:

Product material: ABS
Product weight: 40 g
Product color: Black + silver
Rated voltage: 3v
Installation: wireless
For: Such as electric telescopic door remote control, road gate remote control, alarm remote control and so on.
Wireless transmission distance: 20-150 (m). (open space)
Frequency:868MHz, 868.3MHz
Usage:Fifteen seconds clone, can be used directly after cloning

Not compatible with Bs BISecur version.

How to program - It is very easy!

A:How to program

Face to face copy your original remote control

Step:1:Clear the history code from duplicator
1.Press button A and B continuously until LED flash 3 times

2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash

3.Release button “A”,finish code clearance.

Step 2,Copy code from original transmitter

1.Put duplicator aside of original transmitter,as close as possible.

2.Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash

3.Release both buttons,finish code copy,copy other button in same way.

Button A= Lock button Button B=unlock button

B:Programming

1. Open the casing of your receiver. It is located next to your motor.
2. On the receiver circuit board, press the programming button and let it go (ENR, MEMO, PROG, REC according to the model) The LED light on the receiver illuminates or blinks.
3. Press a button on your new remote control for 1 second.
4. Let the button go. The LED light on the receiver turns off immediately or in the following 10 seconds according to the model.
Your new remote control is programmed.
