433MHz 2-Key Wireless Copy Remote Control Garage Door Handheld Transmitter

Welcome to LYX Remote Control Switch Store—your one-stop destination for premium remote control products tailored for global shoppers!

We are committed to crafting quality with dedication, offering you top-tier merchandise at highly competitive prices. Our products boast three core strengths: durability, stylish design and practicality. Every single item is carefully selected and rigorously inspected to meet international standards, ensuring you get the absolute best value for your money.

Technical Specs

1. Operating Voltage: DC12V (2 x CR2016 battery)

2. Operating Current: <10mA

3. Radiated Power: 10mW

4. Modulation Mode: ASK (Amplitude Shift Keying)

5. Operating Frequency: 433MHz (Custom special frequency available upon request)

6. Transmission Distance: 50-100m (Open area, receiver sensitivity: -105dBm)

7. Encoding Type: Cloning type

8. Oscillation Mode: SAW Resonance

9.Channel Quantity: 2 Channels

Remote Control Pairing Instructions

Step 1: Code Clearing

Press and hold the two front (top) buttons at the same time. The LED indicator flashes three times. Release either one button (keep the other button pressed). Press the released button three times. When the LED indicator flashes rapidly, the code clearing is completed.

(For a remote with cleared codes, the LED indicator will not light up with a short press.)

Note: Both buttons must be pressed simultaneously; otherwise, it will not enter code clearing mode.

Step 2: Code Copying

Hold the original remote in one hand and the copy remote in the other. Place the two remotes close together. Press the buttons you want to copy respectively. If the LED indicator flashes rapidly three times and stays lit, the code copying succeeds. Follow the same steps for other buttons.

Note: If the function works abnormally after copying, clear the codes and re-copy.

Special suggestion: Install new batteries in the original remote before code copying.

Data Restore Instructions

If useful data is accidentally cleared, before copying any other remote, press and hold the two rear (bottom) buttons of the remote at the same time. The indicator flashes rapidly three times, which means restoration is successful.

Product Application

Suitable for remote code copying & duplication of electric gates, rolling shutters, barrier gates, electric scooters and more.

Telescopic gates

Barrier gates

Roller shutters

Garage doors

Glass doors

Electric vehicles

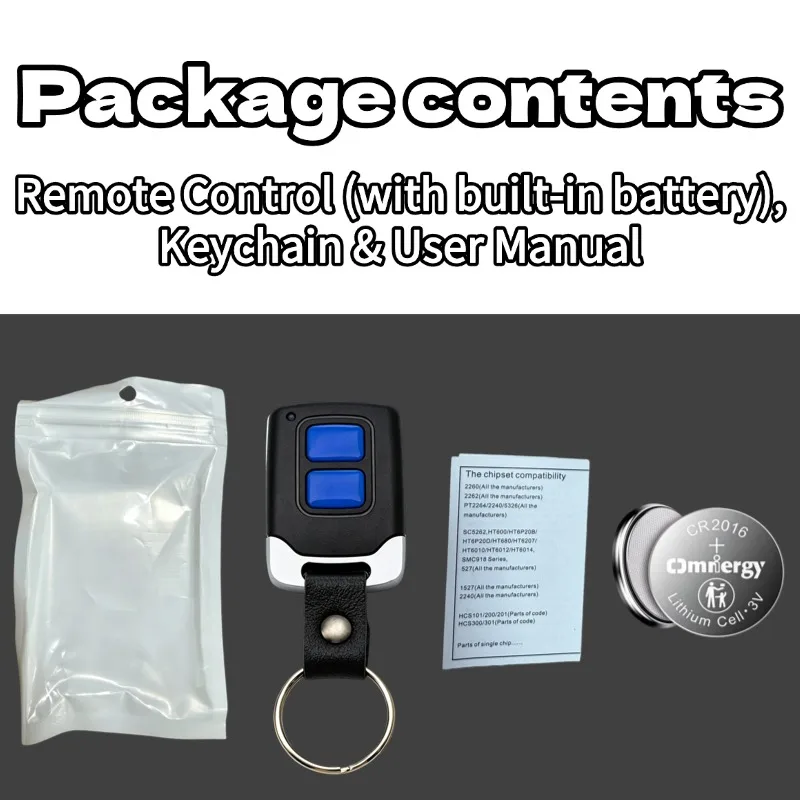

Package Includes: Remote Control (Battery Pre-installed), User Manual, Packaging Box
