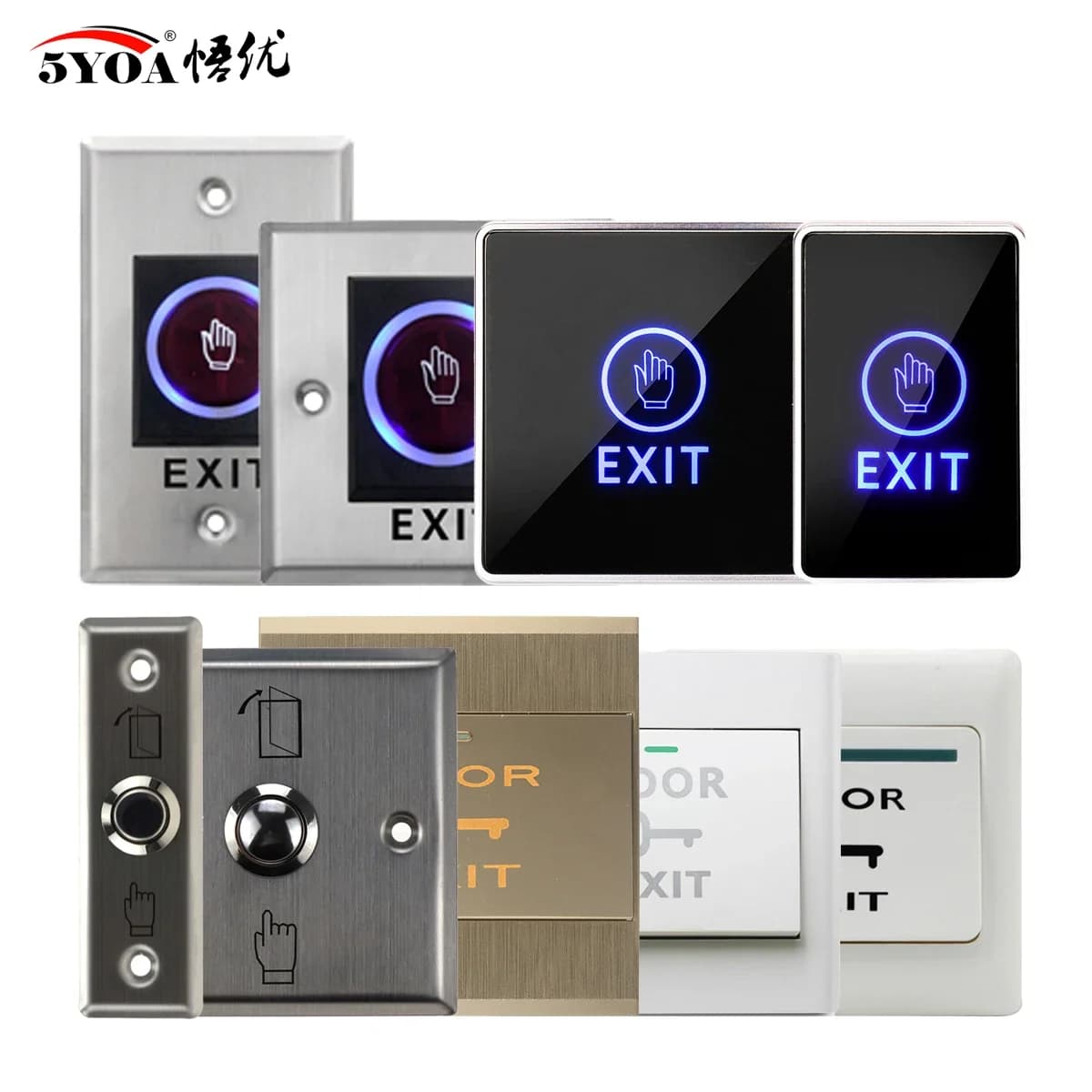

5YOA Access Button Door Exit Push Switch No Touch Release Gate Opener Door Access Control System Entry Open Touch

How the Exit Push button works?

When the button is pressed,the inner contactes are combined,forming circuirt connected,causing the power controller to be short-circuited,thereby driving the electric lock to unlock.

after releasing the button,the power supply is energized during the set time to achieve the entire door opening and closing process

K1 K2 LED Light Infrared Touch Exit Button

LED Light Infrared Touch Exit Button NO/NC/CM Push Button Switch For Access Control

This Exit Button is made of durable and high material. An alternative to traditional switch, these switches are suitable for doors where access control is essential, and to help simplify key control. You can install it by yourself without any difficulties. Do not hesitate, this device will never let you down.

Specification of this switch

No touch / Touch free Exit Sensor (Diffused Detection)

Optical / Infrared Technology

IP-55 Ingress Protection / SUS 304 Stainless steel Plate

User friendly (Healthy protection)

Free from contagious diseases spread

Detection range: 0.1 ~ 10 cm

Application: Gate/Door/Exit/Automation control

High capacity of relay dry contact (3A/AC120V,DC30V)

Normally open/Normally close/Common relay output

Twin led indicators for sensor standby or approached :

(1) Sensor Standby: BLUE LED ON

(2) Visitors whom approached to the sensor in 10 cm : RED LED ON

Input: DC12V

Contact Rating: 12-30V,3A

Output Contact: NO/NC/COM

Mechanical Life: 500000 tests

Operating temp: -20℃~+55℃(14-131F)

Suitable Humidity: 0-95% (relative humidity)

LED Indicator: White LED indicator: Power OFF Blue LED indicator: Power ON(standby) Red LED indicator: Power ON(sensation)

Weight: 108g / 120g

Square Type: 86x86x29mm

Rectangle Type: 115x70x29mm

TB01 Touch High End Button

Single Contact to exit

Long mechanical life more than 500000 times

Square brevity design

Product Reference: ACA-EB-TB1-SQ

Power Input : DC 12V

Suitable Humidity : Less than 95%

Output Contact : NO / NC / COM

Operating Temperature : -20°C ~ 55°C

LED Indicator :

Blue : Standby

Green : Triggered

Dimensions :

Square Type: approx. 86 (W) x 86 (H) x 21 (D) mm approx. 3.4 (W) x 3.4 (H) x 0.8 (D) inch

Rectangle Type: approx. 86 (W) x 56 (H) x 21 (D) mm approx. 3.4 (W) x 2.2 (H) x 0.8 (D) inch

Button02 Stainless Steel Door Exit Push Release Button

Features:

Silver stainless steel shell, safe and durable.

Looks simple, comfortable and beautiful.

Undergoing 100,000 times continuous clicking test, very durable.

Good to touch, easy to operate and use.

Activates electric strike, magnetic lock or other elctric lock via access control.

Works with most electronics access control , door phones with access control.

Flush mounting.

Specifications:

Contact output: NO COM

Applied temperature: -10~+55 Degree14-131F)

Applied humidity: 0~95% (relative humidity)

Material: Stainless steel

Square Type: Dimension: 91*28*25mm(Approx.) Weight: 38g

Rectangle Type: Dimension: 86*86*25mm(Approx.) Weight: 85g

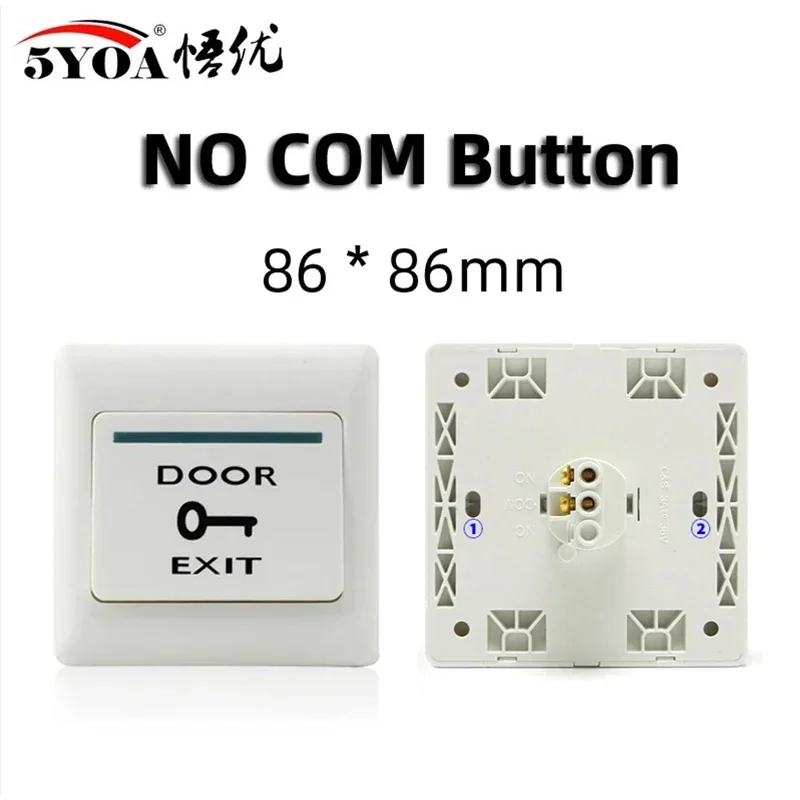

Button01 Plastic Classical Button

Output Contact: NO COM

Current Rating: DC 12-36V / 3A

Mechanical Life: 500000 tested

Panel Material: Hard Plastic

Size: 86*86mm(Approx.)

Weight: 53g
