Universal 433MHz 3M Cable Antenna for Gate Garage Radio Signal Booster Repeater Outdoor Waterproof 433.92MHz Gate Control Antenn

433Mhz Antenna for gate garage Radio Signal Booster Wireless Repeater 433.92mhz Gate Control Command Transmitter Antenna

Designed for any gate automation control boards or receivers.

Increasing range of transmitters with 433,92MHz up to 250m!!!

Specification

Designed for any gate automation control boards or receivers. Increasing range of transmitters with 433mhz-433,92MHz up to 100-150m!!!

1) Material : ABS & Metal
2) Color : Black
3) Frequency : 433.92MHz /433MHz/434.42MHZ
4) Mounting: Screw (wall mount)
5) Cable Length (m): 3M
6) Bandwidth (MHz): 10
7) VSWR ≤1.5
8) Gain(dBi): 3
9) Max Input power (W): 20
10) Input Impedance(Ω): 50
11) Polarization: Vertical

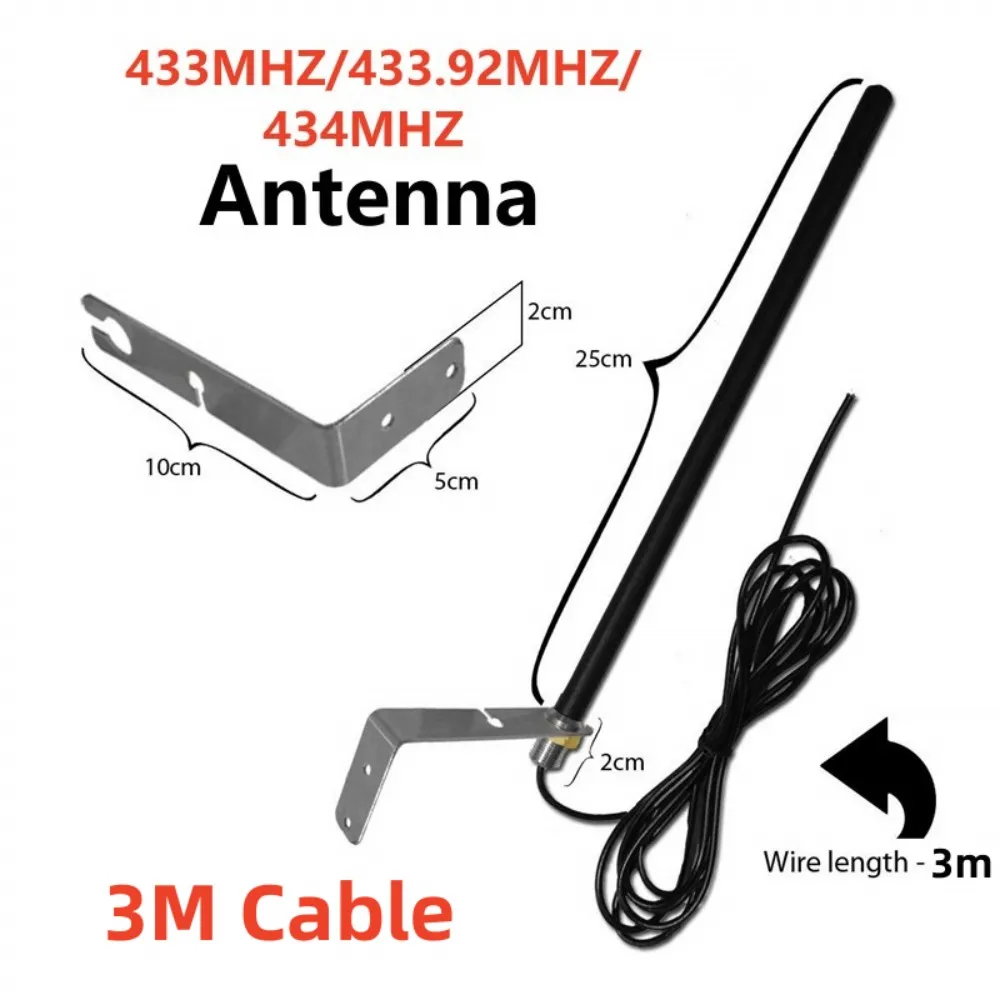

12) Antenna Length (mm): 250
13) Cable Type: RG174
14)Impedence: 50 Ohm
15)Bracket made from stainless steel

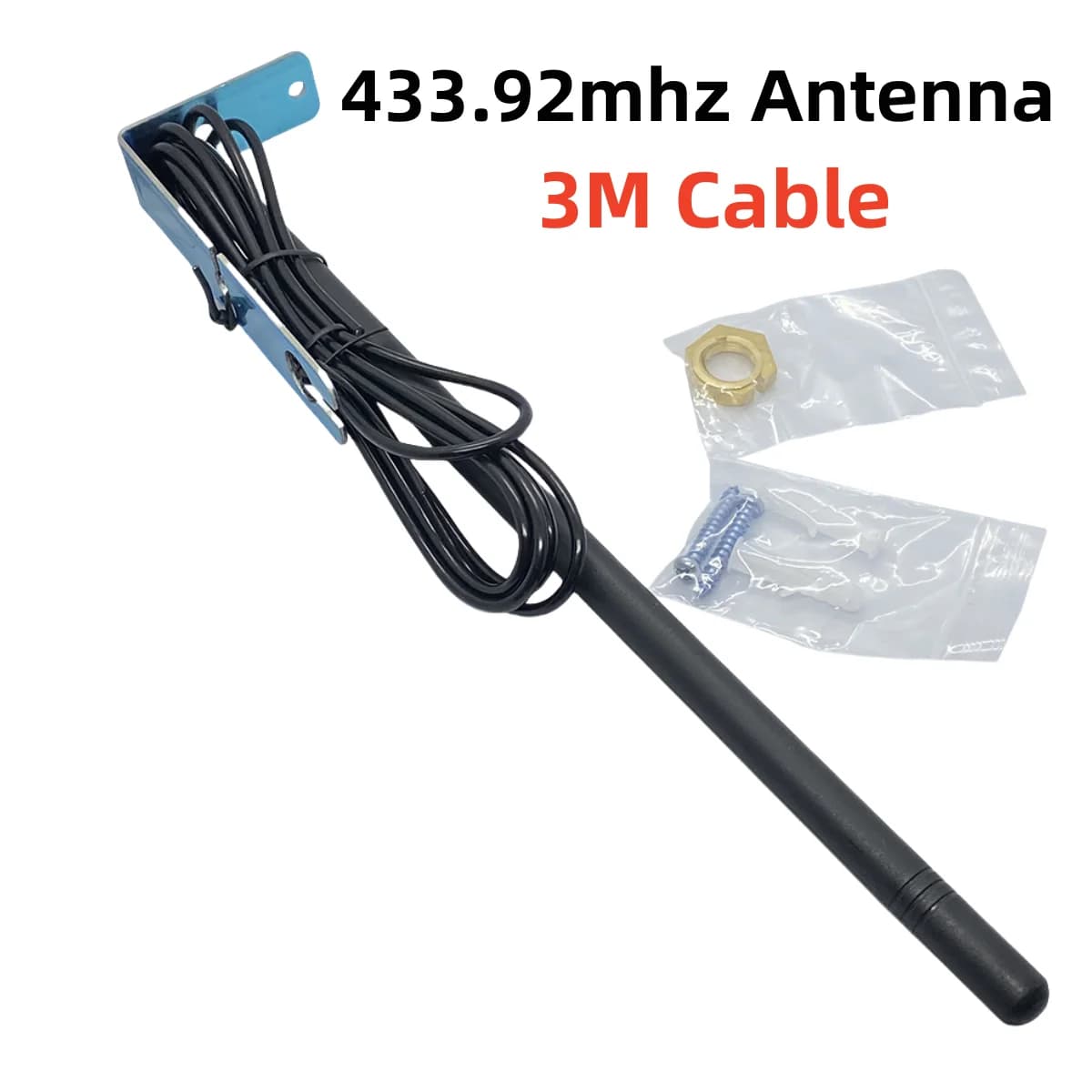

Package includes

1 x Antenna
1 x Metal wall mounted base
2X fix screw

wide range of uses:

Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters
Electrical appliances/Home automation i.e.lights, Alarm system, access control system

It is applicable to all 433mhz 433.92mhz 434.42mhz remote control extension distance

Simple installation

Before installation, please remove the original antenna

Please open your garage door opener or gate control panel,
Find the antenna interface interface and connect our wire to the antenna interface,
As shown in the figure below, most control panel antenna interfaces will have the ANT flag
