Infrared Detector Sensor Automated Gate Safe / Swing /Sliding/Garage Gate / Door Safety Infrared Photocells

Infrared Detector Sensor Sensitive Wired 12V/24V 15M for Gate Door Window Burglar Alarm Parking

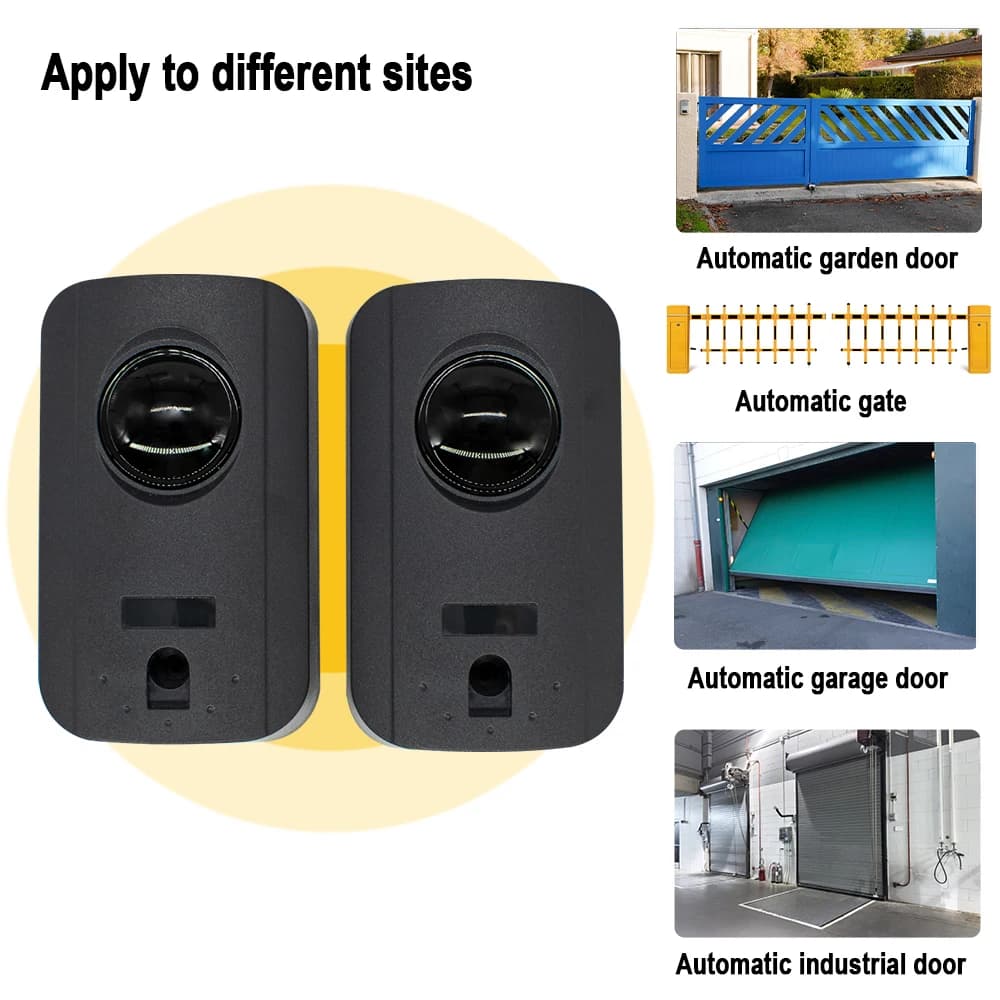

Used for

automatic slide door, automatic Gate Door, coil door , garage door， windows ，barrier etc.

Feature

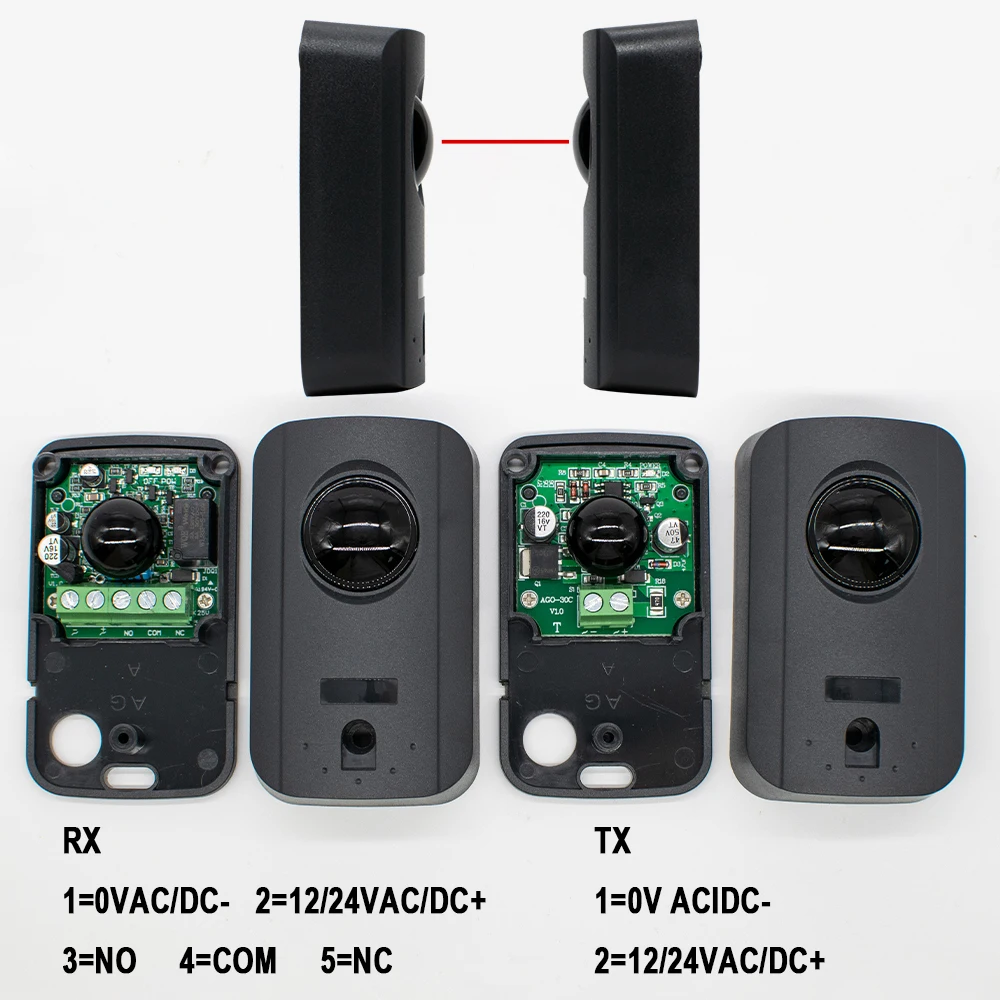

【Receiver and Transmitter】
Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.

【Anti-interference】
Narrow infrared beam (I or II) can avoid interruption by external light

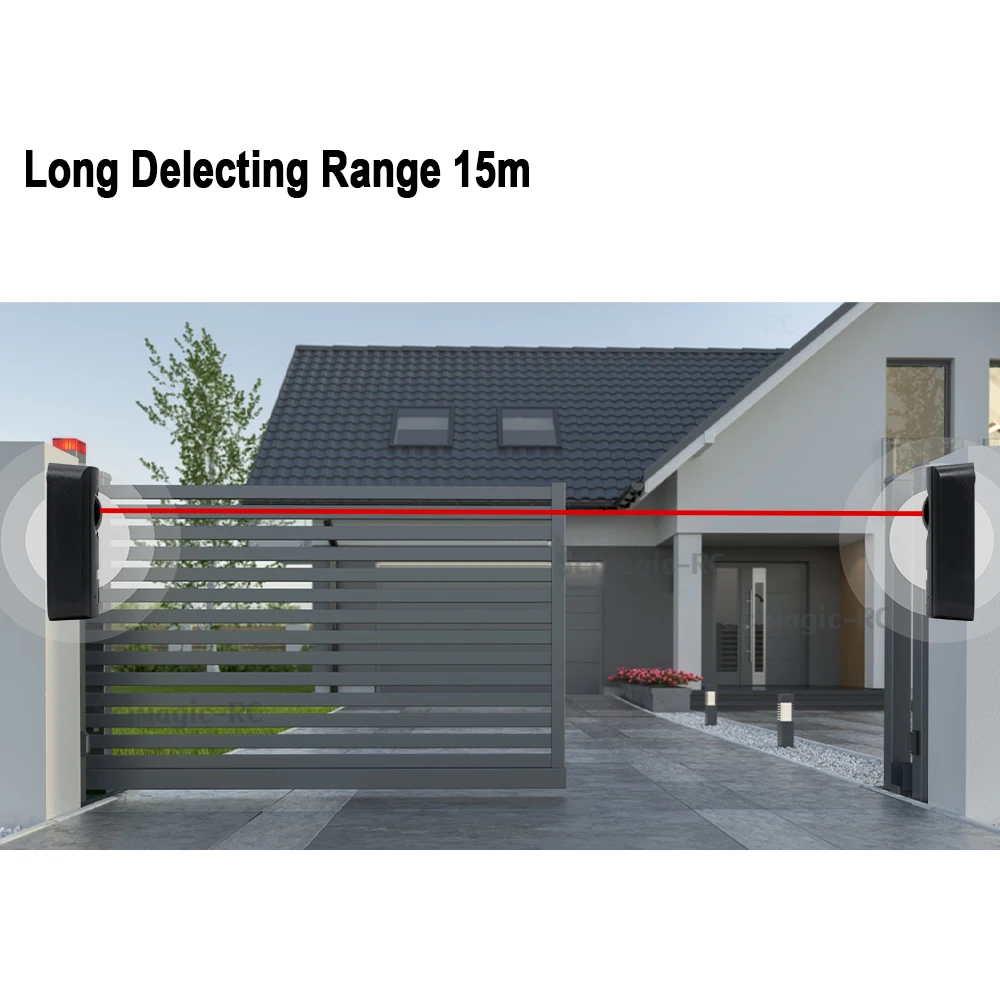

【Detection distance】
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-10meters).

【self-detecting function】
The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.

Technical Specification

Working voltage:IncludeReceiver : 12-24V DC
Working current:
Transmitter < 85µA, Receiver < 25mA (24V DC)
Photocell wavelength: 940nm
Angle of emission:≤±5°
Receiving range:> 12m
Relay contact loading capacity:1A/30VDC
Size:100*40*35mm

Note

Wired Infrared Counterpoint

Safety Instruction

1.For security, please read the user manual carefully before initial operation;
2.This photocell is without any fuse,so Please make sure the power is off before installation;
3.Only used this system that do not cause any danger life or property during the running failure or its security risks eliminated;
4.Please guarantee the products used in effective working range

Picture Display
