Universal Works With Tuya 433MHz 433.92MHz Fixed Rolling Code Garage Door Opener Gate Receiver Remote Control Smart Switch Relay

NOTE - NOTE - NOTE

Please confirm the style you need before purchasing. There are WIFI+RF styles and RF styles.

When to ship ?

We are the seller with the fastest delivery on the platform. When we receive your order, we will send your package within 12 hours.

Works With Tuya WIFI and RF Universal Garage Door Receiver 433MHz Fixed Code Rolling Code Learning Code

Specifications

1. Frequency：433.92MHz / 433MHz
2. Codes：Fixed / Learning / Rolling Code
3. Power supply：AC/DC 7-32V & AC 85-250V & AC/DC 9-24V
4. Working temperature: -20℃ ~ +70℃
5. Channels：2
6. Built in Aerial antenna：Reception range 10m-100m
7. Controlcapacity：100PCS

Features

Control your garage door, gate, etc. via the Wifi Works With Tuya APP to make your life smarter.

1, APP control, just click on the Works With Tuya or Smart Life APP to open the door anytime, anywhere.

2, Timer,Set a countdown timer to automatically close 1 minute after opening the door

3, Hands-free voice control，Compatible with Alexa and Google Home, voice control of door opening and closing.

4, Share Control，Share control of your home appliances to your family or friends so that they can also control the devices remotely.

5, 433MHz RF control, The maximum number of remote controllers stored is 100, which is enough for the entire community to use.

6, Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!

7, 2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

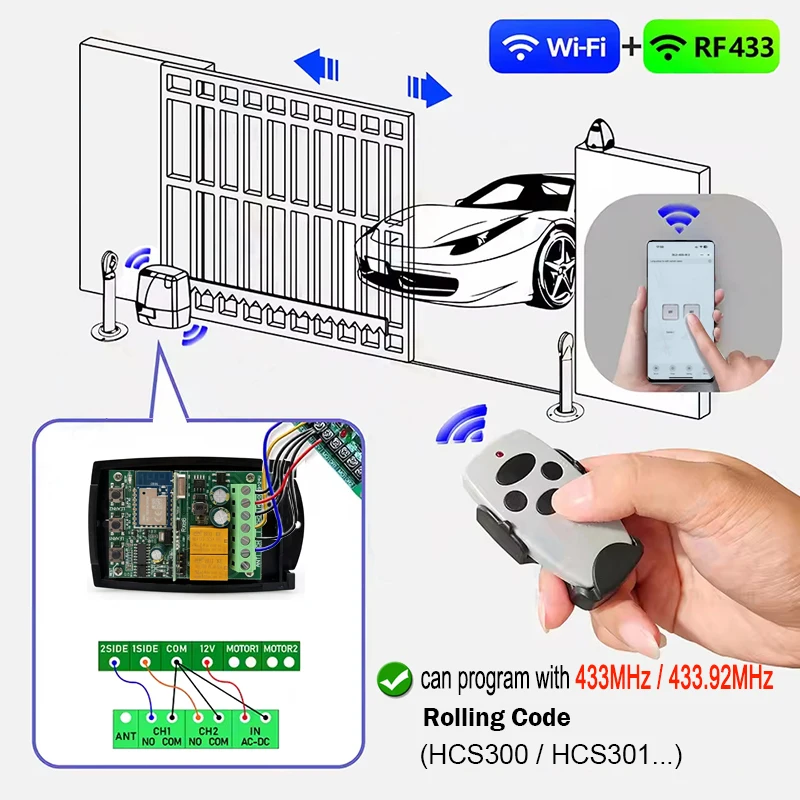

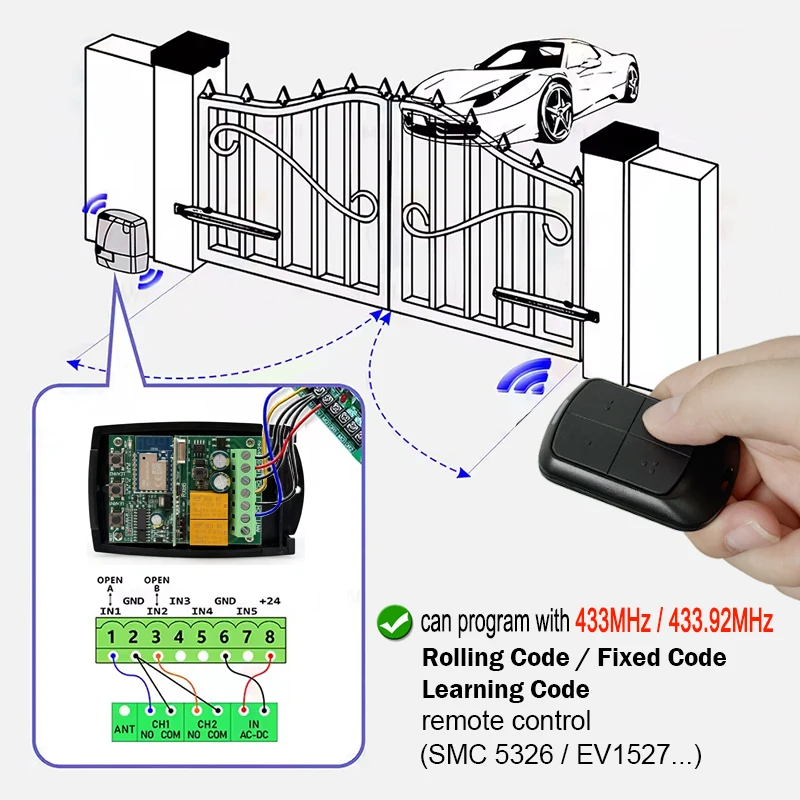

8, It's very easy to connect it to your control board. All you need is to connect 4 wires between receiver and control panel. If you will need any technical support - i'm always at your service!

9, Can learn and use most Original 433,92Mhz Fixed and Rolling code remote controls !!!

10, The product is a general smart WIFI Works With Tuya and RF receiver and it can be matched with the majority of the 433mhz 433.92mhz wireless transmitter in the market, including fixed code （2262, 2260,2264,5326,M1E,M5E etc）, learning code （1527, 2240, 6P20B, 6P20D etc）. roling code ( HCS301,HCS300,HCS200,HCS201,HSC100,HCS1O1 etc ) and learning code.

Smart Wifi Garage Door Receiver Controller(Open & Close your Garage by phone)

This Works With Tuya Garage smart receiver use to work with Garage opener and make it can be controlled by the phone , easy install and without any changed in your Garage , Just one to make the garage smart, and you will have this funtions to open and close the garage door by phone ,by schedules ,by voice (work with alexa & google home) , Query status, query open/close recordsetc

RF Control

Compatible with fixed code, scrolling code, learning code 433MHz RF remote control, the remote control can still work normally after wifi is disconnected.

App Remote Control

Control your garage door opening and closing from any location Works With Tuya / Smart Life App

Multi-scene use

garage door, gate door ,sliding gates,barrier ,swing gates ,alarm, automatic door, rolling door, etc.

Include

Receiver
Small Antenna
English Manual

How to program ？

Momentary working model:

1.Learning transmitter’s codes:
Press “learn 1” or “learn 2” for 1 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored.
• Repeat the above steps for other transmitters.

2.Erasing transmitter’s codes:
Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out, all codes of transmitters which had been stored are erased.

Specifications

1. Type of programming：Programming with the receiver.
2. Frequency：433MHz=433.92MHz
3. Code：1527 Learning Code.
4. Buttons：2 Buttons
5. Battery：CR2016 （Not Include Battery）

Note: This remote control cannot clone other remote control, it can only match the 1527 learning code receiver

This product does not have any operation manual , but you need an instruction manual for your device . Your device must support EV1527 learning code and support 433MHz at the same time . This means that you need to refer to the product manual of your own device for coding after purchase ( different products have different coding methods ) . So before buying , please confirm whether your device is suitable for our remote control.
