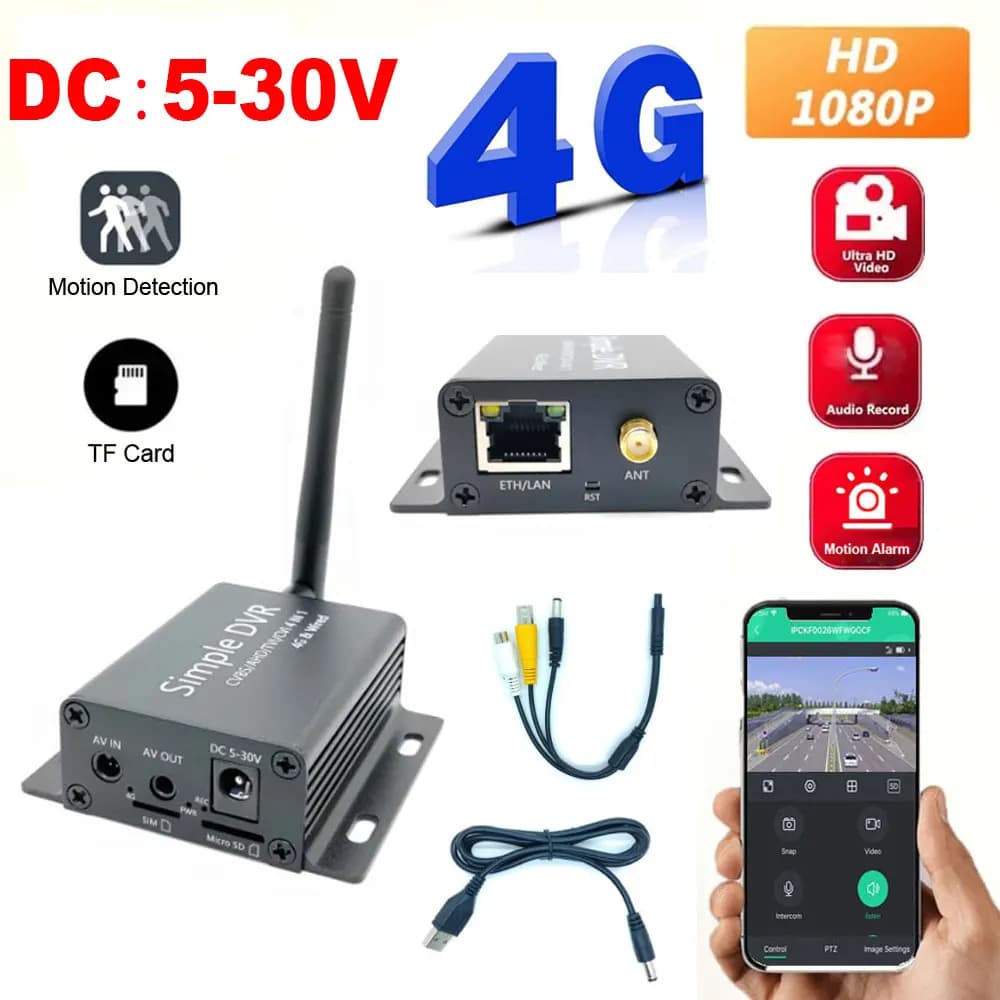

New Wireless 4G 1080P Mobile Mini TF Card DVR Kit Remote View MDVR DC 5-30V For AHD CVI TVI CVBS mini Camera Support RTSP APP

1CH 4G Wireless 1080P Mobile mini DVR Remote View TF Card MDVR For AHD CVI TVI CVBS CCTV Camera ONVIF , support RTSP

Power adapter, not included. Please note that for more information on product usage, please contact us and send the operating manual

Simple DVR is a mini recorder which support AHD/TVI/CVI/CVBS analog video signal cameras and make a small monitoring system. 4G and wired mode adaptive; Wired mode support standard ONVIF protocol, support RTSP,

features a micro SD card slot for storage. Input voltage: DC 5～30V. Size: 68x70x25mm.

Parameters:

Input System ：PAL/NTSC adaptive

Input Signal：AHD/TVI/CVI/CVBS adaptive

Pixel Max：2MP (1080P@30fps)

Encoding Format：H.264/H.265 (default)

4G Brand ：EGSM900,DCS1800,LTE-FDD B1、B3、B5、B7、B8、B20.

Network Interface： RJ45 10M/100M adaptive

Default IP ：Automatic

User Name ：admin Password ：admin

ONVIF

Standard, Port number: 8999

RTSP

Main stream: rtsp://XXX.XXX.XXX.XXX/av0_0

Sub stream: rtsp://XXX.XXX.XXX.XXX/av0_1

XXX.XXX.XXX.XXX is the IP address of the DVR

Port number: 554(default)

Users can modify the port number, add username and password as

needed.

Attention: After modification, the addresses of the main stream and

sub stream will be changed. Please get them through software/APP.

Power Supply ：DC 5～30V

Power Consumption 4W Storage ： 512GB(Max)

All accessories

Simple DVR is a mini recorder which support AHD/TVI/CVI/CVBS analog video signal cameras and make a small

monitoring system. 4G and wired mode adaptive; Wired mode standard ONVIF protocol, support RTSP, features a

micro SD card slot for storage. Input voltage: DC 5～30V. Size: 68x70x25mm.

How to connect

Install APP/SOFTWARE
