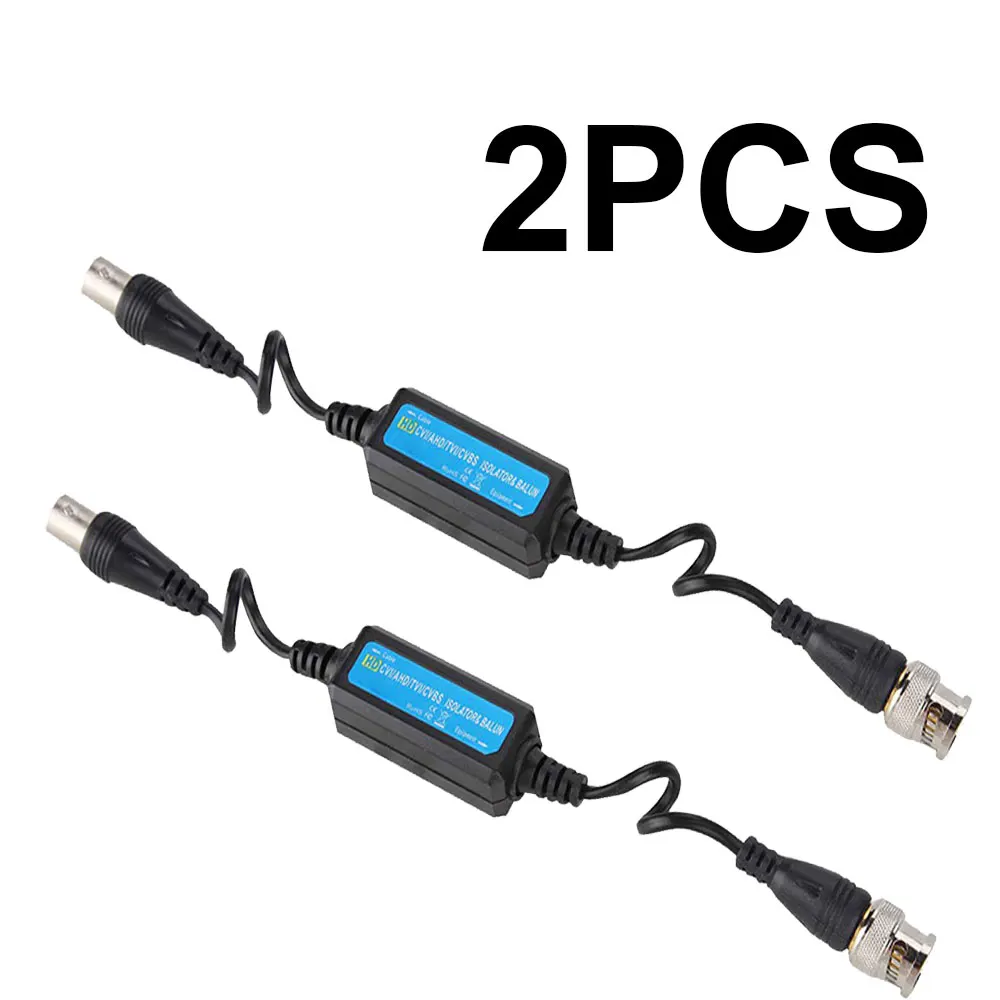

HD-TVI/HD-CVI/AHD/Analog CVBS Passive Coaxial Video Ground Loop Isolator Built-in Video Balun 2PCS for CCTV Cameras

1Pairs  HD-TVI CVI AHD CVBS Ground Loop Isolator Video Balun Coaxial BNC Male For Camera

BNC male to BNC female with mini cable 25cm on both sides

Passive, no power required

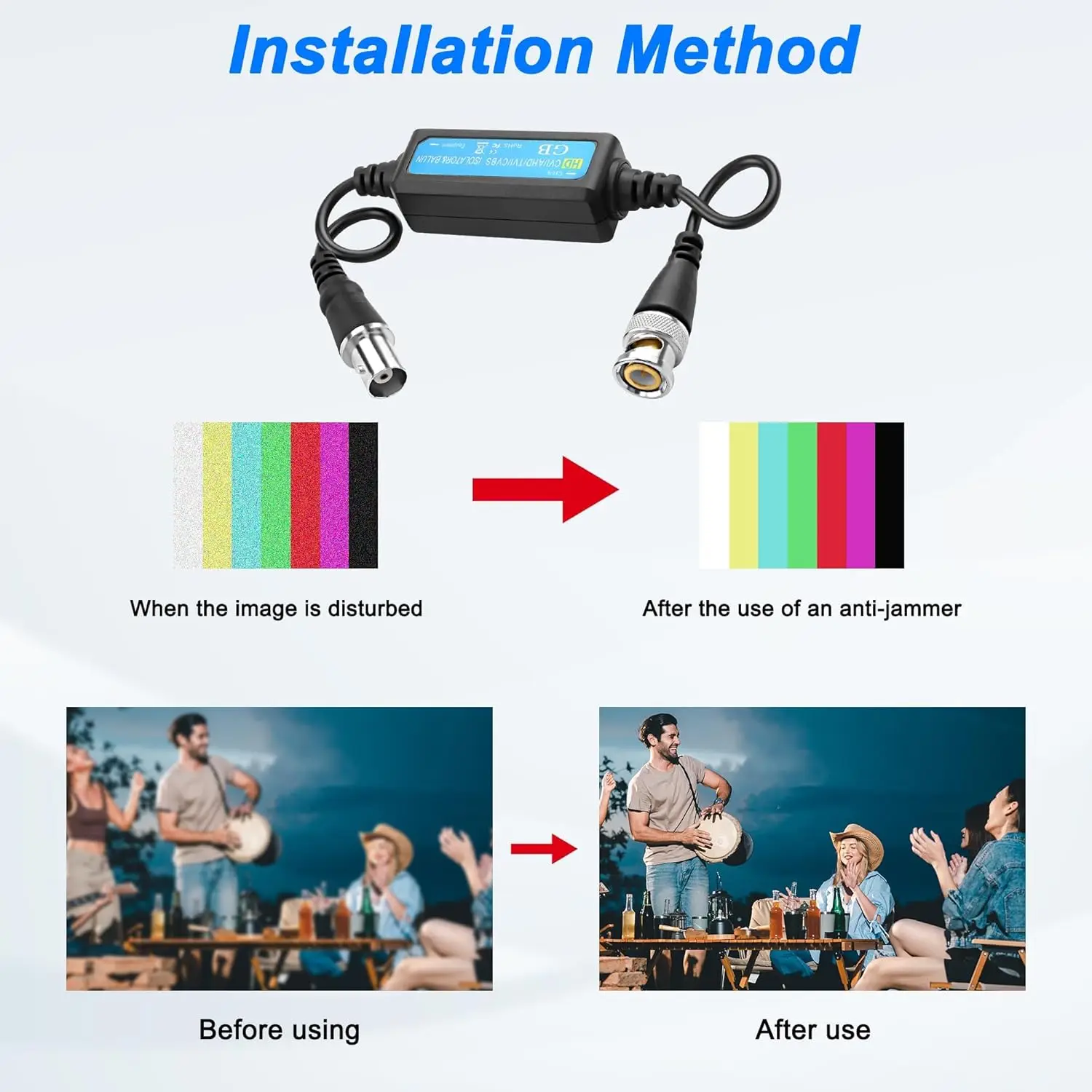

Prevents video-signal distortion caused by video ground loops, Eliminates picture tearing, cross talk and rolling

Prevents power cables laid by others interfering with the CCTV system

The Video Ground Loop Isolator are passive devices which reduce Ground Loop Interference with CCTV signals and can easily install in a new or added to existing systems.

It is useful where a video signal is transmitted via cable between points with different ground potentials, Differences in ground potentials are typically caused by unbalanced power line loads.



Coaxial Video Ground Loop Isolator

Features:

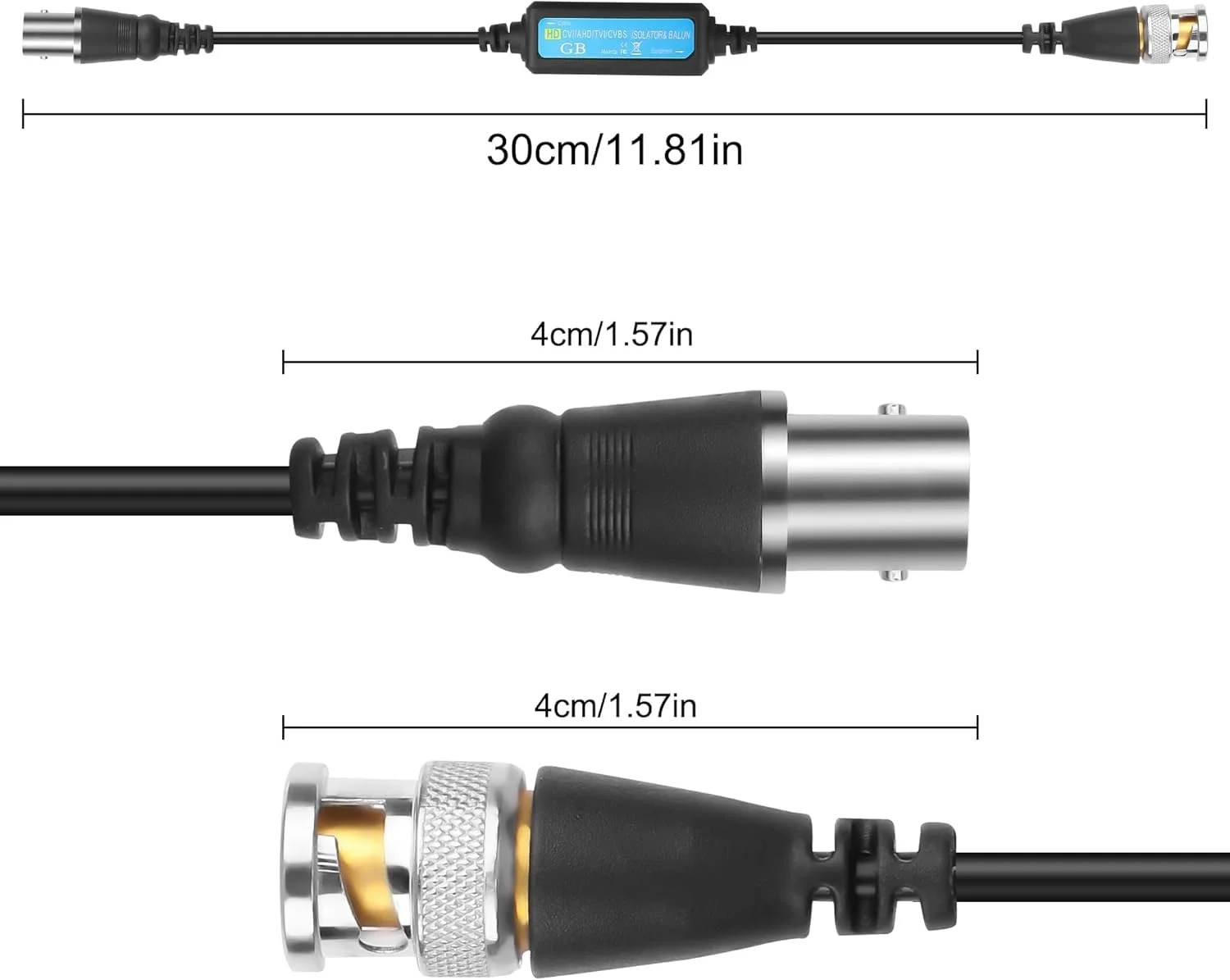

*BNC male to BNC female with mini cable 25 on both sides.

*Passive, no power required.

*Prevents video-signal distortion caused by video ground loops.

*Eliminates picture tearing, cross talk and rolling.

*Prevents power cables laid by others interfering with the CCTV system.

*Built in TVS ( Transient Voltage Suppressors) for surge protection.

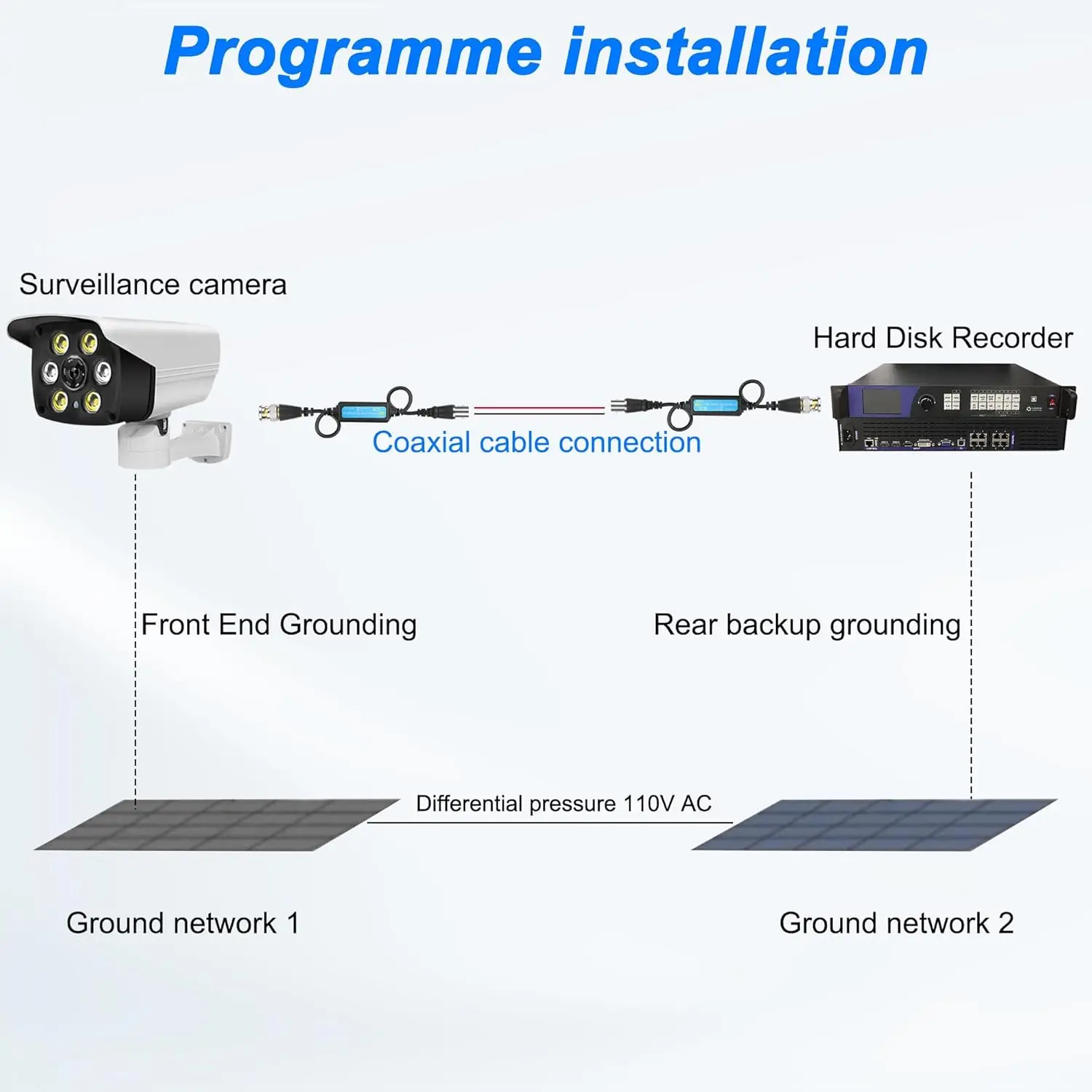

Installation View

The Video Ground Loop Isolator should be installed where runs of video cable are known to have ground loops.

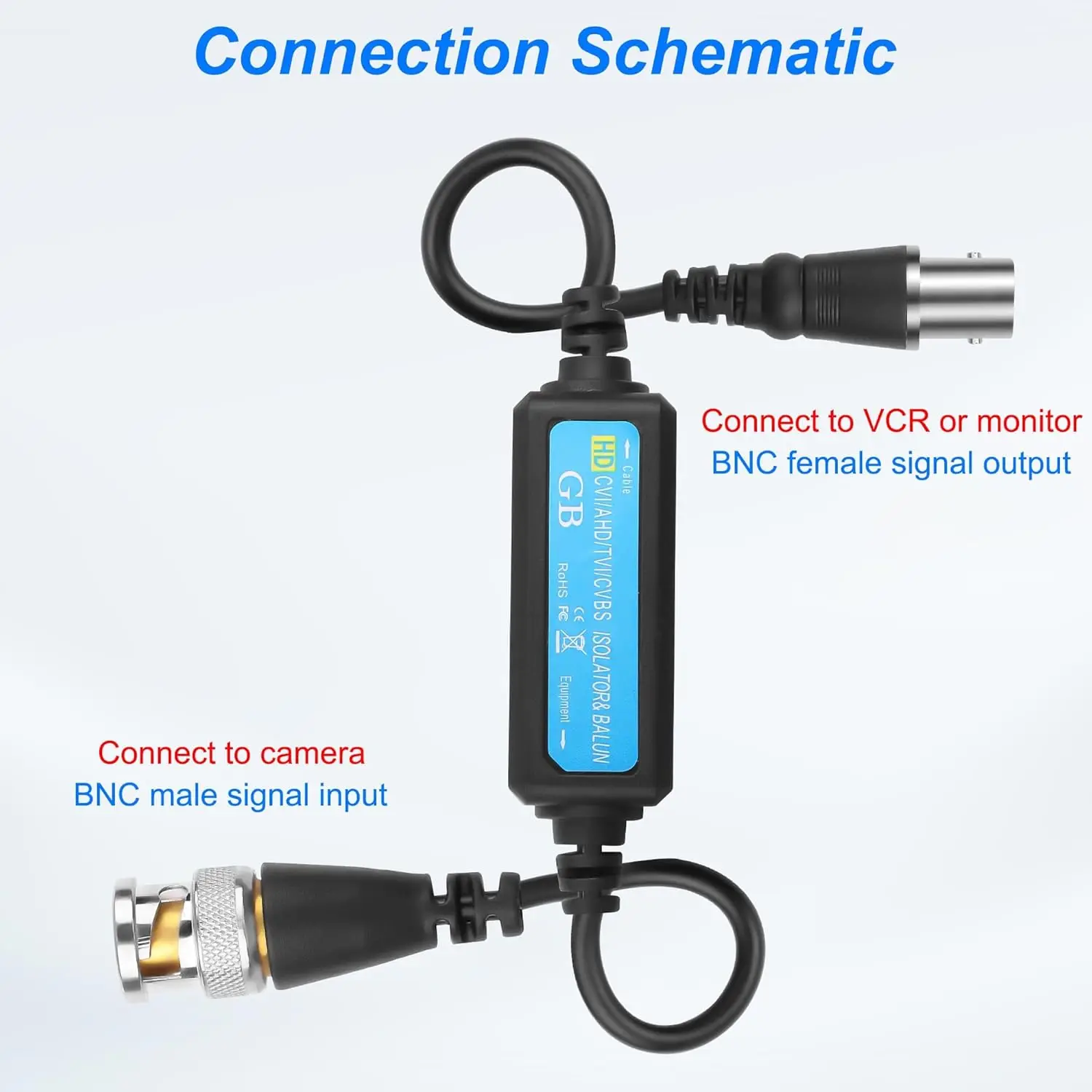

It must be installed in the video cable that has come directly from the camera, but before the cable has been connected to anything else.

If several video cameras come from the same area, fix a Video Ground Loop Isolator In every cable, or a ground loop will still remain.
