Touch memory (ibutton) intercom key copying software. Dallas DS1990, Cyfral/DC2000, Metacom/TM2002, and RFID (EM Marine/EM4100, 4101, 4102/Vizit keychain/card).

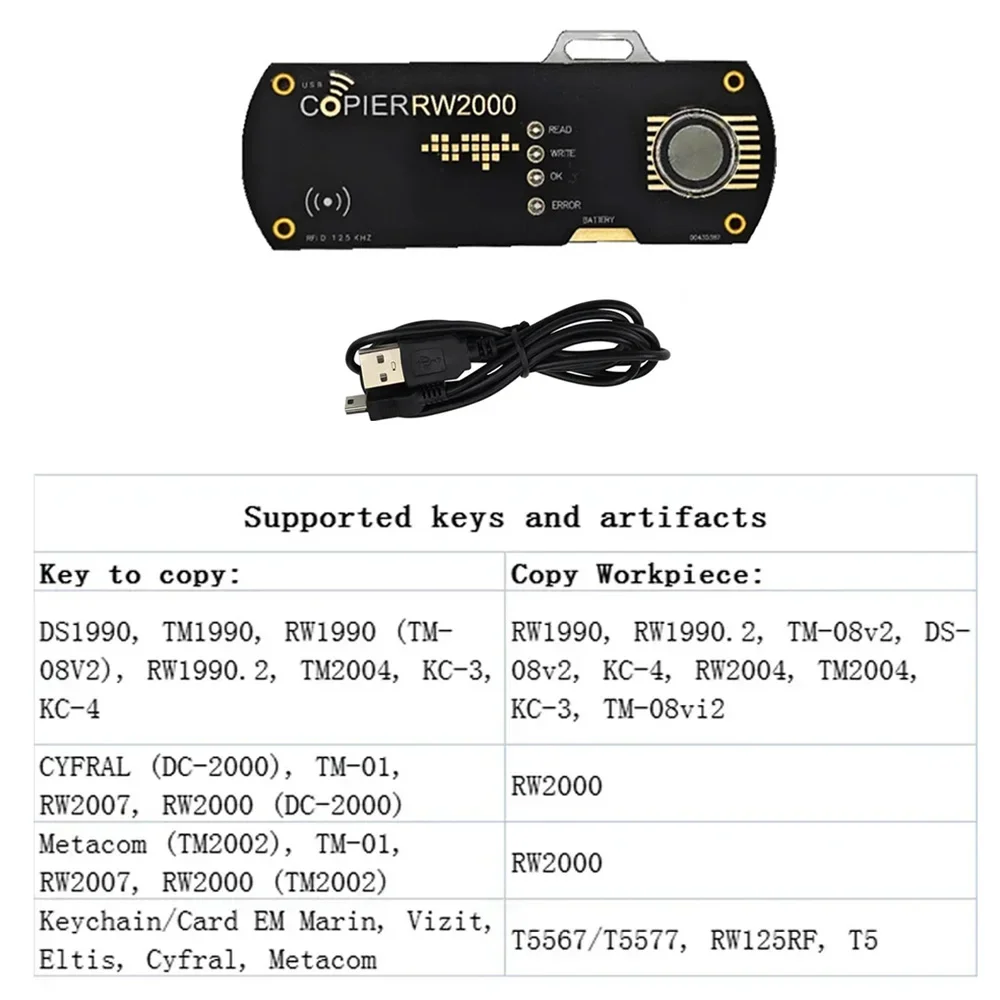

Support raw material records for RW2000, RW2004/TM2004/KC-3, RW1990/RW1990.2/TM08VI2/DS08-V2/KC-4, T5557/T5577/RW125RF/T5
The copier allows the replication of the most common intercom keys and is currently used for access control and control systems. TM Pro is the most popular and Compact equipment used to manufacture duplicate electronic keys within its price range. This device is widely used in key craftsmen, residential and utility enterprises, and serves as a professional key manufacturing workshop equipment.
In addition, firmware can also be updated through Windows PC. All copiers have the latest version 3.5 of firmware installed, which is applicable to both the new RW2000 workpiece and previous workpiece versions.
How to prepare TM Pro software:
onnect the included 220V AC network adapter plug to the Mini USB copier connector. On the dashboard, the LED labeled "Read" will light up and emit a brief sound, indicating that the TM Programmer is ready.
How to start using the device:
Calculate the key code to be copied
The key to be copied must be attached to the contact reader of the TM Pro programmer. The indicator next to 'write' will light up and emit a brief audible signal. If the 'write' indicator burns continuously, it means that it is considered a key code in the DS1990 standard, and the copier is waiting to write the intercom key code into the workpiece (RW1990, TM2004,
If the 'write' indicator flashes, it indicates that the electronic key code is Metacom or Cyfral. Therefore, to write the code to the device reader
RW2000. Please note that if you do not insert the mold and start writing, the TM Pro copier will be in standby mode for key code writing within approximately 15 seconds. Then a long sound signal will be heard, indicating that the device has exited recording mode and entered reading mode. Then, you can apply the copied original key to the reader again.
Write the code on the key blank
When the copier is in write mode after reading, the electronic key must be clamped onto the copier card reader within 15 seconds and held before the LED next to "OK" lights up and emits an audible signal. This means that the key code to be copied has been successfully written to the block.
The red LED next to 'Error' and a lower pitched sound signal will indicate a recording error. In this case, it is necessary to repeatedly write the key code into the entire algorithm of the artifact. That is to say, paste the original replicable key onto the card reader again, and then paste the workpiece onto the card reader.
In this case, the frequency of non-contact RFID keychains and EM-Marine cards is 125kHz (Metacom, Cyfral, Vizit, ELTIS). The contactless card reader comes with a radio signal icon and an RFID 125kHz tag.
Please pay attention!!!
Please note that the RW2000 key for Metacom and Cyfral walkie talkies is not rewritable and can only be written once. When a fault occurs while writing RW2000 (power loss, key moved before writing, etc.), only the code that has already started writing can be written to the module. If you attempt to write code from another key to the same artifact, the artifact will be damaged and cannot be further used. To avoid this situation, you should recalculate the key code that cannot be copied and reapply the artifacts.
