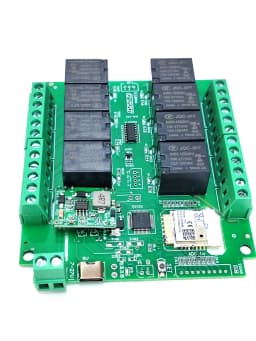

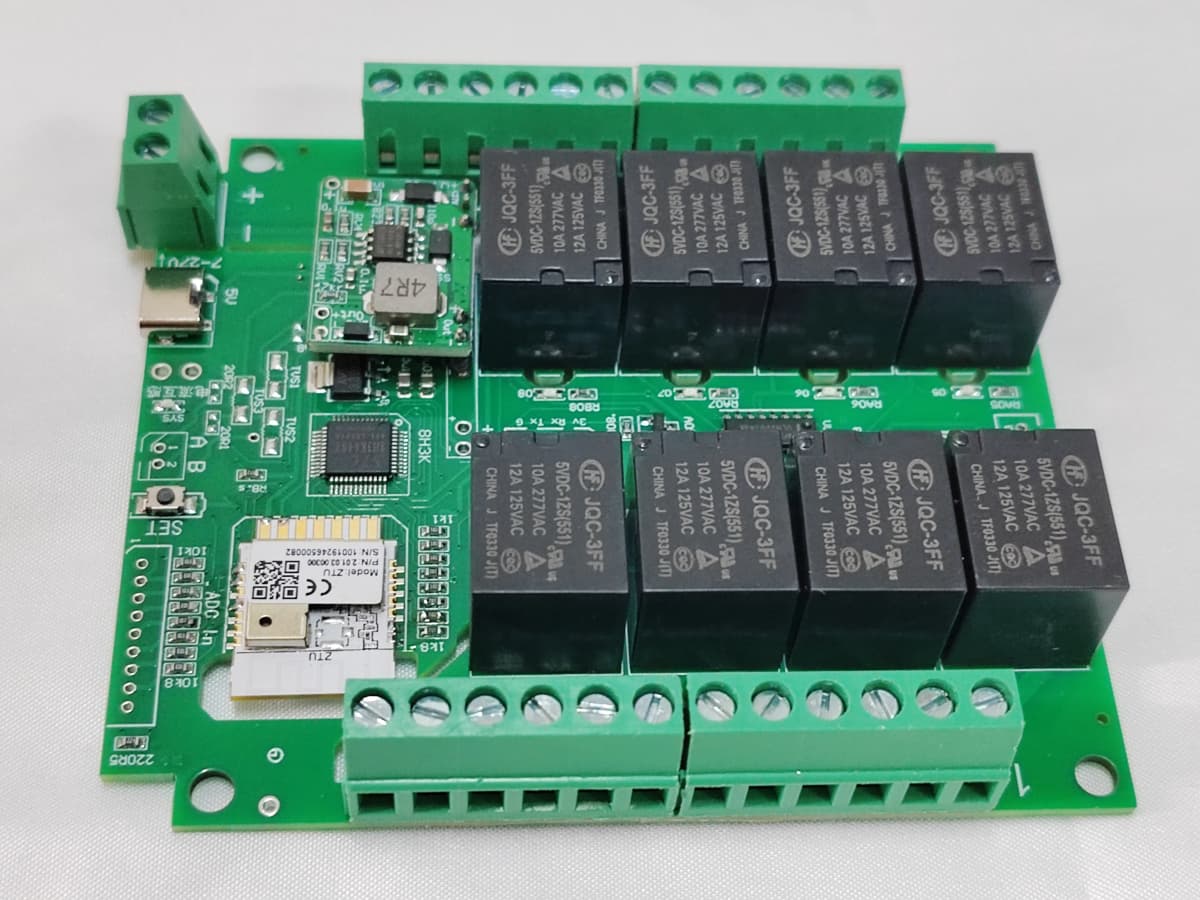

work with Tuya wifi or zigbee 8 channels Relay Switch Module with digital inputs Smart Home Remote Control board controller card

Basic data:

power input: 12 to 27VDC or 90v to 220VAC

board dimension:99X87X20CM

no RF433 module;

tuyz zigbee or tuya wifi module;

[wifi remote] (basic function):

Download "Tuya Smart" from the software market, install and register, power off the module and restart it, open the APP, and click the + sign in the upper right corner to add devices.

【Remote control】Only supported if you have purchased a remote control) (If there is a flash that does not meet the steps during the operation, please turn off the power and try again),

Note: Power off and restart, wait for the indicator light to finish flashing before operating.

Action explanation: self-locking (press once to open, press again to close)

Action explanation: jog (click and turn on and off automatically after about 0.5 seconds),

Action explanation: Press the lock (press and hold it, release it and close it)

Action explanation: only open (this key can only be opened, cannot be closed)

Action explanation: only close (this key can only be closed, not open)

Action explanation: interlock (this function needs to be set on the APP)

Action explanation: Timing (this function needs to be set on the APP)

Action explanation: delay (this function needs to be set on the APP)

Interlock setting instructions: (requires Tuya APP setting)

●Input 2 on the top and 2 on the bottom, which means channel 1.2. Interlock

●Input 3 on the top and 3 on the bottom, which means channel 1.2.3 interlock

●Input 10 on the top and 10 on the bottom, which means interlocking channel 1.2.3.4.5.6.7.8.9.10

●Input 4 on the top and 2 on the bottom, which means channel 1.2. Interlock, 3.4. Interlock

●Input 8 at the top and 2 at the bottom, which means 1-2 interlock, 3-4 interlock, 5-6 interlock, 7-8 interlock

●Input 10 at the top and 5 at the bottom, which means channel 1.2.3.4.5 interlock, 6.7.8.9.10. interlock

●Enter 0 above and 0 below, indicating no interlock

【Jog setting】

Tuya APP setting is required, and the jogging time range is 1-999999 milliseconds.

Jog setting instructions:

●Channel number input 1, the current jog time of channel 1 will be displayed below, and the jog time can be changed such as 500 milliseconds.

●Channel number input 2, the current jog time of channel 2 will be displayed below, and the jog time can be changed such as 500 milliseconds.

●Jogging time input 0 means this channel does not jog, set other channels by analogy.
