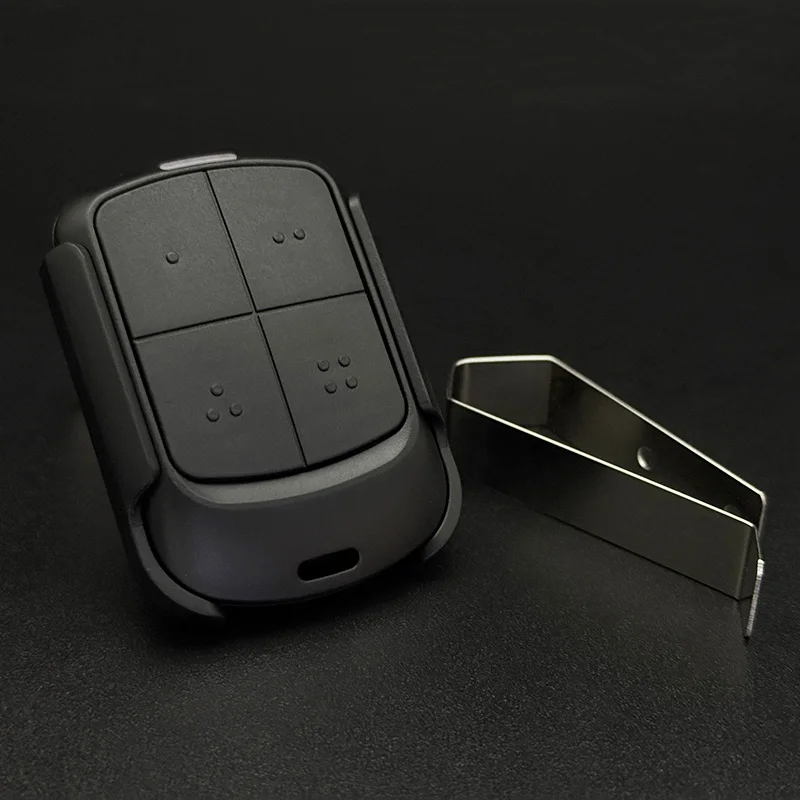

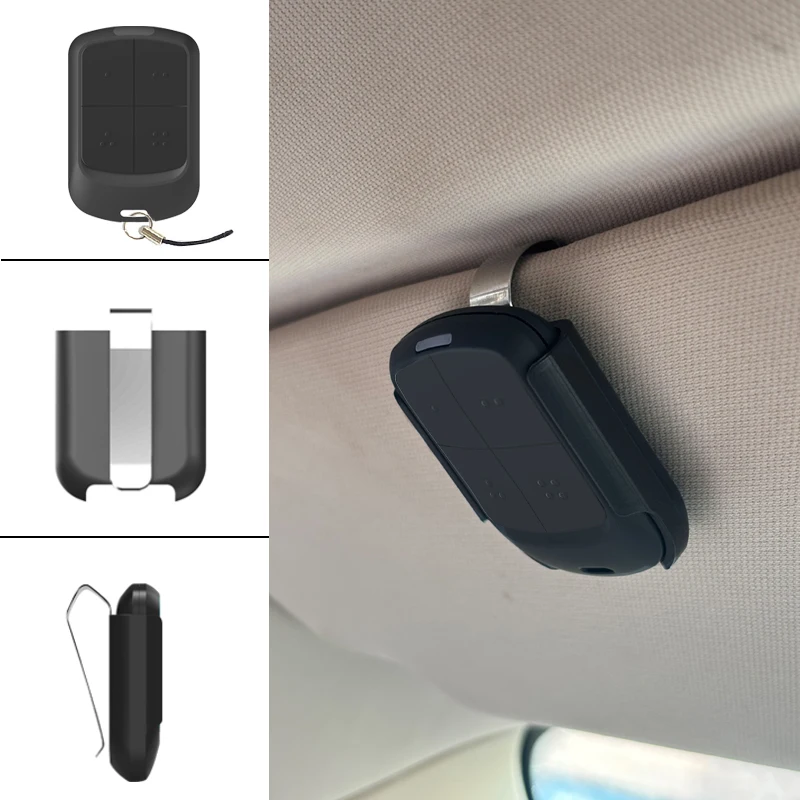

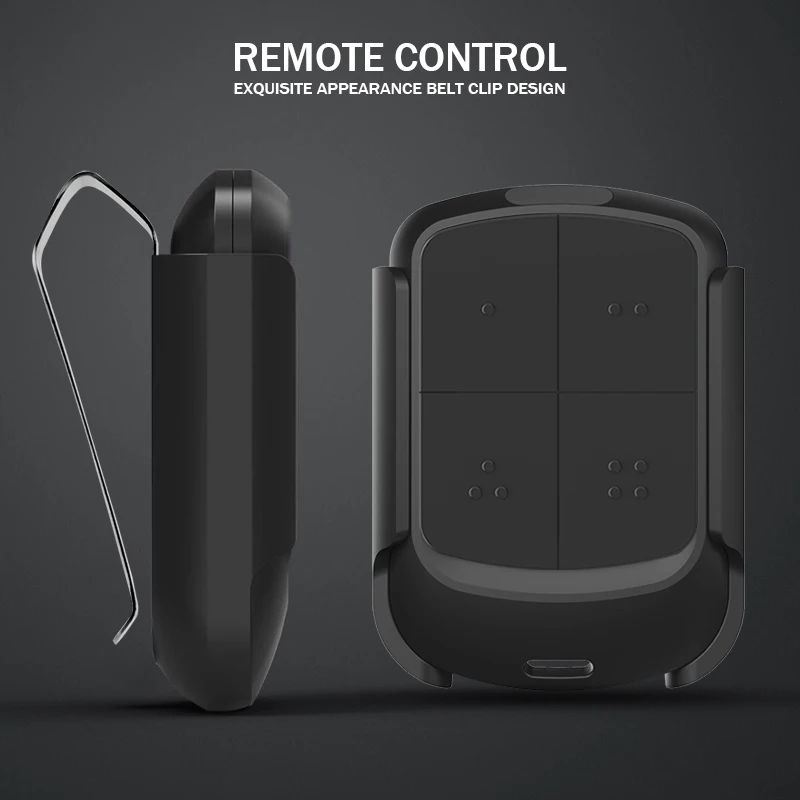

SOMMER 4018 4019 TX55-868-4 TRX55-868-4 TX40-868-4 Pearl Vibe Twin Status SOMloq2 Garage Door Remote Control 868.8MHz 868.95MHz

Welcome to Yinuogou Official Store

1: Great service, best quality, fastest delivery
2: If you have any questions about the item, please contact me, thank you!
3: Due to different lighting and resolution settings,Item color may vary slightly from the image.
4: Please make sure your delivery address is correct, we will ship within 12 hours after receiving the order.
5: All products are individually inspected before dispatch to ensure items are sent out in perfect condition.

For SOMMER SOMloq2 Series Radio Control System

Note：Other models, other brands of remote control do not buy it, if you buy wrong, we will not be responsible

Description

1，Model：YNG806
2，Type : Programming the receiver
3，Frequency : 868.8MHz / 868.95MHz
4，Code : Rolling Code
5，Buttons：4

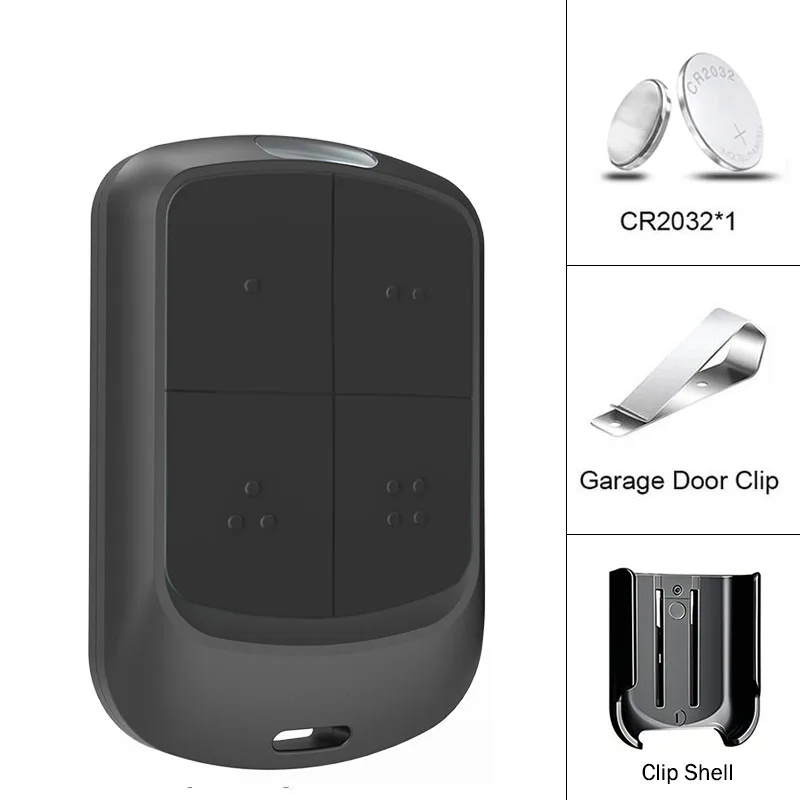

6，Battery : (Include Battery)

Features

SOMMER SOMloq2 provides future anti -theft systems based on modern standards. With 128 -bit AES encryption, it can ensure high transmission security.

The new SOMMER Radio System Somloq2 FM 868.95MHz is compatible with the old SOMMER Radio System Somloq FM 868.8MHz. Therefore, these new SOMMER SOMLOQ2 handheld launch machines can be easily used as replacing the old SOMMER / Aperto Somloq hand -held launcher!

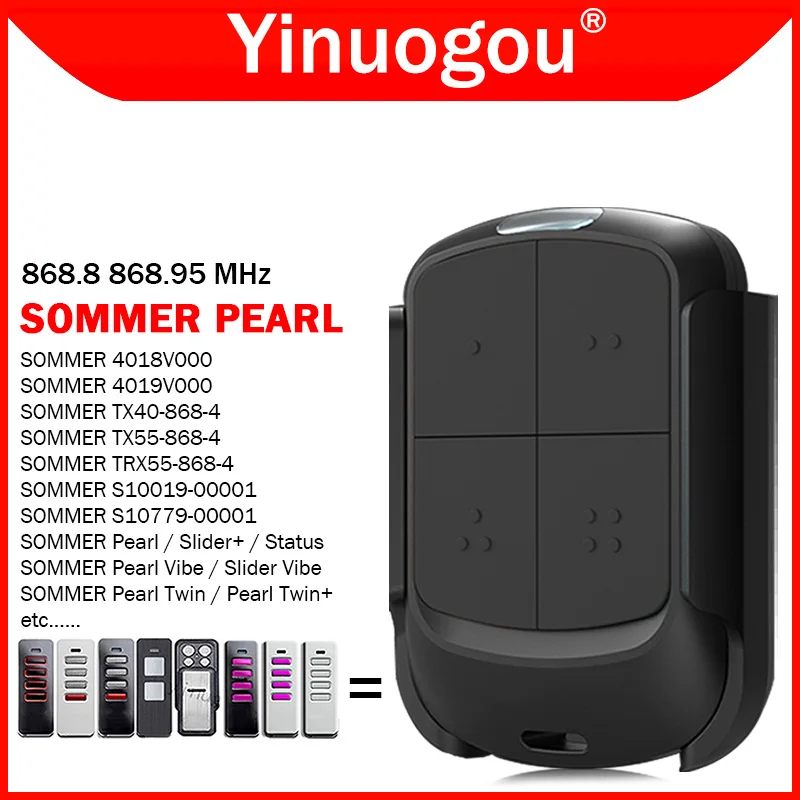

Compatible Models

Compatible With：SOMMER SOMloq2
SOMMER Pearl
SOMMER Slider+
SOMMER Pearl Vibe
SOMMER Slider Vibe
SOMMER Pearl Twin
SOMMER Pearl Twin+
SOMMER Pearl Status
SOMMER TX40-868-4
SOMMER TX55-868-4
SOMMER TRX55-868-4
SOMMER 4018V000
SOMMER 4019V000
etc......

Access to receiver required. Please make sure you got access to your receiver/opener before purchase.

Disclaimer: Your radio control system must be SOMloq2, we will not be responsible for wrong purchases。

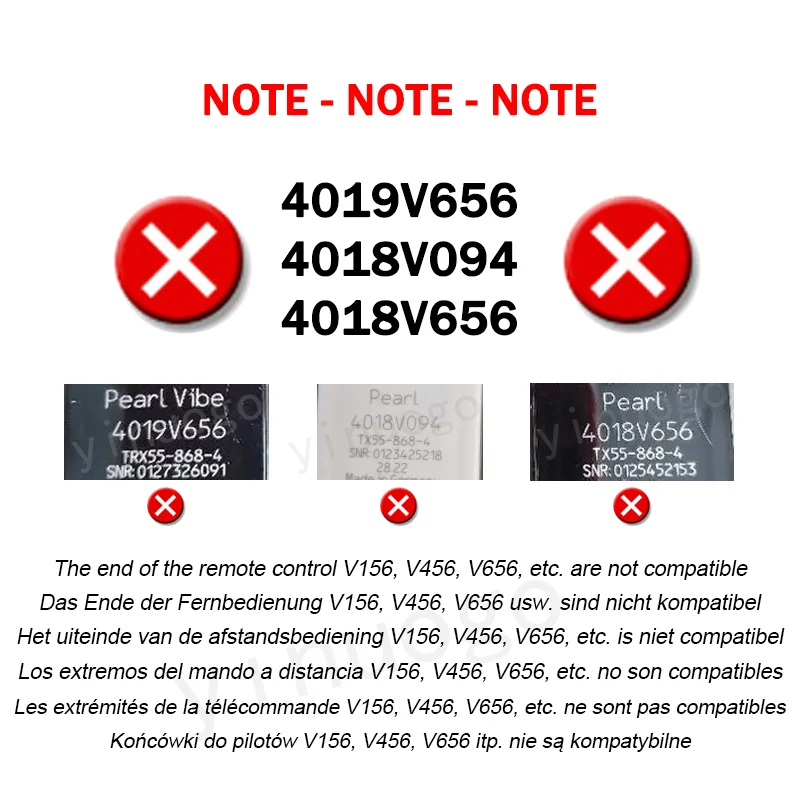

NOTE - NOTE - NOTE

Sommer Pearl Vibe 4019 remote control - frequency 868.95 / 868.8 MHz to rotate. Somloq2 Somloq2 Somloq rolling code system. Please note: if you live in Belgium, Germany or the Netherlands, check the reference on the back of your remote control! Indeed, we market compatible references V000, V001, V003, V020 and V00001. However, in these countries, the remote control is likely to end differently (after V156, V456, V656 etc.).

How to program?

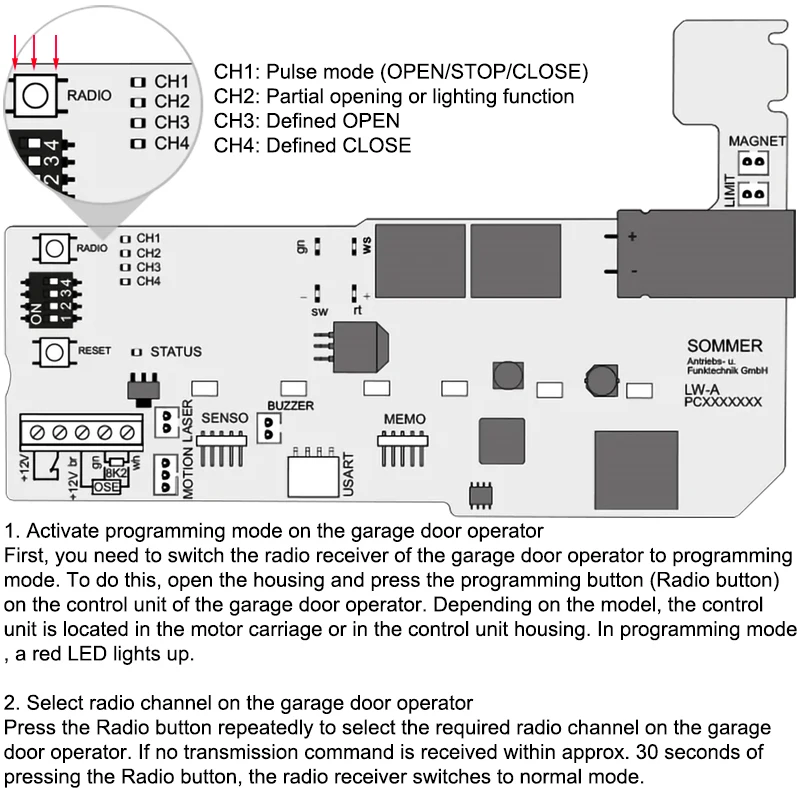

1. Activate programming mode on the garage door operator
First, you need to switch the radio receiver of the garage door operator to programming mode. To do this, open the housing and press the programming button (Radio button) on the control unit of the garage door operator. Depending on the model, the control unit is located in the motor carriage or in the control unit housing. In programming mode, a red LED lights up.

2. Select radio channel on the garage door operator
Press the Radio button repeatedly to select the required radio channel on the garage door operator. If no transmission command is received within approx. 30 seconds of pressing the Radio button, the radio receiver switches to normal mode.

Explanation of the radio channels
CH1: Pulse mode (OPEN/STOP/CLOSE)
CH2: Partial opening or lighting function
CH3: Defined OPEN
CH4: Defined CLOSE
3. Programme the button on the handheld transmitter
Press the desired button on the handheld transmitter until the previously selected LED for the radio channel blinks and goes out. The handheld transmitter has successfully transferred the radio code to the radio receiver and is now programmed. Repeat the steps above to program other handheld transmitters to this radio receiver.

Handheld transmitters with Somloq2 can be programmed on either a Somloq Rollingcode receiver or a SOMloq2 receiver. However, mixed operation of the Somloq and SOMloq2 radio systems on one button is not permitted.

Videos, programming handheld transmitter to garage door operator
Programming a handheld transmitter to a SOMMER base+ or SOMMER pro+ garage door operator
Our video shows how to programme a SOMMER handheld transmitter, for example a Pearl, Pearl Vibe, Pearl Status, Pearl Twin, Slider+, Slider Vibe, to a SOMMER garage door operator with SOMloq2.

Warm Tips

If you don't know how to use it after purchase, please contact us to send you a manual or a usage video in your local language. It is simple to operate and very easy to use!

1. Are you a manufacture ?

We are the largest garage door remote control manufacturer in China, we can produce any brand remote control for you, including original remote control

2. I am a wholesaler, we need a remote control with a price advantage

No problem, our factory has officially settled in AliExpress, welcome to consult, we will give you the best price and best products

3. What brands of remote controls do you still produce?

We are the largest factory, so you can contact me directly if you need any brand remote control.

4. Can I place a large order? Can it be customized

of course

5.Do you support drop shipping

Support, we have cooperated with many friends, our packaging will not reveal any information, and the chip will not print text, we only provide products and instructions for use
