DC12V Dual-tech MW+PIR Wired Motion Sensor Microwave Sensor Infrared Detector Anti-tamper Pet Immune Wide Angle Detection Range

DC12V Dual-tech MW+PIR Wired Motion Sensor Microwave Sensor Infrared Detector Anti-tamper Pet Immune Wide Angle Detection Range

Introduction:

lt is a dual-tech motion detector, it is organized by 2 sensors:dual element PIR & Transportation style Microwave. 2 sensors are controlled by a 8 bit microprocessor，microprocessor offers a optimization process to the sensors by intelligent signal processing soft ware technology.The advantages of it are:can offer 3 kinds of detection modes on 2 sensitive grades in order to select the more perfect and wider detection way for the special needs of protection site; it gets the best rate between the best detection and minimum false alarm.Including the normal“AND”“OR”modes, this is also with“5P” mode in order to avoid the damage caused by spray dope on its lens.On the side, this is with other functions such as automatic setting on anti masking，This product can be used in warehouses, offices, factories,hotels, banks and other places.

Feature:

- Automatic setting of anti-masking

- Detection mode: 5P-OR-AND

- Micro-strip MW with pulse transmission

- Selectable detection sensitivity

- Alarm type memory

- Alternative Led OFF

- Anti white light

- Anti-pet ≥25kg

-18 beams Fresnel lens with down

- view window on its 4 planes

- Vertical adjustment

- Air-proof optical parts

-Wall inlay

-Total view:90°,Monitoring scale: 15m

- Corner and wall installation.Universal connector

- Universal connector for option

Parameter:

Power supply : 12-24VDC

Current: 30mA

Install high: 1.5m-2.4m

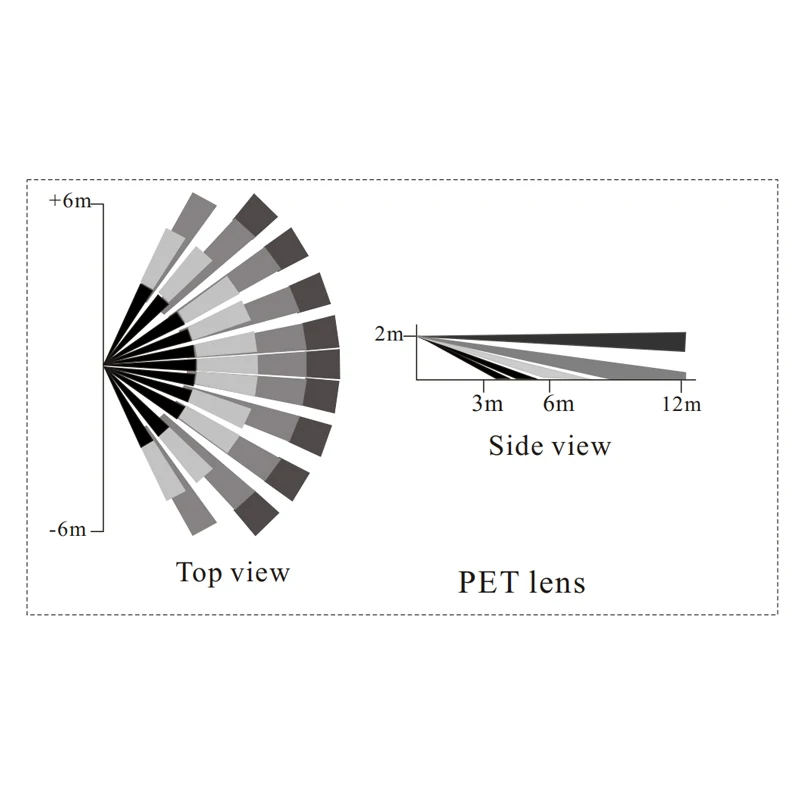

Coverage: 12m×12m100°

MW frequency : 10.525GHz

Alarm time: 3s

Anti RFI/EMI: 0.1-500MHz/3 V/m

Anti-white light: >10000LUX

Alarm output : 200mA/125V
Mask output: 200mA/125V
Temperature: -10°C/+55℃
Humidity(RH): 95%
​Sensitivity : H / L Select
​Detect speed: 0.2m/s to 3.5m/s
​Dimensions (H×W×D): 116mm×65mm×48mm

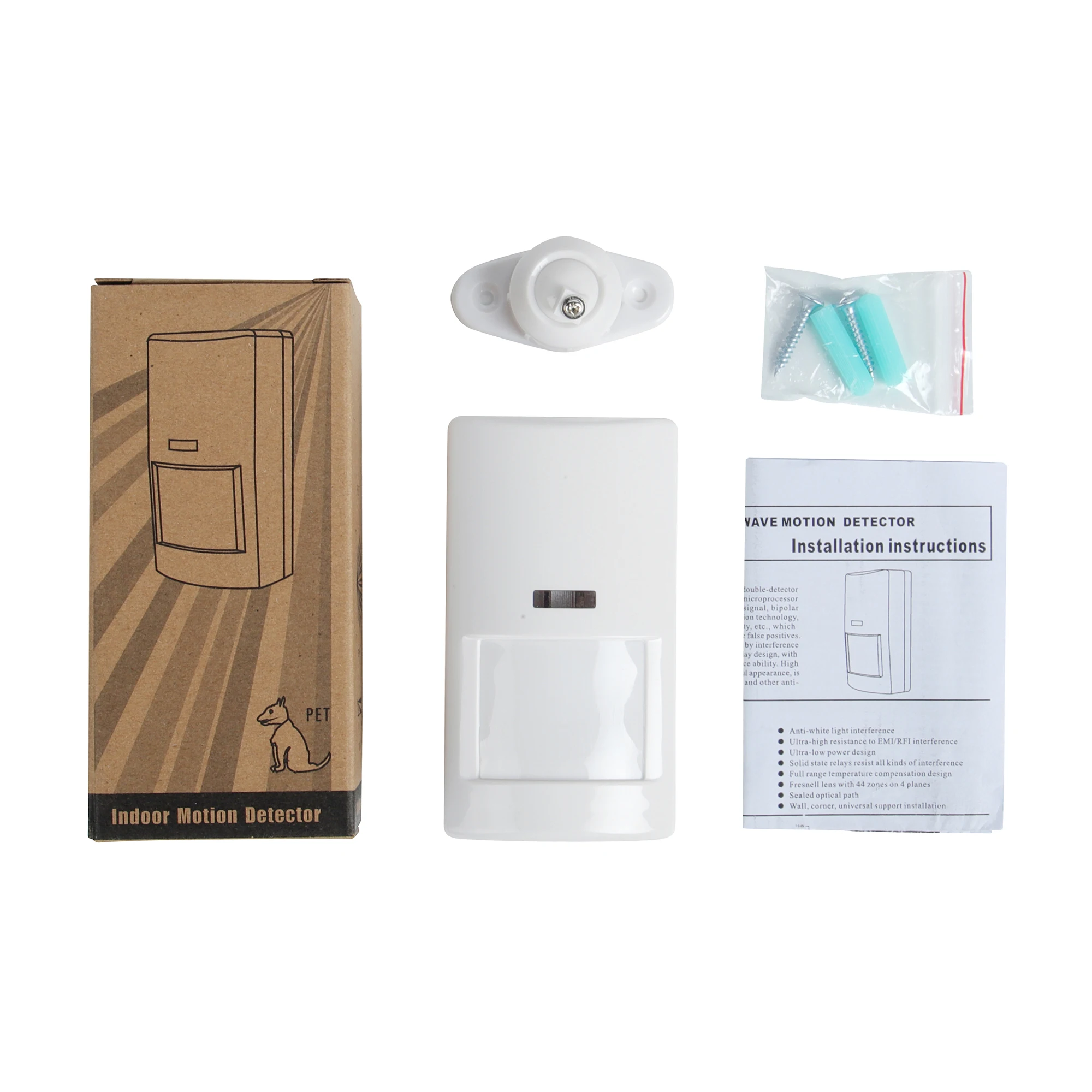

Package Content:
1pc Wired anti-pet microwave PIR motion sensor ( bracket, screws, English manual included).
​
Note:
This wired microwave pir motion sensor can not work alone, it works with all home alarm host which has wired port.
