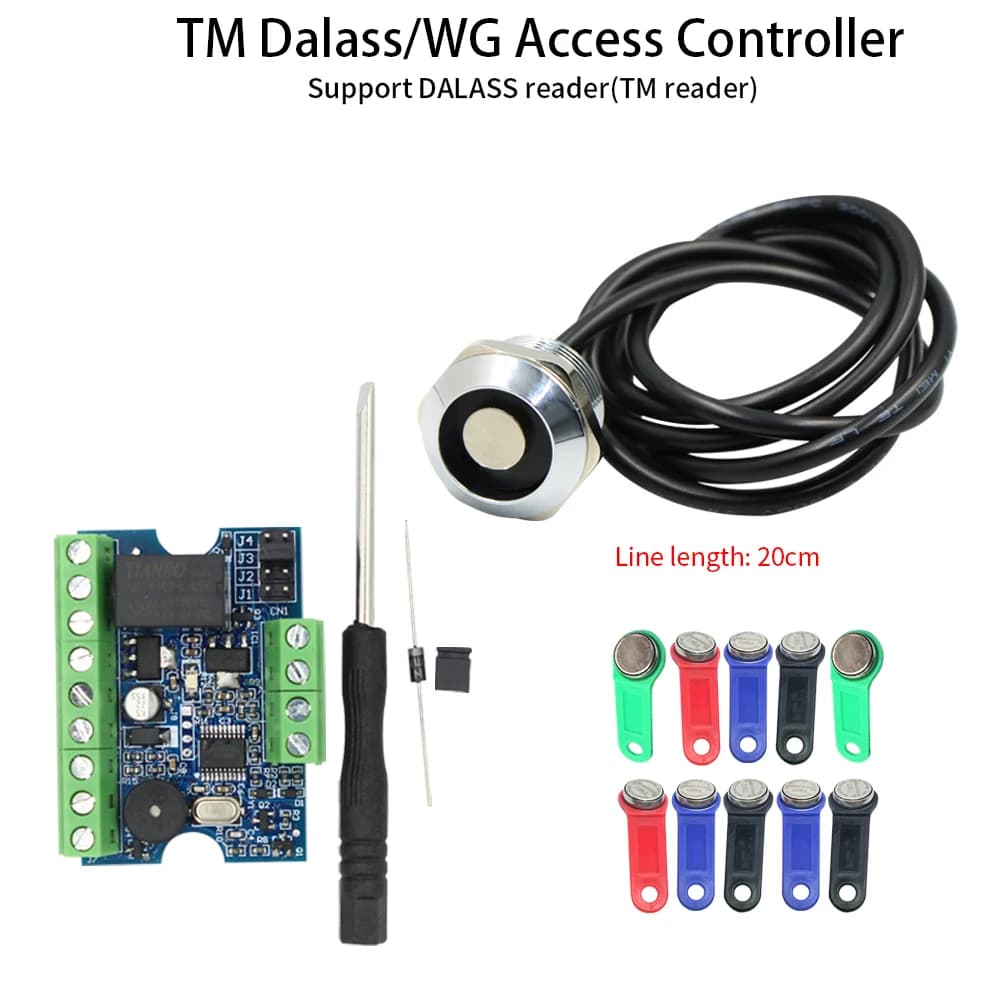

Access Control Dallas TM1990 Module Controller Kits Touch Memory Wiegand RFID Card Reder Kits Door System Admin Card 1000User

12V Access Control Dallas IB TM Module Controller Kits Touch Memory Wiegand RFID Card Reder Sets Door System Admin Card 1000User

1.Dallas TM Controller Product Introduction

This access control is standalone access control which designed for single door. Support 1000 users and could connect to external Wiegand 26-44 RFID reader(WG Reader) or Touch memory reader(TM Reader).

It has two manager cards(Admin Cards) and could connect to any kinds of locks and exit button. Easy installation and operation.It used for DS1990,DS1991,DS1996,DS1961 series products.TM card ,item Tm1990a, DS1990/RW1990(ds1990A-F5,TM1990A-F5,DS1990R-F5)

1. Dallas TM Controller Technical parameters

Input voltage: DC12V±20%

Quiescent current: ≤17mA

Wiegand 26-44

Touch memory reader:DS1990A

Electric lock output current: ≤3A (Relay output)

User Capacity:1000

Unlock time: 1~128s

Manager cards: 2 cards

Communication distance to Wiegand reader: ≤100m

Communication distance to Touch memory reader: ≤15m

Operating temperature: -35~60℃

Max humidity: ≤90%,ROH

TM Controller PCBA dimension: 48×32×14mm

specification of 10pcs RW1990 Universal Touch Memory Key iButton Key Touch Memory with Handle:

Chip Type: RW1990

RW1990 function:

1.RW1990 ibutton

2. Low Cost

3.Waterproof

4. Rewritable, DS1990A and TM1990A iButton,

5. Can copy, RW1990

Technical parameters:

*Dallas Encryption

*Breakdown coefficient: 1/100,000

*Serial Number: Global 64-bit numbers only

*System logic: 64-bit contact protection

*Memory: 8 KB RAM

*Inductive Type: Touch

*R/W and encryption

*B/W times: 1500000000

*Operating Temperature: -40~85

*Lifetime:>20 years

*Dimensions:54*20 mm

*Weight: 4g/pcs

*Parcel: 10Pcs RW1990 keys
