Universal RX MULTI 300-868MHz Wifi Smart Switch Module Works With Tuya APP 433MHz 868MHz Garage / Gate Remote Control Receiver

Welcome to my shop

Shipped within 12 hours

All products are authentic

Factory direct sales support wholesale

The product description is 100% consistent with the actual product

NOTE-NOTE-NOTE

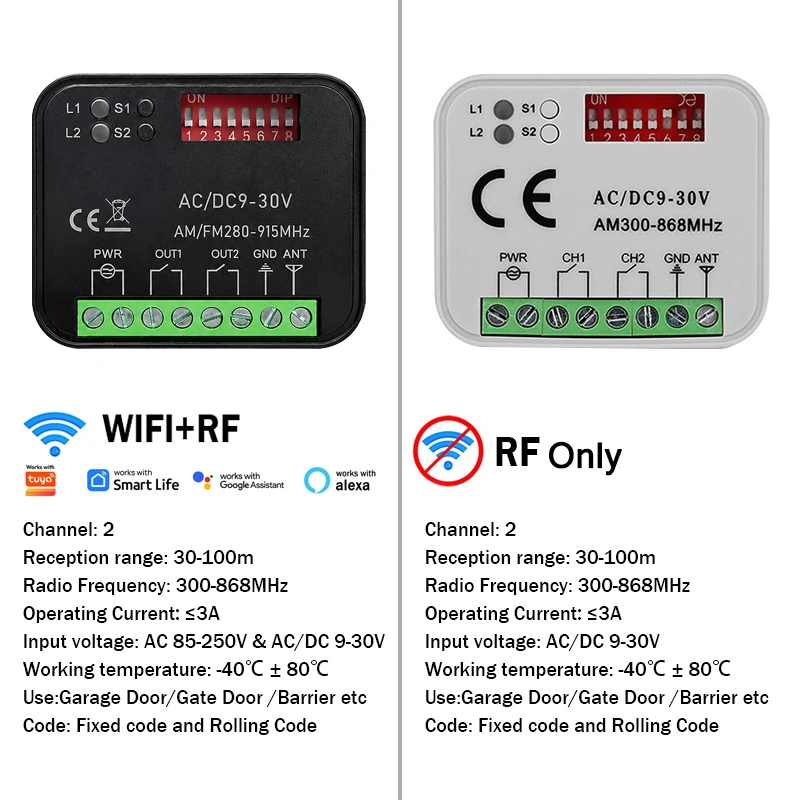

You can choose two versions: WIFI+RF version and RF version, you can choose two voltages: AC DC 9-30V AC 85-250V.

RX-MULTI 300MHz to 868MHz Garage / Gate Remote Control Receiver For 99% of the remote control in the market

Description For Receiver

1，Name：RX-MULTI WIFI Receiver
2，Operating Voltage：9V-30V / 85V-250V
3，Channels：2
4，Frequency：300MHz - 868MHz
5，Code：Rolling and Fixed Code & Learning Code
6，Distance：30m-100m
7，Size：56mm*46mm*20mm
8，One receiver can work with 400 Remote Control
9，It don’t interference other remotes and receivers.
10，Brand selector: With 8 dip switches user can make different combination for different remote brands.
11，Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.

Feature 1

1，WiFi Smart Garage Door Receiver and Garage Open Close Monitor Compatible With Alexa Echo , Google Home voice control.

2，REMOTE MONITORING: You can open or close the door by the APP. You can check the garage door open or closed state in real time. You can authorize multiple people to access your garage.

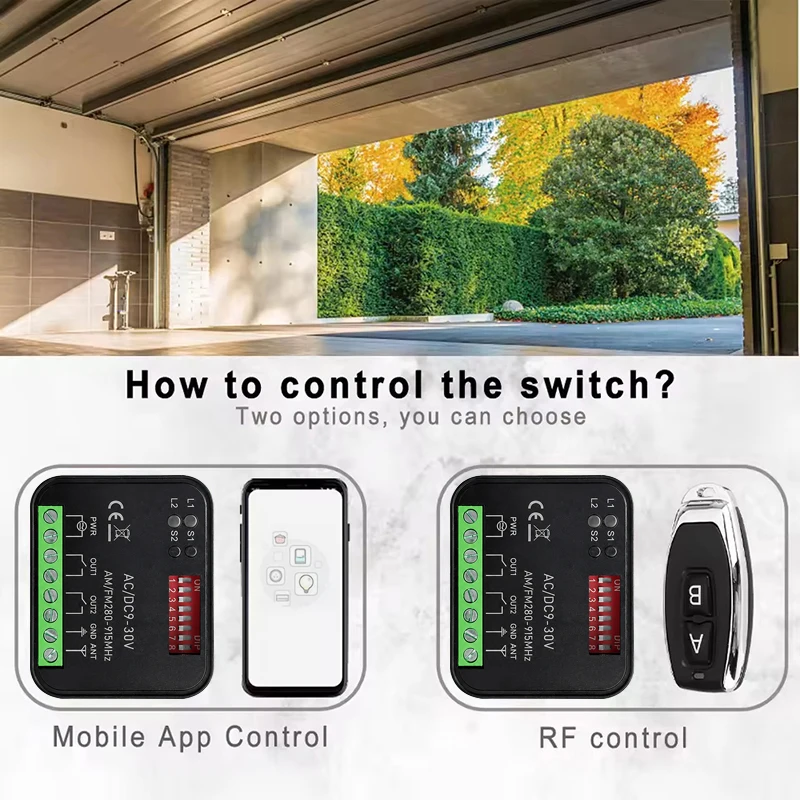

3，App Control: Works With Tuya or Smart Life APP, allowing you to remotely open your gate anytime, anywhere with just a tap on your mobile phone.

4，VOICE CONTROL: You can activate your garage door opener by placing a voice command to your Alexa or Google Assistant device or driving near the garage door

5，WIDE COMPATIBILITY: You can only use one controller per garage door opener. Compatible with most general garage door openers.Please check the our list.

6，TIMER FUNCTION: You can set schedules to open and close your garage door. Quick & easy installation as well without the need of a professional. No Hidden Mon

7，COUNTDONW FUNCTION: You can set the countdown time to close or open the garage door.

Feature 2

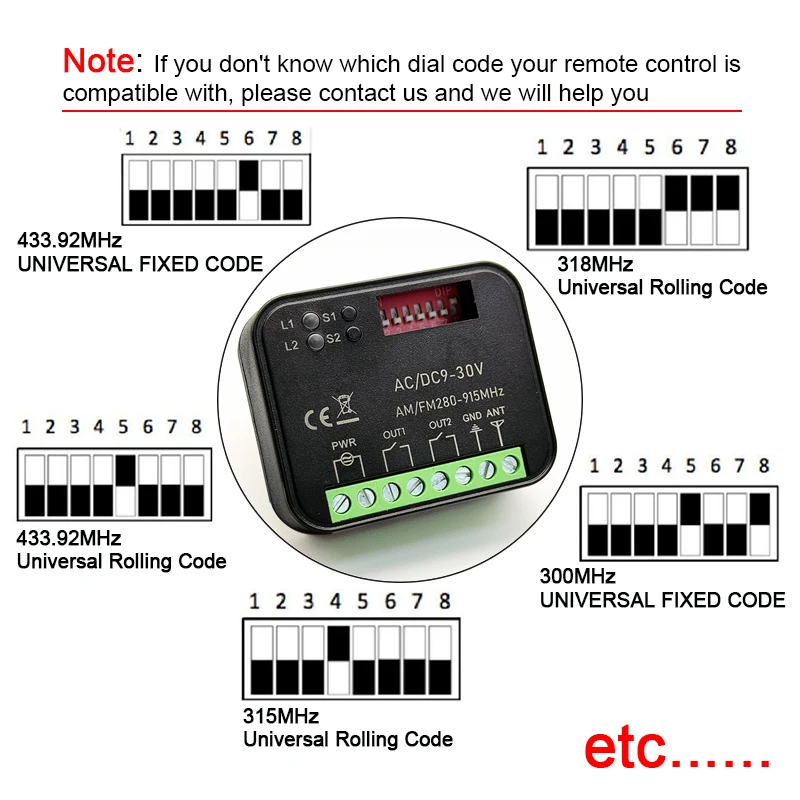

You can switch the dial code you need according to your remote control brand and frequency

Working frequency: 300-868MHz(Rolling code & Fixed code)

300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz

Can identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),

Wide range of applications

1，garage doors，Gate Doors，Electric Gate，Swing gate

2，motorcycles，car alarm products

3，home security products，short-range wireless remote control products

4，industrial control products，Alarm Systems etc

Include

Receiver
Small Antenna
English Manual

Programming a new remote

1，Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz Flor-s remote controls, just move Dip-switchs 8 UP.
2，Press the learn button. The will LED turn on.
3，Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.
4，Repeat step 2 for another button.
5，The 2-nd channel programming procedure is the same.

Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered.

Description For Remote Control

Operating frequency: 433MHz
Battery: Battery not included ,
Material: PVC.
Button: 2 buttons
Encoding type: 433MHz 1527 Learning Code.
Transfers distance: 20-50m

Remote Control:No battery
