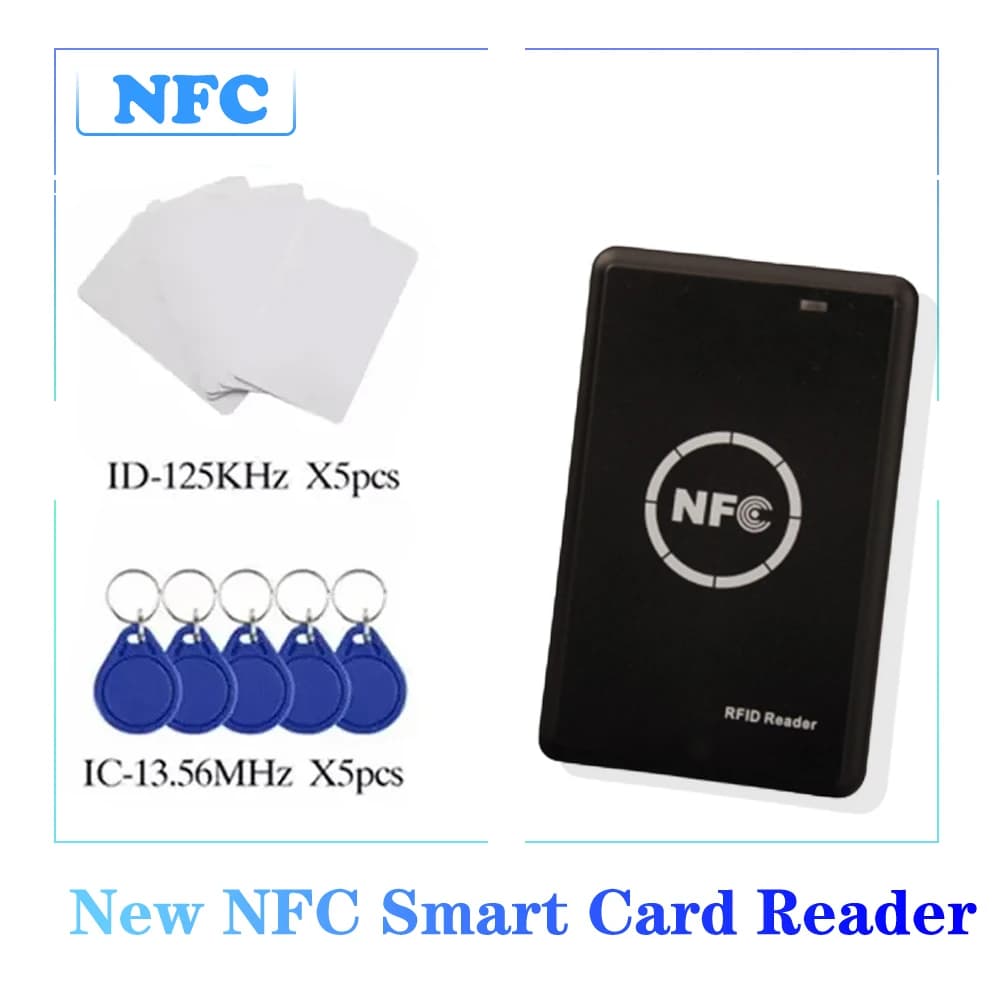

RFID NFC Smart Chip Reader/Writer 125KHZ 13.56MHZ Copier USB Programmer T5577 CUID Tag Copy Clone ID IC Key Badge Copy

Product Details

Software download link:

https://drive.google.com/drive/folders/1TfQEcoOIFOv2976hGs98H4Ps2AGwx3Pl?usp=sharing

If you need software and instructions, please contact customer service, customer service will send it to your email

The ID 125khz keychain is 5200/T5577, the id 125khz chip card is an empty card, and the card number needs to be written in, Rewriteable ,and the IC 13.56mhz card is a uid card

Option 5 is the uid keychain, please pay attention to your choice, don't buy it wrong!

Crack special IC encryption card,

copy IC/ID card,

support HID-125KHZ,

support reading chip: TK4100/EM4100/EM4200/TK4100-D/TK4168/S50/S70/F08

support writing chip: T5577/EM4305/5200/8265/5300/8800/UID/CUID/FUID/UFUID

support HID-125KHZ,

support reading chip: TK4100/EM4100/EM4200/TK4100-D/TK4168/S50/S70/F08

support writing chip: T5577/EM4305/5200/8265/5300/8800/UID/CUID/FUID/UFUID

1) Support IC/ID dual frequency replication

2) Driver-free, no need to download software installation

3) When connect the RFID Reader to the computer with the USB cable, then can find the software.

4) Support ID125K, 8800, 5200, 4305, 5577, 8265 card.

5) Support UID FUID CUID UFUID IC semi-encrypted card, IC full encryption card.

6) Has USB full speed interface

7) Two-color LED light prompt (red light is standby, green is working)

8) Built-in buzzer "beep" sound reminder

The software does not support Apple systems, but supports virtual machines

Product Parameters:
Dimensions: 108 (L) X 68 (W) X 12 mm (H)
Interface: USB full speed
Working Voltage: 5 V DC
Working current: 200mA
Standby current: 50mA
Normal current: 100mA
Working frequency: 125KHz / 13.56 MHz
Smart card support: for 125KHz ID type: EM4100, TK4100, 8800, 5200, EM4305, T5577, 8265 etc.
For 13.56MHz IC type: UID FUID CUID UFUID IC Half-encryption, IC Full-encryption etc.
Supported operating systems: SupportWindows computer. Not support Linux, Mac.

How to use the card reader?

1) Connect the device to your computer with the USB cable.

2) You can find and open the software on your computer.

Read and write ordinary 125KHz RFID card

1. Place the card on the card reader and press "Read" on the software to scan the card.

2. The software will scan and display the card number

3. Place a writable T5577 (125KHz writable chip) on the card reader and press "Write" on the software.

Read and write 13.56MHz IC, IC half encryption card, IC full encryption card

1. Place the card on the card reader and press "Card number" or "Start decoding" on the software.

2. The software will scan and display the card number

3. Place a writable UID (13.56MHz writable chip) on the card reader and press "Write Card" on the software.

Area A: The software status displays the device model version and machine serial number. At this time, the card reader is successfully connected to the computer or the sector verification is successful.

Area B: Card reading and writing are successful or decoding is successful, status bar prompt area

Area C: ID card reading and writing card area

Area D: HID-125khz read/write card area

Area E: IC-13.56mhz tag read-write card decoding area, formatting, and editing data.

Area F: IC card decoding status bar, sector data can be seen

G area: Other functional areas, switchable, language setting, data comparison, ntag215 read-write card, software upgrade and other areas.
