Waterproof POE 2 port Repeater IP66 10/100Mbps 1 To 2 PoE Extender With IEEE802.3af/at 48V Outdoor For POE Switch Camera

Standard 100M 1 In 2 Out Waterproof POE Extender/Repeater Outdoor 30W High Power Plug&Play for PoE Switch NVR IP Camera AP

Report Item

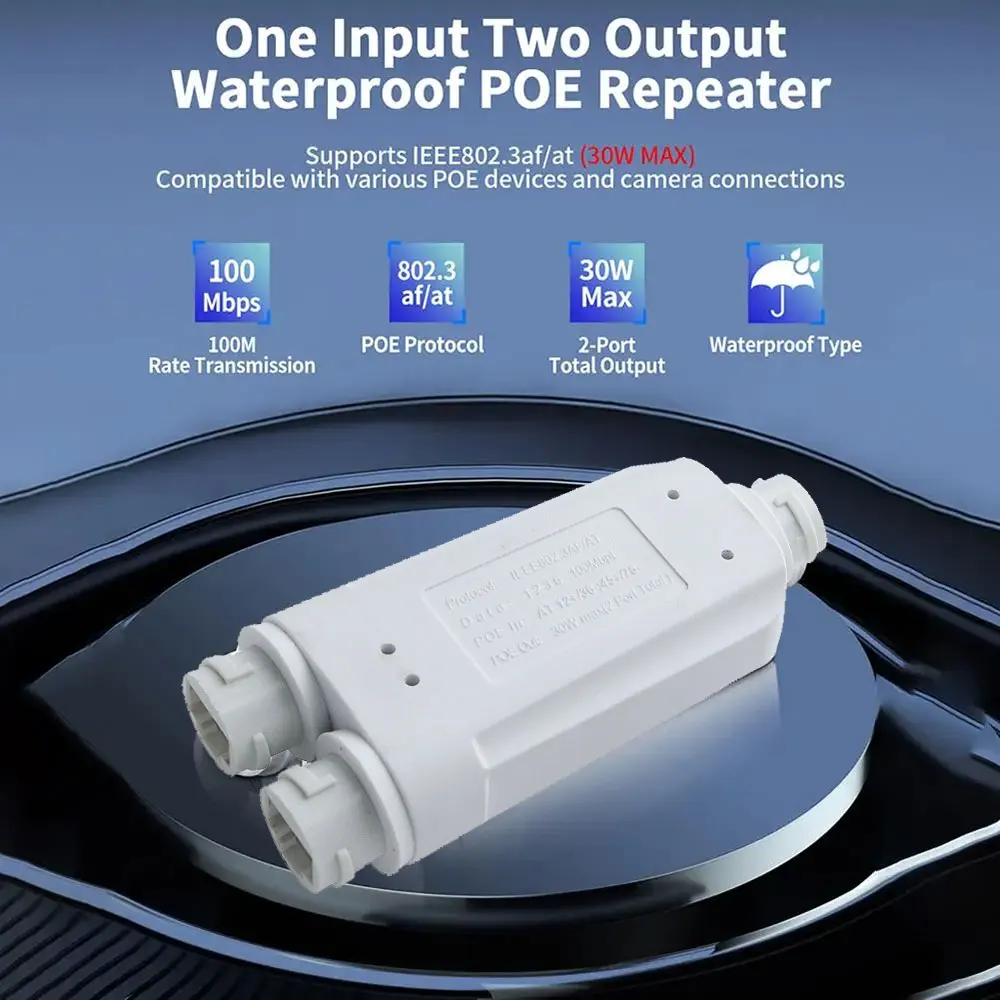

Product Name: In Out Waterproof POE Repeater

POE protocol: supports IEEE802.3af/at

Transmission distance: Front end MAX: 100 meters Rear end MAX: 100 meters

POEIn: AT 12+/3645+/78-

Transmission rate: AT 12+/3645+/78-

POE Out: 30WMax (total power of 2 ports)

Product size: total length) 97.5mm x 43mm x 22mm

Safety certification: CE, FCC, RoHS

Packaging includes

1 * Repeater

Outdoorwaterproof POE repeater 1 to 2

Standard protocol/multi-layer cascade / smart power supply

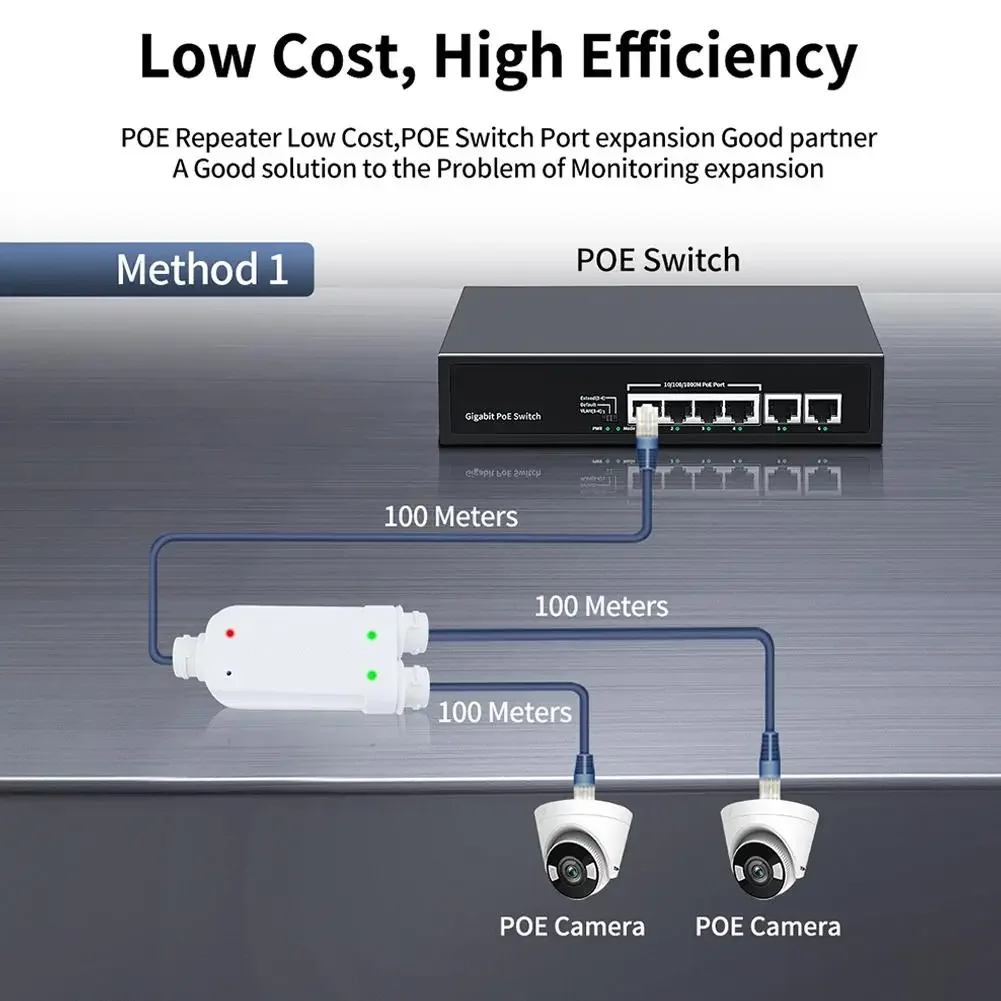

Expand the installation without further wiring

Only one network cable can transmit the signal of two cameras the later increase of points without further wiring

Are you still worried about the wiring difficulties

Network cable plug and play

Transmission of 100 meters

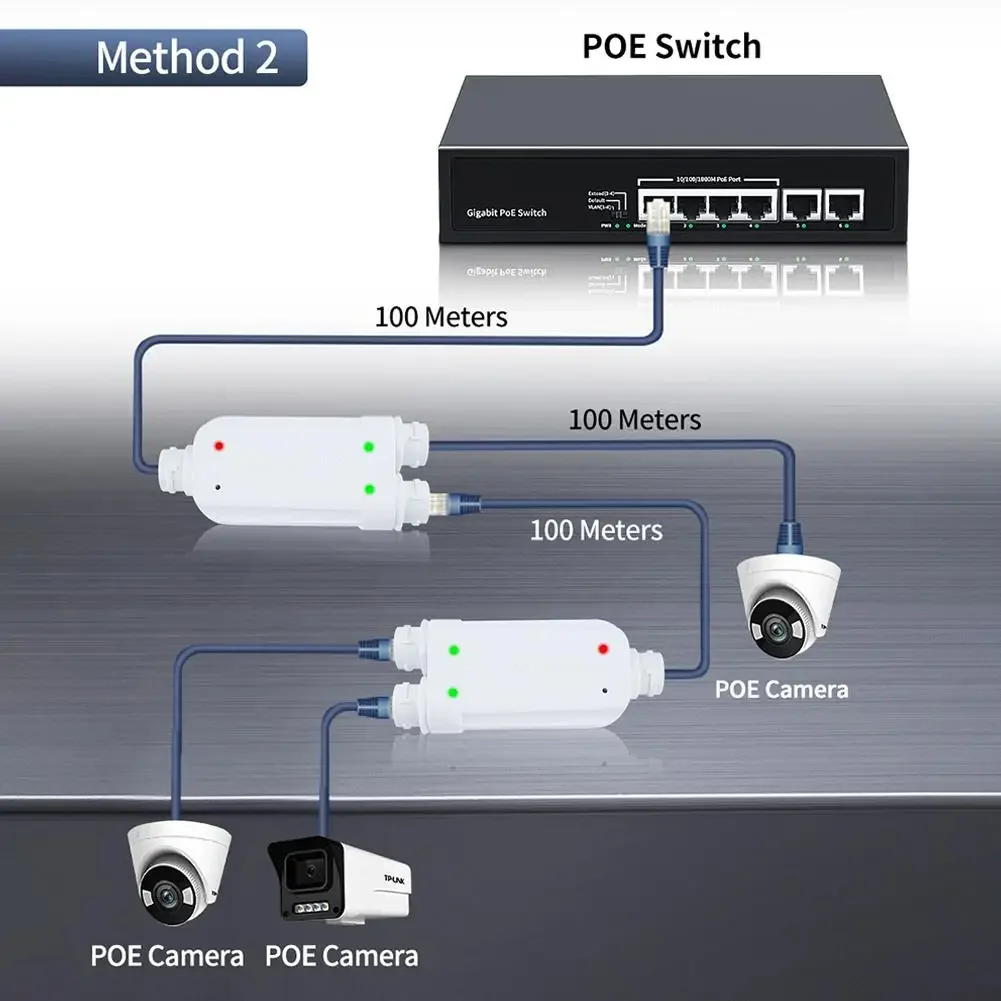

Multiple cascading

Quick Rresponse

No powersupply

Divide sth. into two ntelligent power supply

Outdoor waterproof design

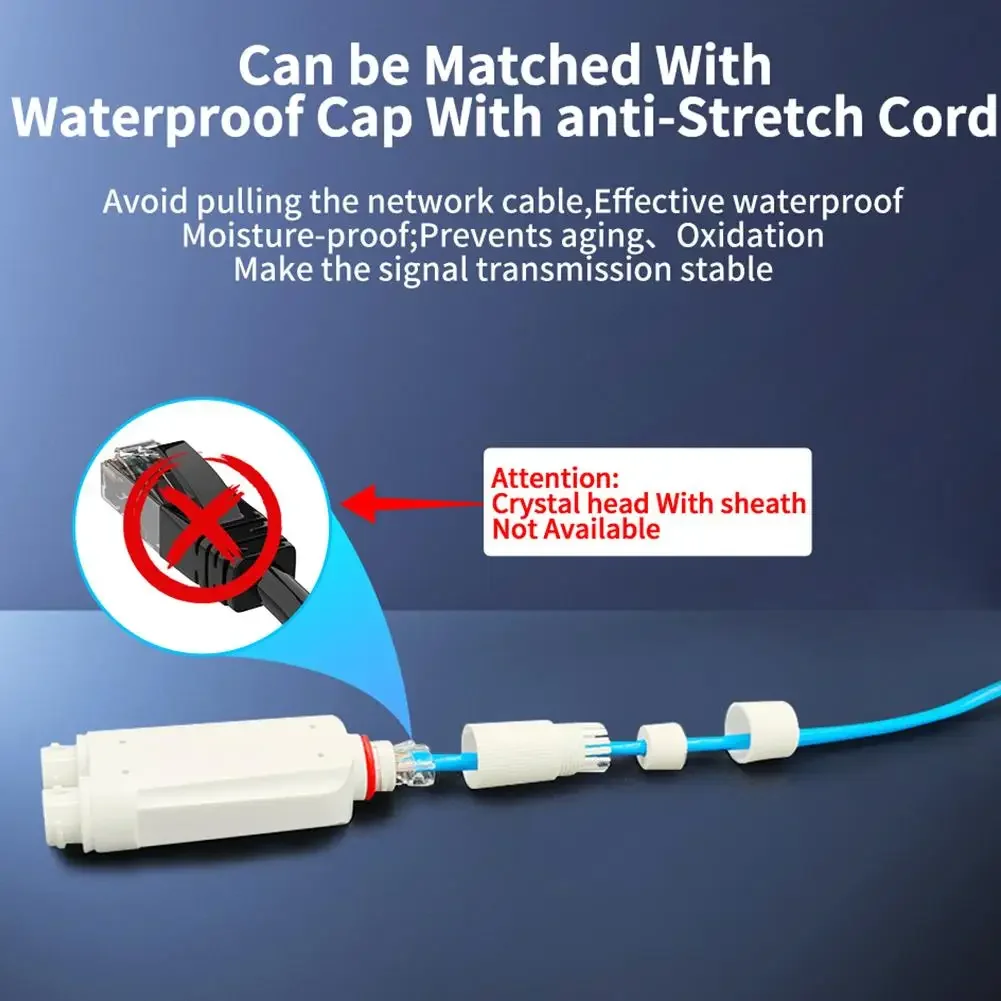

Product injection molding integrated molding plus waterproof kit, waterproof effect is significant, in the minus 10℃ to 60℃ harsh environment can also work normally, without fear of rain and snow and other extreme weather

Plug and play without setting

Depending on the type of insertion network cable Make MDI/ MDIX auto flip 10/100M rate as per insert cable type Adaptive, no setting,

plug and play, peace of mind more worry

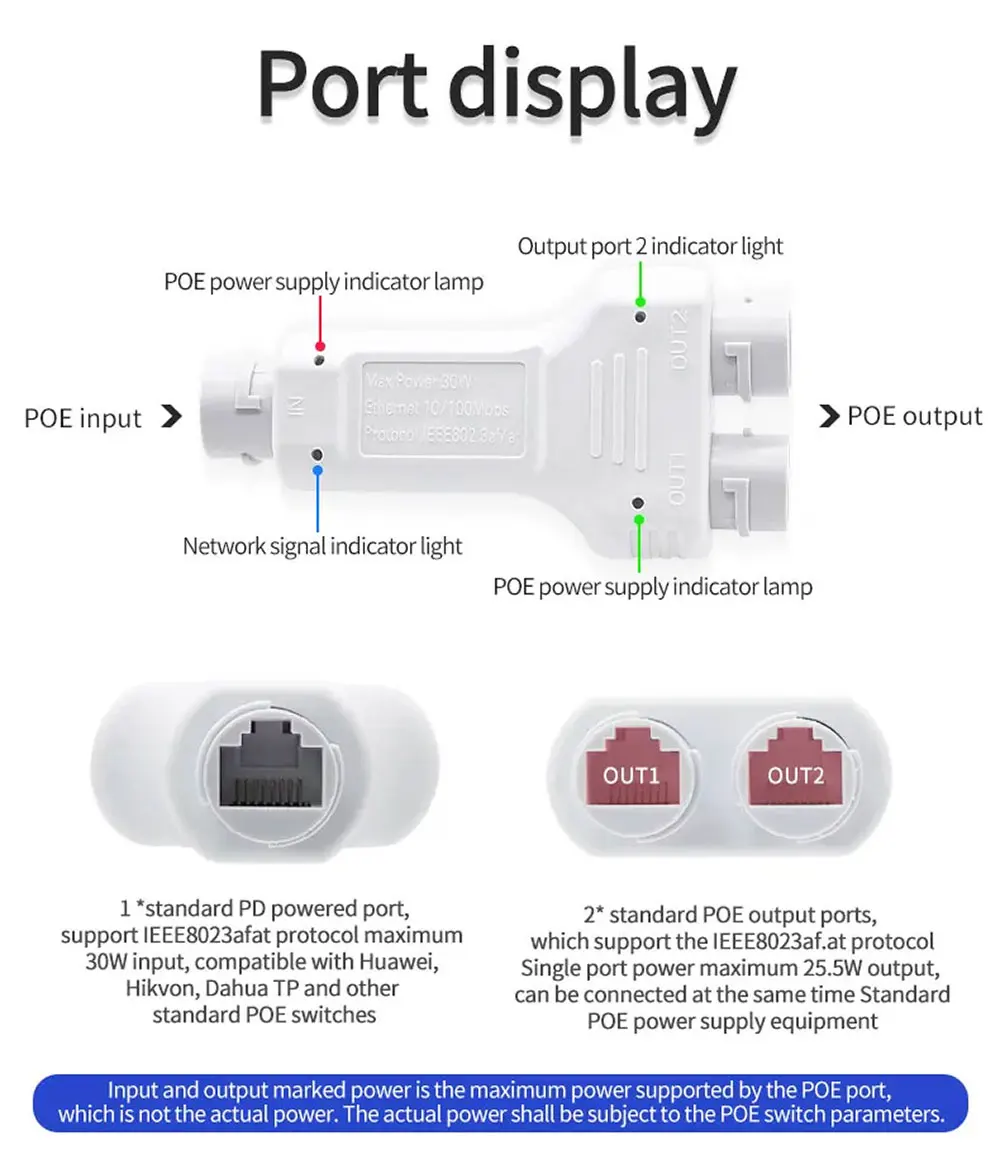

1*standard PD powered port,support IEEE8023af/at protocol maximum30W input,compatible with Huawei,Hikvon,Dahua TP and other standard POE switches

2* standard POE output ports,which support the lEEE8023af/at protocol Single port power maximum 25.5W output.can be connected at the same time Standard POE power supply equipment

Input and output marked power is the maximum power supported by the POE port,which is not the actual power. The actual power shall be subject to the POE switch parameters.

Scenarios of extensive application

Useing the PoE network repeater series scheme can save a lot of network cables Reduce the difficulty of construction.and the later maintenance is more convenient.

Comprehensive wiring

Entrance guard system

security and protection monitoring
