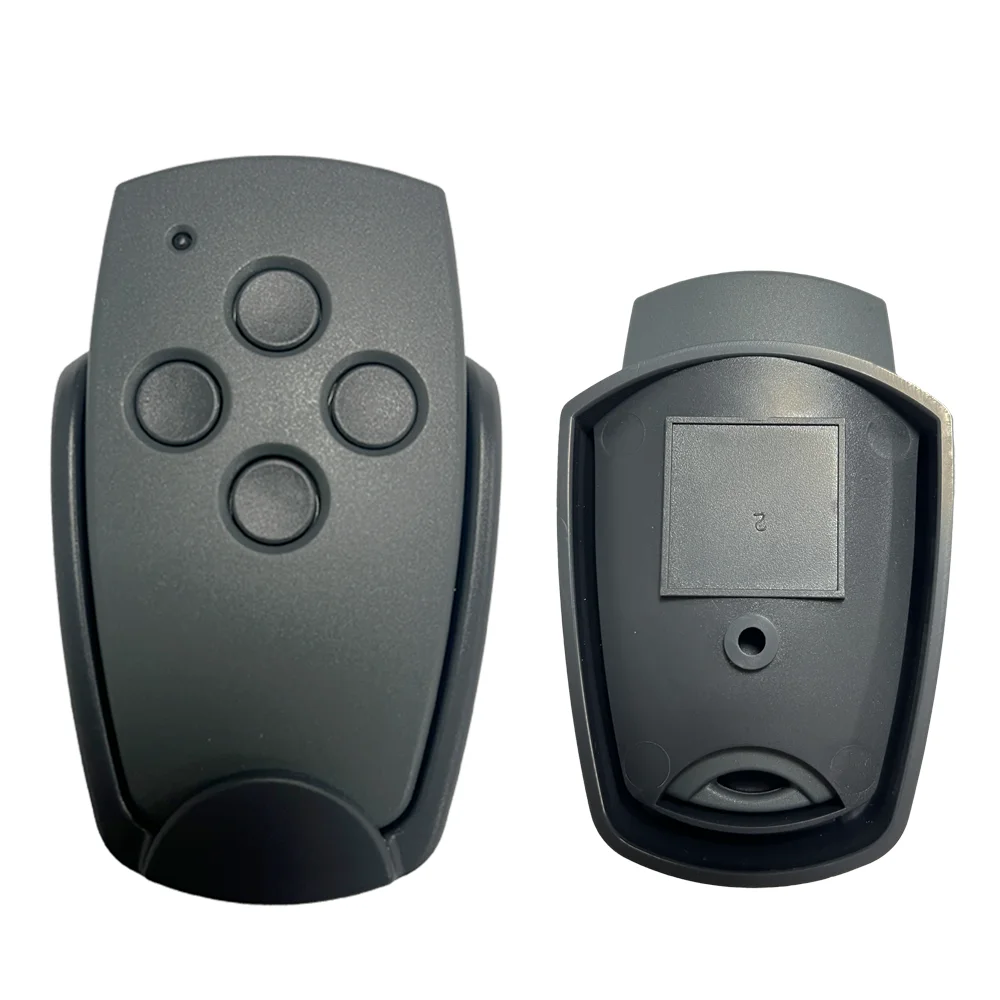

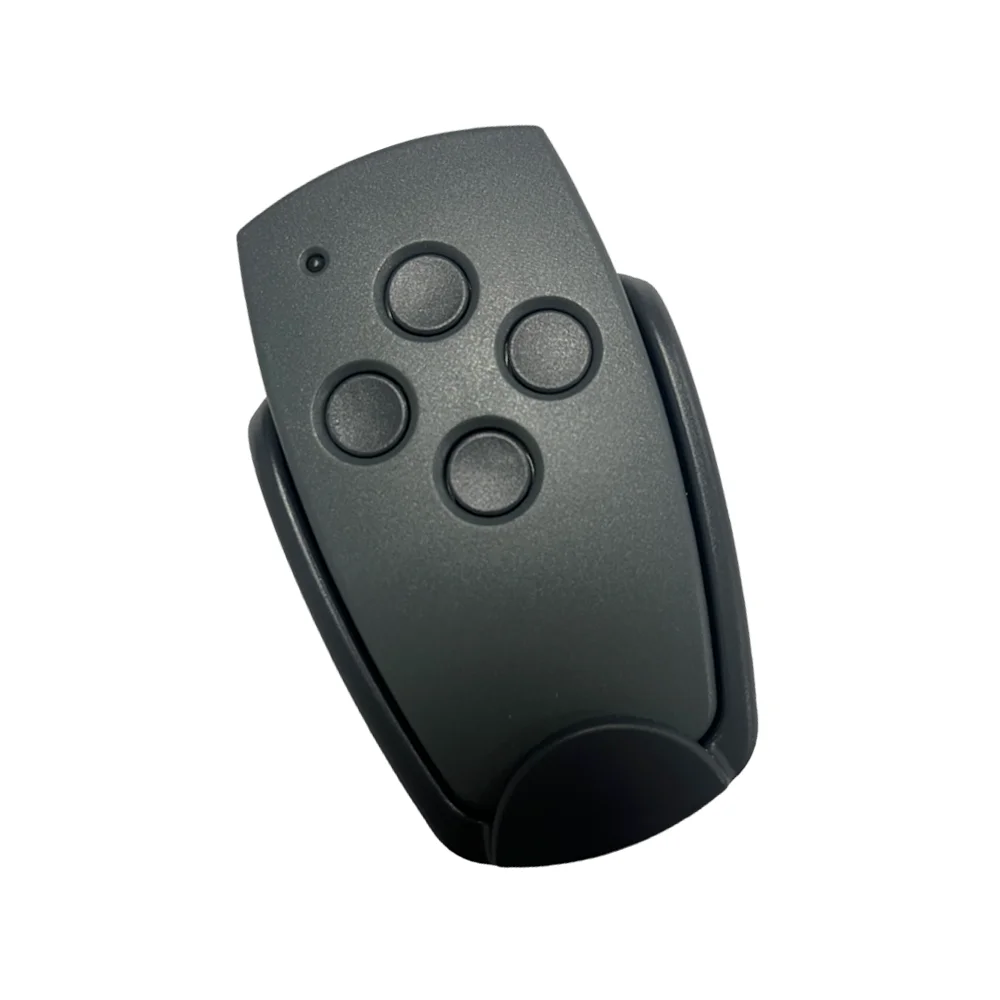

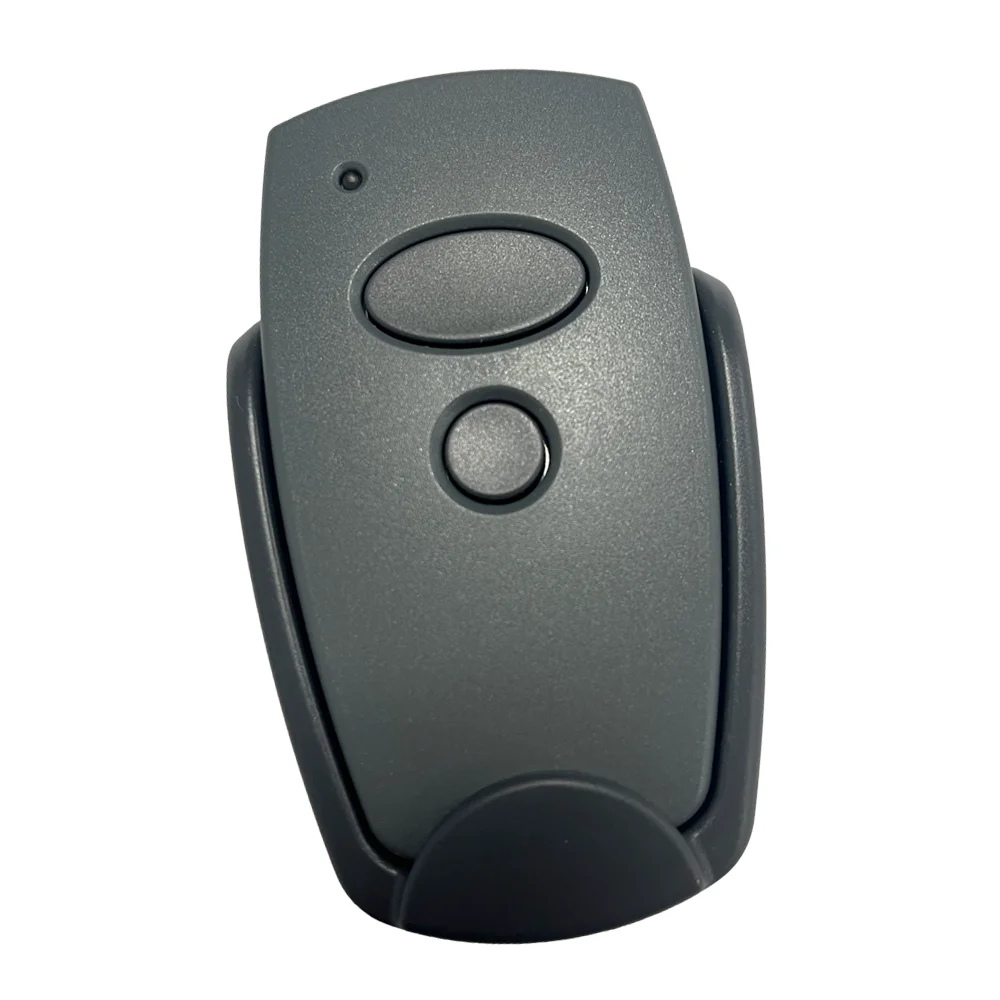

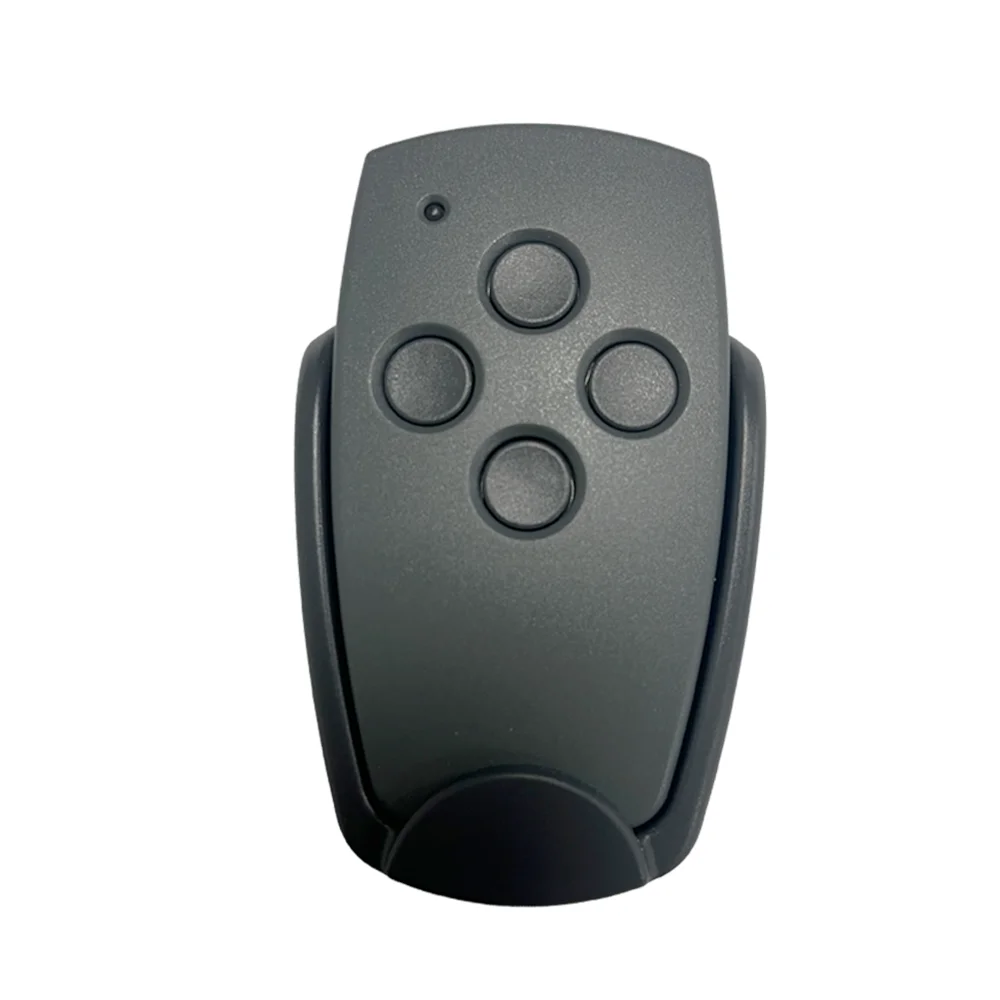

MARANTEC Digital Remote Control 868 MHz / 433MHz D302 D304 D382 D313 D384 868 Duplicator Garage Door Command Transmitter

MARANTEC Digital Remote Control 868 MHz / 433MHz D302 D304 D382 D313 D384 868 Duplicator Garage Door Command Transmitter

Description

Shell Material: metal and PVC
Frequency: 868MHz/433MHZ
Remote Control Distance: 50-100m(open space)
Battery cr2032

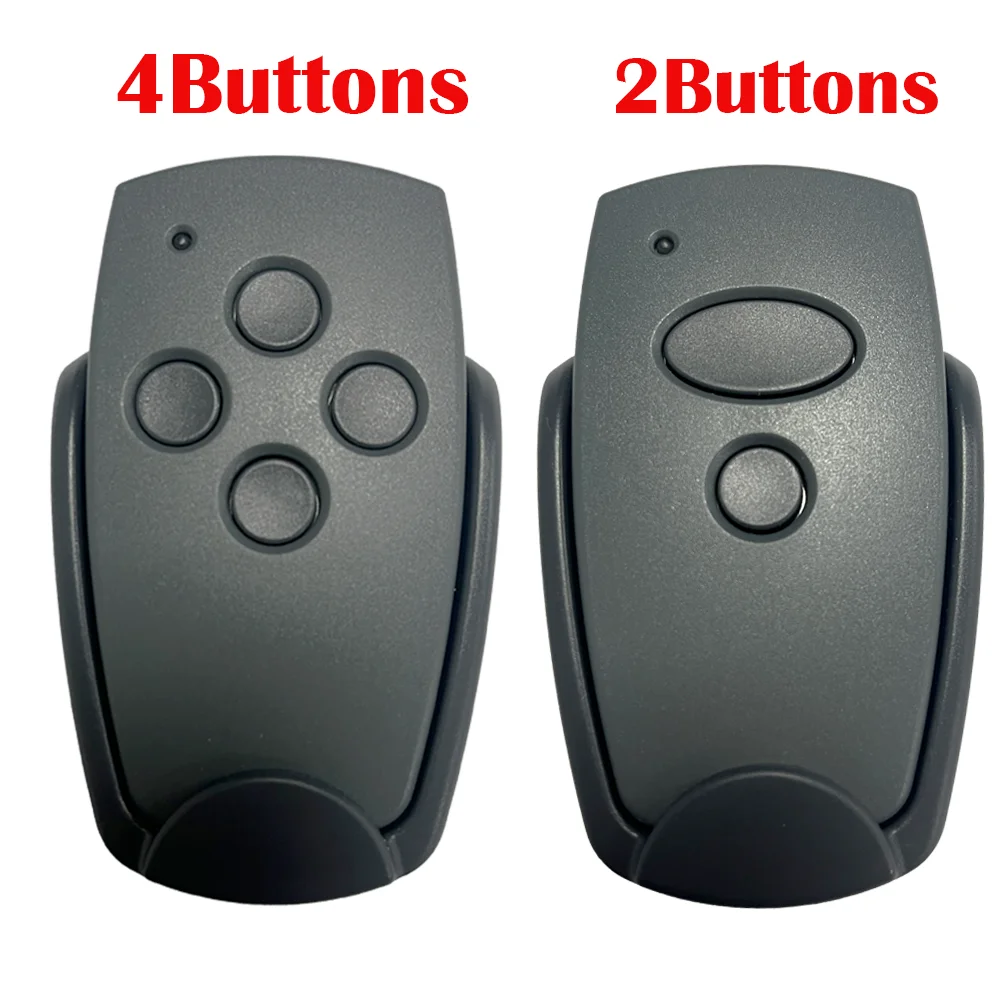

Buttons：2/4Buttons

Compatible Models

868MHZ
Digital 382 868
Digital 384 868
Digital 302 868
Digital 304 868
Digital 313 868
Digital 321 868
Digital 323 868
Command 131 868

433MHZ
AZ021
64176
Comfort 220
Comfort 250
Comfort 252
Comfort 270
Digital 302
Digital 304
Digital 313

How to program ?

Face to face copy your original remote control

Step:1:Clear the history code from duplicator
1:Press button A and B continuously until LED flash 3 times
2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash
3.Release button A ,finish code clearance.

Step 2,Copy code from original transmitter
1. Put duplicator aside of original transmitter,as close as possible.
2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator is LED flash
3. Release both buttons,finish code copy,copy other button in same way.
Button A= Lock button
Button B=Unlock button

Inclued

Remote Control
Include Battery
English Manual
