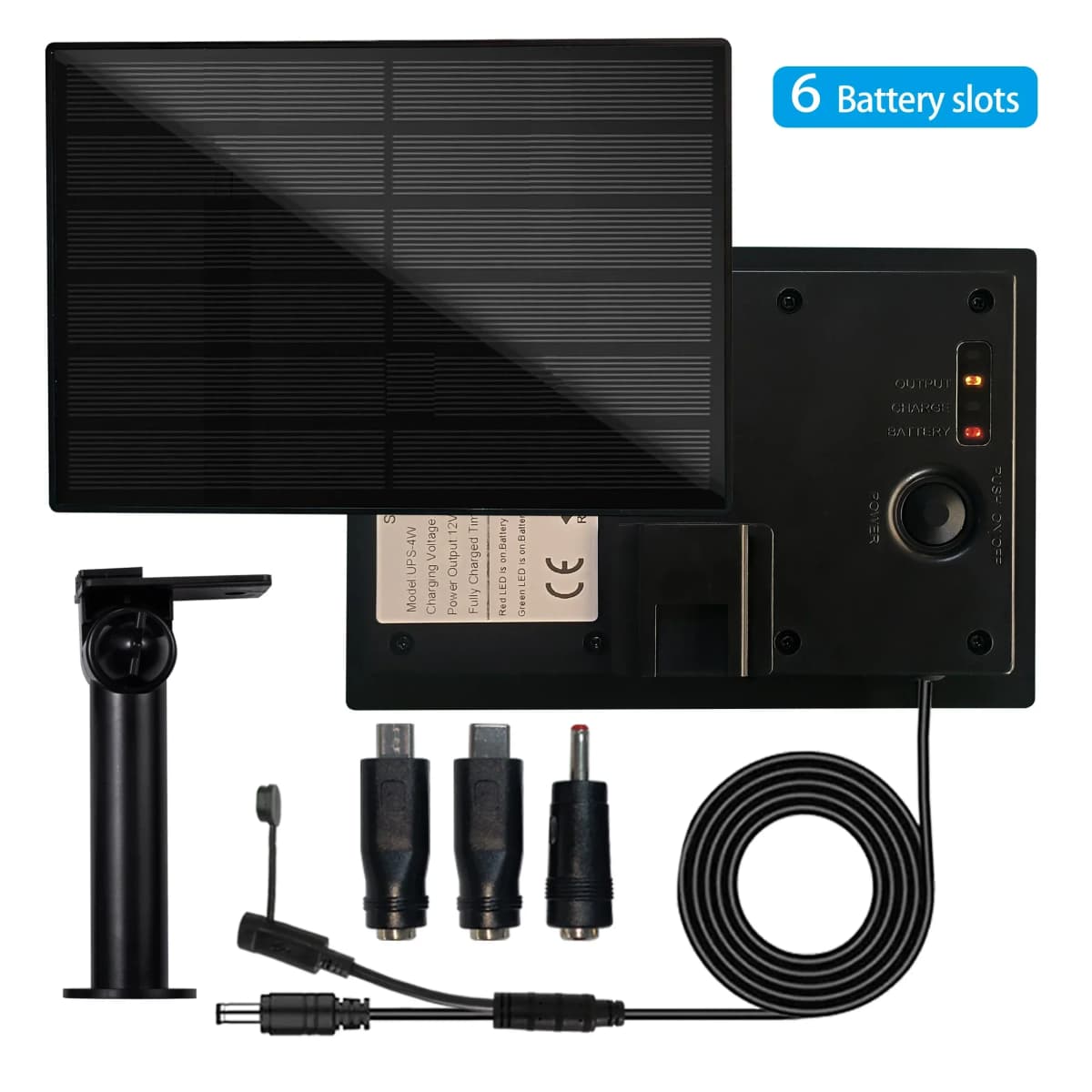

4W Solar Panel Waterproof IP66 Outdoor 2m Cable Charger USB TypeC 5V DC12V Powered Security WIFI Hunting Camera Or Tuya Sensors

NOTE

All options have been upgraded to new cables featuring one DC output port and one Micro USB charging port, allowing you to charge via USB. Complimentary accessories include a Type-C connector, a Micro mini USB connector, and a 3.5x1.3mm DC connector.
We have adjusted the position of the charging port, with its functionality remaining unchanged.You may receive different versions.

NOTE！！

*Only supports battery cameras (sleepable cameras)
*Support hunting camera
*It can support up to 6PCS batteries.

Note:

*The 12V output panel cannot power the 12V2A camera for a long time, and the working time is about 8-10 hours. (Can power 12V low power hunting camera.)

Features：

Main Features:

*【Batteries can be installed】There are 6 slots for 18650 batteries inside the solar panel, the slots are standard 18650 battery size, you can easily install the batteries.
*【Mcu Charge Management】Low power consumption MCU core processor, the whole panel charging and discharging for fine management, to ensure that the panel runs well.
*【Monocrystalline silicon solar panel cells】Solar cells use monocrystalline silicon, which has the highest conversion efficiency of 23%, to improve the efficiency of converting sunlight into electricity.
*【Constant Current Voltage Regulator Circuit PCB】Built-in PCBA to output stable 12V voltage from the battery through constant current circuit to supply your device and keep him running well.
*【Solar & DC power input】The panel can be charged in two ways, you can charge him via sunlight or you can also charge the battery in the panel via a 5V2A power adapter.
*【Iindicator lamps】The back of the panel is designed with 3 status indicators, making it easy to understand the working status of the panel as well as troubleshooting.
*【Outdoor waterproof IP66】The panel is designed for outdoor use and is waterproof to IP66.
*【Overcharge and Overdischarge】The overcharge voltage is 4.25V and the overdischarge voltage is 2.8V, which protects your battery more safely and prolongs the life of the battery.

NOTE:This link does not include batteries.

6Pcs Battery Solt

It can support up to 6PCS batteries, this link does not contain batteries, you need to buy the batteries yourself.

Light explanation

red light
On: The battery voltage is normal (above 2V)
Off: The battery is abnormal.
green light
Flashing (1 flash per second): charging (battery voltage between 2.8-4.0V)
Flashing quickly (1 flash every 0.5 seconds): charging failure
Slow flash (1 flash in 2 seconds): The battery voltage is below 2.8V.
Always on: The battery voltage is above 4.0V.
orange light
On: there is output voltage
Off: No output voltage

Continuous equipment

The panel supports PIR motion detection cameras, but does not support high-power cameras that work 24/7.

IP66 waterproof

IP66 waterproof, use outdoors.

NOTE！！！！！

*Solar panels cannot provide 7X24 hours of power.
*If you're powering a 12V PTZ camera, be aware of how long it can last.

Can it be applied to those devices?

It can be connected with the following equipment and provide a stable power supply. Note: The purchase of this connection only includes solar panels and does not include the following equipment.

Charging precautions(NOTE)

1. For the first use, be sure to leave the panel without any equipment connected to it and charge it in the sun for more than 2 days.
2. Press the switch and the red light is on, indicating that the battery voltage is above 2.8V and placed in the sun. The green light is on to indicate that it is charging, and the green light is off to indicate that it is fully charged.
3.If the battery voltage is lower than 2.8V, in order not to affect the battery life, recharge, the panel will stop outputting voltage. Please restart the solar panel after charging.

Size

mm

Battery choice

*18650 type battery (height must be 65mm)
*The positive electrode must have a conical cap
*Korea KC battery, cannot be used, please choose a battery with a height of 65mm. thanks
