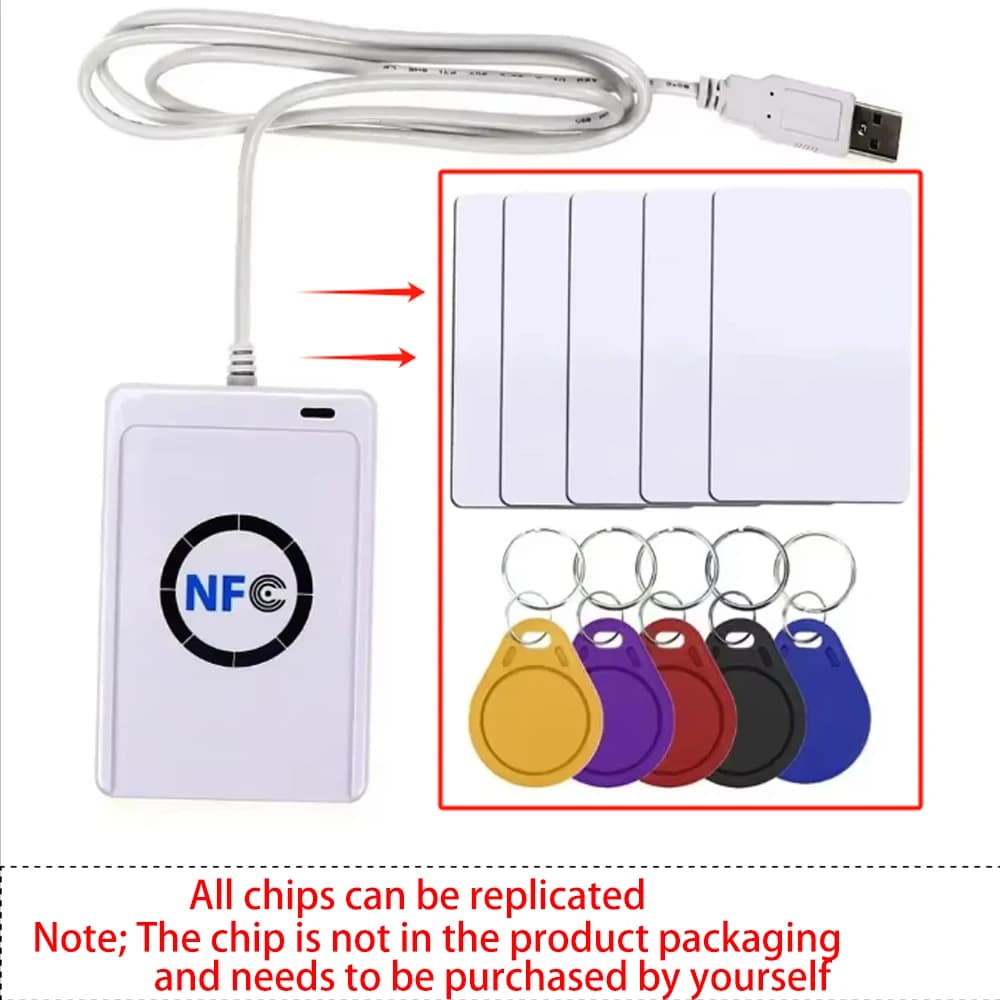

NFC Reader USB ACR122U contactless smart ic Card and writer rfid copier Copier Duplicator 5pcs UID Changeable Tag Card Key Fob

Note:

Due to air transport restrictions, CDs are not available by default. Please download the software from the link below:

http://download.5yoa.com/NFCWSoftware.zip

ACR122U Introduction

The ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology. It is the world’s first CCID-compliant contactless card reader/writer that follows both ISO 14443 and ISO 18092. This device is designed to support not only MIFARE® and ISO 14443 Type A and B cards but also FeliCa and NFC tags.

By making use of up to 424 Kbps read/write speed for NFC tag access and up to 12 Mbps for USB full speed, ACR122U can efficiently read from and write to various contactless cards/tags. It is also PC/SC-compliant which allows interoperability across different applications and platforms.

You can experience the convenience in using ACR122U, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.

Introduction to the packaging of the produced film：

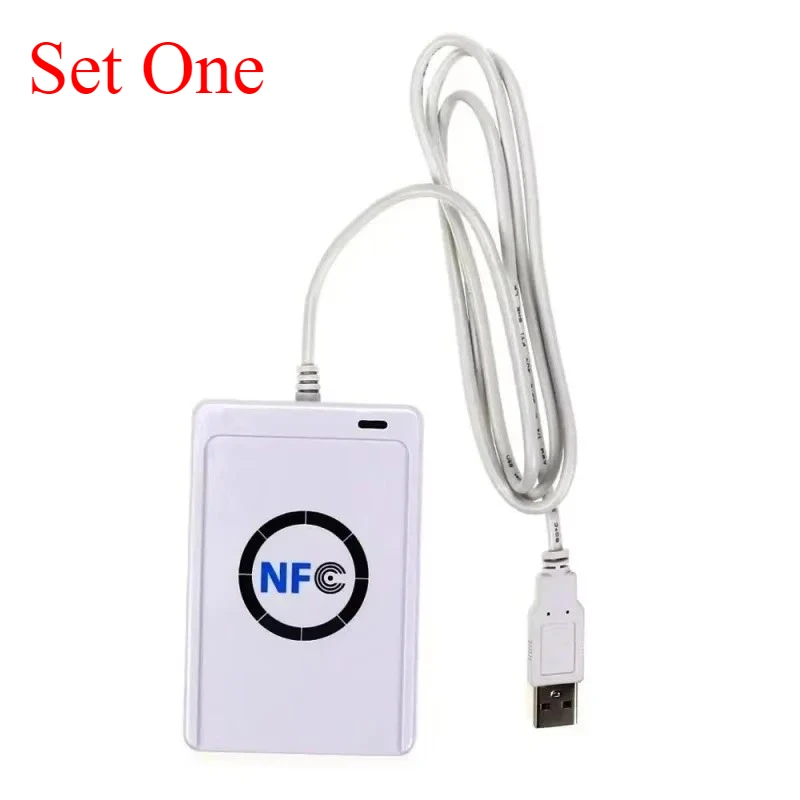

Set One: Single Machine

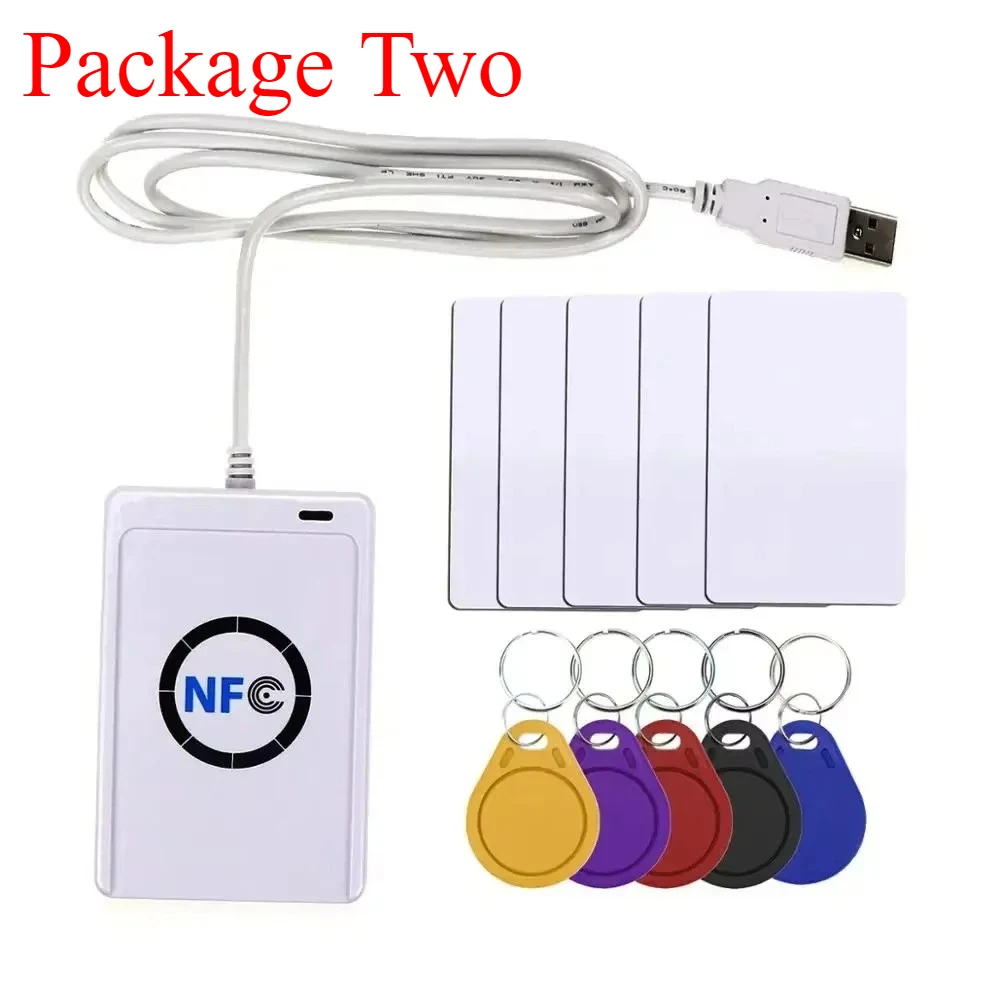

Package Two: Single machine +5 cards +5 round cards

Features

• USB Full Speed Interface

• CCID-compliant

• Smart Card Reader:

o Read/Write speed of up to 424 Kbps

o Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

o Supports ISO 14443 Part 4 Type A and B cards, MIFARE Classic®, FeliCa, and all four types of NFC (ISO/IEC 18092 tags)

o Built-in anti-collision feature (only one tag is accessed at any time)

• Built-in Peripherals:

o User-controllable bi-color LED

o User-controllable buzzer

• Application Programming Interface:

o Supports PC/SC

o Supports CT-API (through wrapper on top of PC/SC)

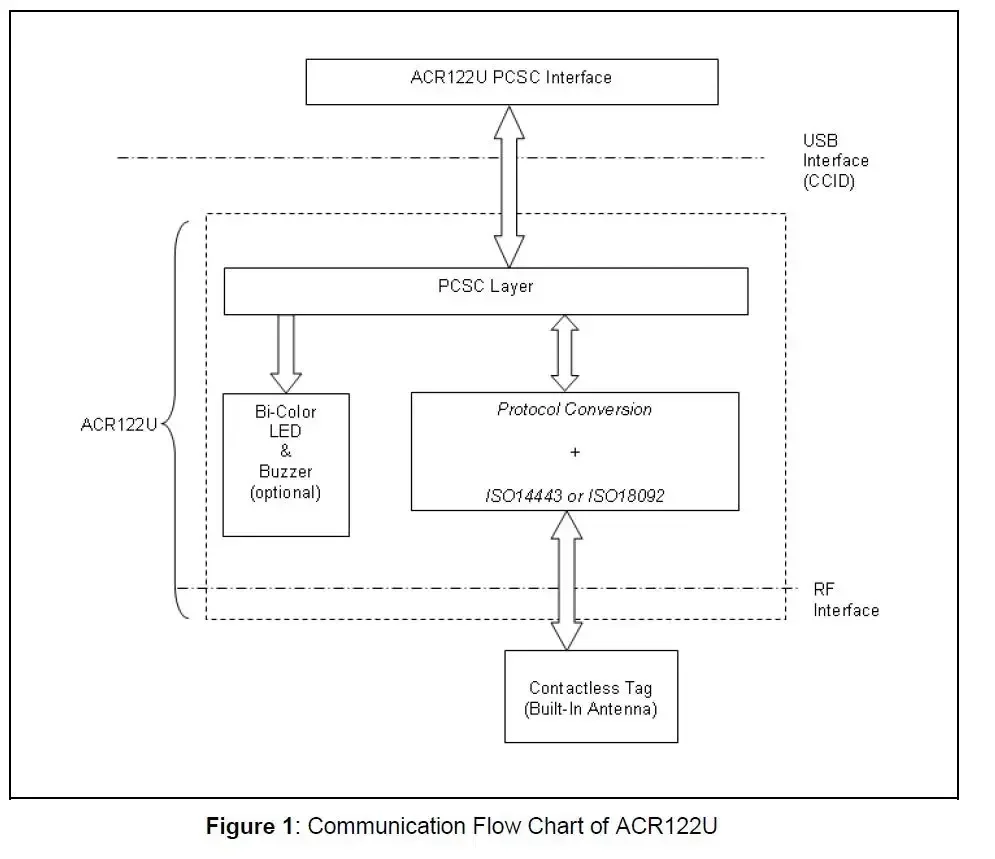

Communication Flow Chart of ACR122U

The Standard Microsoft CCID and PC/SC drivers are used; thus, no ACS drivers are required because the drivers are already built inside the Windows® operating system. Your computer’s registry settings can also be modified to be able to use the full capabilities of the ACR122U NFC Reader. See Appendix A for more details.

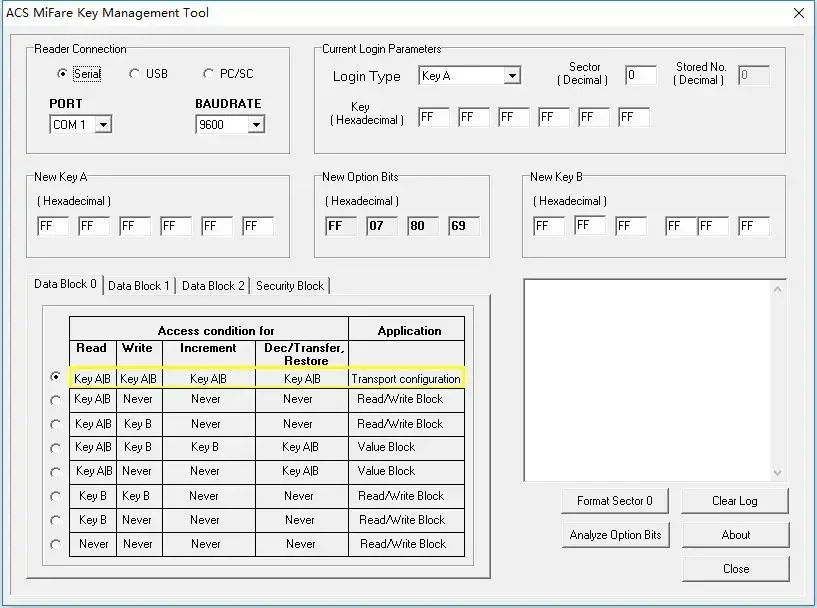

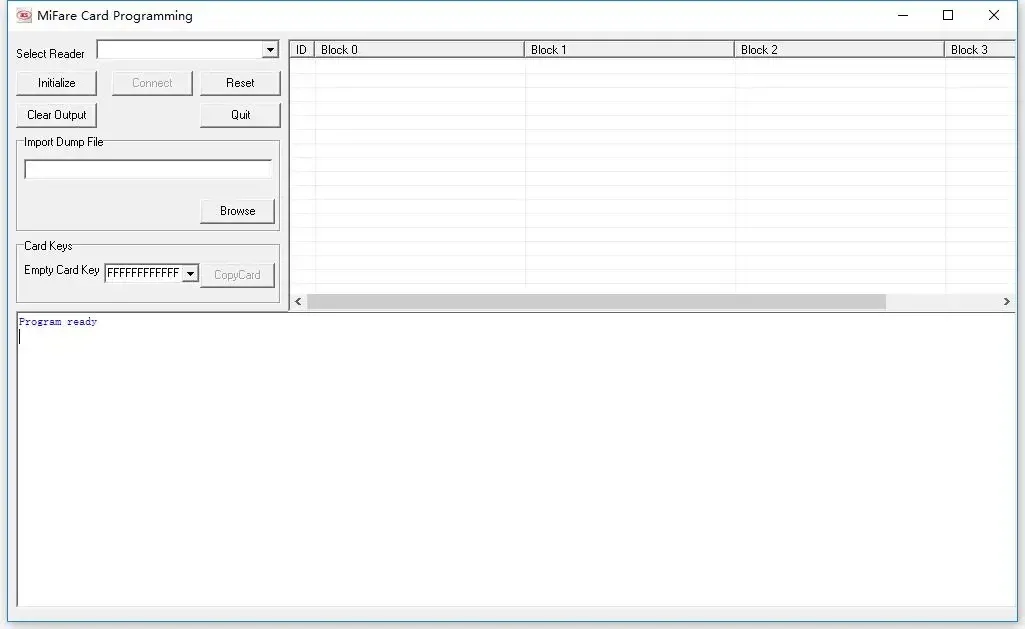

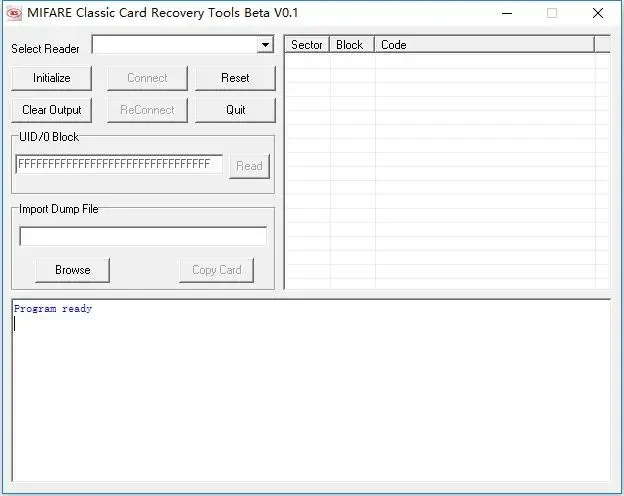

Software Samples
