CCTV POE IP network Camera PCB Module video power cable 60cm RJ45 female connector with Terminlas

CCTV POE IP network Camera PCB Module video power cable 60cm RJ45 female connector with Terminlas
Size: length 700mm,Φ5mm
Cable color: Withe
-----------------------------------------------------------------------------------

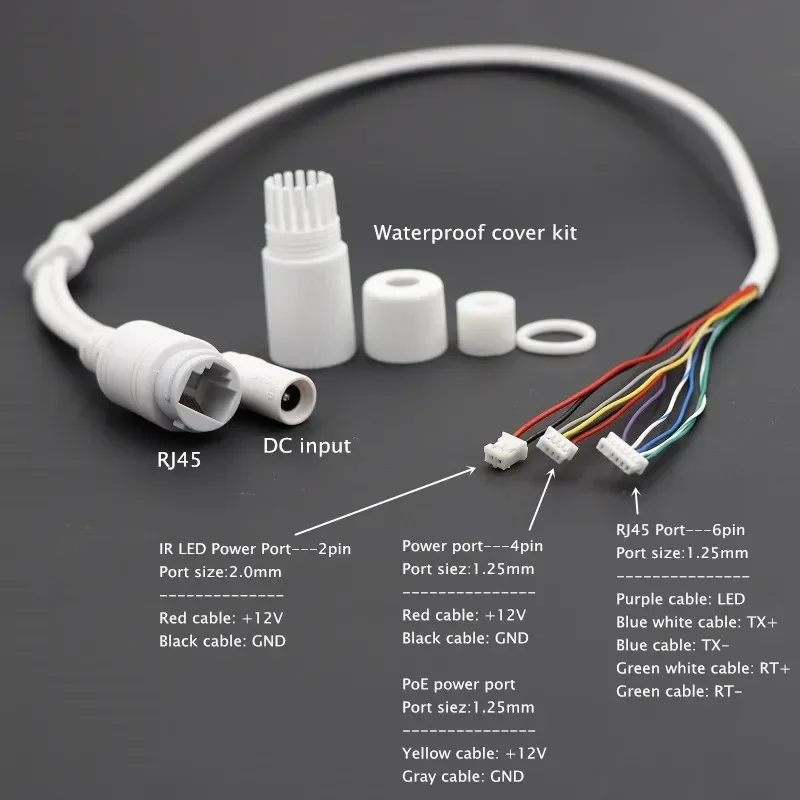

2 PIN---2.0mm
Red: + 12V
Black: GND
2 PIN---1.25mm
Red: + 12V
Black: GND
2 PIN---1.25mm
Yellow: PoE +12V ( 4/5 of RJ-45 )
Gray: PoE GND ( 7/8 of RJ-45 )
5 PIN---1.25mm
Blue: TX-
Blue+White: TX+
Green: RX-
Green+White:RX+
Purple: LED
-----------------------------------------------------------------------------------
Packing list:
1 pcs network video cable
1 pcs 2pin port(2.0mm)
1 pcs 4pin port (1.25mm)
1 pcs 6pin port (1.25mm)
Please note: 1 pcs 2pin port (2.0mm), 1 pcs 4pin port (1.25mm), 1 pcs 6pin port (1.25mm) and cable are separate,Please according to their own needs,Arrange the cable sequence.
-----------------------------------------------------------------------------------
