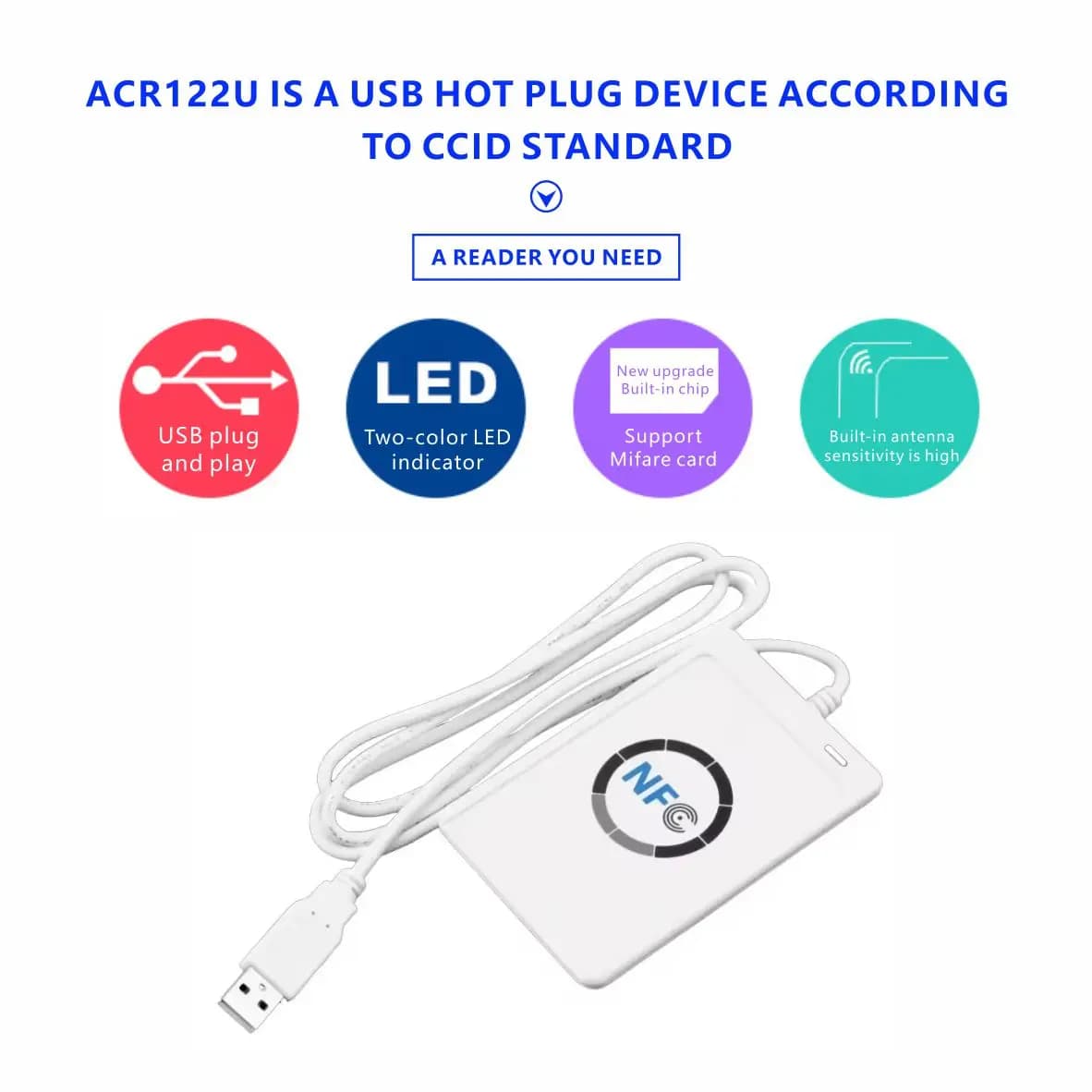

USB ACR122U Contactless Smart Card Access Card Copy Reader IC Property Elevator Decryption Copy Machine 13.56MHZ

Download link of software:

https://drive.google.com/drive/folders/16I6t3MpN5OUY4bdB9jk0rWNYBFN3-x5c?usp=sharing

Features:

100% Brand new and high quality!

USB 2.0 Full Speed Interface

CCID Compliance

CCID-compliant

PC/SC-compliant

Read/write speed up to 424 kbps

Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

Supports ISO 14443 Type A and B, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags

Supports for Mifare Ultralight C (via pseudo APDUs) and for Mifare Plus SL1 (4 Byte UID, via pseudo APDUS) and SL3

Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes

Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)

USB PnP

Application:

1. Network access control

2. Bank&paymen

3. NFC mobile ta

4. Public transportation terminal

5. Automatic fare collectio

6. Physical access contro

7. Customer loyalt

8. Time and attendanc

9. Contactless public phone

10. Vending machine

Specifications:

Dimension: 98 mm (L) x 65 mm (W) x 12.8 mm (H)

Interface: USB Full Speed

Operating Distance: <= 50mm (depends on tag type)

Supply Voltage: Regulated 5V DC
