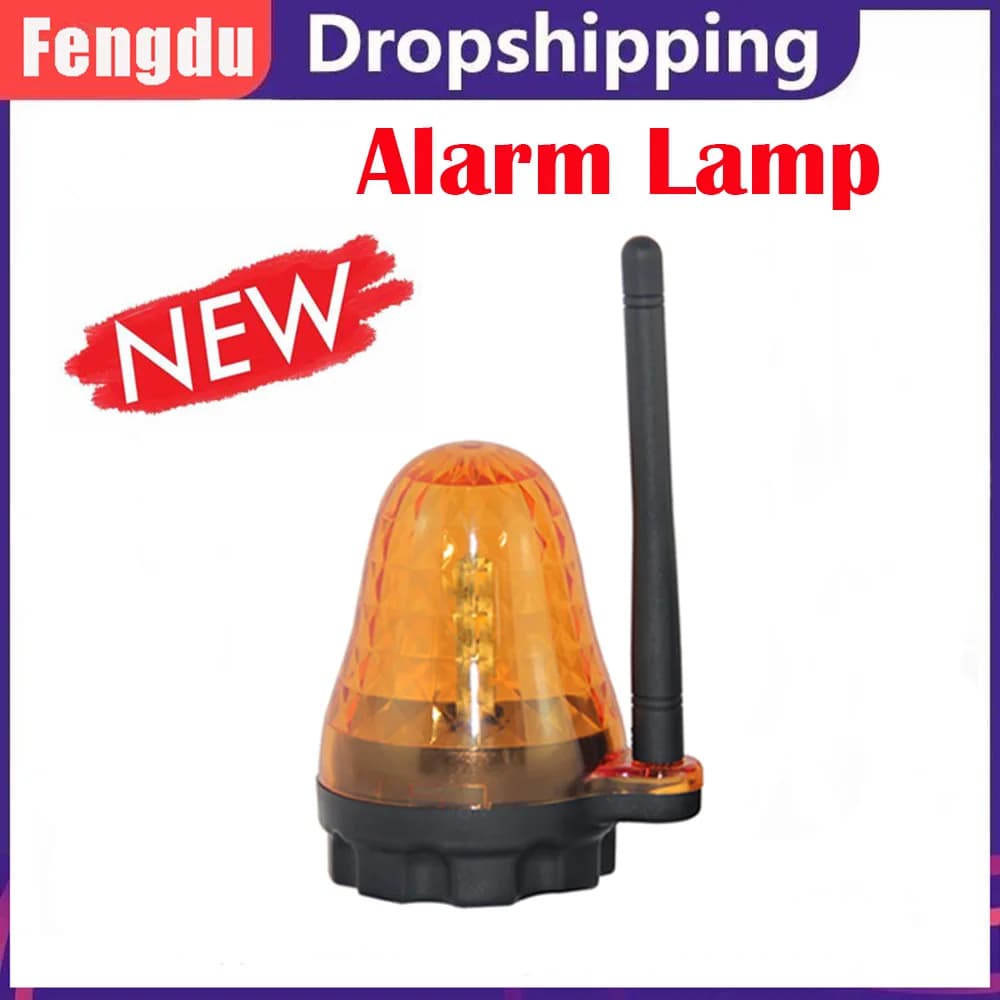

High Intensity LED Warning Beacon Light 24V 230VAC Universal Alarm Signal Lamp for Automatic Gates Garage Door

High Intensity LED Warning Beacon Light 24V 230VAC Universal Alarm Signal Lamp for Automatic Gates Garage Door

Specification

Working voltage: 12-265V AC/DC
Loading capacity: 1.5W
Weight: 156g
Flashing frequency: 1Hz
Installation method: Vertical/horizontal
Working temperature: -20°C~+60°C
Protection level: IP54
Size: 60*85mm

Wide Range Of Uses:

Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters
Electrical appliances/Home automation i.e. lights, Alarm system, access control system

Installation

Open the package; take out the products and all the accessories. Removing the antenna by rotatinganticlockwise.
Mark 2 holes on the wall by using the fixing hole of bracket.
Drilling two 6mm diameter holes and one 10mm diameter hole. Then put the expansion plug intothe 6mm diameter holes. Put the wires through 10mm diameter hole.
Put the power wire and antenna through the cable holes in the holder. And fix the holder to thewall by provided 4mm*30mm self-taping screws.
Connect the wire and antenna to the correct terminals.
Put the cover back and make sure the cover is fastened with the bottom base without any gap.Then screw the antenna up and turn clockwise to make it tight.
Always install the holder and lamp upright to the ground. Horizontally installation may cause therain go inside the lam and damage the board.

Notice：

1,Terminal 1 is for connectino thepower input; working voltage is 12-265VAC/DC.
2,Terminal 2 is for connecting the antenna of RF controller to extend the effective working distance

Instruction:

After power the lamp on, LED will start fashing in 1HZ(default setting).
sW1 is the switch for selecting flashing or on mode of the lamp.CAP short connectsthe 2 pins; the lamp is in flashing mode. Remove the CAP from 2 pins, the lamp is inon mode.
Be Careful, the whole board includes the components are with high voltage. Alwaysmake sure power is off before you open the cover

Include:

1X flash lamp
1X antenna
2X Screws
1 X English User Manual
