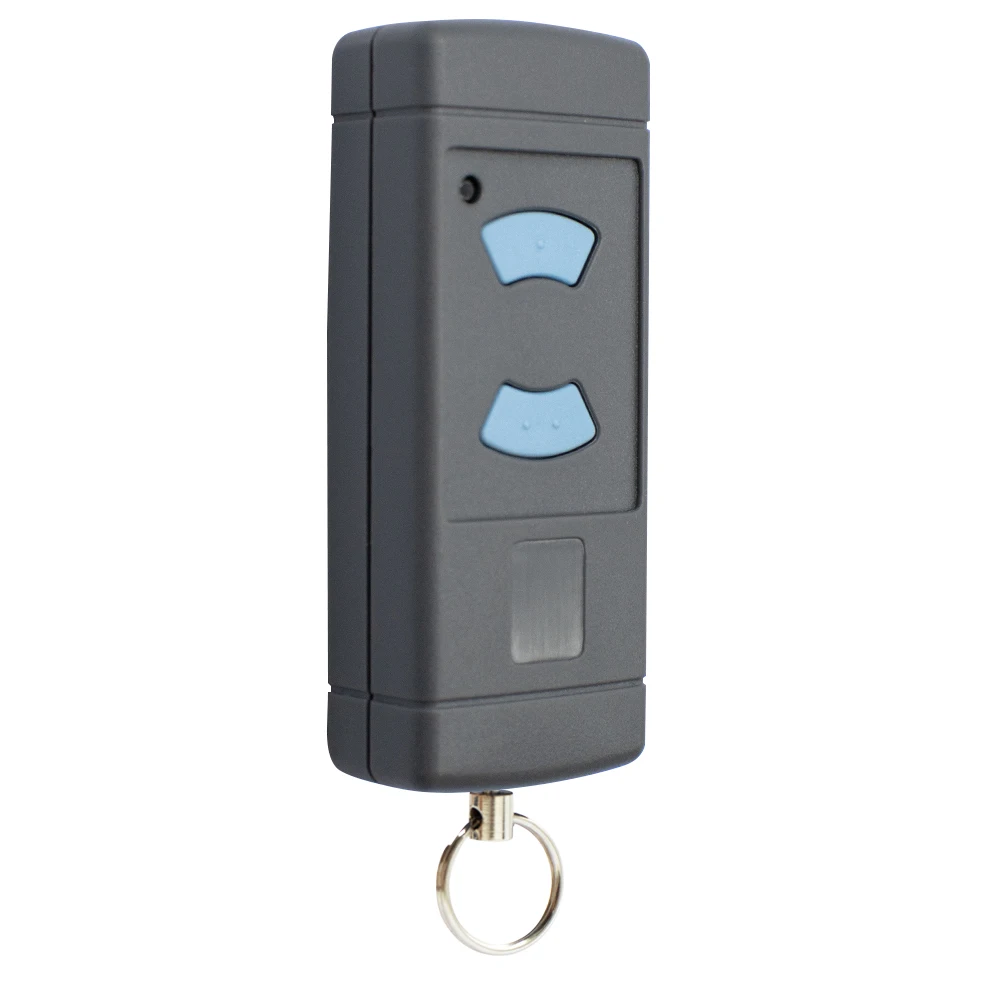

HSE2 HSE4 868MHz Remote Control For Garage Door

HSE2 HSE4 868MHz Remote Control

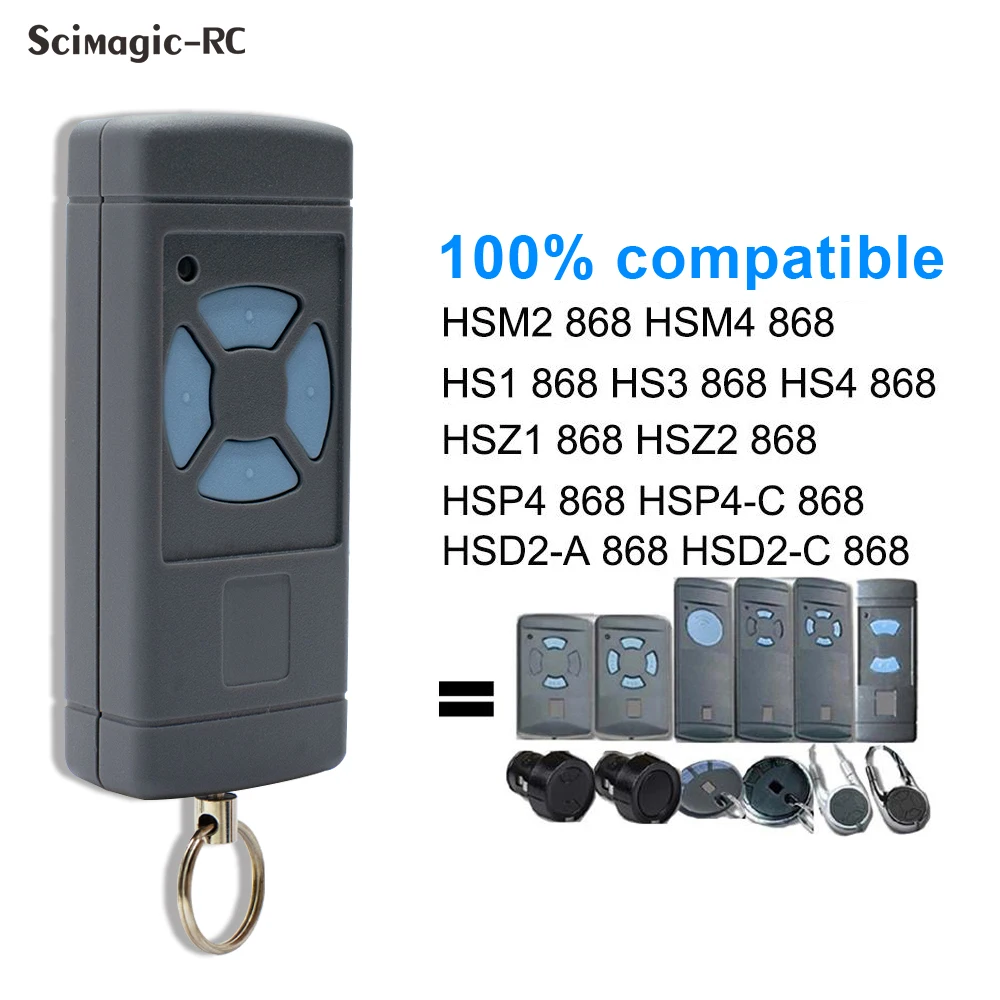

Compatible Models

hsm2 868 ,hsm4 868,
hs1 868,hs2 868,hs4 868,
hse2 868,hse4 868
hsz1 868,hsz2 868,
hsp4 868,hsp4-c 868,
hsd2-A 868,hsd2-c 868
It is only compatible with the 868MHz blue button

Selling point

When your original remote control is lost or damaged, you can buy our remote control and pair it with your receiver, after the remote control programming is successful, you will get new remote control.

Remotes from other sellers must clone the original remote. If your original remote is lost, other seller's remotes will not work for you.

2 programming methods

Face-to-face clone original remote control.

Programming with the receiver.

Specifications:

Type of programming: face-to-face clone

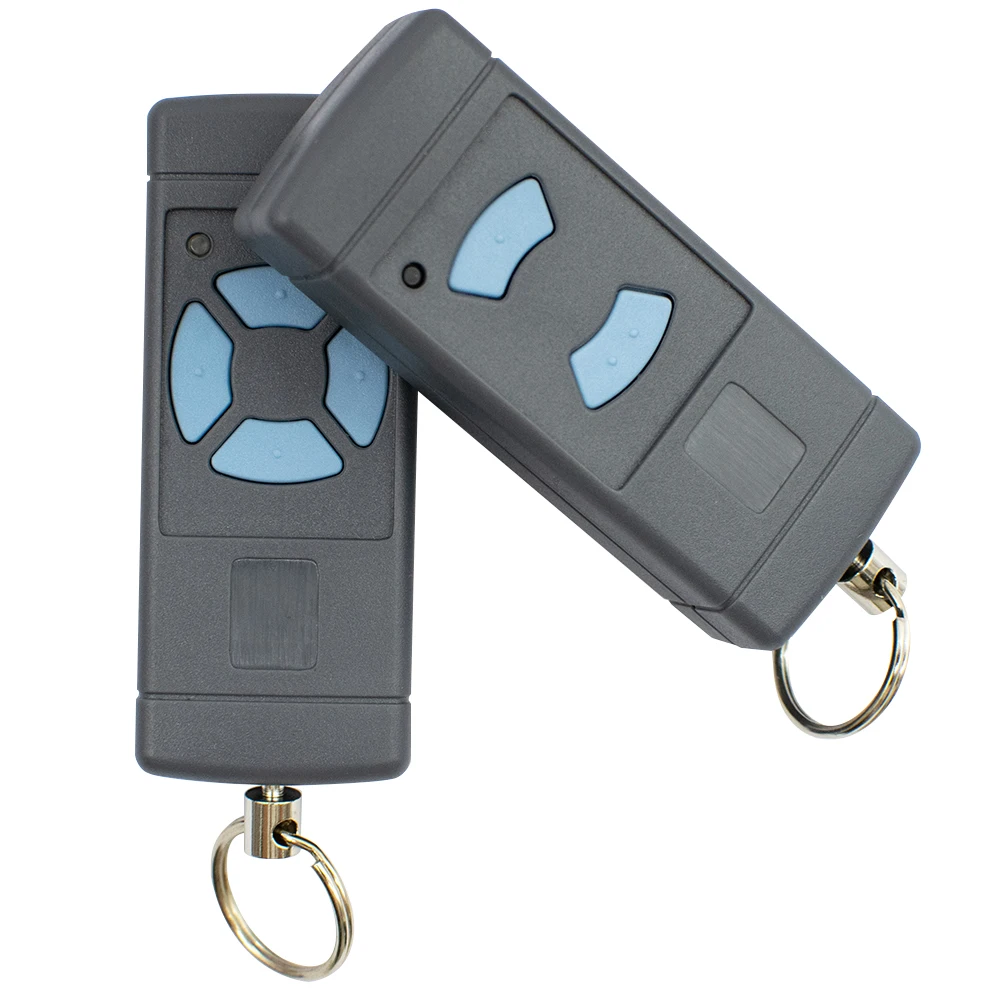

Number of channels: 2 or 4
Size: 58*23*13mm
Product material: ABS
Product weight: 40 g
Battery: CR2032
Installation: wireless

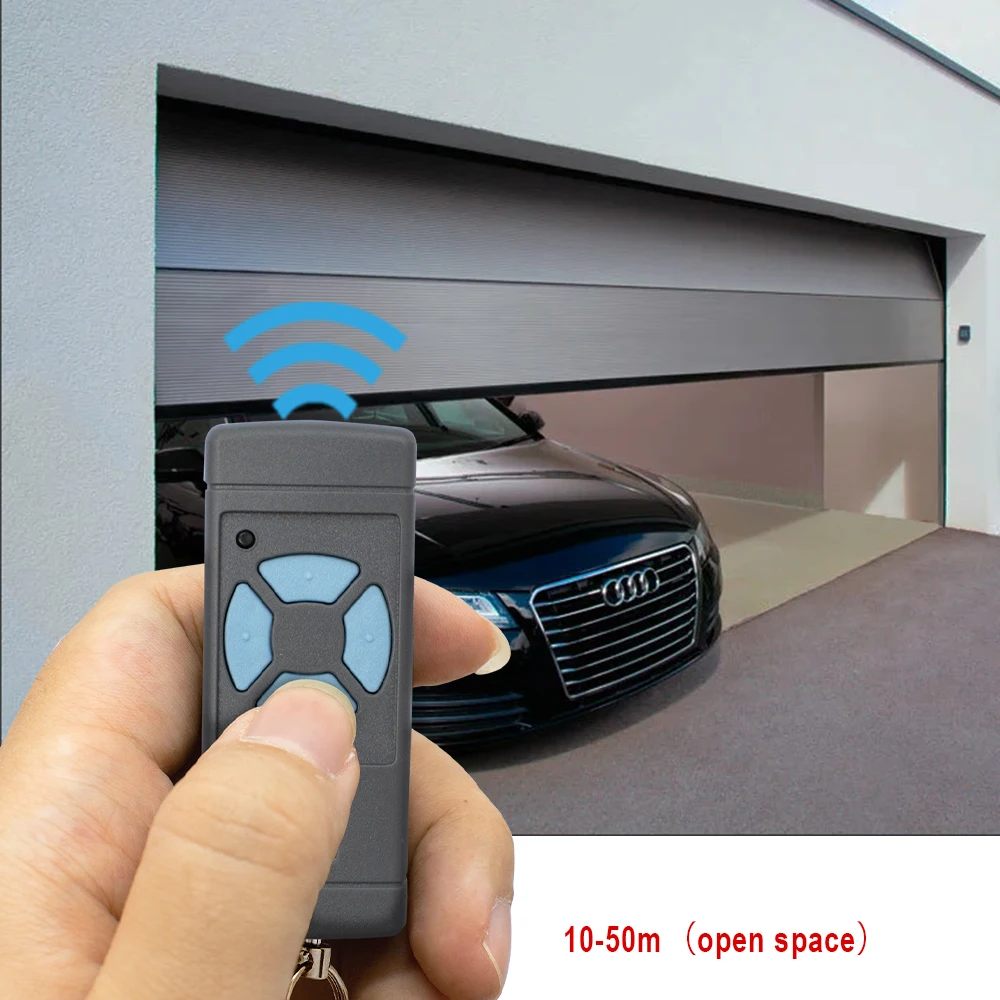

Wireless transmission distance: 50-150 (m). (open space)
Frequency:868MHz, 868.3MHz, 868.35MHz bule buttons.

Include

* Remote Control
* Battery
* Keychain
* English Manual

2 different programming methods:

If you don't have an original remote on hand

The programming method is the same as your original remote control.

1. Opener the cover of your gate opener, you can find the programming button
2. Press the learning button for 1-2 seconds
3. Take the new transmitter and press the button that you wish to use until the led flash quickly on the receiver.Your new remote is now ready for use.

If you have a working orignal remote on hand

You can copy the code from your original remote face to face as follow steps:

a: Clear the code: Press and hold button 1 and button 2 until the led flash quickly, release button 2(keep press button 1), then press button 2 for 3 times slowly, the led will flash quickly, release two buttons( press any button, no led flash, the code is deleted)

b: Copy the code: Press and hold button 1 of original remote,then press and hold button 1 of duplicator until you see the duplicator's LED flash, release both buttons, finish copy, copy other button in the same way.

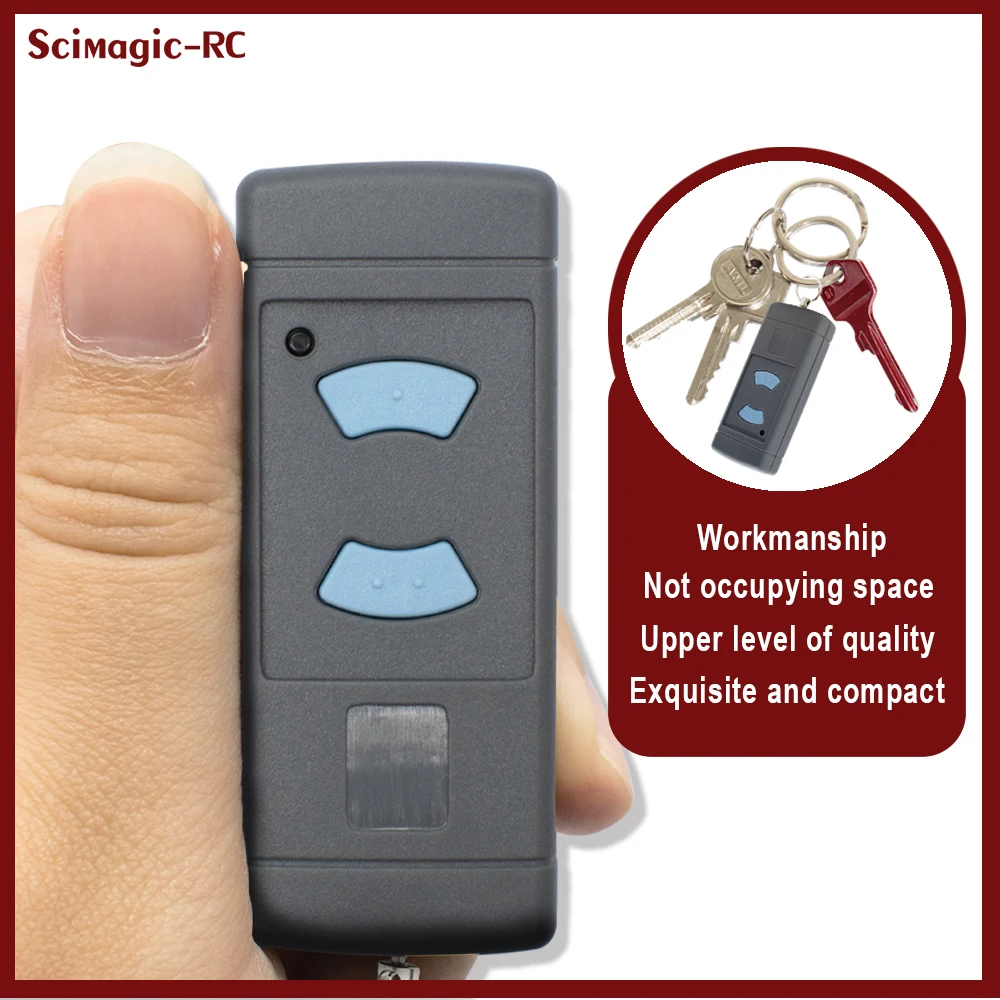

Physical photos
