Tuya WIFI Garage RF Smart Receiver 300-900MHz 433.92 868mhz 2CH Universal Garage Door Gate Opener Controller For Alexa

Warm Tip.

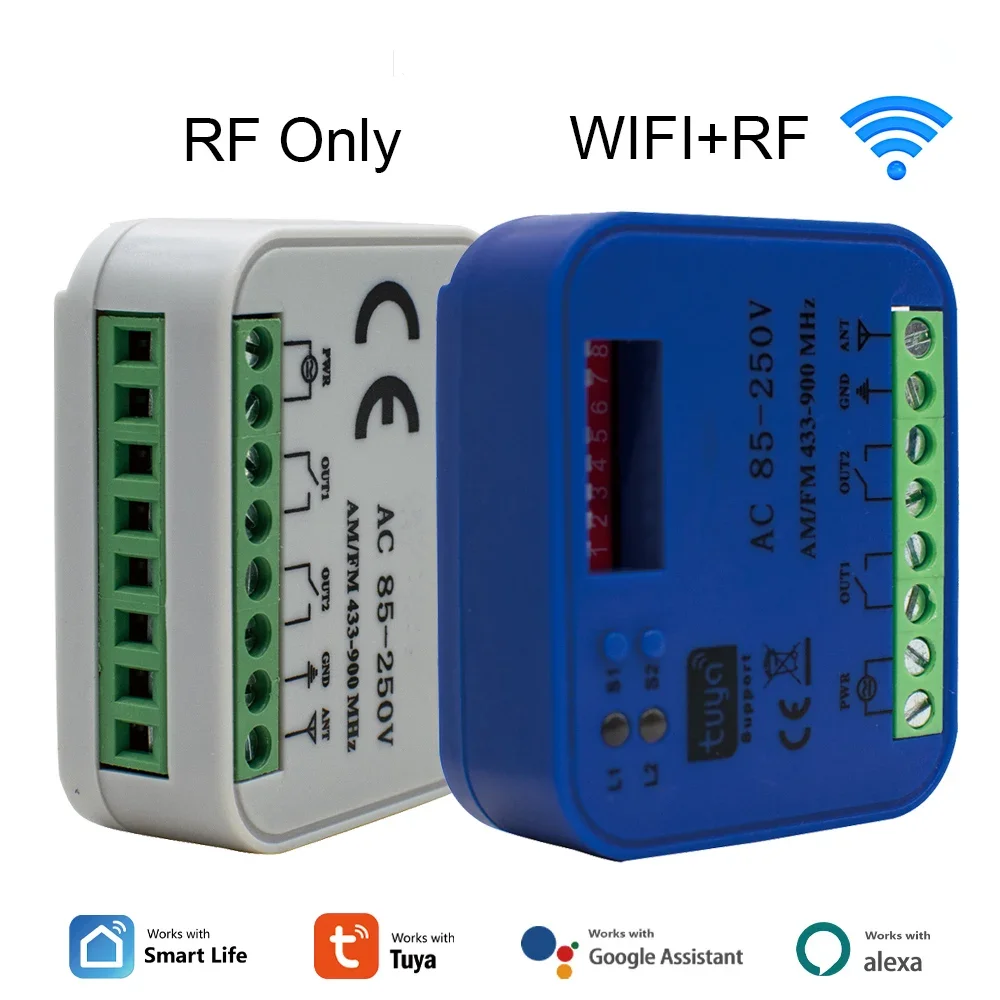

You can choose two versions: WIFI+RF version and RF version, you can choose two voltages: AC DC 9-30V AC 85-250V.

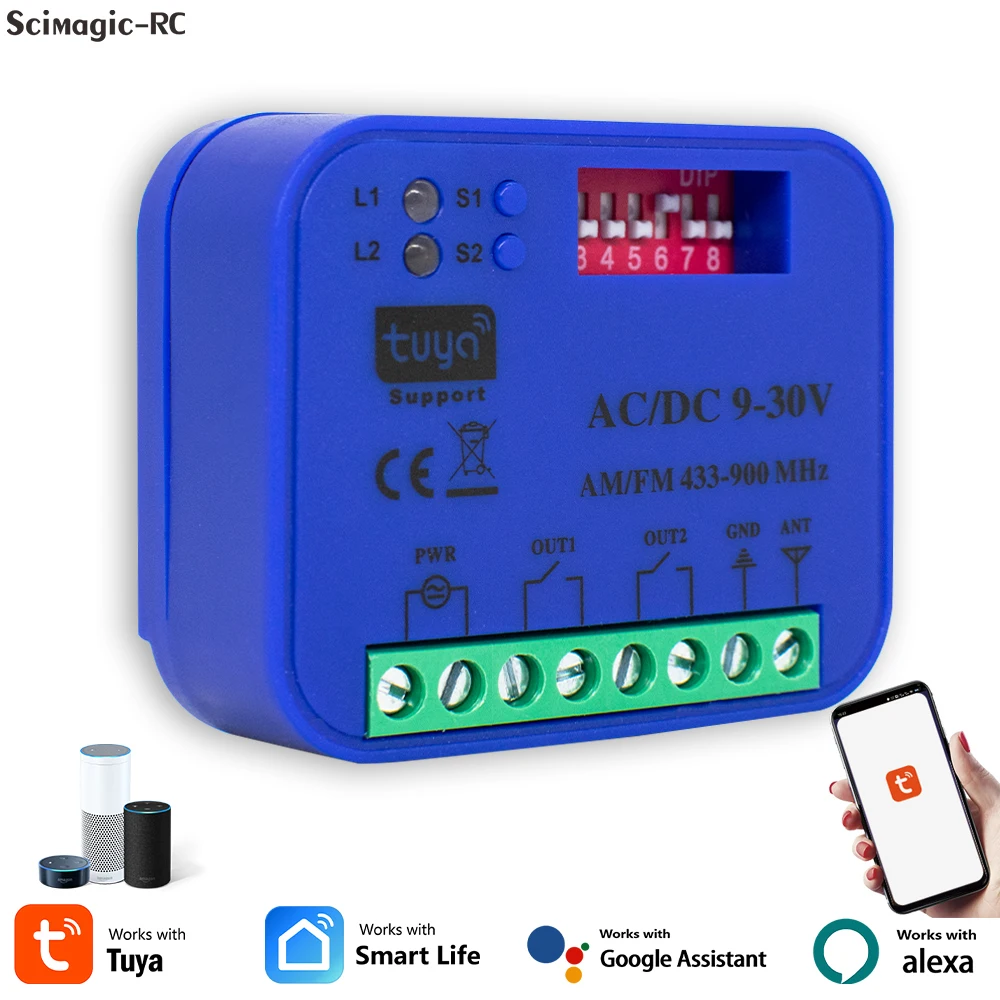

WIFI + RF VERSION

Tuya smart receiver Garage door opener controller features:

Tuya WiFi Smart Garage Door Receiver and Garage Open Close Monitor Compatible With Alexa Echo , Google Home voice control.

REMOTE MONITORING: You can open or close the door by the APP. You can check the garage door open or closed state in real time. You can authorize multiple people to access your garage.

EASY TO USE: Instantly control the garage door by tapping the TUYA or SMART LIFE app on your smartphone. Just connect the smart opener to the 2.4G WiFi network.

VOICE CONTROL: You can activate your garage door opener by placing a voice command to your Alexa or Google Assistant device or driving near the garage door

WIDE COMPATIBILITY: You can only use one controller per garage door opener. Compatible with most general garage door openers.Please check the our list.

TIMER FUNCTION: You can set schedules to open and close your garage door. Quick & easy installation as well without the need of a professional. No Hidden Mon

COUNTDONW FUNCTION: You can set the countdown time to close or open the garage door.

Selling point

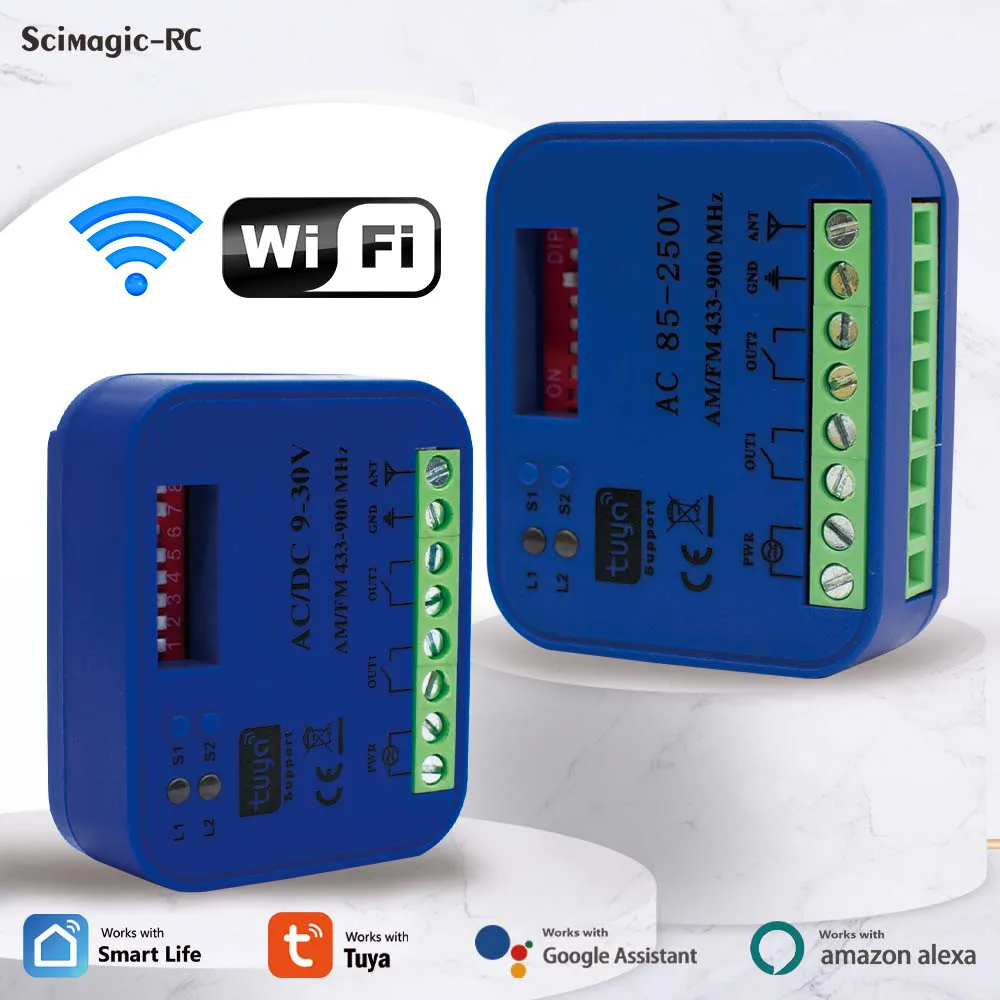

2025 New Style RF+Tuya Wifi Universal 300-900MHz Garage Door Receiver.

Control your garage door, gate, etc. via the Wifi Tuya APP to make your life smarter.

Wifi Smart 300-900MHz Receiver Compatible with Alexa & Google Home，Enabling voice control.

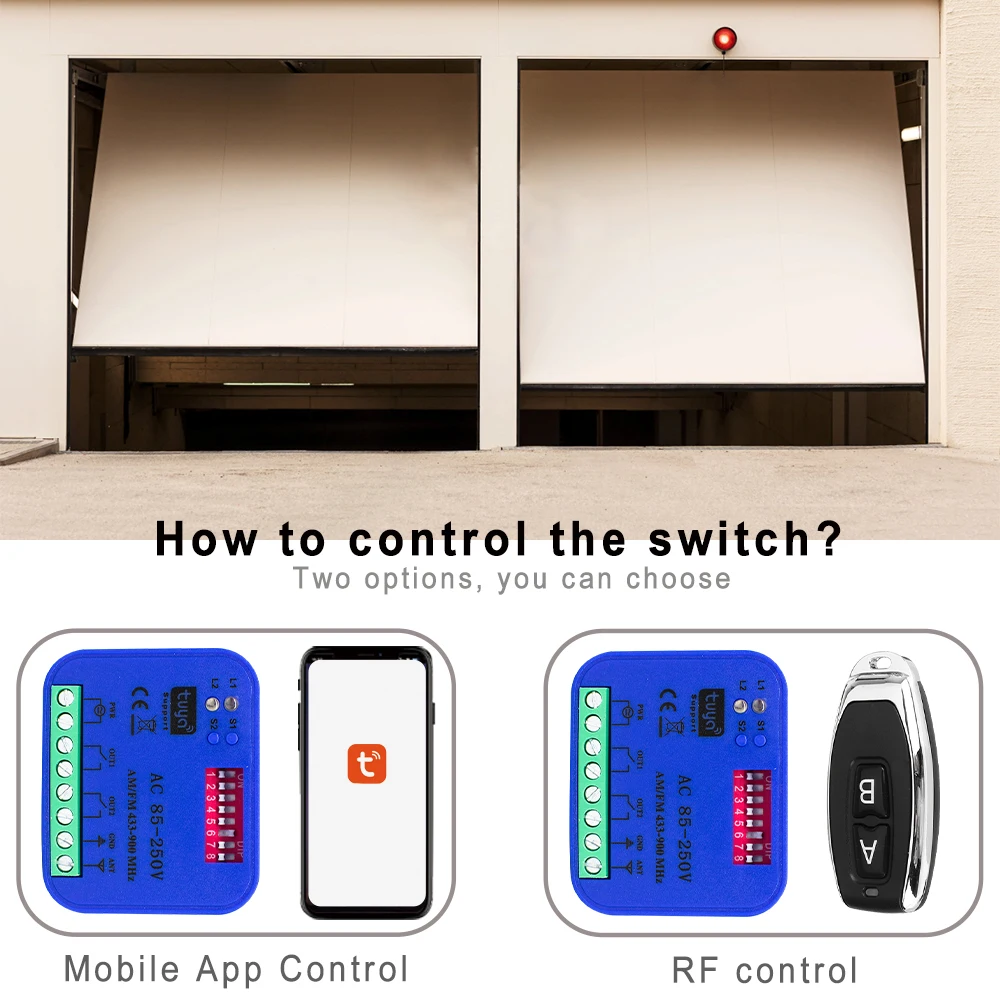

The traditional RF remote control function is retained so that your old remote control still works.

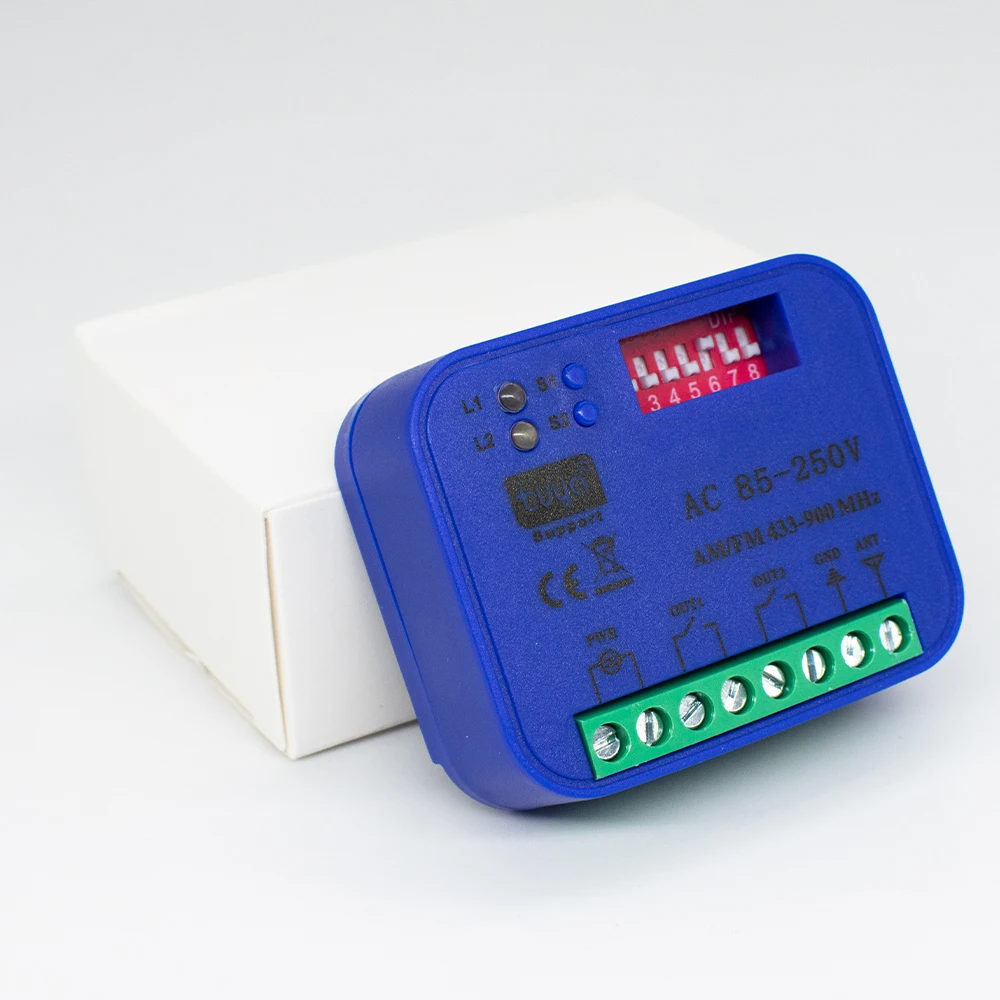

More options, Two voltages AC DC 9-30V or AC 85-250V

EASY ADD DEVICE:

1.Connect the receiver cable and power up the Tuya smart receiver..

2. Launch "Smart Life" or "Tuay Smart" APP. Tap the icon '+' on the top right corner.

3. Select the "All Devices", then select the "Wi-Fi Connector" type.

4. Tap "Confirm indicator rapidly blink"

5. Input the correct 2.4G Wi-Fi passwords. Then, tap confirm.

6.It will auto-connect with the device. Once the process is completed,it will prompt you that you can rename the device. Enter a new name and press'Save'.

Products advantage

[ APP Remote Control ] -WIFI Smart Garage Receiver can be controlled via smart life&Tuya Smart APP on your Phone/Tablet anywhere and anytime.
[ RF Control ] - Compatible with many different codes (fixed code, rolling code, learning code), different frequencies of the remote control (300-900MHz),Please contact us for details of compatible brands.
[ Hand Free Voice Control ] -WIFI Smart Garage Receiver can also connect with your amazon alexa and google home,simple a voice command to control it.
[ Schedule & Count Down Function ] -You can create schedule according to your personal requirement ,as well as count down function,smart and DIY your daily life to the maximum extend.
[ Working mode ] - Momentary.
[Family Share Function] Create a smart home together with your family member.
[ Easy to be installed ] - A great external receiver that's easy to install and simple to use

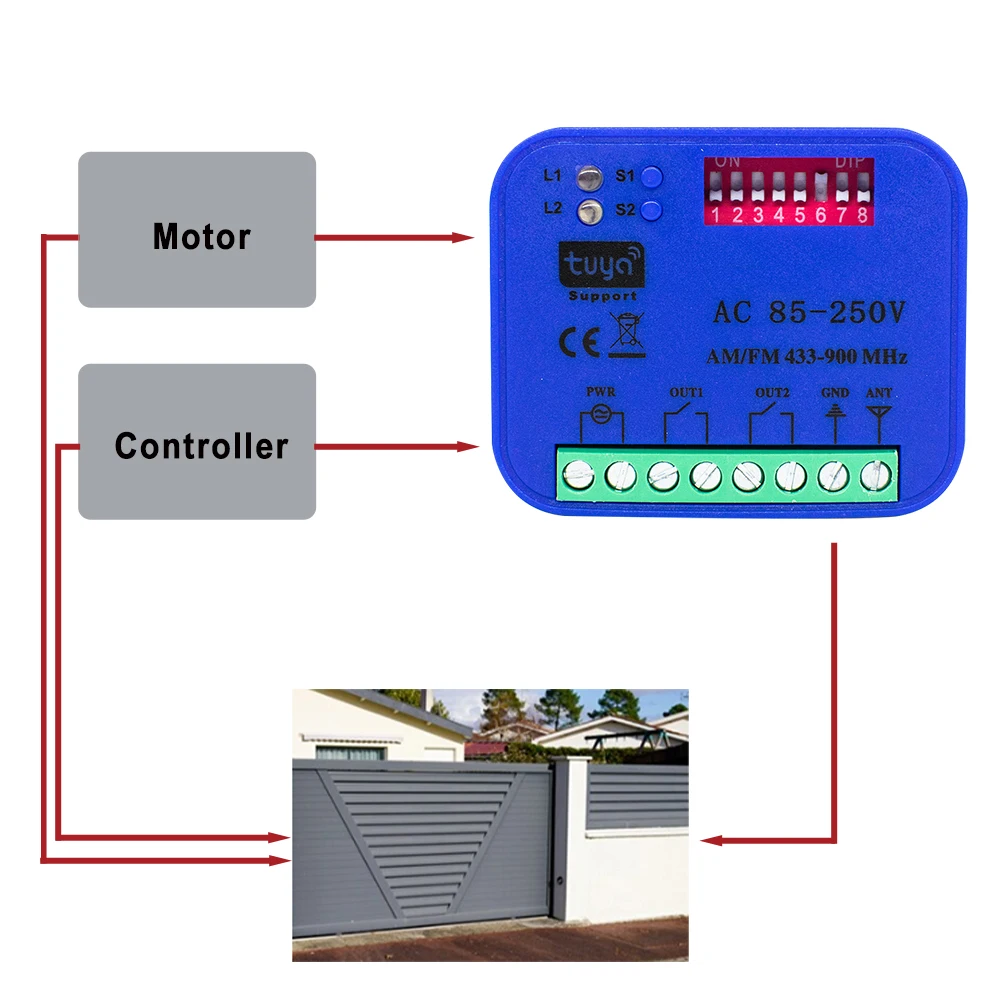

Smart Wifi Garage Door Receiver Controller(Open & Close your Garage by phone)

This Tuya Garage smart receiver use to work with Garage opener and make it can be controlled by the phone , easy install and without any changed in your Garage , Just one to make the garage smart, and you will have this funtions to open and close the garage door by phone ,by schedules ,by voice (work with alexa & google home) , Query status, query open/close recordsetc.

Smartlife / Tuyasmart APP Control

Availavle in google & IOS

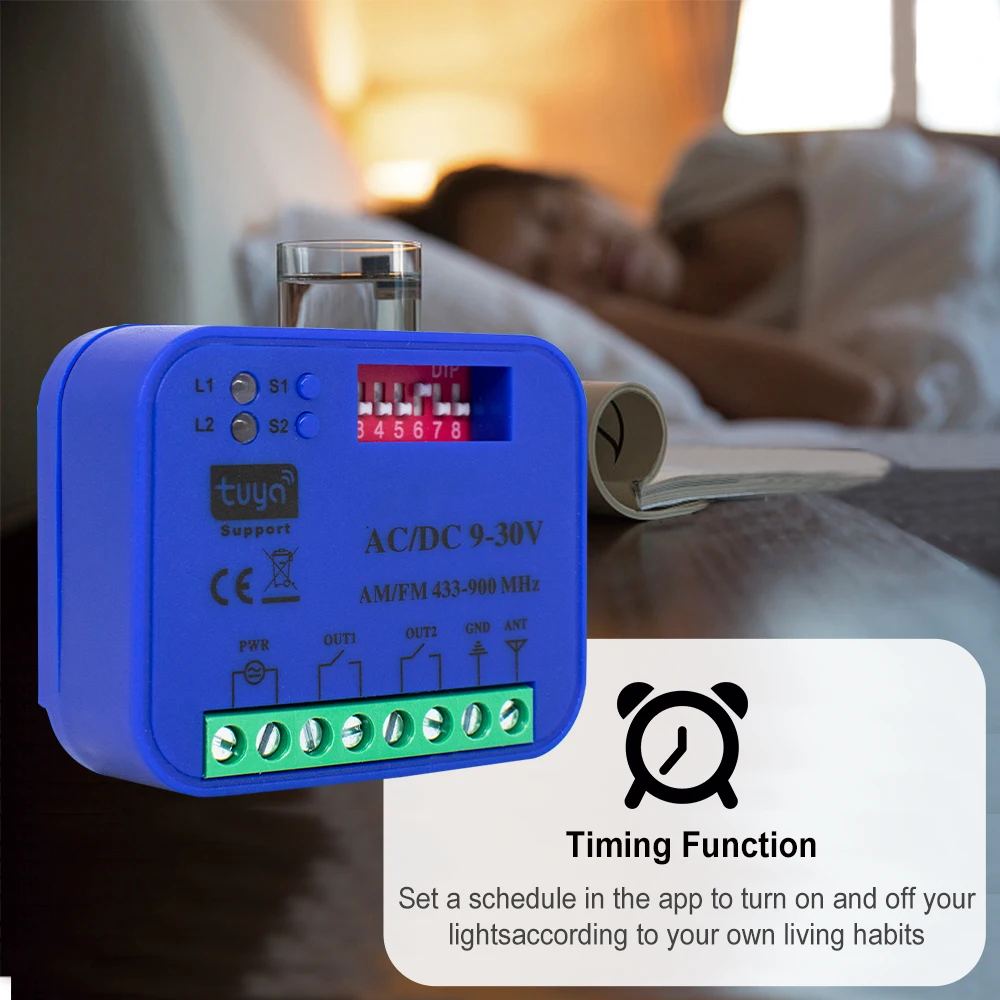

Schedules

Auto open or close the garage with your schedules or countdown. Automatically detects the status of the garage door more safer without false running.

Countdown

You can ask the Courier put the package in your Garage with the countdown function , and the Garage door will auto closed after the time , The smart Garage door open/close state detector function will help you ensure the Garage door open/close as your set.

Share Device With Your Family

After the family member registering a Tuya account, You can authorize device control to familys by "share device" in the APP

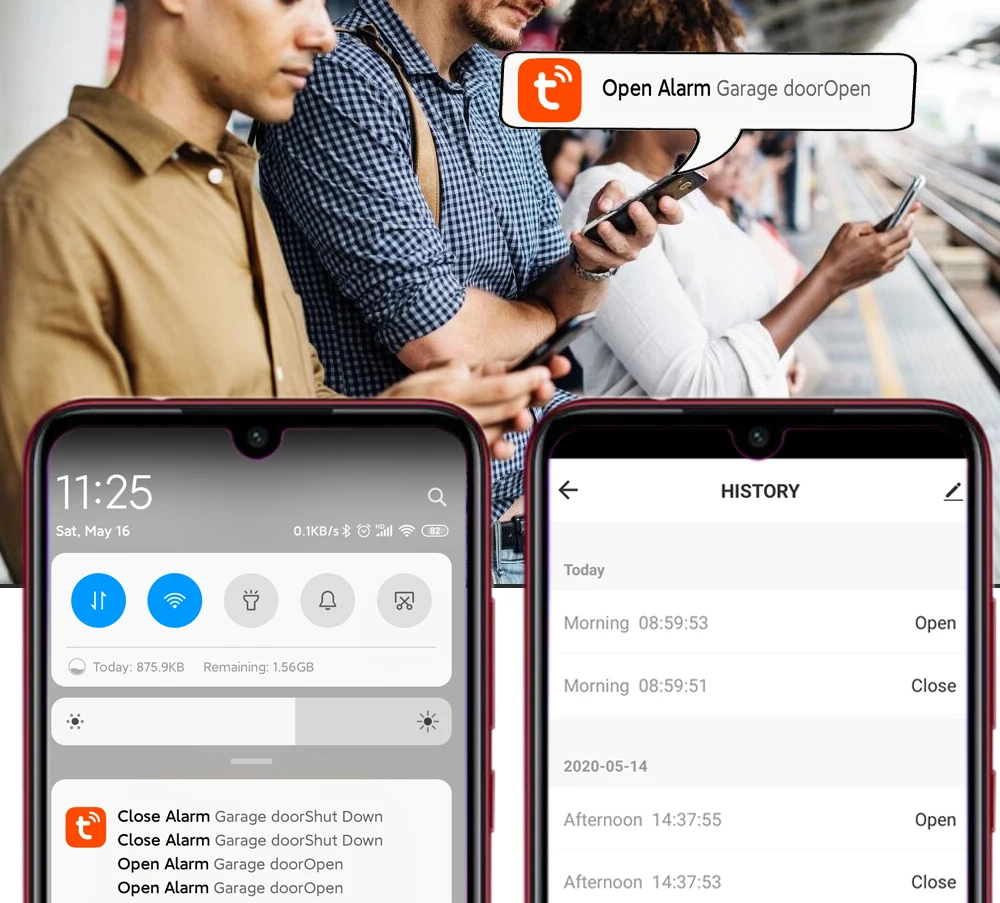

Garage Door Open/Close APP Message push & History

No matter where you are，You will get the APP message push when your Garage door opened/closed, and you can check the Garage door running history.

Support Amazon Alexa and Google Assistant to open/close Garage door by voice

You should add this Garage door controller to work with tuyasmart or smartlife APP , and Binding it with Amazon Alexa or Google Assistant to achieve voice control.

Specifications:

1)Name: Universal tuya Wifi smart receiver.
2)Operating Voltage: DC/AC 9V~30V or AC 85-250V
3)Channel: 2.
4)Frequency: 300MHz - 900MHz.
5) Distance: 30-50 meters.
6) Very mini size: 5.5cm*4.5cm*1.0cm.
7) One receiver can work with 100 codes.
8) It don’t interference other remotes and receivers.

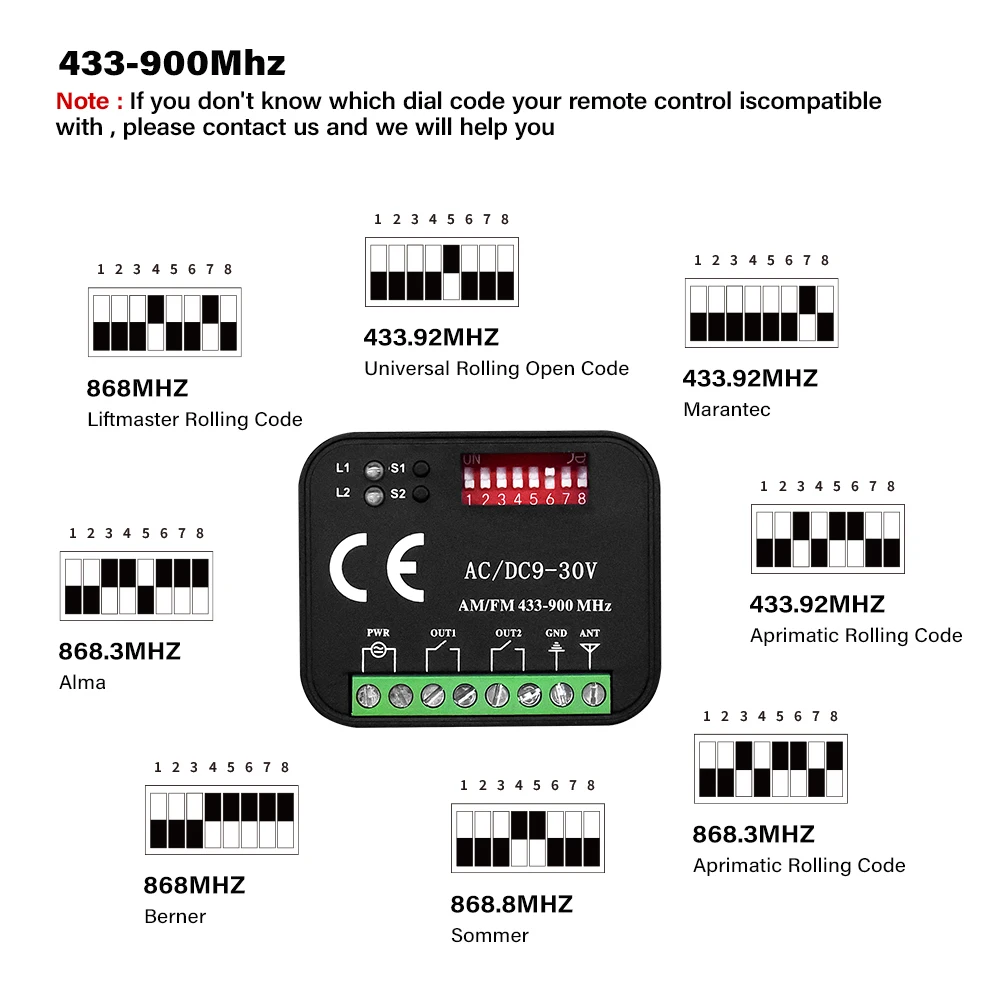

9) Brand selector: With 8 dip switches user can make different combination for different remote brands.
10)Code: Rolling and Fixed code & Learning code.

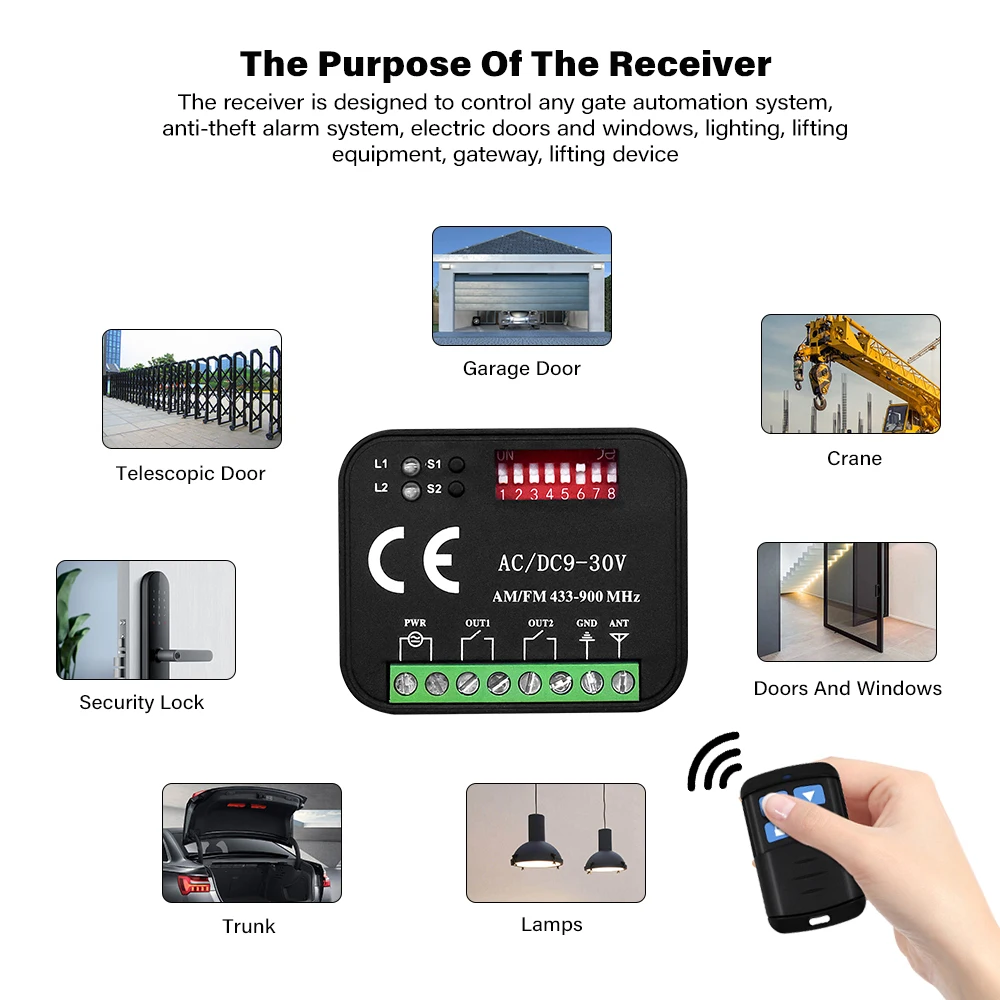

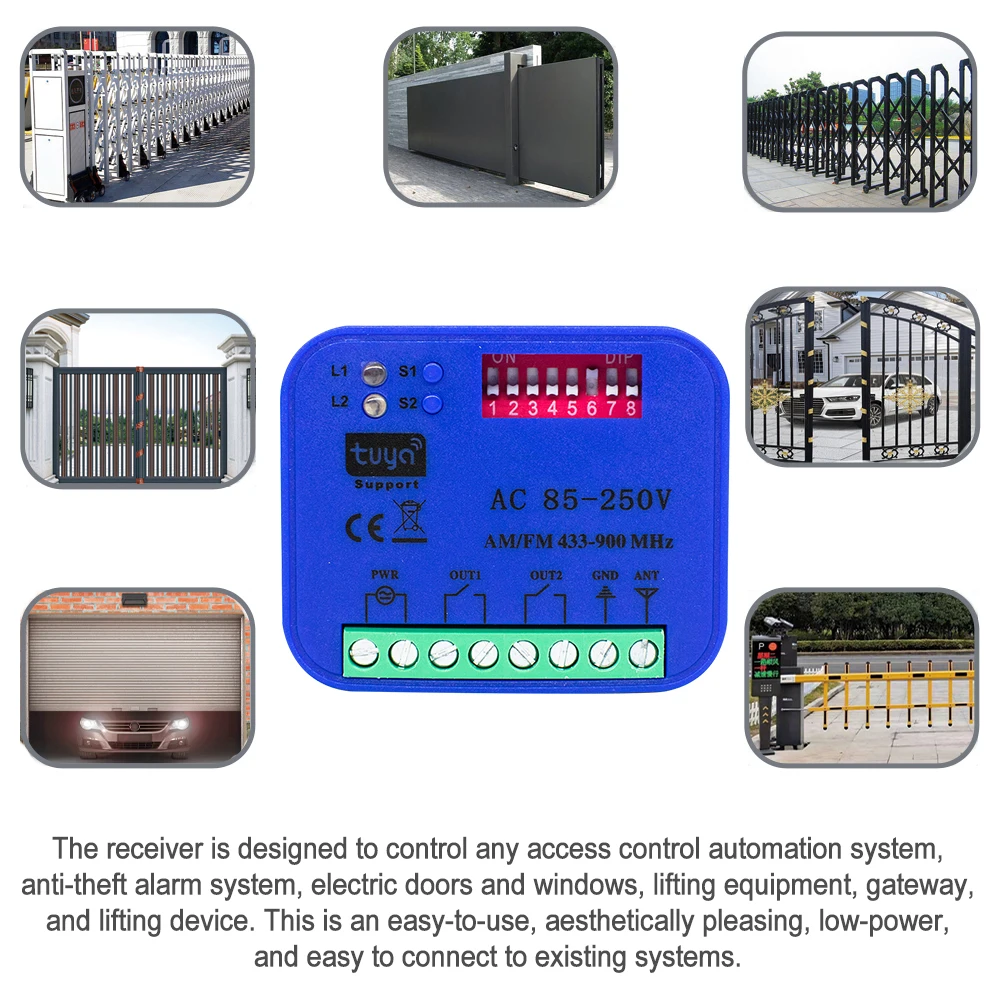

11)Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.

The traditional RF remote control function is retained so that your old remote control still works.

Brand selector: With 8 dip switches user can make different combination for different remote brands.

Working frequency: 300-900MHz(Rolling code & Fixed code)

300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz

Can identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),

Checklist before using the device

Your smart phone or tablet has connected to a2.4g WiFi with internet.
You need to enable Bluetooth of the phone.You have the correct WiFi PWD.
You have the correct WiFi PWD.
You smart phone or tablet must have access to APPstore,Google play.
Your router is MAC-open

Power on

*ON/OFF operating principle:
The connected appliances work/stop through
live wire power on/of

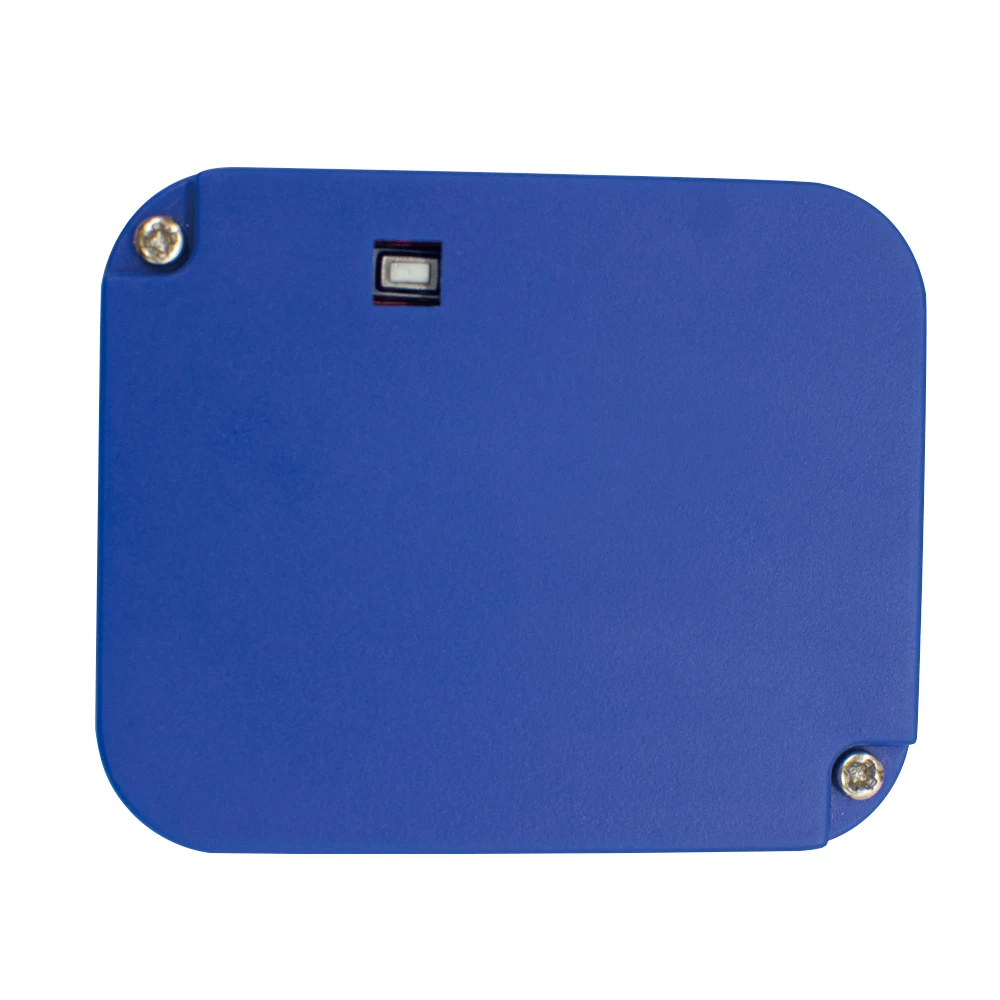

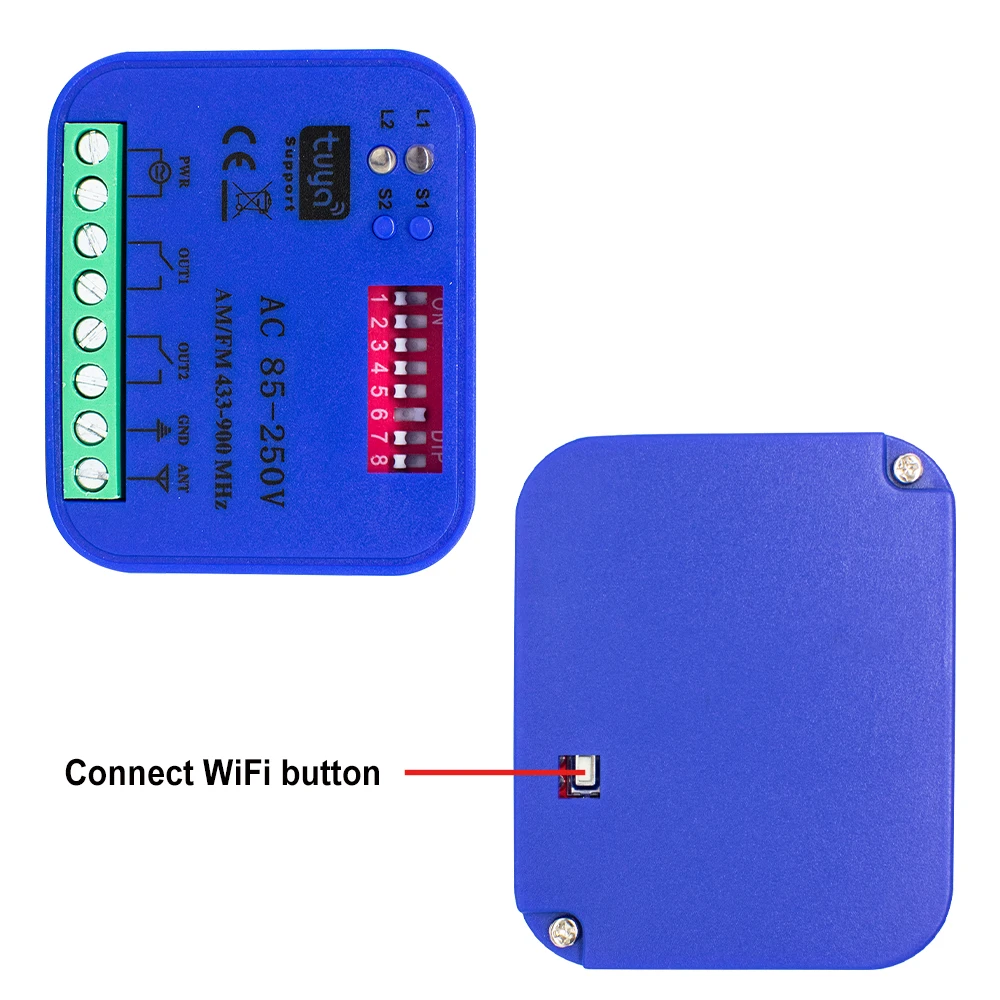

*There is the Wifi programming button at the back side of the receiver.
Find a small pin to hold and press it about 5-10 sencods, Connect the Tuay app while the blue led fast flash.

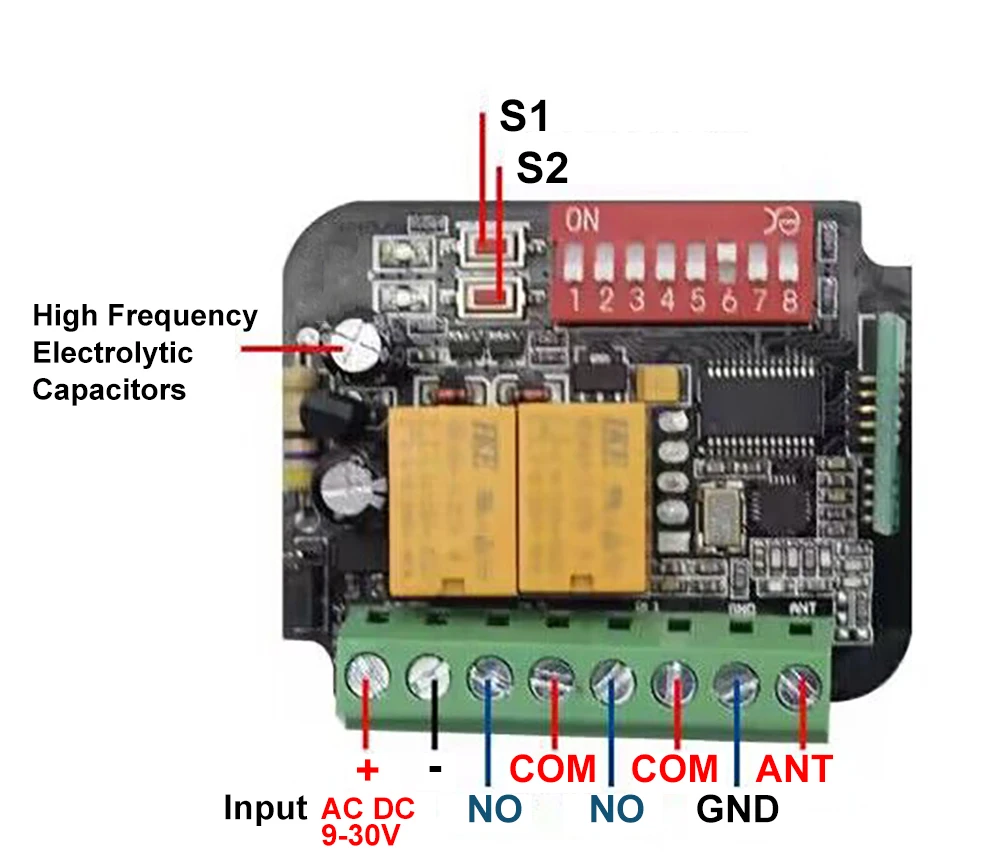

*Learn  Button  and  LED
In  receiver,  there are 2  independent  channels.  Each channel  has  independent  learn button  S1,  S2  and  L1,L2.

Programming procedure for remote control:

1. First, select the correct brand for remote that will be entry (by dip switch).
2. Press the learn button, LED turns on. Press the button on the remote, the LED S1/S2
flashes 4 times, this remote button entry into the successfully.
3. Repeat step 2 for another button.
4. Both channels work the same.

Remote control delete code
Pressing  and  holding  either  learn  button,  the  LED  start  flash.  Keep  holds  pressing  this
button  until  the  LED  turn  off.  All  data  in  the  memory  card  will  be  erased  permanently.

Notice:  Be  carefully  for  erasing  all  data  in the  memory  card.  The  data  will  be  erased
permanently  and  cannot  be  recovered.

RF VERSION

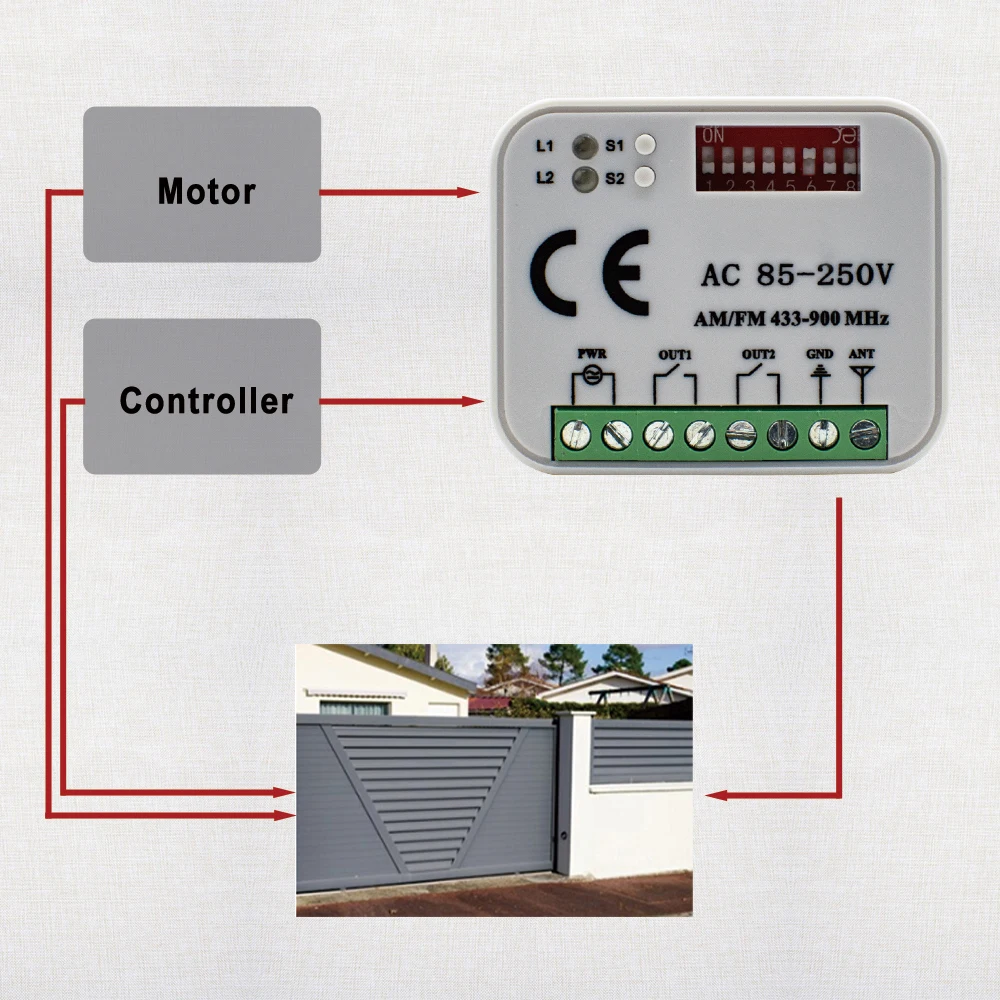

Universal Multi frequency 300-868mhz garage gate door receiver

Working frequency: 300-900MHz(Rolling code & Fixed code)

300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz

Can identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),.......................

Specifications:

1)Name: Universal receiver SMG-662.
2)Operating Voltage: 9V-30V AC 85-250V
3)Channel: 2.
4)Frequency: 300MHz - 900MHz.
5) Distance: 30-50 meters.
6) Very mini size: 5.5cm*4.5cm*1.0cm.
7) One receiver can work with 400 codes.
8) It don’t interference other remotes and receivers.
9) Brand selector: With 8 dip switches user can make different combination for different remote brands.
10)Code: Rolling and Fixed code & Learning code.
11)Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.

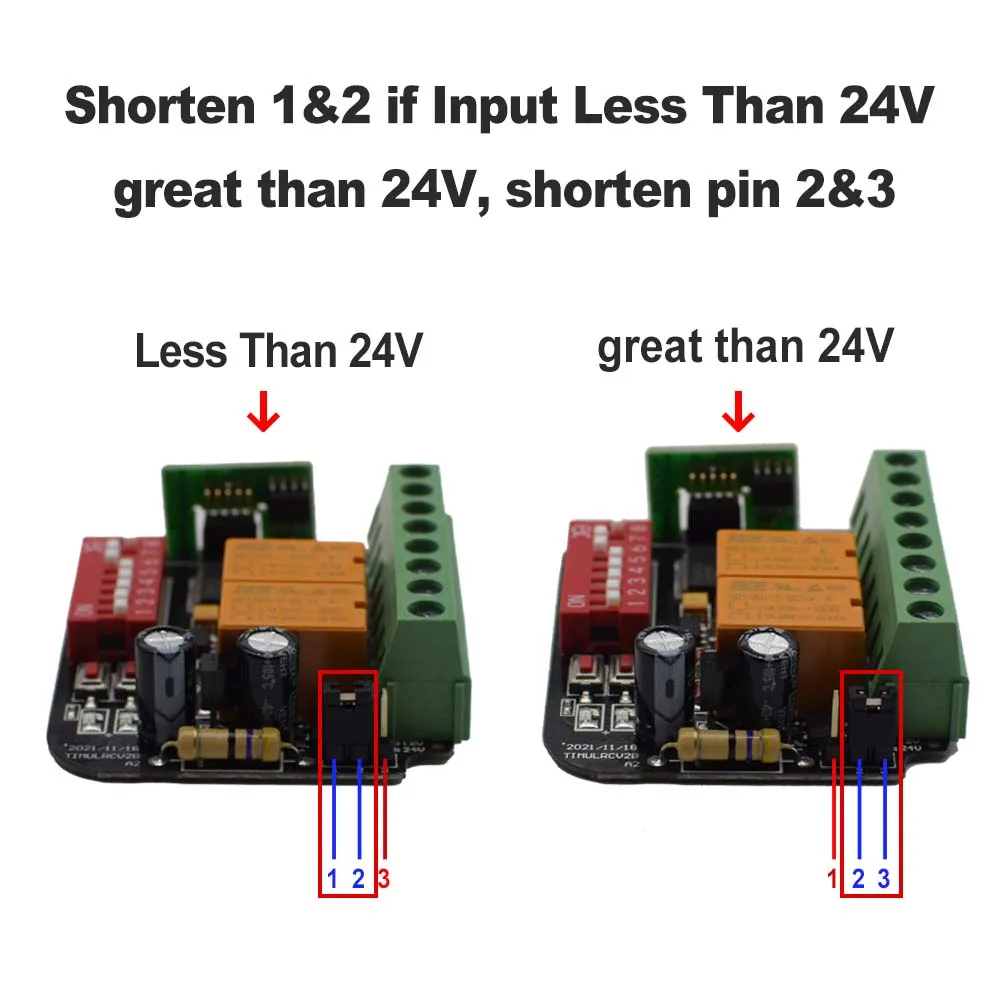

12) Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.

Programming a new remote

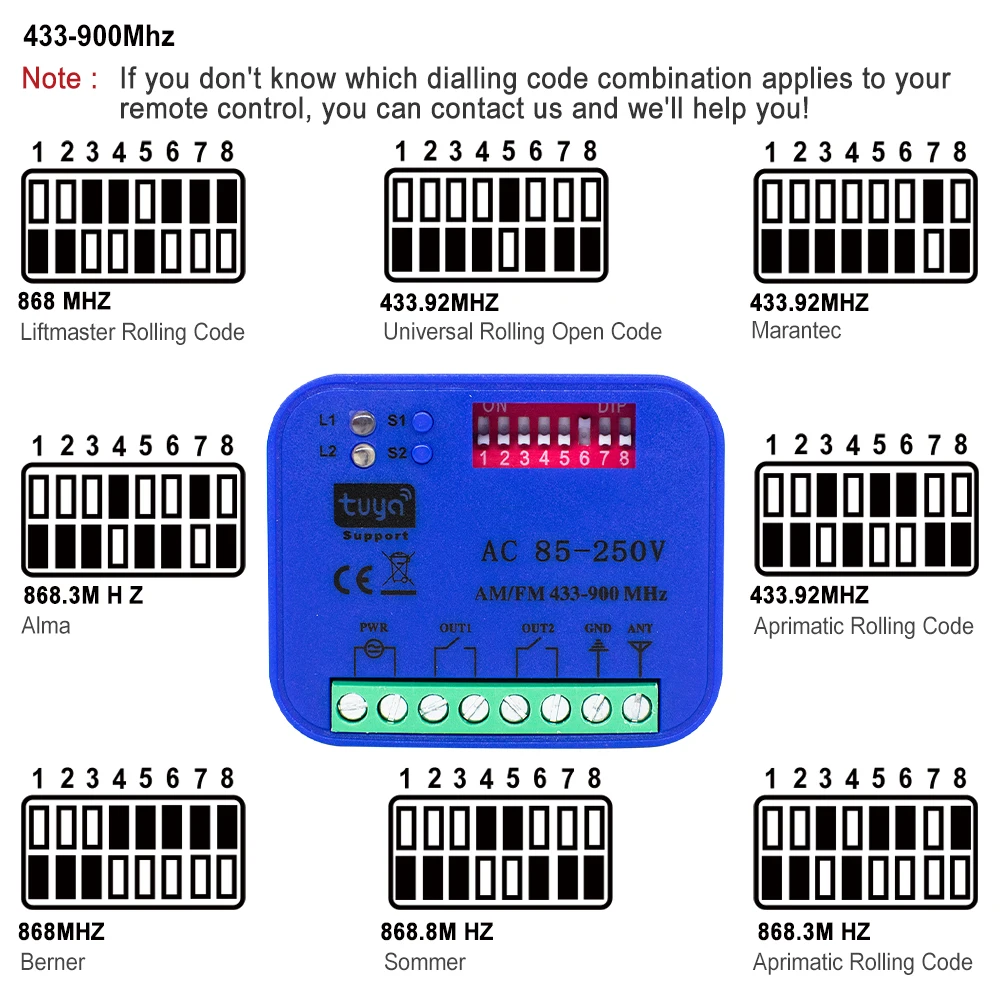

1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz Marantec remote controls, just move Dip-switch 7 UP.

2) Press the learn button. The will LED turn on.

3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.

4) Repeat step 2 for another button.

5)The 2-nd channel programming procedure is the same.

Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered

Specifications Of The Remote Control:

Operating frequency: 433MHz
Power by CR2032 (Battery not included ),
Material: PVC.
Button: 4 buttons
Encoding type: 1527 Learning Code.
Transfers distance: 20-50m

I suggest you buy my remote, the smart receiver is not compatible with clone codes.
